KW Coilover Kit V4 Clubsport for BMW (G29) Z4 M40i / Toyota (A90) Supra w/ Top Mounts

397202CG

Stock: Backorder Available

RRP AU$9,109.00

AU$8,653.55 Inc GST

Save: AU$455.45 - 5% OFF

Description

Description

KW Clubsport coilovers bring KW's racing damper technology to track-day and road use. The base setup is developed on the Nürburgring Nordschleife to cope with crests, kerbs and abrupt elevation changes, and the separately adjustable dampers allow the car to be set up for different circuits and road surfaces. Depending on the application, KW Clubsport aluminium top mounts with camber adjustment are included. This kit is developed for the BMW Z4 M40i (G29) / Toyota Supra (A90).

Key Features

  • Damping adjustment derived from KW motorsport dampers
  • Developed on the Nürburgring Nordschleife
  • Height adjustable within the tested range

Specifications

  • Version: V4 Clubsport
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 35–50 mm
  • Rear lowering: 30–50 mm
  • Front axle load: up to 880 kg
  • Rear axle load: up to 995 kg

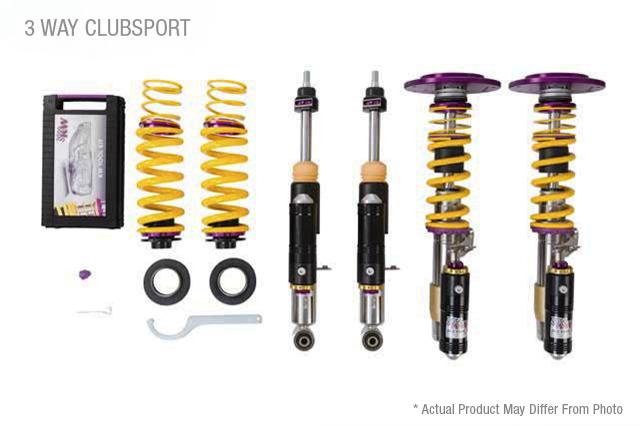

  • Supplied as: Front axle coilover struts including top mounts, rear axle springs with height adjustment + dampers

Fitment

Fitment

Front axle load up to 880 kg; Rear axle load up to 995 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2018+BMWZ4 Roadster (G29) G4ZsDrive 20 iPetrol · 145 kW · 2.0L · 4-cylRear-Wheel Drive2, 37, 67, 97
2018+BMWZ4 Roadster (G29) G4ZsDrive 30 iPetrol · 190 kW · 2.0L · 4-cylRear-Wheel Drive2, 37, 67, 97
2018+BMWZ4 Roadster (G29) G4ZM40 iPetrol · 250 kW · 3.0L · 6-cylRear-Wheel Drive2, 37, 67, 97
2018+BMWZ4 Roadster (G29) G4ZsDrive 20 iPetrol · 120 kW · 2.0L · 4-cylRear-Wheel Drive2, 37, 67, 97
2019+ToyotaSupra (DB_, JBSC, JTSC)3.0 GR (DB41, DB42, DB43, DB45, DB46)Petrol · 250 kW · 3.0L · 6-cylRear-Wheel Drive2, 37, 67, 97
2019+ToyotaSupra (DB_, JBSC, JTSC)2.0 (DB21, DB22, DB23, DB26)Petrol · 190 kW · 2.0L · 4-cylRear-Wheel Drive2, 37, 67, 97
2019+ToyotaSupra (DB_, JBSC, JTSC)2.0 (DB82, DB81, DB86)Petrol · 145 kW · 2.0L · 4-cylRear-Wheel Drive2, 37, 67, 97
2019+ToyotaSupra (DB_, JBSC, JTSC)3.0 GR (DB01, DB02, DB03, DB06, DB92)Petrol · 285 kW · 3.0L · 6-cylRear-Wheel Drive2, 37, 67, 97

Media

Disclaimer

Disclaimer

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 97: Clubsport coilover with top mount: only with front axle top mount available.
