KW Coilover Kit V3 Clubsport for 03/2015+ Mazda Mx-5 IV (ND) w/ Top Mounts

35275815

Stock: Backorder Available

AU$6,899.00 Inc GST

Description

Description

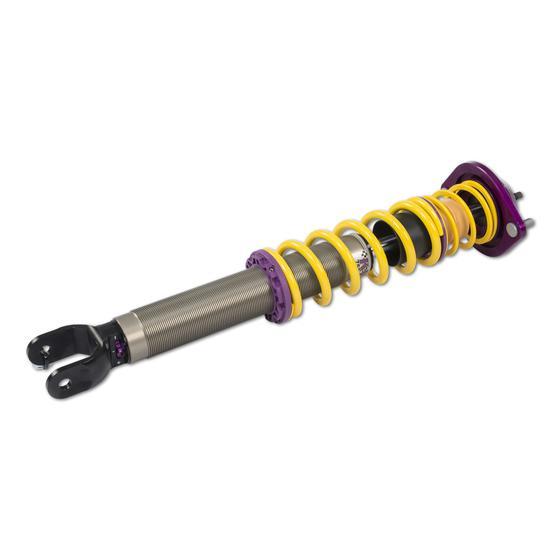

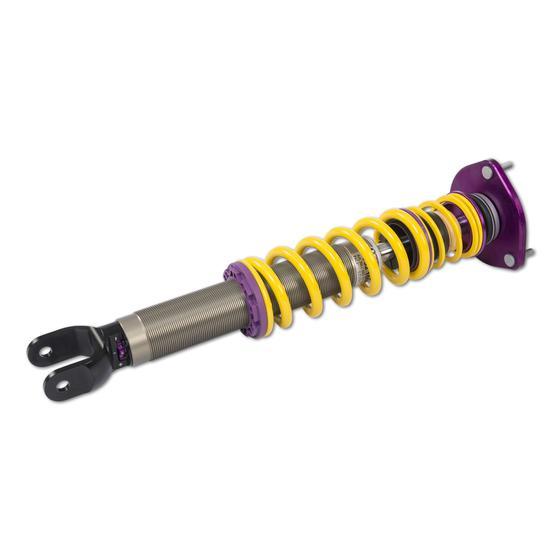

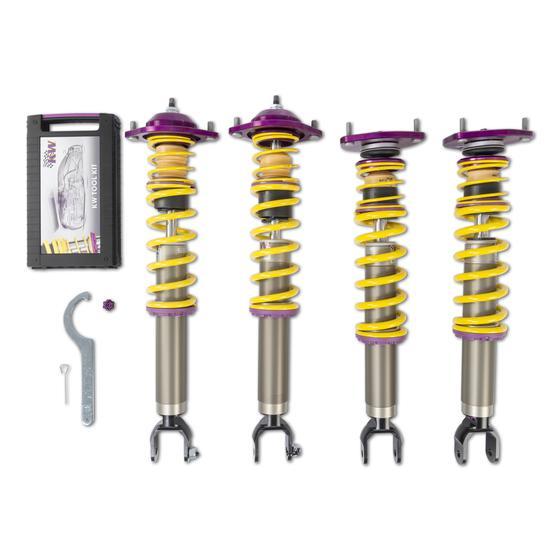

Coilover suspension V3 Clubsport incl. top mounts

The KW Clubsport coilovers utilize the uncompromising transfer of technology from the world of motorsports to track day/street driving.
The KW Clubsport coilovers combine KW's high-end racing technology with maintenance-free KW OEM components and part certificate.

This will provide you the ideal product to take full potential of your sports car during track days, sports car driving clinics, enthusiast drives on Grand Prix circuits and on tracks such as the Nürburgring Nordschleife.


Designed on the toughest race track in the world: The Nürburgring Nordschleife
The KW Clubsport coilovers provide the ability to adjust for different track surfaces, sharp turns and abrupt elevation changes. The KW Clubsport is in its home environment on the famous twists and turns of the 20.8 km long Nürburgring Nordschleife circuit.

As a supporting suspension manufacturer to numerous different racing series. KW had claimed 6 ADAC Zurich 24-hour victories within 10 years at the famous Nürburgring circuit and the ADAC GT Masters 2011 Championship. More then 70 race teams are equipped with KW coilover systems in the VLN Endurance Championship series. These race teams rely on KW's racing expertise and experience for their vehicle setup. This information is mirrored in the development of the KW Clubsport coilover systems.

The KW V3 Clubsports and KW V4 Clubsport provides the user numerous adjustment settings. This allows to user to dial the suspension setup to his/hers driving style and to adjust or match the tire/wheel setup of the vehicle.

Rebound and compression dampening is independently adjustable by hand via the integrated click adjusters. Adjustable top mounts are optional on certain applications.


KW V3 Clubsport Racing Technology
The rebound adjuster knob provides 16 precise clicks to personally dial in your desired vehicle setup. Thus allowing you the possibility to influence wheel/tire loads or take into concern chassis characteristics. Independent from rebound adjustment is the compression dampening, 12 precise adjustment clicks are provided to adjust the low-speed dampening. Most notably used to dial in wheel/tire setup.

These adjustment features allow the user to dial in vehicle weight, wheel/tire combinations, various road surfaces and environmental conditions.

- independently adjustable rebound and compression damping technology
- stainless steel technology "inox-line"
- continuous lowering
- tested adjustment range
- high-quality components for a long-term durability
- adjustable rebound damping with 16 precise clicks
- adjustable compression damping with 12 precise clicks
- unique, independent damping force adjustment

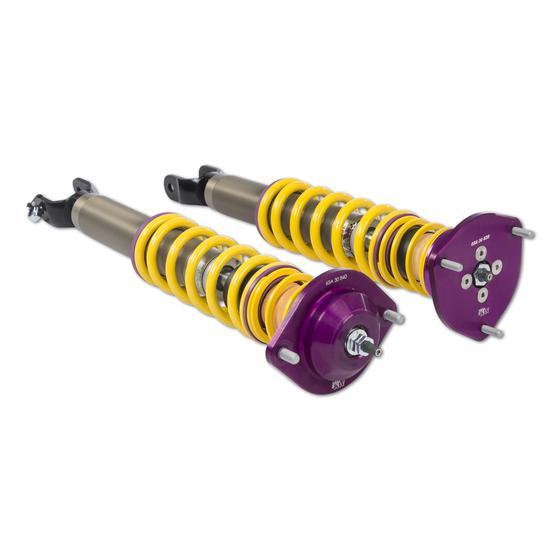

- optional spherical bearing aluminum top mounts


Setup: Application and damper settings
The KW V3 Clubsport coilovers provide the ideal adjustment range for race tracks such as the Nürburgring Nordschleife and other racing circuits.

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
ABARTH124 Spider (348_) NF, NFM 03/2016-1.4 (348)ConvertiblePetrol12513684Rear Wheel Drive2, 67, 90, 98
FIAT124 Spider (348_) 03/2016-1.4ConvertiblePetrol11813684Rear Wheel Drive2, 67, 90, 98
FIAT124 Spider (348_) 03/2016-1.4ConvertiblePetrol12213684Rear Wheel Drive2, 67, 90, 98
FIAT124 Spider (348_) 03/2016-1.4 (348)ConvertiblePetrol10313684Rear Wheel Drive2, 67, 90, 98
MAZDAMX-5 IV (ND) 04/2015-1.5ConvertiblePetrol9614964Rear Wheel Drive2, 67, 90, 98
MAZDAMX-5 IV (ND) 04/2015-1.5 (ND6E)ConvertiblePetrol9714964Rear Wheel Drive2, 67, 90, 98
MAZDAMX-5 IV (ND) 04/2015-2.0ConvertiblePetrol11419984Rear Wheel Drive2, 67, 90, 98
MAZDAMX-5 IV (ND) 04/2015-2.0ConvertiblePetrol11819984Rear Wheel Drive2, 67, 90, 98
MAZDAMX-5 IV (ND) 04/2015-2.0 (ND6E)ConvertiblePetrol13519984Rear Wheel Drive2, 67, 90, 98
MAZDAMX-5 RF Targa (ND) 10/2016-1.5TargaPetrol9614964Rear Wheel Drive2, 67, 90, 98
MAZDAMX-5 RF Targa (ND) 10/2016-1.5 (ND6E)TargaPetrol9714964Rear Wheel Drive2, 67, 90, 98
MAZDAMX-5 RF Targa (ND) 10/2016-2.0TargaPetrol11619984Rear Wheel Drive2, 67, 90, 98
MAZDAMX-5 RF Targa (ND) 10/2016-2.0TargaPetrol11819984Rear Wheel Drive2, 67, 90, 98
MAZDAMX-5 RF Targa (ND) 10/2016-2.0 (ND6E)TargaPetrol13519984Rear Wheel Drive2, 67, 90, 98

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 98: Clubsport coilover with top mount: with front- and rear axle top mount available
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
  • Note 90: Aluminium suspensions struts
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
