Wheel Spacer System DZX+ 15mm Axle 4- and 5-hole / 57.1 with 13mm wheel hub ext

56015040
ST Suspension

Stock: Backorder Available

AU$349.00 Inc GST

Description

Description

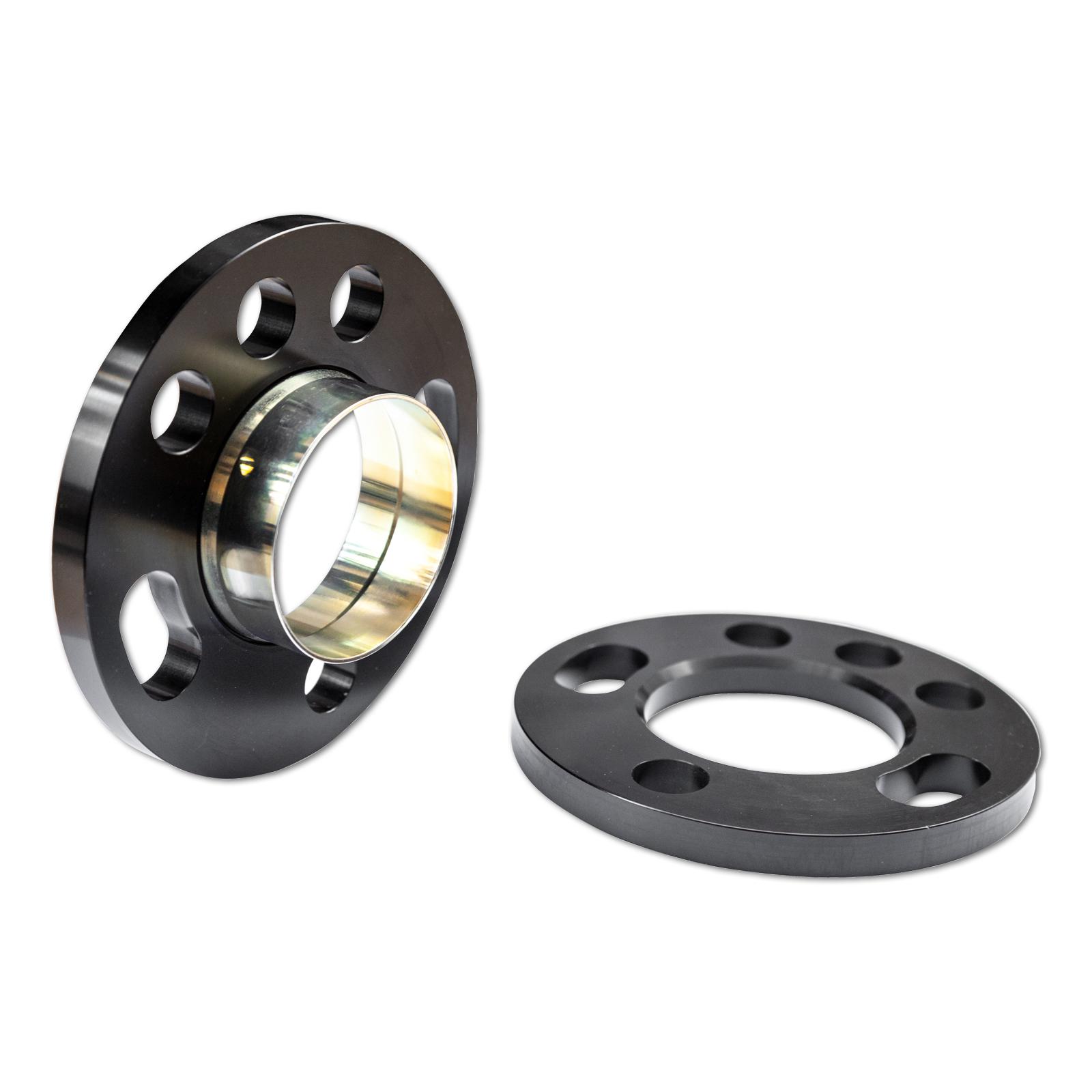

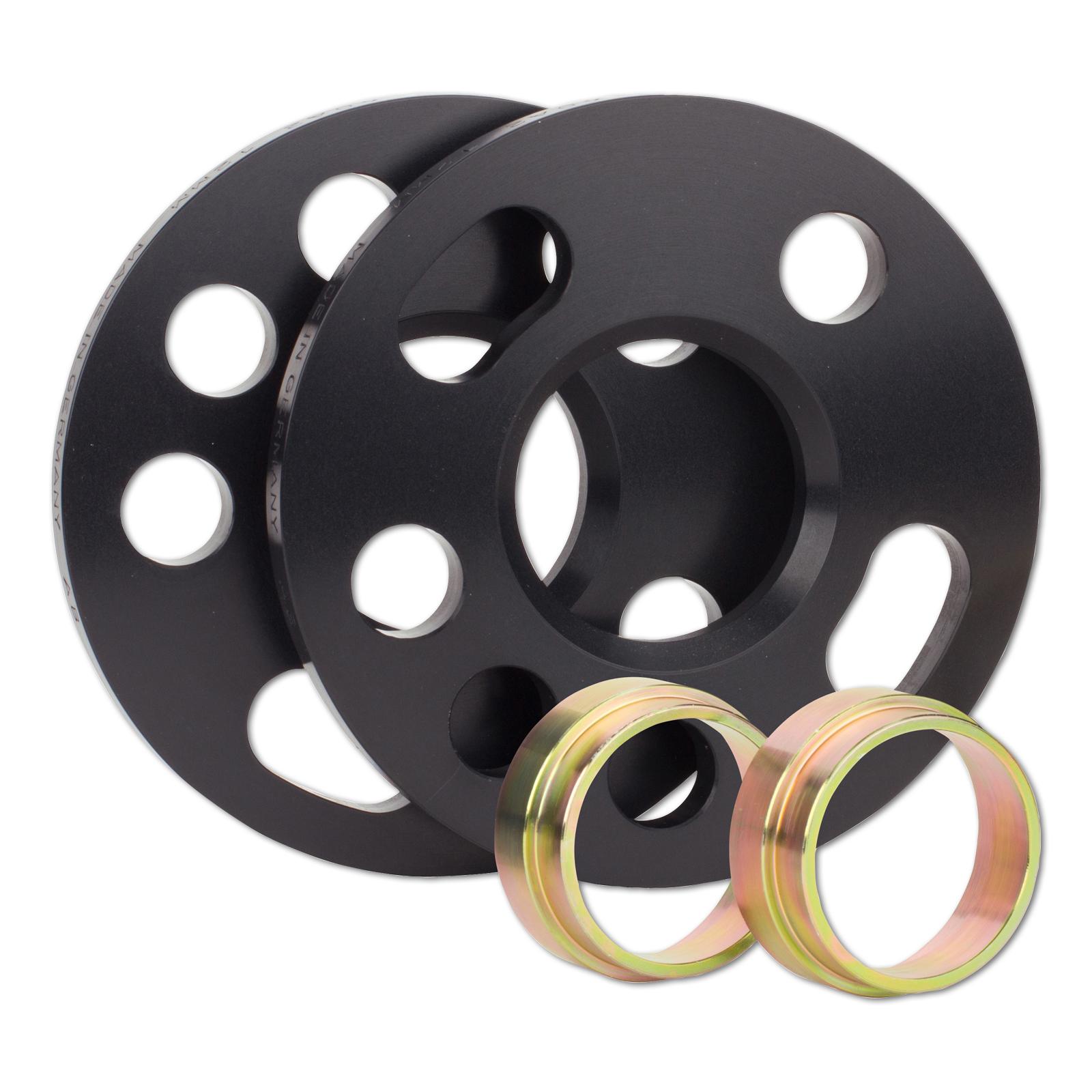

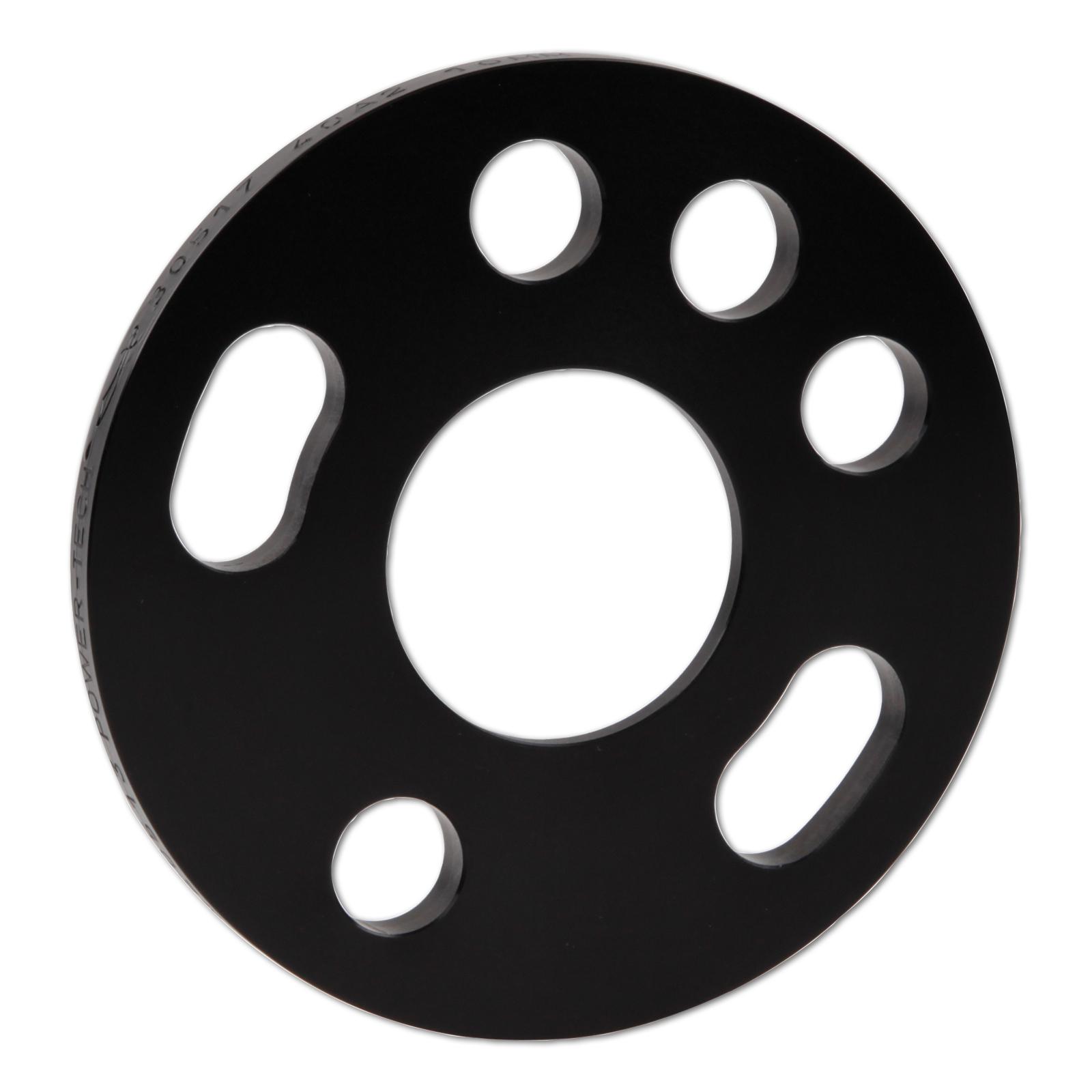

Wheel Spacer System DZX+ 15mm Axle 4- and 5-hole / 57,1 with 13mm wheel hub extension

System DZX+ 5, 7.5 and 10mm per wheel

DZX bolt-thorugh system with polyamide adapter ring and additional centering sleeve for wheel hub extension. This spacer system is used for cars with construction related issues of the wheel centering. With the DZX + system, the wheel is no longer centered on the wheel spacer, as the wheel hub centering of the axle is extended and so wider spacer widths can be used. Longer wheel bolts have to be ordered separately.

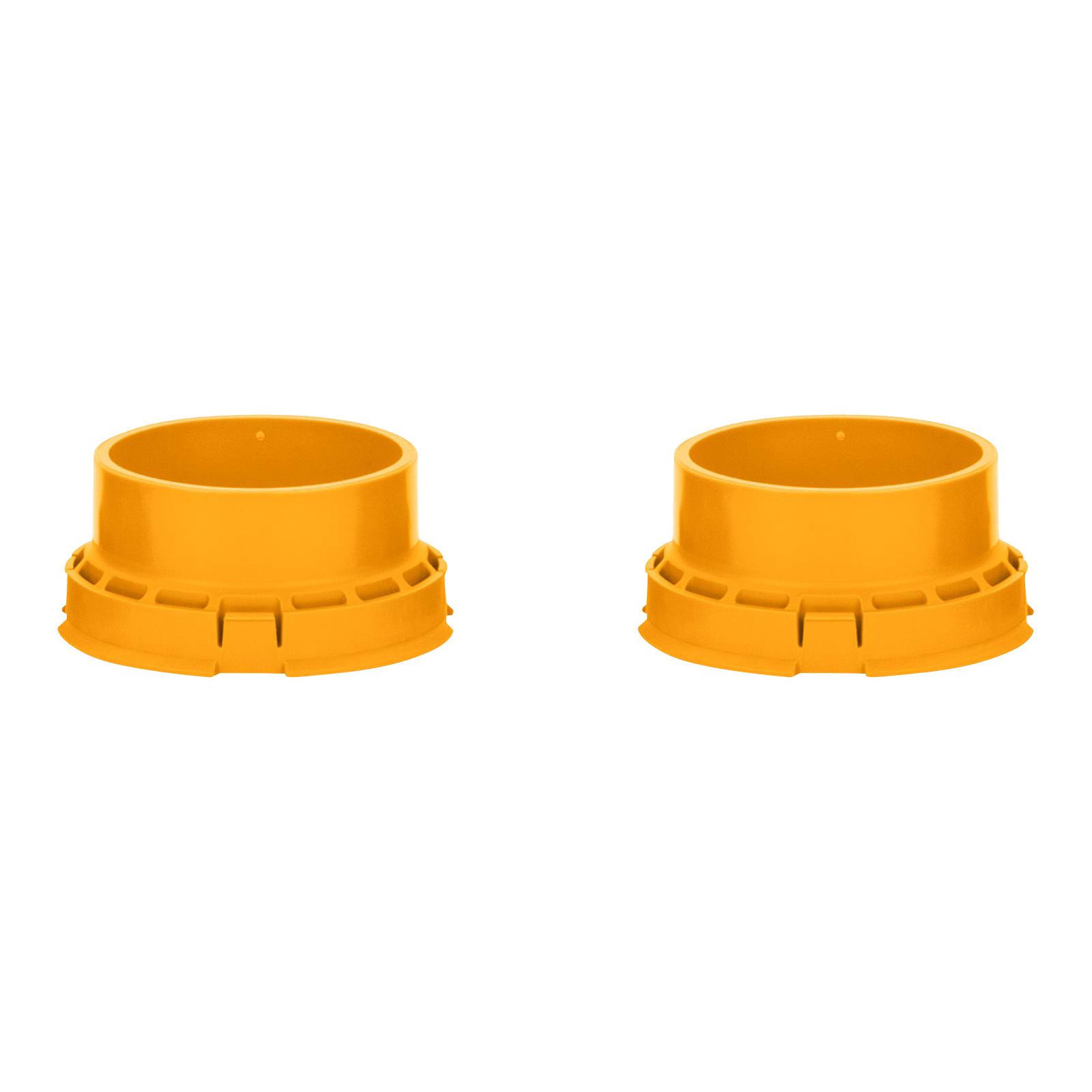

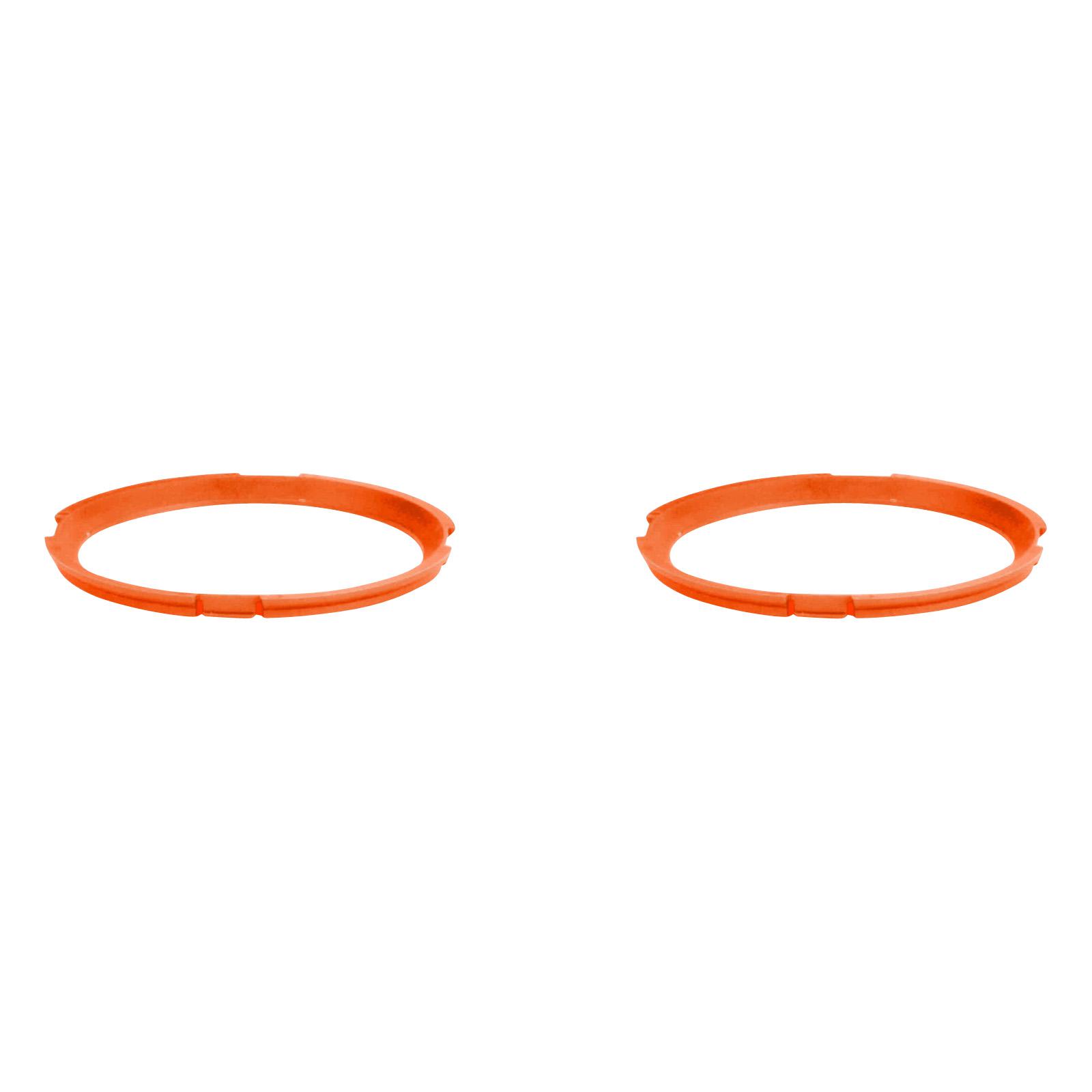

- Scope of delivery: 2 spacer discs system DZX, 2 DZX adapter rings narrow, 2 centering sleeves
- Made of high quality aluminium
- Black anodized for maximum corrosion protection
- Dynamic car appearance
- Improved driving dynamics thanks to wider track width
- Matching wheel bolts available in black and silver

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
AUDIA3 Saloon (8V) 8VS, 8VM 05/2013-10/2020RS3 quattroSaloonPetrol29424805All-wheel Drive325, 325, 325
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/2020RS3 quattroHatchbackPetrol27024805All-wheel Drive325, 325, 325
AUDIA3 Sportback (8V) 8VA, 8VF 09/2012-10/2020RS3 quattroHatchbackPetrol29424805All-wheel Drive325, 325, 325
AUDIA3 Sportback (GY) 8YA 11/2019-S3 quattroHatchbackPetrol22819844All-wheel Drive325, 325, 325
AUDIA3 Sportback (GY) 8YA 11/2019-S3 quattroHatchbackPetrol24519844All-wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-2.5 RS quattroSUVPetrol29424805All-wheel Drive325, 325, 325, 334, 334, 334
AUDIQ3 (F3) F3B 07/2018-35 TDISUVDiesel11019684Front Wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-35 TDI quattroSUVDiesel11019684All-wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-35 TFSISUVPetrol11013954Front Wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-35 TFSISUVPetrol11014954Front Wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-35 TFSI Mild HybridSUVPetrol/Electric11014984Front Wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-40 TDI quattroSUVDiesel14019684All-wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-40 TDI quattroSUVDiesel14719684All-wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-40 TFSI quattroSUVPetrol13719844All-wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-40 TFSI quattroSUVPetrol14019844All-wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-45 TFSISUVPetrol18019844All-wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-45 TFSI eSUVPetrol/Electric11013954Front-Wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-45 TFSI quattroSUVPetrol16919844All-wheel Drive325, 325, 325
AUDIQ3 (F3) F3B 07/2018-45 TFSI quattroSUVPetrol17019844All-wheel Drive325, 325, 325
AUDIQ3 Sportback (F3N) 06/2019-2.0 40 TFSI quattroSUVPetrol13219844All-wheel Drive325, 325, 325
AUDIQ3 Sportback (F3N) 06/2019-2.5 RS quattroSUVPetrol29424805All-wheel Drive325, 325, 325, 334, 334, 334
AUDIQ3 Sportback (F3N) 06/2019-35 TDISUVDiesel11019684Front Wheel Drive325, 325, 325
AUDIQ3 Sportback (F3N) 06/2019-35 TDI quattroSUVDiesel11019684All-wheel Drive325, 325, 325
AUDIQ3 Sportback (F3N) 06/2019-35 TFSISUVPetrol11014954Front Wheel Drive325, 325, 325
AUDIQ3 Sportback (F3N) 06/2019-35 TFSI Mild HybridSUVPetrol/Electric11014984Front Wheel Drive325, 325, 325
AUDIQ3 Sportback (F3N) 06/2019-40 TDI quattroSUVDiesel14019684All-wheel Drive325, 325, 325
AUDIQ3 Sportback (F3N) 06/2019-40 TDI quattroSUVDiesel14719684All-wheel Drive325, 325, 325
AUDIQ3 Sportback (F3N) 06/2019-40 TFSI quattroSUVPetrol14019844All-wheel Drive325, 325, 325
AUDIQ3 Sportback (F3N) 06/2019-45 TFSISUVPetrol18019844All-wheel Drive325, 325, 325
AUDIQ3 Sportback (F3N) 06/2019-45 TFSI eSUVPetrol/Electric11013954Front-Wheel Drive325, 325, 325
AUDIQ3 Sportback (F3N) 06/2019-45 TFSI quattroSUVPetrol16919844All-wheel Drive325, 325, 325
AUDITT (FV) FV3, 8J, 8J1 07/2014-2.5 RS quattroCoupePetrol29424805All-wheel Drive325, 325, 325
AUDITT Roadster (FV) FV9, 8J, 8J1 11/2014-2.5 RS quattroConvertiblePetrol29424805All-wheel Drive325, 325, 325
CUPRALEON 10/2020-1.4 e-HYBRIDHatchbackPetrol/Electric15013954Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON 10/2020-1.5 e-HYBRIDHatchbackPetrol/Electric15014984Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON 10/2020-1.5 eTSIHatchbackPetrol/Electric11014984Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON 10/2020-1.5 TSIHatchbackPetrol11014984Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON 10/2020-2.0 TDIHatchbackDiesel11019684Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON 10/2020-2.0 TSIHatchbackPetrol14019844Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON 10/2020-2.0 TSIHatchbackPetrol18019844Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON 10/2020-2.0 TSIHatchbackPetrol22119844Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON 10/2020-e-HYBRIDHatchbackPetrol/Electric18013954Front Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-1.4 e-HYBRIDEstatePetrol/Electric15013954Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-1.5 eTSIEstatePetrol/Electric11014984Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-1.5 TSIEstatePetrol11014984Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-2.0 TDIEstateDiesel11019684Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-2.0 TDI 4DriveEstateDiesel11019684All-wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-2.0 TSIEstatePetrol14019844Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-2.0 TSIEstatePetrol18019844Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-2.0 TSIEstatePetrol22119844Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-2.0 TSI 4DriveEstatePetrol22819844All-wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-2.0 VZ 4DriveEstatePetrol24519844All-wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-e-HYBRIDEstatePetrol/Electric15014984Front-Wheel Drive312, 312, 312, 325, 325, 325
CUPRALEON Sportstourer 10/2020-e-HYBRIDEstatePetrol/Electric18013954Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-1.0 TSIHatchbackPetrol669993Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-1.0 TSIHatchbackPetrol819993Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-1.0 TSI Mild HybridHatchbackPetrol/Electric819993Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-1.4 TSI e-HybridHatchbackPetrol/Electric15013954Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-1.5 eTSIHatchbackPetrol/Electric8514984Front-Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-1.5 eTSIHatchbackPetrol/Electric11014984Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-1.5 TGI CNGHatchbackPetrol/Compressed Natural Gas (CNG)9614984Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-1.5 TSIHatchbackPetrol8514984Front-Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-1.5 TSIHatchbackPetrol9614954Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-1.5 TSIHatchbackPetrol11014954Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-2.0 TDIHatchbackDiesel8519684Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-2.0 TDIHatchbackDiesel11019684Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON (KL1) 11/2019-2.0 TFSIHatchbackPetrol14019844Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-1.0 TSIEstatePetrol669993Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-1.0 TSIEstatePetrol819993Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-1.0 TSI Mild HybridEstatePetrol/Electric819993Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-1.4 TSI e-HybridEstatePetrol/Electric15013954Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-1.5 eTSIEstatePetrol/Electric8514984Front-Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-1.5 eTSIEstatePetrol/Electric11014984Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-1.5 TGiEstatePetrol/Compressed Natural Gas (CNG)9614984Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-1.5 TSIEstatePetrol8514984Front-Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-1.5 TSIEstatePetrol9614954Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-1.5 TSIEstatePetrol11014954Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-2.0 TDIEstateDiesel8519684Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-2.0 TDIEstateDiesel11019684Front Wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-2.0 TDIEstateDiesel11019684All-wheel Drive312, 312, 312, 325, 325, 325
SEATLEON Sportstourer (KL8) 03/2020-2.0 TFSIEstatePetrol14019844Front Wheel Drive312, 312, 312, 325, 325, 325
SKODAYETI (5L) 05/2009-12/20171.4 TSI 4x4SUVPetrol11013954All-wheel Drive308, 308, 308, 325, 325, 325
SKODAYETI (5L) 05/2009-12/20171.8 TSI 4x4SUVPetrol11217984All-wheel Drive308, 308, 308, 325, 325, 325
SKODAYETI (5L) 05/2009-12/20171.8 TSI 4x4SUVPetrol11817984All-wheel Drive308, 308, 308, 325, 325, 325
SKODAYETI (5L) 05/2009-12/20172.0 TDI 4x4SUVDiesel8119684All-wheel Drive308, 308, 308, 325, 325, 325
SKODAYETI (5L) 05/2009-12/20172.0 TDI 4x4SUVDiesel10319684All-wheel Drive308, 308, 308, 325, 325, 325
SKODAYETI (5L) 05/2009-12/20172.0 TDI 4x4SUVDiesel11019684All-wheel Drive308, 308, 308, 325, 325, 325
SKODAYETI (5L) 05/2009-12/20172.0 TDI 4x4SUVDiesel12519684All-wheel Drive308, 308, 308, 325, 325, 325
VWARTEON (3H, 3H7) 04/2017-1.4 eHybridHatchbackPetrol/Electric11513954Front Wheel Drive325, 325, 325
VWARTEON (3H, 3H7) 04/2017-1.5 TSiHatchbackPetrol11014954Front Wheel Drive325, 325, 325
VWARTEON (3H, 3H7) 04/2017-2.0 TDIHatchbackDiesel11019684Front Wheel Drive325, 325, 325
VWARTEON (3H, 3H7) 04/2017-2.0 TDIHatchbackDiesel13019684Front Wheel Drive325, 325, 325
VWARTEON (3H, 3H7) 04/2017-2.0 TDIHatchbackDiesel14019684Front Wheel Drive325, 325, 325
VWARTEON (3H, 3H7) 04/2017-2.0 TDIHatchbackDiesel14719684Front Wheel Drive325, 325, 325
VWARTEON (3H, 3H7) 04/2017-2.0 TDI 4motionHatchbackDiesel14019684All-wheel Drive325, 325, 325
VWARTEON (3H, 3H7) 04/2017-2.0 TDI 4motionHatchbackDiesel14719684All-wheel Drive325, 325, 325
VWARTEON (3H, 3H7) 04/2017-2.0 TDI 4motionHatchbackDiesel17619684All-wheel Drive325, 325, 325
VWARTEON (3H, 3H7) 04/2017-2.0 TSIHatchbackPetrol14019844Front Wheel Drive325, 325, 325
VWARTEON (3H, 3H7) 04/2017-2.0 TSIHatchbackPetrol22419844Front-Wheel Drive325, 325, 325
VWARTEON (3H, 3H7) 04/2017-2.0 TSi 4motionHatchbackPetrol20019844All-wheel Drive325, 325, 325

Media

Media

Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 325: Steel cores have to be mounted for extending the centering. If the car is serially equipped with grease caps, they have to be removed before mounting the steel core and fixed to the cores afterwards. The steel cores are included in the scope of delivery
  • Note 334: DANGER! When combined with lowering, the wheel cover is necessary by raising the fenders.
  • Note 312: Only for front axle
  • Note 308: Only for rear axle
