ST Wheel Spacer System DZX+ 10mm per Axle 5x112/66.6 w/ 15.5mm Wheel Hub Extension - Front Axle

56015009

Stock: Backorder Available

RRP AU$369.00

AU$350.55 Inc GST

Save: AU$18.45 - 5% OFF

Description

Description

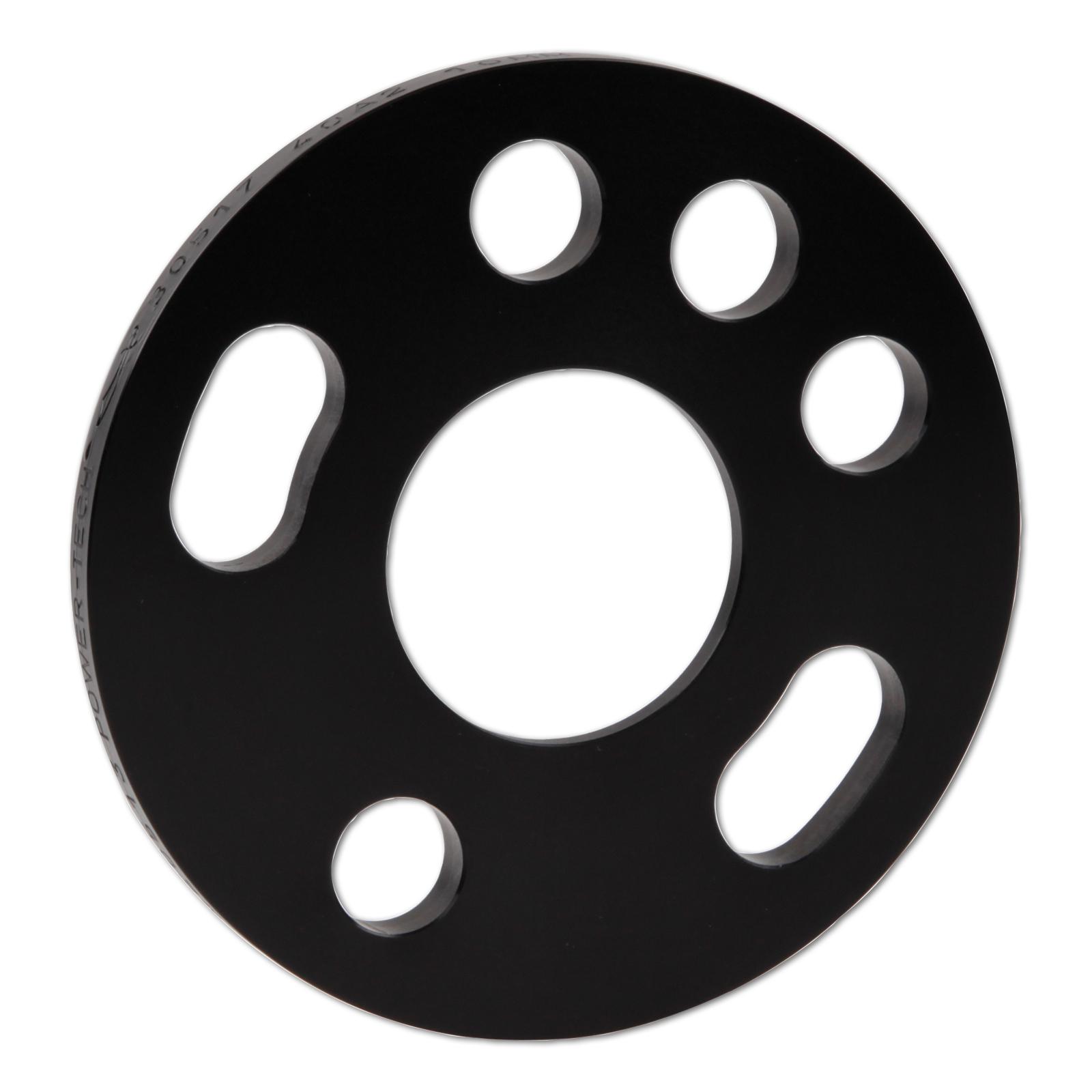

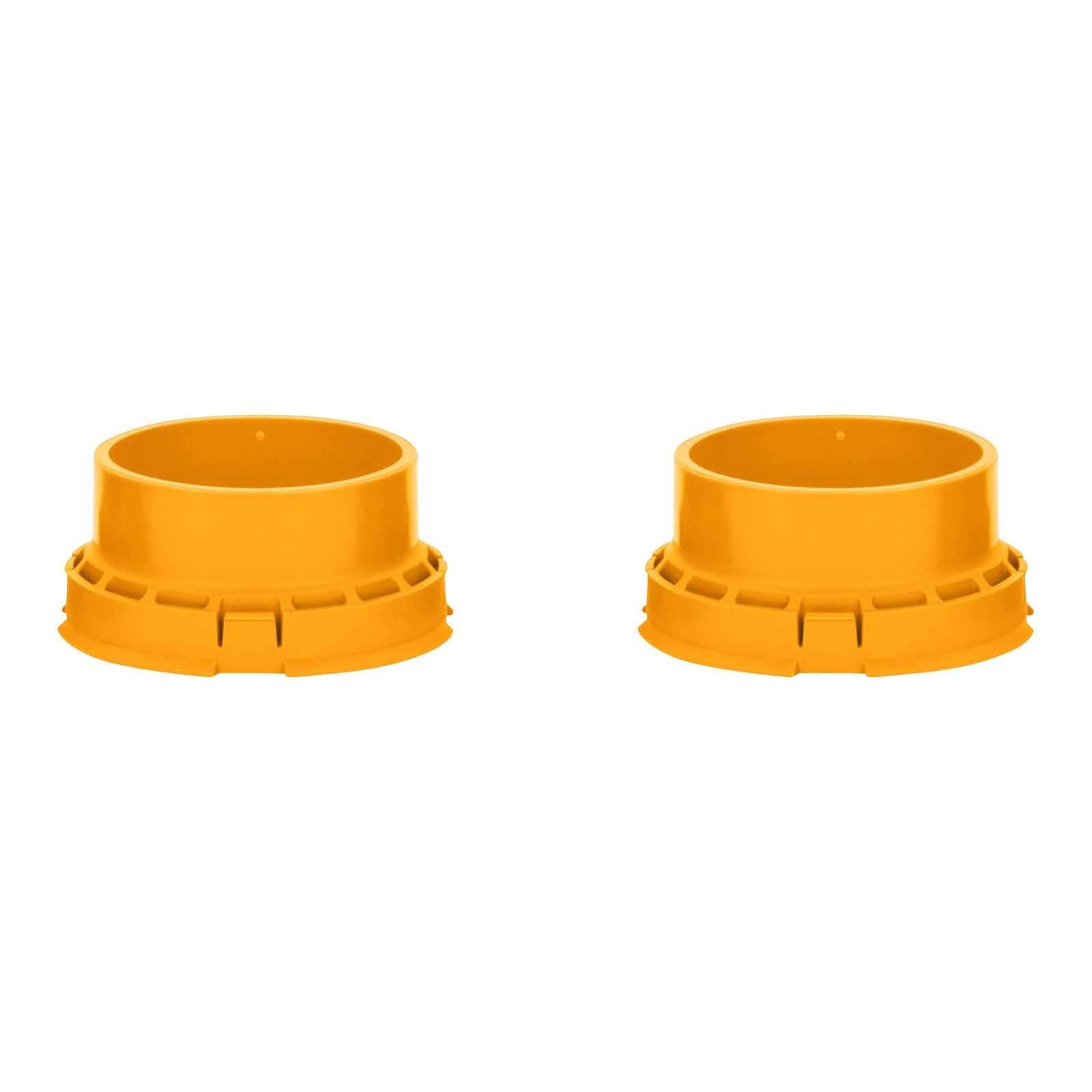

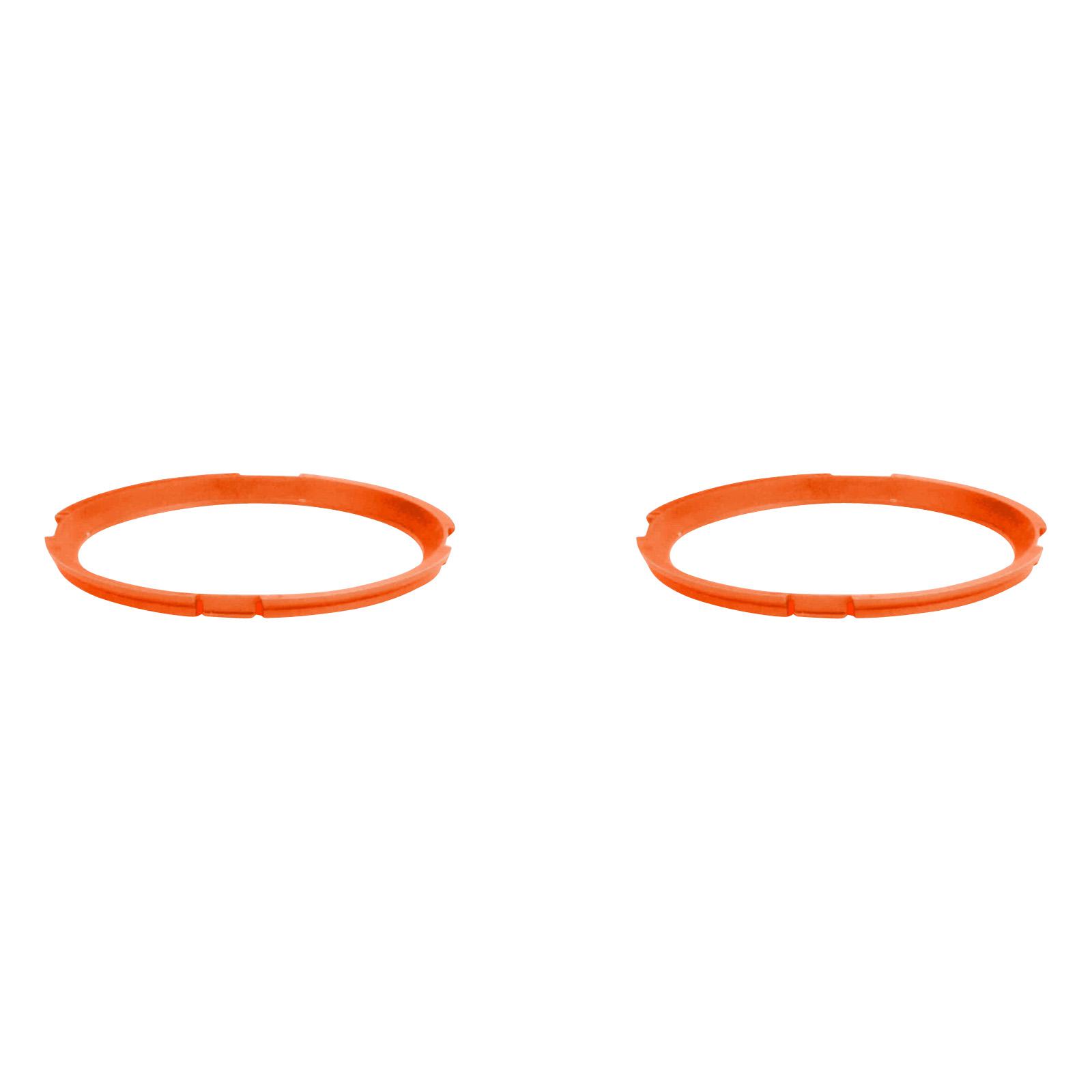

ST's DZX+ is a bolt-through system with a polyamide adapter ring and an additional centring sleeve that extends the vehicle's hub. It is used where the car's design limits wheel centring: the wheel centres on the extended hub rather than the spacer, allowing wider spacers. Longer wheel bolts are ordered separately.

Key Features

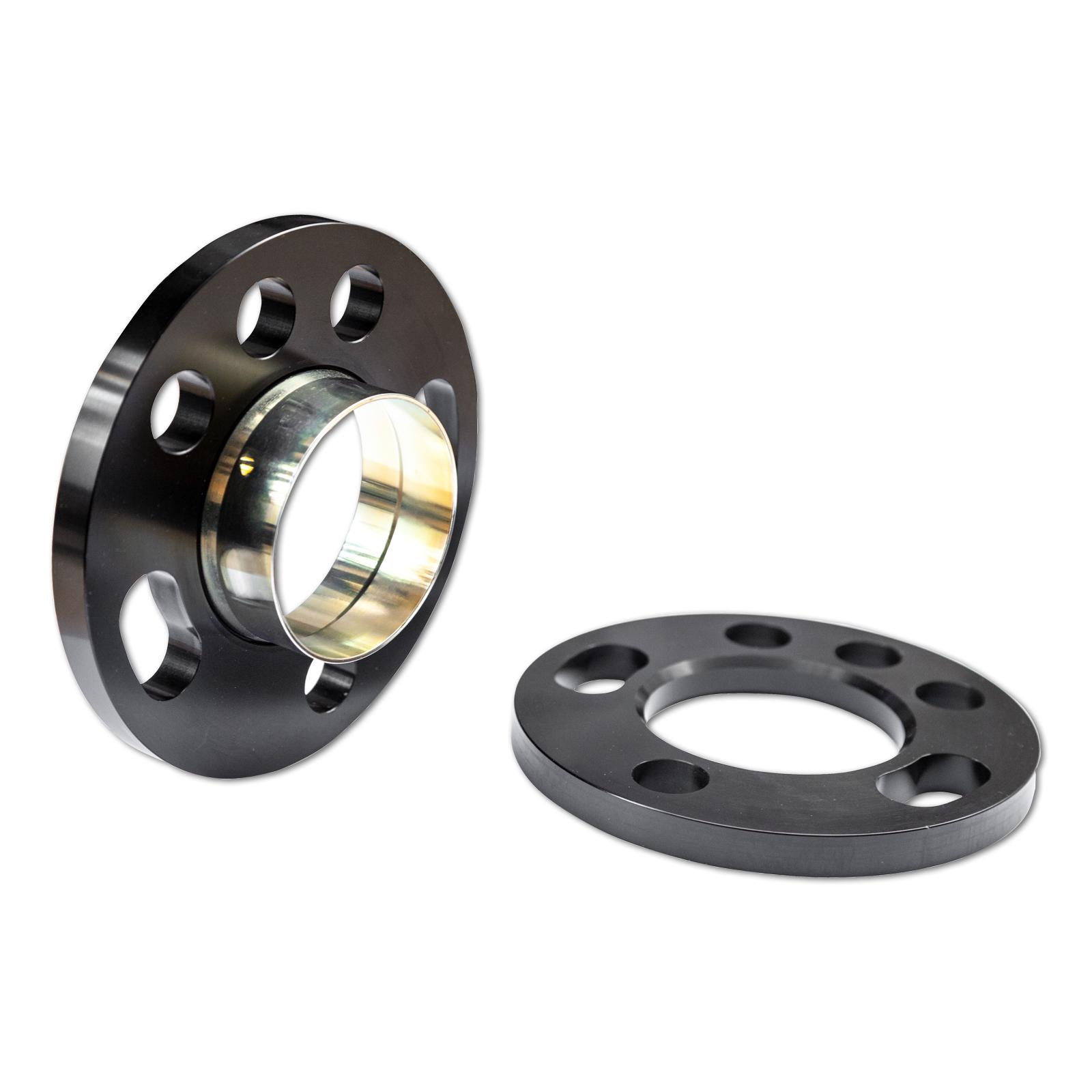

  • Hub extension centring sleeves
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 10 mm per axle (5 mm per wheel)
  • Bolt pattern (PCD): 5x112
  • Centre bore: 66.6 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel bolts, M14x1.5
  • Position: Front axle
  • Material: Aluminium

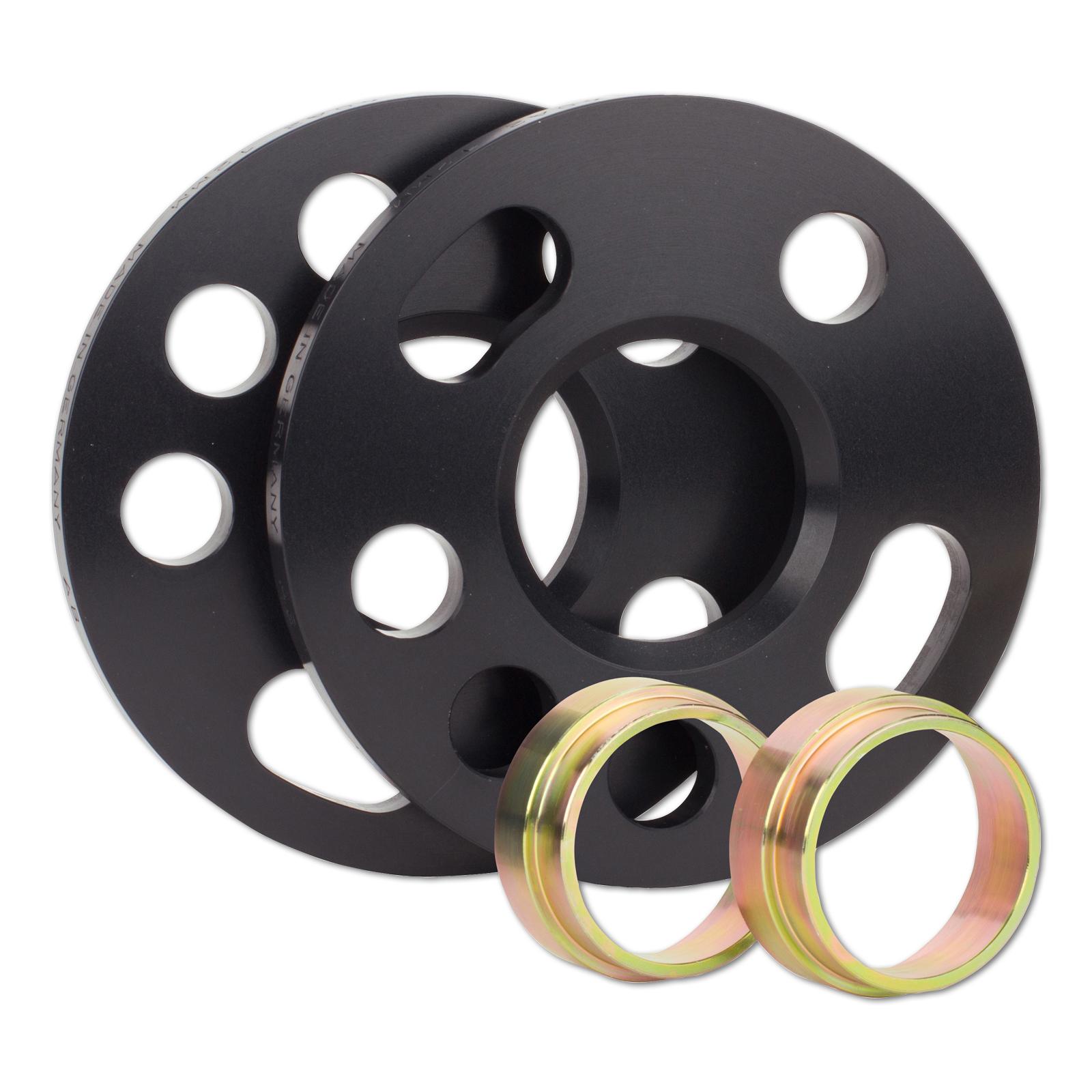

  • Supplied as: 2 wheel spacer discs, 2 adapters, 2 centring sleeves
  • Hub extension length: 15.5 mm

Fitment

Fitment

References 312, 325. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x112
Hub bore66.6mm
Width per axle10mm
Hub extension15.5mm
SystemDZX+
ThreadBolt: M14x1.5x27 Ball R14, 17mm wrench size
Wheel offset limit28
MaterialAluminium
Supplied as2 wheel spacer discs, 2 adapters, 2 centering sleeves

Media

Disclaimer

Disclaimer

  • Note 308: Only for rear axle.
  • Note 312: Only for front axle.
  • Note 322: Not for vehicles with 4WD.
  • Note 325: Steel cores have to be mounted for extending the centering. If the car is serially equipped with grease caps, they have to be removed before mounting the steel core and fixed to the cores afterwards. The steel cores are included in the scope of delivery.
