Wheel Spacer System AZX 50mm Axle 5x108

56060058
ST Suspension

Stock: Backorder Available

AU$409.00 Inc GST
  • ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.
  • NOT in combination with steel wheels

Description

Description

Wheel Spacer System AZX 50mm Axle 5x108

System - AZX

25, 30 or 35 mm per wheel

Screw on system with plastic adapter rings for a double centering for vehicles with wheel bolts AND wheel studs. By the double centering, the system guarantees an optimal run. With replaceable plastic adapter rings, different hub centerings can be covered. The wheel spacer has to be attached to the wheel hub by the included mounting material. For vehicles with studs, the ST double threaded studs are used to mount the rim with the original nuts on the wheel spacers. For vehicles with wheel bolts, M14x1,5 screws are used to mount the rim on the wheel spacer. By using ST double threaded studs, also a refitting from wheel bolts to studs is possible.

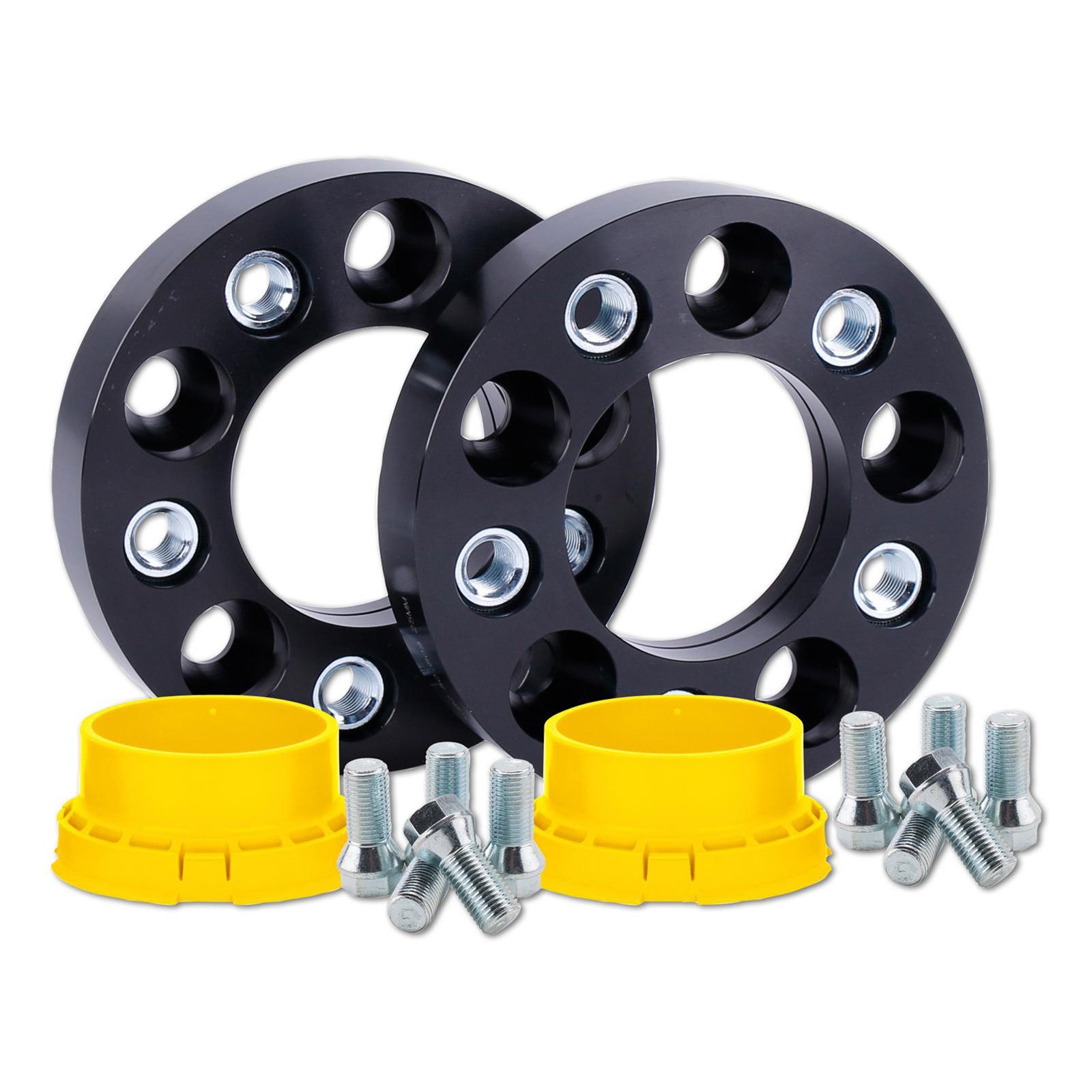

- Delivery content: 2 wheel spacers System AZX, 2 adapter rings System AZX, including mounting material
- Made of high quality aluminum
- Black anodized for perfect corrosion protection
- Dynamical performance of the vehicle / perfect appearance
- Improved driving dynamics by larger track width
- Retrofitting from wheel bolts to wheel studs possible by the double threaded studs

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
FORDGALAXY II (WA6) 05/2006-06/20151.6 EcoBoostMPVPetrol11815964Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20151.6 TDCiMPVDiesel8515604Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20151.8 TDCiMPVDiesel7417534Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20151.8 TDCiMPVDiesel9217534Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.0MPVPetrol10719994Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.0 EcoBoostMPVPetrol14619994Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.0 EcoBoostMPVPetrol14919994Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.0 FlexifuelMPVPetrol/Ethanol10719994Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.0 TDCiMPVDiesel8519974Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.0 TDCiMPVDiesel9619974Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.0 TDCiMPVDiesel10019974Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.0 TDCiMPVDiesel10319974Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.0 TDCiMPVDiesel12019974Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.2 TDCiMPVDiesel12921794Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.2 TDCiMPVDiesel14721794Front Wheel Drive321
FORDGALAXY II (WA6) 05/2006-06/20152.3MPVPetrol11822614Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-1.5 EcoBoostMPVPetrol11814994Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-1.5 EcoBoostMPVPetrol12114994Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 EcoBlueMPVDiesel8819954Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 EcoBlueMPVDiesel11019954Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 EcoBlueMPVDiesel14019954Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 EcoBlue 4x4MPVDiesel11019954All-wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 EcoBlue 4x4MPVDiesel14019954All-wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 EcoBlue Bi-TurboMPVDiesel17619954Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 EcoBoostMPVPetrol17619994Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 TDCiMPVDiesel8819974Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 TDCiMPVDiesel11019974Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 TDCiMPVDiesel13219974Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 TDCi 4x4MPVDiesel11019974All-wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 TDCi 4x4MPVDiesel13219974All-wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.0 TDCi Bi-TurboMPVDiesel15419974Front Wheel Drive321
FORDGALAXY III (WA6) 01/2015-2.5 FHEVMPVPetrol/Electric14024884Front-Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20141.6 EcoBoostMPVPetrol11815964Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20141.6 TDCiMPVDiesel8515604Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20141.8 TDCiMPVDiesel7417534Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20141.8 TDCiMPVDiesel9217534Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.0MPVPetrol10719994Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.0 EcoBoostMPVPetrol14619994Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.0 EcoBoostMPVPetrol14919994Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.0 EcoBoostMPVPetrol17619994Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.0 FlexifuelMPVPetrol/Ethanol10719994Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.0 TDCiMPVDiesel8519974Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.0 TDCiMPVDiesel9619974Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.0 TDCiMPVDiesel10019974Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.0 TDCiMPVDiesel10319974Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.0 TDCiMPVDiesel12019974Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.2 TDCiMPVDiesel12921794Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.2 TDCiMPVDiesel14721794Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.3MPVPetrol11822614Front Wheel Drive321
FORDS-MAX I (WA6) 05/2006-12/20142.5 STMPVPetrol16225215Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-1.5 EcoBoostMPVPetrol11814984Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-1.5 EcoBoostMPVPetrol12114994Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 EcoBlueMPVDiesel8819954Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 EcoBlueMPVDiesel11019954Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 EcoBlueMPVDiesel14019954Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 EcoBlue 4x4MPVDiesel11019954All-wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 EcoBlue 4x4MPVDiesel14019954All-wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 EcoBlue BI-TurboMPVDiesel17619954Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 EcoBoostMPVPetrol17619994Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 TDCiMPVDiesel8819974Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 TDCiMPVDiesel11019974Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 TDCiMPVDiesel13219974Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 TDCi 4x4MPVDiesel11019974All-wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 TDCi 4x4MPVDiesel13219974All-wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.0 TDCi BI-TurboMPVDiesel15419974Front Wheel Drive321
FORDS-MAX II (WA6) 01/2015-2.5 FHEVMPVPetrol/Electric14024884Front-Wheel Drive321
FORD USAEDGE (SBF) 01/2014-2.0SUVPetrol18319994Front-Wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.0SUVPetrol18619994Front-Wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.0 AWDClosed Off-Road VehiclePetrol18319994All-wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.0 AWDSUVPetrol18619994All-wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.0 EcoBlueSUVDiesel11019954Front Wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.0 EcoBlue AWDSUVDiesel14019954All-wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.0 EcoBlue AWDSUVDiesel17519954All-wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.0 TDCi AWDSUVDiesel13219974All-wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.0 TDCi Bi-Turbo AWDSUVDiesel15419974All-wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.7Closed Off-Road VehiclePetrol23526946Front Wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.7Closed Off-Road VehiclePetrol23926946Front Wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.7 AWDClosed Off-Road VehiclePetrol23526946All-wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.7 AWDClosed Off-Road VehiclePetrol23926946All-wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-2.7 AWDSUVPetrol25026946All-wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-3.5Closed Off-Road VehiclePetrol20834966Front Wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-3.5Closed Off-Road VehiclePetrol21334966Front Wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-3.5 AWDClosed Off-Road VehiclePetrol20834966All-wheel Drive317, 321, 329
FORD USAEDGE (SBF) 01/2014-3.5 AWDClosed Off-Road VehiclePetrol21334966All-wheel Drive317, 321, 329
JAGUARE-PACE (X540, DF) 09/2017-1.5 P160 MHEVSUVPetrol/Electric11814973Front Wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-1.5 P300e Plug-in Hybrid AWDSUVPetrol/Electric14714973All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-1.5 P300e Plug-in Hybrid AWDSUVPetrol/Electric22714973All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 AWDSUVPetrol14719974All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 AWDSUVPetrol18319974All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 AWDSUVPetrol22119974All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 DSUVDiesel11019994Front Wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 D AWDSUVDiesel11019994All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 D AWDSUVDiesel13219994All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 D AWDSUVDiesel17719994All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 D165SUVDiesel12019974Front Wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 D165 MHEV AWDSUVDiesel/Electro12019974All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 D200 MHEV AWDSUVDiesel/Electro15019974All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 P200 MHEV AWDSUVPetrol/Electric14719974All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 P200 MHEV FLEX AWDSUVPetrol/Ethanol/Electric14719974All-wheel Drive321
JAGUARE-PACE (X540, DF) 09/2017-2.0 P250 MHEV AWDSUVPetrol/Electric18419974All-wheel Drive321

Media

Media

Installation Instruction: PDF
Strength Proof: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 329: Please consider the maximum total offset and all mentioned notes and restrictions in the certificate. The total offset is the result of the difference of the offset at the used wheel and the thickness of the wheel spacers (for example rim offset+35mm & wheel spacers 15mm = total offset +20mm)
  • Note 317: Attention: Installation only possible at rims with corresponding holes on the back. The depth of the pockets must be larger than the remaining length of the studs, which protrude from the wheel spacers after assembly
  • Note 321: For system AZX ST threaded bolts have to be ordered separately. The thread of the ST threaded bolts has to be similar to the one of the original knurled studs
