ST Coilover XTA Plus 3 Kit for 05/1998+ BMW 3 Series Coupe (E46) w/ Top Mounts

1820220821
ST Suspension

Stock: Backorder Available

AU$4,649.00 Inc GST

Description

Description

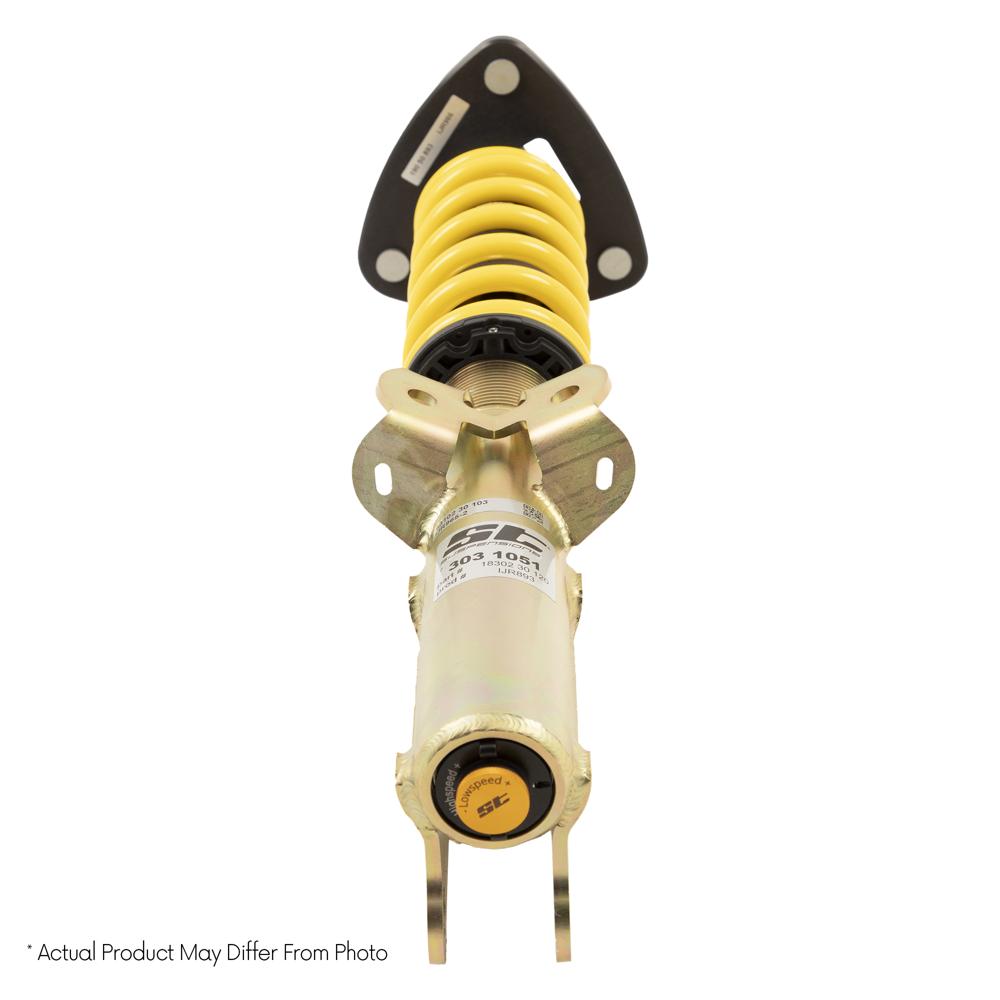

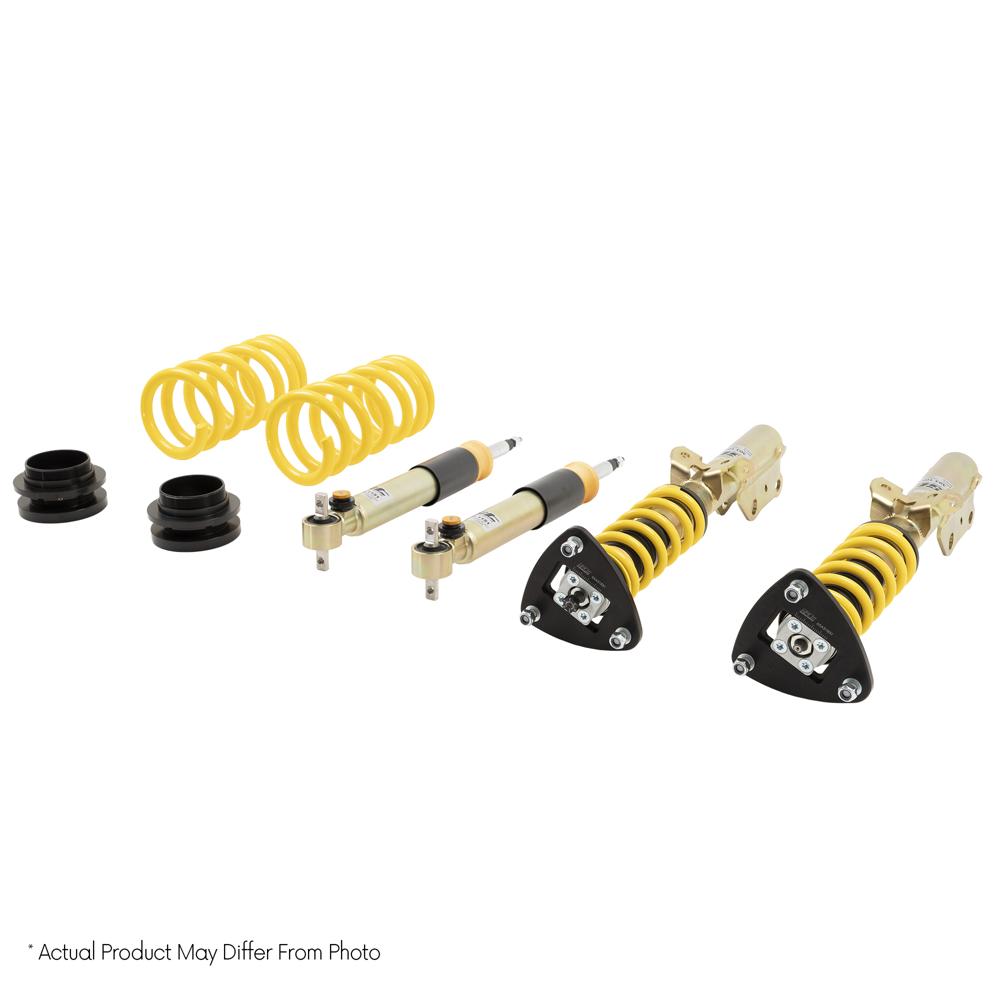

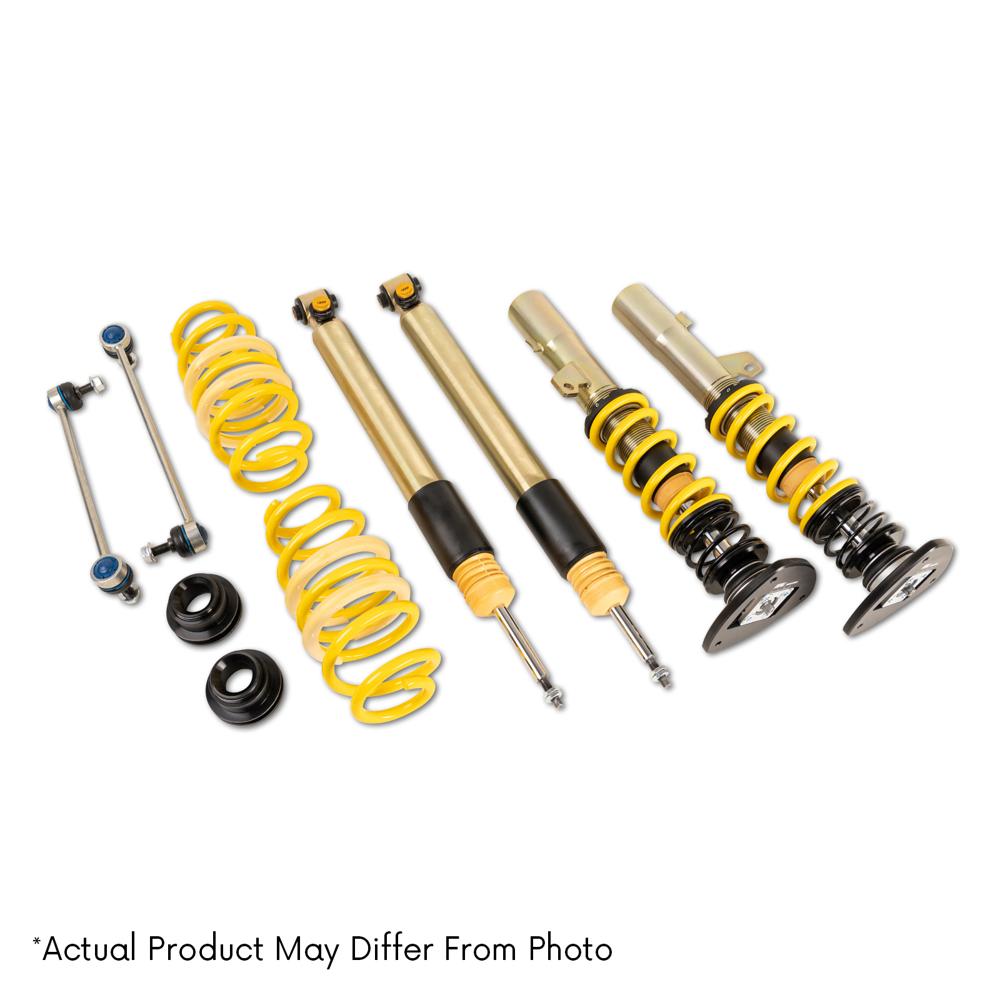

Coilovers ST XTA plus 3 galvanized steel (adjustable damping with top mounts)

The XTA plus 3 coilover kit gives your car maximum performance for the road and the tools you need for any challenge.

From the factory, the XTA plus 3 coilover kit is equipped with KW dampers that are adjustable in high- and lowspeed compression as well as adjustable rebound damping. With 24 clicks of adjustment for each, high speed and low speed compression damping and 18 clicks of rebound adjustment, your suspension knows no limits. It doesn’t matter if you bolt in an aftermarket roll cage, weld in a cage, modification to PU bushings upgrade to spherical bushing or changed wheel loads – the XTA plus 3 coilover has what it takes to keep your car dialed! Of course, the XTA plus 3 also includes a parts approval certificate, race springs and aluminium unibal top mounts.

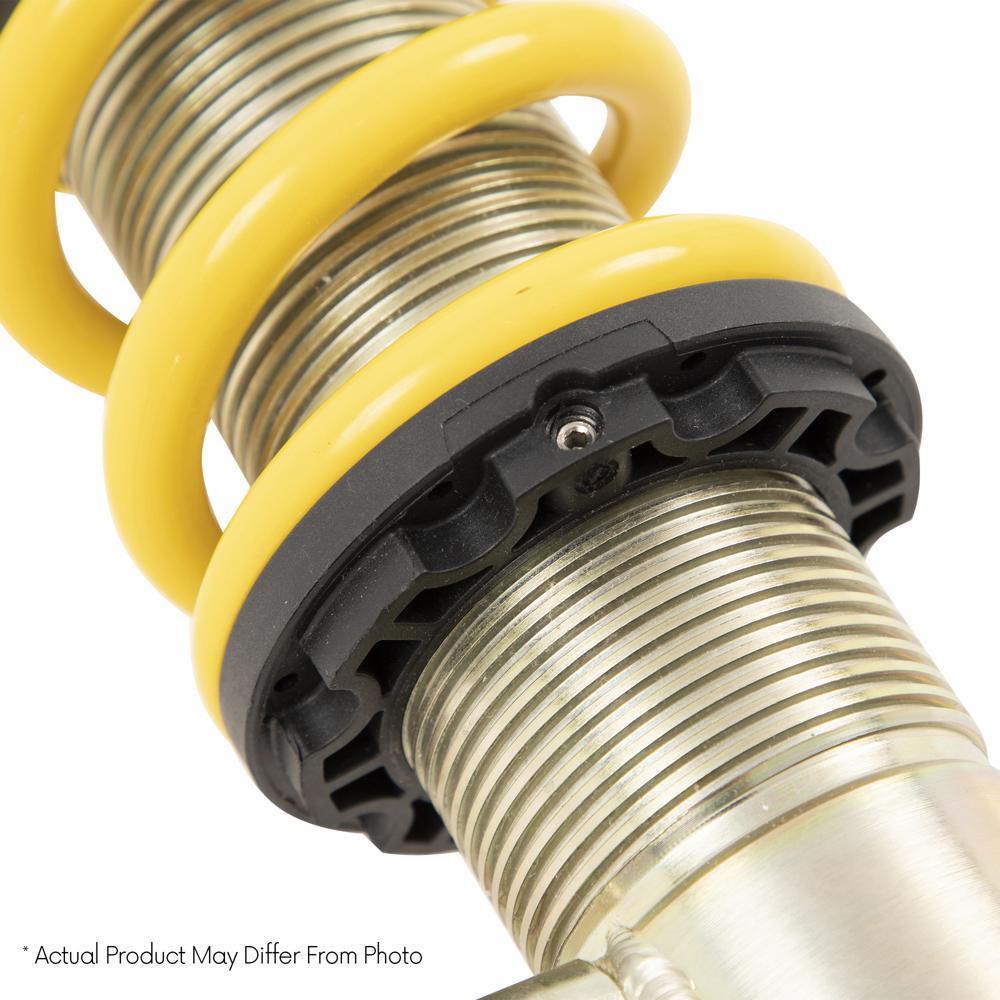

Easy lowering adjustment
Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XTA plus 3 coilovers due to the type of construction.

KW Engineering: Exclusive for ST suspension
The high-quality ST XTA plus 3 coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.

- Latest damping technology for maximum longevity
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axle (when possible) with thread adjustment
- Galvanized coilover struts with additional coating for an optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

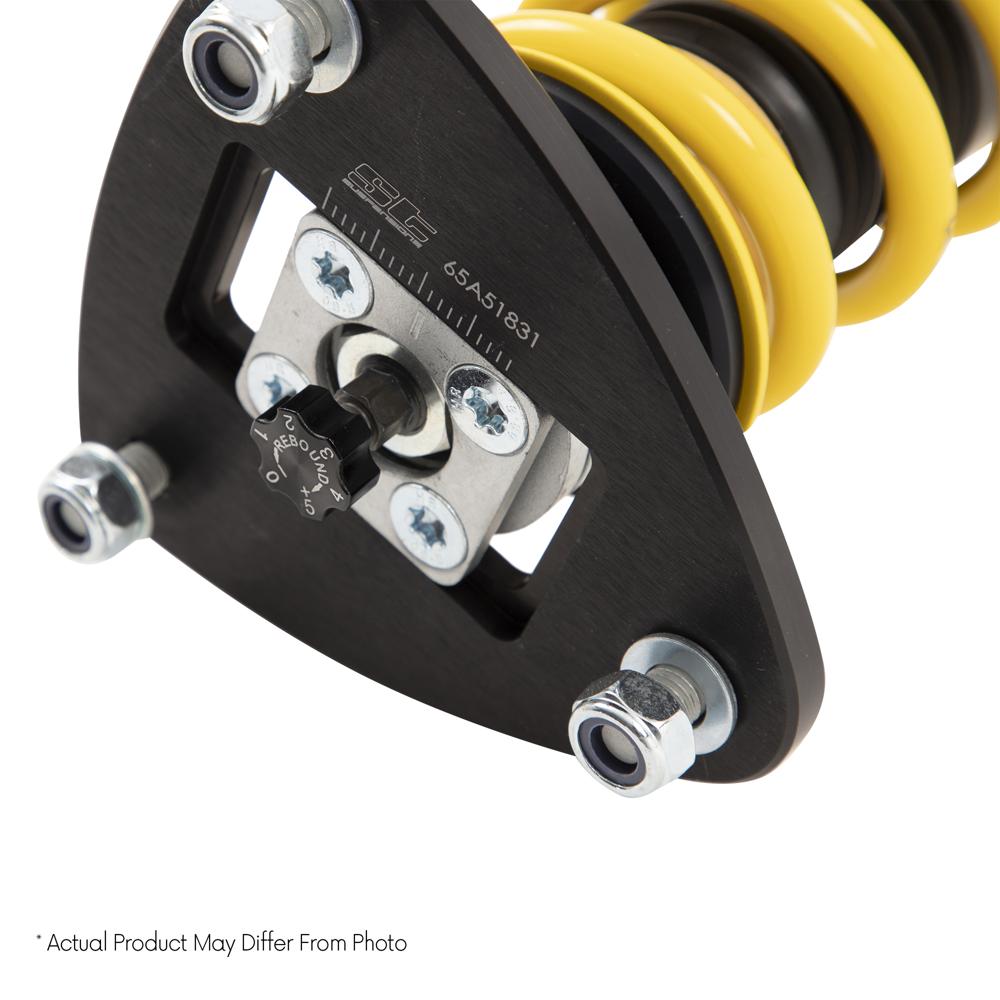

- Aluminium adjustable uniball top mounts (when possible)
- Scaled camber adjustment, when possible

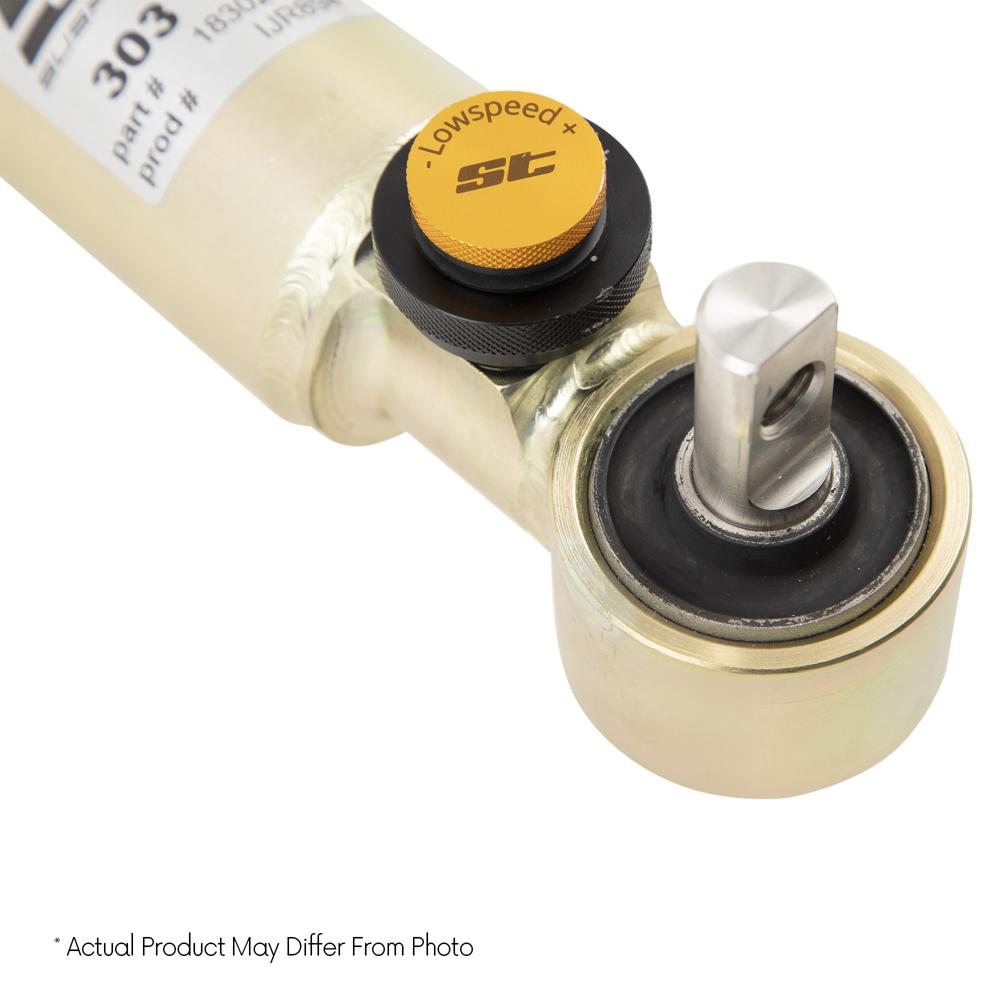

- 3-way adjustable dampers:
18 clicks low speed rebound damping
24 clicks low speed compression damping
24 clicks high speed compression damping

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
BMW3 (E46) 346L, 346X 12/1997-05/2005316 iSaloonPetrol7715964Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005316 iSaloonPetrol7718954Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005316 iSaloonPetrol8515964Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005316 iSaloonPetrol8517964Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005318 dSaloonDiesel8519514Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005318 dSaloonDiesel8519954Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005318 iSaloonPetrol8718954Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005318 iSaloonPetrol10019954Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005318 iSaloonPetrol10519954Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005320 dSaloonDiesel9519514Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005320 dSaloonDiesel10019514Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005320 dSaloonDiesel11019954Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005320 iSaloonPetrol11019916Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005320 iSaloonPetrol12021716Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005320 iSaloonPetrol12521716Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005323 iSaloonPetrol12024946Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005323 iSaloonPetrol12524946Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005325 iSaloonPetrol13224946Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005325 iSaloonPetrol13724946Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005325 iSaloonPetrol14124946Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005328 iSaloonPetrol14227936Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005328 iSaloonPetrol14427936Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005330 dSaloonDiesel13529266Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005330 dSaloonDiesel15029936Rear Wheel Drive4, 42, 254
BMW3 (E46) 346L, 346X 12/1997-05/2005330 iSaloonPetrol17029796Rear Wheel Drive4, 42, 254
BMW3 Compact (E46) 346K 03/2001-02/2005316 tiHatchbackPetrol7715964Rear Wheel Drive42, 254
BMW3 Compact (E46) 346K 03/2001-02/2005316 tiHatchbackPetrol8515964Rear Wheel Drive42, 254
BMW3 Compact (E46) 346K 03/2001-02/2005316 tiHatchbackPetrol8517964Rear Wheel Drive42, 254
BMW3 Compact (E46) 346K 03/2001-02/2005318 tdHatchbackDiesel8519954Rear Wheel Drive42, 254
BMW3 Compact (E46) 346K 03/2001-02/2005318 tiHatchbackPetrol10019954Rear Wheel Drive42, 254
BMW3 Compact (E46) 346K 03/2001-02/2005318 tiHatchbackPetrol10519954Rear Wheel Drive42, 254
BMW3 Compact (E46) 346K 03/2001-02/2005320 tdHatchbackDiesel10019954Rear Wheel Drive42, 254
BMW3 Compact (E46) 346K 03/2001-02/2005320 tdHatchbackDiesel11019954Rear Wheel Drive42, 254
BMW3 Compact (E46) 346K 03/2001-02/2005325 tiHatchbackPetrol14124946Rear Wheel Drive42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007318 CiConvertiblePetrol10019954Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007318 CiConvertiblePetrol10519954Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007318 CiConvertiblePetrol11019954Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007320 CdConvertibleDiesel11019954Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007320 CiConvertiblePetrol12021716Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007320 CiConvertiblePetrol12521716Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007323 CiConvertiblePetrol12024946Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007323 CiConvertiblePetrol12524946Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007325 CiConvertiblePetrol13724946Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007325 CiConvertiblePetrol14124946Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007330 CdConvertibleDiesel15029936Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007330 CiConvertiblePetrol16829796Rear Wheel Drive4, 42, 254
BMW3 Convertible (E46) 346R, M346 04/2000-12/2007330 CiConvertiblePetrol17029796Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006316 CiCoupePetrol7715964Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006316 CiCoupePetrol8515964Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006318 CiCoupePetrol8518954Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006318 CiCoupePetrol8718954Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006318 CiCoupePetrol10019954Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006318 CiCoupePetrol10519954Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006318 CiCoupePetrol11019954Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006320 CdCoupeDiesel11019954Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006320 CiCoupePetrol11019916Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006320 CiCoupePetrol12021716Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006320 CiCoupePetrol12521716Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006323 CiCoupePetrol12024946Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006323 CiCoupePetrol12524946Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006323 iCoupePetrol12724946Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006325 CiCoupePetrol13724946Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006325 CiCoupePetrol14124946Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006325 iCoupePetrol13224946Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006328 CiCoupePetrol14227936Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006330 CdCoupeDiesel15029936Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006330 CiCoupePetrol16829796Rear Wheel Drive4, 42, 254
BMW3 Coupe (E46) 346C, M346, M390 12/1998-07/2006330 CiCoupePetrol17029796Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005316 iEstatePetrol8517964Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005318 dEstateDiesel8519514Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005318 dEstateDiesel8519954Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005318 iEstatePetrol8518954Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005318 iEstatePetrol8718954Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005318 iEstatePetrol10519954Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005320 dEstateDiesel10019514Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005320 dEstateDiesel11019954Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005320 iEstatePetrol11019916Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005320 iEstatePetrol12021716Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005320 iEstatePetrol12521716Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005323 iEstatePetrol12524946Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005325 iEstatePetrol13224946Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005325 iEstatePetrol13724946Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005325 iEstatePetrol14124946Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005328 iEstatePetrol14227936Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005330 dEstateDiesel13529266Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005330 dEstateDiesel15029936Rear Wheel Drive4, 42, 254
BMW3 Touring (E46) 346L, 346X 06/1999-07/2005330 iEstatePetrol17029796Rear Wheel Drive4, 42, 254

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 42: In combination with orginal wheels and tyres, wheelspacers might be necessary
  • Note 4: Excluding four wheel drive models
  • Note 254: Using strut bars may afford longer stud bolts for the top mounts (please order separately). Please note KW does not guarantee an exact fit of longer stud bolts.
