ST Coilover XA Kit for Volvo V90 II Estate (235, 236)

18267017
ST Suspension

Stock: Backorder Available

AU$2,509.00 Inc GST

Description

Description

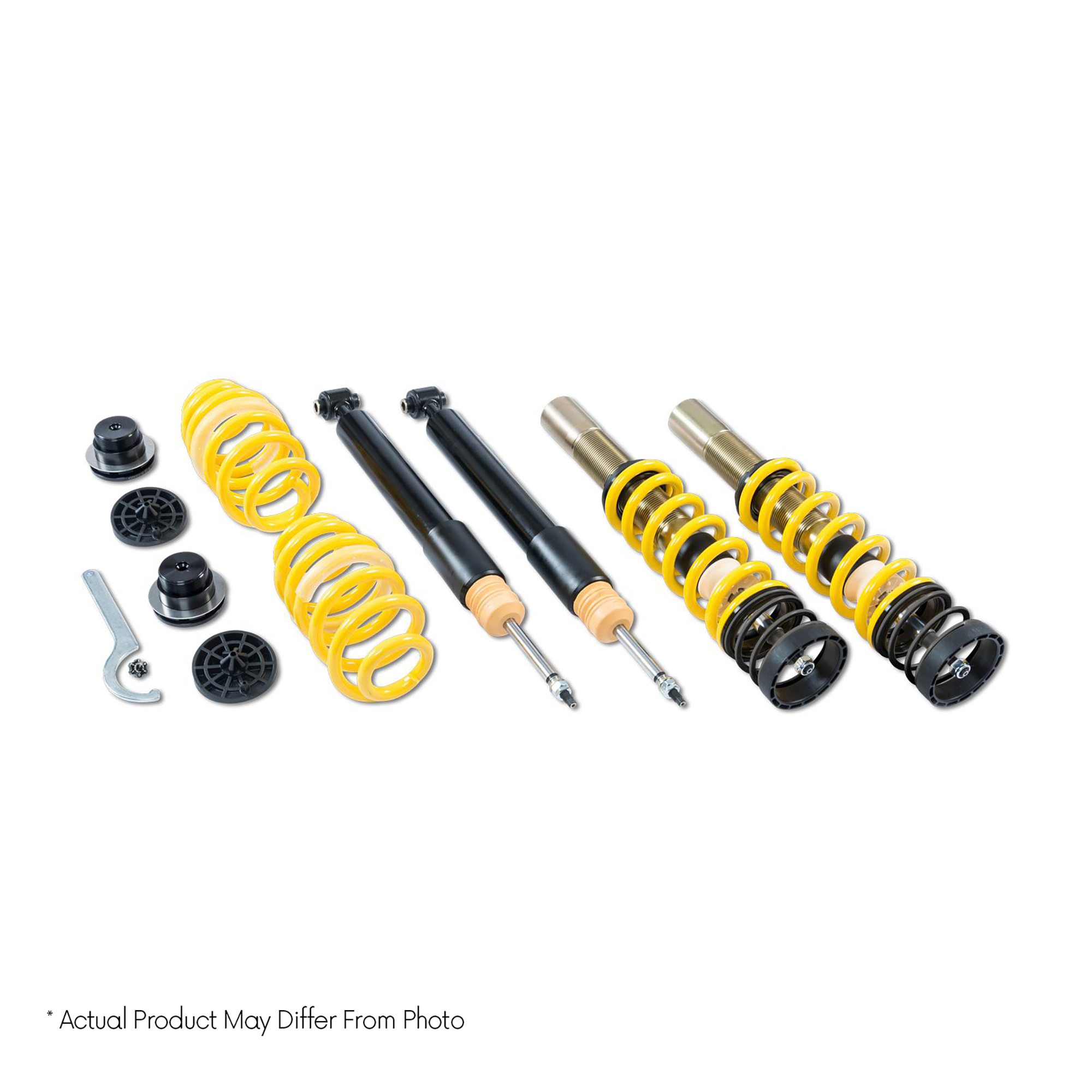

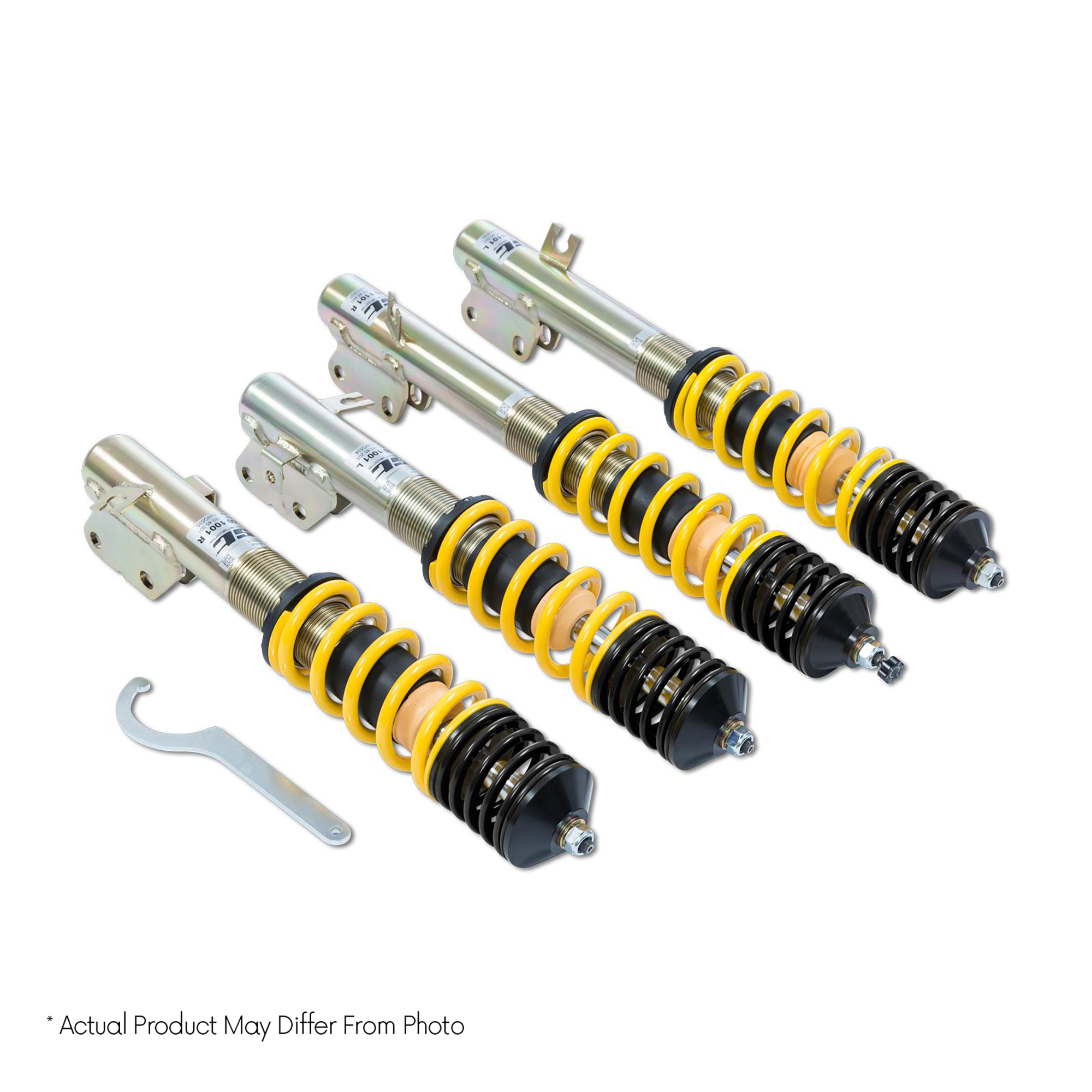

Coilovers ST XA galvanized steel (with damping adjustment)

For drivers wanting more than just ride height adjustment comes the ST XA coilover. Developed alongside KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

Perfect for sporty driving

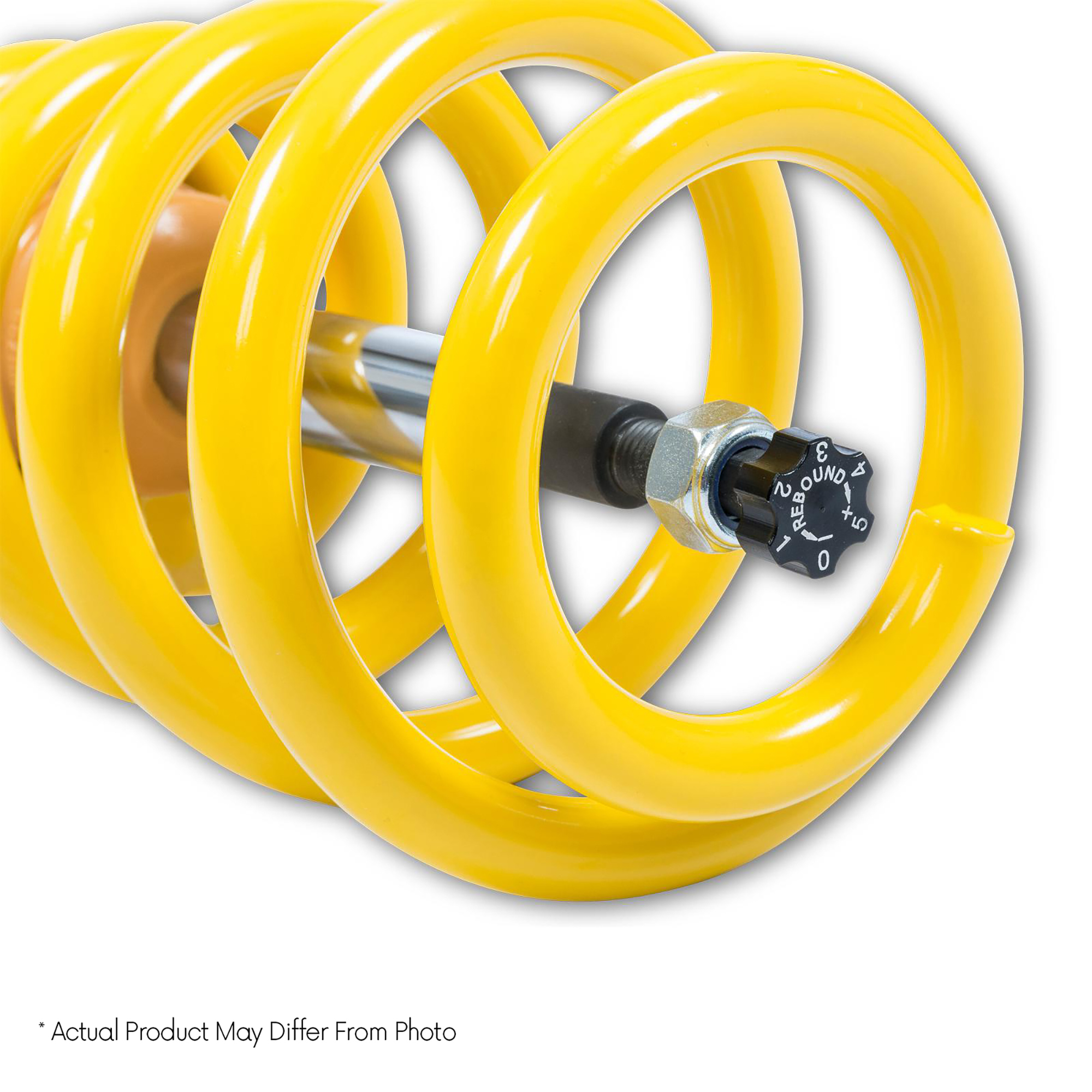

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.

Easy lowering adjustment
Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.

KW Engineering: Exclusive for ST suspension
The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.

- External damper adjustment
- Latest damping technology for maximum longevity
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axle (when possible) with thread adjustment
- Galvanized coilover struts with additional coating for an optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
VOLVOS60 III (224, Z) 02/2019-B3 MHEVSaloonPetrol/Electric12019694Front Wheel Drive6, 11
VOLVOS60 III (224, Z) 02/2019-B4 Mild-HybridSaloonPetrol/Electric14519694Front Wheel Drive6, 11
VOLVOS60 III (224, Z) 02/2019-B5 Mild-HybridSaloonPetrol/Electric18419694Front Wheel Drive6, 11
VOLVOS60 III (224, Z) 02/2019-T4SaloonPetrol14019694Front Wheel Drive6, 11
VOLVOS60 III (224, Z) 02/2019-T4 PolestarSaloonPetrol15519694Front Wheel Drive6, 11
VOLVOS60 III (224, Z) 02/2019-T5SaloonPetrol18419694Front Wheel Drive6, 11
VOLVOS60 III (224, Z) 02/2019-T5 PolestarSaloonPetrol18619694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0SaloonPetrol18319694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 B4 Mild-HybridSaloonPetrol/Electric14519694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 B5 Mild-HybridSaloonPetrol/Electric18419694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 B6 Mild-Hybrid AWDSaloonPetrol/Electric22019694All-wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 D3SaloonDiesel11019694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 D4SaloonDiesel12019694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 D4SaloonDiesel14019694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 D4 AWDSaloonDiesel14019694All-wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 D5 AWDSaloonDiesel17319694All-wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 D5 Polestar AWDSaloonDiesel17719694All-wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 T4SaloonPetrol14019694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 T4 PolestarSaloonPetrol15519694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 T5SaloonPetrol18419694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 T5SaloonPetrol18719694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 T5 Drive-E PolestarSaloonPetrol18619694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 T5 Drive-E PolestarSaloonPetrol19219694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 T6 AWDSaloonPetrol22819694All-wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 T6 AWDSaloonPetrol23519694All-wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-2.0 T6 Drive-E Polestar AWDSaloonPetrol24019694All-wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-B5 Mild-HybridSaloonPetrol/Electric18319694Front-Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-D4 Drive-E PolestarSaloonDiesel14719694Front Wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-D4 Drive-E Polestar AWDSaloonDiesel14719694All-wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-D5 Mild Hybrid AWDSaloonDiesel/Electro17319694All-wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-T5 AWDSaloonPetrol18719694All-wheel Drive6, 11
VOLVOS90 II (234, P) 01/2016-T6 Drive-E Polestar AWDSaloonPetrol24619694All-wheel Drive6, 11
VOLVOV60 II (225, 227) 02/2018-2.0 T4EstatePetrol14019694Front Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-2.0 T6 Drive-E Polestar AWDEstatePetrol24019694All-wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-B3 Mild-HybridEstatePetrol/Electric12019694Front Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-B4 Mild-HybridEstatePetrol/Electric14519694Front Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-B4 Mild-HybridEstateDiesel/Electro14519694Front-Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-B4 Mild-Hybrid AWDEstatePetrol/Electric14519694All-wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-B5 Mild-HybridEstatePetrol/Electric18419694Front Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-B5 Mild-Hybrid AWDEstatePetrol/Electric18419694All-wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-B6 Mild-Hybrid AWDEstatePetrol/Electric22019694All-wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-D3EstateDiesel11019694Front Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-D3 AWDEstateDiesel11019694All-wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-D4EstateDiesel14019694Front Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-D4 AWDEstateDiesel14019694All-wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-D4 PolestarEstateDiesel14719694Front Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-D4 Polestar AWDEstateDiesel14719694All-wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-T4 PolestarEstatePetrol15519694Front Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-T5EstatePetrol18419694Front Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-T5EstatePetrol18719694Front Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-T5EstatePetrol18719694All-wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-T5 AWDEstatePetrol18419694All-wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-T5 AWDEstatePetrol19219694All-wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-T5 PolestarEstatePetrol18619694Front Wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-T5 Polestar AWDEstatePetrol18619694All-wheel Drive11, 251
VOLVOV60 II (225, 227) 02/2018-T6 AWDEstatePetrol22819694All-wheel Drive11, 251
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 B4 Mild-HybridEstatePetrol/Electric14519694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 B5 Mild-HybridEstatePetrol/Electric18419694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 B5 Mild-HybridEstatePetrol/Electric19619694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 B6 Mild-Hybrid AWDEstatePetrol/Electric22019694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 B6 Mild-Hybrid AWDEstatePetrol/Electric25619694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 D3EstateDiesel11019694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 D3 AWDEstateDiesel11019694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 D4EstateDiesel12019694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 D4EstateDiesel14019694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 D4 AWDEstateDiesel14019694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 D4 PolestarEstateDiesel14719694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 D5 AWDEstateDiesel17319694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 Hybrid AWDEstatePetrol/Electric23519694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 Polestar AWDEstateDiesel14719694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 Polestar AWDEstateDiesel17619694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 T4EstatePetrol14019694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 T4 PolestarEstatePetrol15519694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 T5EstatePetrol18419694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 T5EstatePetrol18719694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 T5 PolestarEstatePetrol18619694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 T6 AWDEstatePetrol22819694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 T6 AWDEstatePetrol23519694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 T6 Polestar AWDEstatePetrol24019694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 T8 Hybrid AWDEstatePetrol/Electric22319694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-2.0 T8 Plug-in Hybrid Polestar AWDEstatePetrol/Electric23319694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-B4 Mild-HybridEstateDiesel/Electro14519694Front Wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-B4 Mild-Hybrid AWDEstateDiesel/Electro14519694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-B5 Mild Hybrid AWDEstateDiesel/Electro17319694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-B5 Mild Hybrid Polestar AWDEstateDiesel/Electro18019694All-wheel Drive6, 11
VOLVOV90 II Estate (235, 236, P) 03/2016-T8 Plug-in Hybrid AWDEstatePetrol/Electric33519694All-wheel Drive6, 11

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 251: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68511086
  • Note 11: Excluding models with automatic level control, or automatic level system can be adjusted in accordance
  • Note 6: Not for vehicles with electronic damper control
