ST Coilover XA Kit for 06/2008+ Seat Ibiza Mk IV Sportcoupe (6J1, 6P5)

18281015
ST Suspension

Stock: Backorder Available

AU$2,339.00 Inc GST

Description

Description

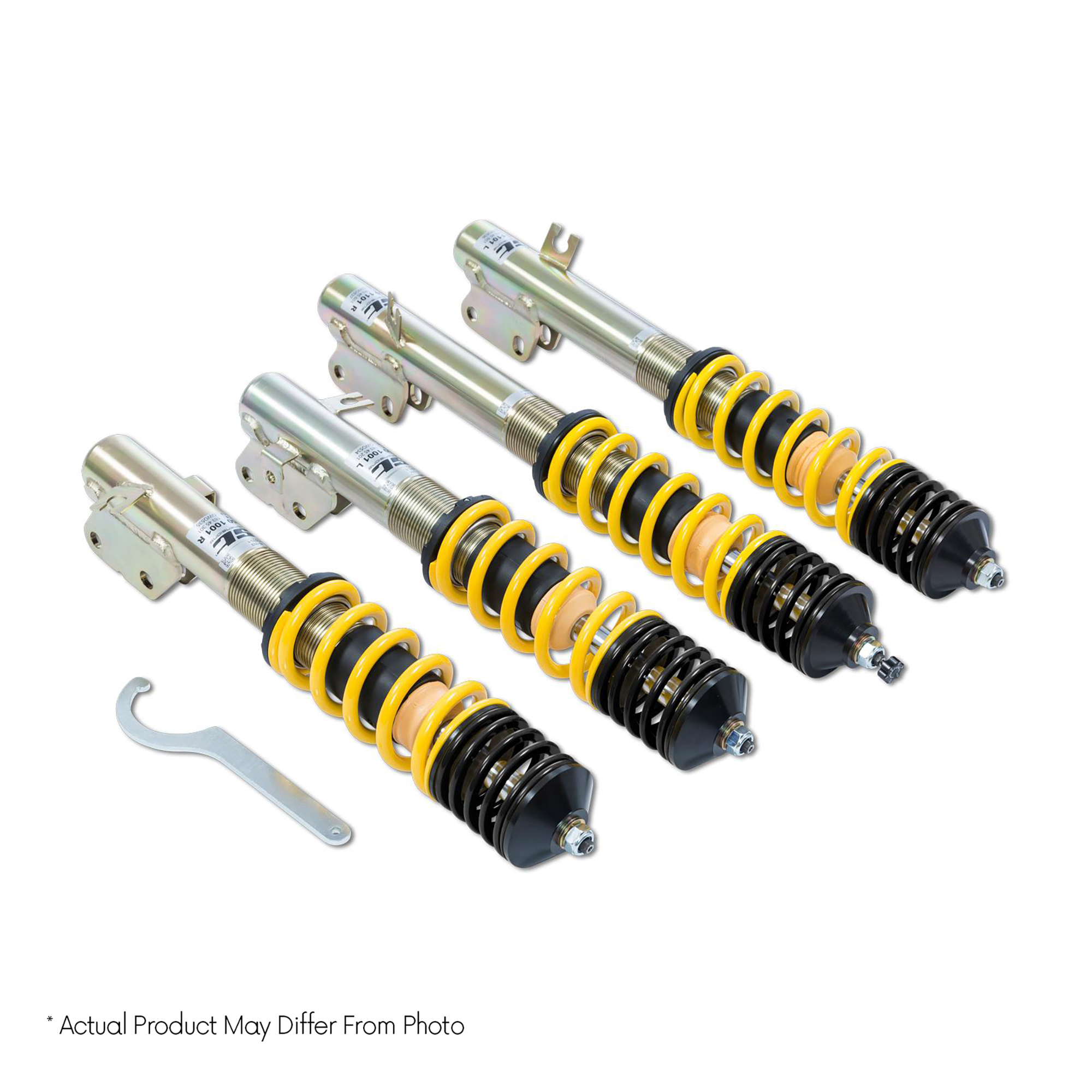

Coilovers ST XA galvanized steel (with damping adjustment)

For drivers wanting more than just ride height adjustment comes the ST XA coilover. Developed alongside KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

Perfect for sporty driving

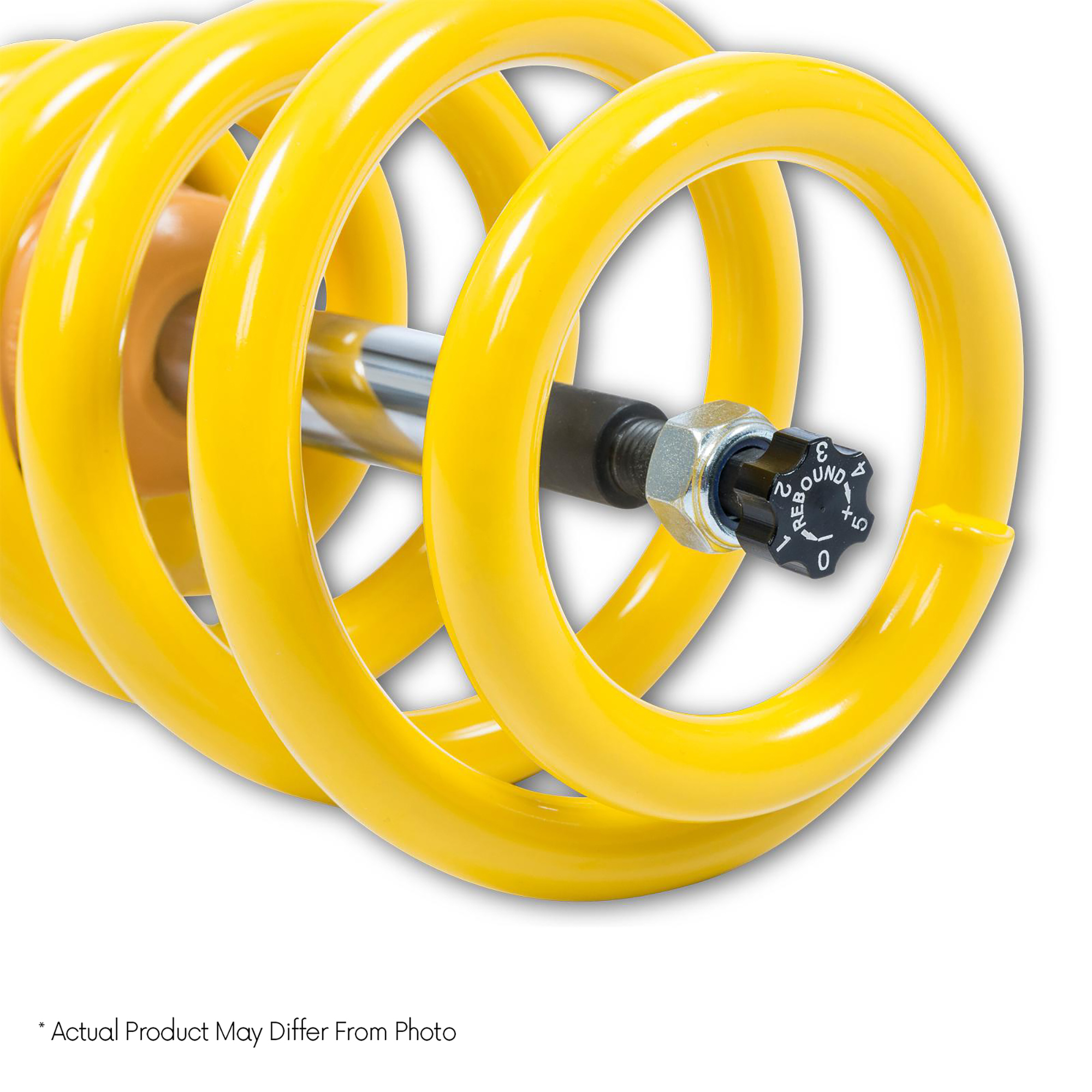

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.

Easy lowering adjustment
Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.

KW Engineering: Exclusive for ST suspension
The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.

- External damper adjustment
- Latest damping technology for maximum longevity
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axle (when possible) with thread adjustment
- Galvanized coilover struts with additional coating for an optimized corrosion protection

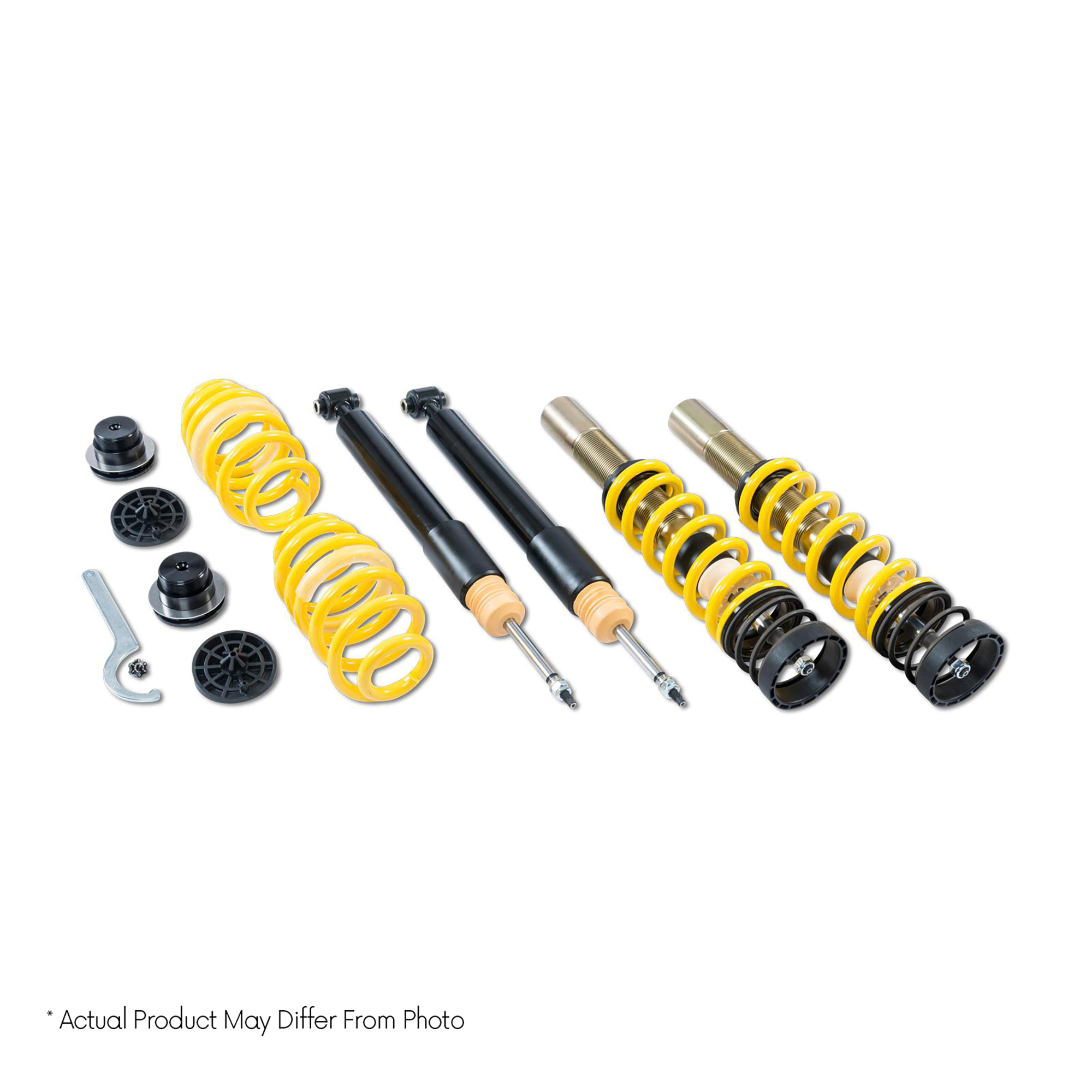

- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
AUDIA1 (8X) 8X1, 8XK 05/2010-10/20181.0 TFSIHatchbackPetrol609993Front Wheel Drive6
AUDIA1 (8X) 8X1, 8XK 05/2010-10/20181.0 TFSIHatchbackPetrol709993Front Wheel Drive6
AUDIA1 (8X) 8X1, 8XK 05/2010-10/20181.2 TFSIHatchbackPetrol6311974Front Wheel Drive6
AUDIA1 (8X) 8X1, 8XK 05/2010-10/20181.4 TDIHatchbackDiesel6614223Front Wheel Drive6
AUDIA1 (8X) 8X1, 8XK 05/2010-10/20181.4 TFSIHatchbackPetrol9013904Front Wheel Drive6
AUDIA1 (8X) 8X1, 8XK 05/2010-10/20181.4 TFSIHatchbackPetrol9213954Front Wheel Drive6
AUDIA1 (8X) 8X1, 8XK 05/2010-10/20181.4 TFSIHatchbackPetrol10313954Front Wheel Drive6
AUDIA1 (8X) 8X1, 8XK 05/2010-10/20181.4 TSIHatchbackPetrol11013954Front Wheel Drive6
AUDIA1 Sportback (8X) 8XA, 8XF 09/2011-10/20181.0 TFSIHatchbackPetrol609993Front Wheel Drive6
AUDIA1 Sportback (8X) 8XA, 8XF 09/2011-10/20181.0 TFSIHatchbackPetrol709993Front Wheel Drive6
AUDIA1 Sportback (8X) 8XA, 8XF 09/2011-10/20181.2 TFSIHatchbackPetrol6311974Front Wheel Drive6
AUDIA1 Sportback (8X) 8XA, 8XF 09/2011-10/20181.4 30 TFSIHatchbackPetrol9213954Front-Wheel Drive6
AUDIA1 Sportback (8X) 8XA, 8XF 09/2011-10/20181.4 TDIHatchbackDiesel6614223Front Wheel Drive6
AUDIA1 Sportback (8X) 8XA, 8XF 09/2011-10/20181.4 TFSIHatchbackPetrol9013904Front Wheel Drive6
AUDIA1 Sportback (8X) 8XA, 8XF 09/2011-10/20181.4 TFSIHatchbackPetrol9213954Front Wheel Drive6
AUDIA1 Sportback (8X) 8XA, 8XF 09/2011-10/20181.4 TFSIHatchbackPetrol10313954Front Wheel Drive6
AUDIA1 Sportback (8X) 8XA, 8XF 09/2011-10/20181.4 TSIHatchbackPetrol11013954Front Wheel Drive6
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.0HatchbackPetrol559993Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.0 TSIHatchbackPetrol709993Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.0 TSIHatchbackPetrol819993Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.2HatchbackPetrol4411983Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.2HatchbackPetrol5111983Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.2 TSIHatchbackPetrol6311974Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.2 TSIHatchbackPetrol6611974Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.2 TSIHatchbackPetrol7711974Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.2 TSIHatchbackPetrol8111974Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.4HatchbackPetrol6313904Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.6HatchbackPetrol7715984Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.6HatchbackPetrol8115984Front Wheel Drive266
SEATIBIZA Mk IV (6J5, 6P1) 03/2008-12/20171.9 TDIHatchbackDiesel6618964Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.0CoupePetrol559993Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.0 TSICoupePetrol709993Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.0 TSICoupePetrol819993Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.2CoupePetrol4411983Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.2CoupePetrol5111983Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.2 TSICoupePetrol6311974Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.2 TSICoupePetrol6611974Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.2 TSICoupePetrol7711974Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.2 TSICoupePetrol8111974Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.4CoupePetrol6313904Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.6CoupePetrol7715984Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.6CoupePetrol8115984Front Wheel Drive266
SEATIBIZA Mk IV SPORTCOUPE (6J1, 6P5) 06/2008-12/20181.9 TDICoupeDiesel6618964Front Wheel Drive266
SEATIBIZA Mk IV ST (6J8, 6P8) 03/2010-07/20161.0EstatePetrol559993Front Wheel Drive6
SEATIBIZA Mk IV ST (6J8, 6P8) 03/2010-07/20161.0 TSIEstatePetrol709993Front Wheel Drive6
SEATIBIZA Mk IV ST (6J8, 6P8) 03/2010-07/20161.2EstatePetrol4411983Front Wheel Drive6
SEATIBIZA Mk IV ST (6J8, 6P8) 03/2010-07/20161.2EstatePetrol5111983Front Wheel Drive6
SEATIBIZA Mk IV ST (6J8, 6P8) 03/2010-07/20161.2 TSIEstatePetrol6311974Front Wheel Drive6
SEATIBIZA Mk IV ST (6J8, 6P8) 03/2010-07/20161.2 TSIEstatePetrol6611974Front Wheel Drive6
SEATIBIZA Mk IV ST (6J8, 6P8) 03/2010-07/20161.2 TSIEstatePetrol7711974Front Wheel Drive6
SEATIBIZA Mk IV ST (6J8, 6P8) 03/2010-07/20161.2 TSIEstatePetrol8111974Front Wheel Drive6
SEATIBIZA Mk IV ST (6J8, 6P8) 03/2010-07/20161.4EstatePetrol6313904Front Wheel Drive6
SEATIBIZA Mk IV ST (6J8, 6P8) 03/2010-07/20161.6EstatePetrol7715984Front Wheel Drive6
SKODAFABIA III (NJ3, 5J) 08/2014-1.0HatchbackPetrol449993Front Wheel Drive
SKODAFABIA III (NJ3, 5J) 08/2014-1.0HatchbackPetrol559993Front Wheel Drive
SKODAFABIA III (NJ3, 5J) 08/2014-1.0 TSIHatchbackPetrol709993Front Wheel Drive
SKODAFABIA III (NJ3, 5J) 08/2014-1.0 TSIHatchbackPetrol819993Front Wheel Drive
SKODAFABIA III (NJ3, 5J) 08/2014-1.2 TSIHatchbackPetrol6611974Front Wheel Drive
SKODAFABIA III (NJ3, 5J) 08/2014-1.2 TSIHatchbackPetrol8111974Front Wheel Drive
SKODAFABIA III (NJ3, 5J) 08/2014-1.4 TDIHatchbackDiesel5514223Front Wheel Drive
SKODAFABIA III (NJ3, 5J) 08/2014-1.4 TDIHatchbackDiesel6614223Front Wheel Drive
SKODAFABIA III (NJ3, 5J) 08/2014-1.4 TDIHatchbackDiesel7714223Front Wheel Drive
SKODAFABIA III (NJ3, 5J) 08/2014-1.4 TSI R5HatchbackPetrol9213954Front Wheel Drive
SKODAFABIA III (NJ3, 5J) 08/2014-1.6HatchbackPetrol8115984Front Wheel Drive
VWPOLO V (6R_, 6C_) 03/2009-1.0HatchbackPetrol449993Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.0HatchbackPetrol559993Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.0 TSIHatchbackPetrol709993Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.0 TSIHatchbackPetrol819993Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.2HatchbackPetrol4411983Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.2HatchbackPetrol5111983Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.2HatchbackPetrol5511983Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.2 TSIHatchbackPetrol6611974Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.2 TSIHatchbackPetrol7711974Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.2 TSI 16VHatchbackPetrol6611974Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.4 (6R1)HatchbackPetrol6313904Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.6HatchbackPetrol6615984Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.6HatchbackPetrol7715984Front Wheel Drive266
VWPOLO V (6R_, 6C_) 03/2009-1.6HatchbackPetrol8115984Front Wheel Drive266

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 266: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated and to convert the rear axle top mounts. Deactivation kit KW Part-no. 68510422. Rear top mounts KW Part-no. 66080042
  • Note 6: Not for vehicles with electronic damper control
