ST Coilover XA Kit for 01/2011+ VW Jetta IV

18280069
ST Suspension

Stock: Backorder Available

AU$2,509.00 Inc GST

Description

Description

Coilovers ST XA galvanized steel (with damping adjustment)

For drivers wanting more than just ride height adjustment comes the ST XA coilover. Developed alongside KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

Perfect for sporty driving

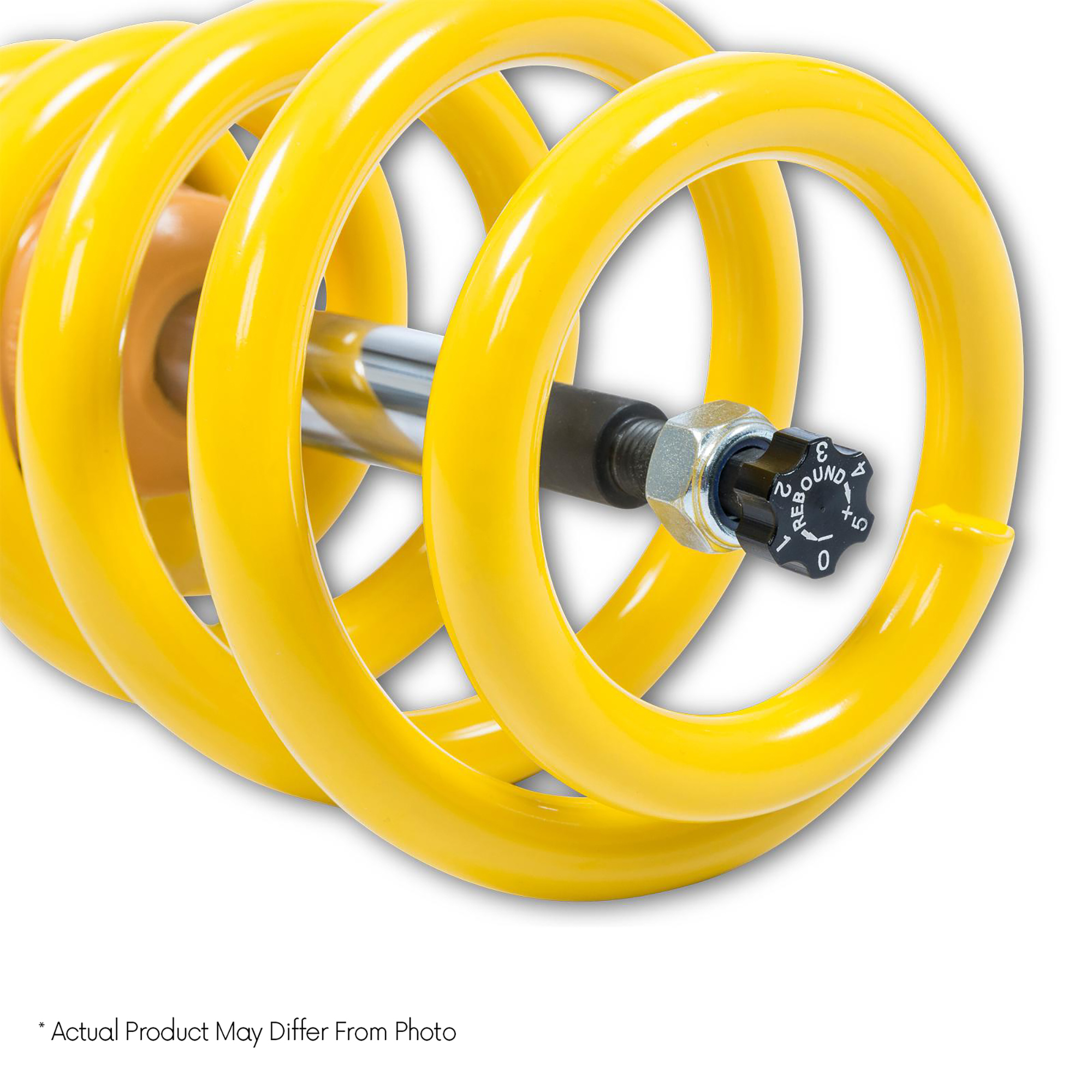

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.

Easy lowering adjustment
Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.

KW Engineering: Exclusive for ST suspension
The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.

- External damper adjustment
- Latest damping technology for maximum longevity
- Reduced system friction for effective damping adjustment
- Individual lowering within the tested adjustment range
- Front and rear axle (when possible) with thread adjustment
- Galvanized coilover struts with additional coating for an optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
SEATALTEA (5P1) 03/2004-12/20151.6 TDIMPVDiesel6615984Front Wheel Drive71
SEATALTEA (5P1) 03/2004-12/20151.6 TDIMPVDiesel7715984Front Wheel Drive71
SEATALTEA (5P1) 03/2004-12/20151.8 TFSIMPVPetrol11817984Front Wheel Drive71
SEATALTEA (5P1) 03/2004-12/20151.9 TDIMPVDiesel6618964Front Wheel Drive71
SEATALTEA (5P1) 03/2004-12/20151.9 TDIMPVDiesel7718964Front Wheel Drive71
SEATALTEA (5P1) 03/2004-12/20152.0 FSIMPVPetrol11019844Front Wheel Drive71
SEATALTEA (5P1) 03/2004-12/20152.0 TDIMPVDiesel10019684Front Wheel Drive71
SEATALTEA (5P1) 03/2004-12/20152.0 TDIMPVDiesel10319684Front Wheel Drive71
SEATALTEA (5P1) 03/2004-12/20152.0 TDIMPVDiesel12519684Front Wheel Drive71
SEATALTEA (5P1) 03/2004-12/20152.0 TDI 16VMPVDiesel10319684Front Wheel Drive71
SEATALTEA (5P1) 03/2004-12/20152.0 TFSIMPVPetrol14719844Front Wheel Drive71
SEATALTEA XL (5P5, 5P8) 10/2006-12/20151.6 TDIMPVDiesel6615984Front Wheel Drive71
SEATALTEA XL (5P5, 5P8) 10/2006-12/20151.6 TDIMPVDiesel7715984Front Wheel Drive71
SEATALTEA XL (5P5, 5P8) 10/2006-12/20151.8 TFSIMPVPetrol11817984Front Wheel Drive71
SEATALTEA XL (5P5, 5P8) 10/2006-12/20151.9 TDIMPVDiesel6618964Front Wheel Drive71
SEATALTEA XL (5P5, 5P8) 10/2006-12/20151.9 TDIMPVDiesel7718964Front Wheel Drive71
SEATALTEA XL (5P5, 5P8) 10/2006-12/20152.0 FSIMPVPetrol11019844Front Wheel Drive71
SEATALTEA XL (5P5, 5P8) 10/2006-12/20152.0 TDIMPVDiesel10019684Front Wheel Drive71
SEATALTEA XL (5P5, 5P8) 10/2006-12/20152.0 TDIMPVDiesel10319684Front Wheel Drive71
SEATALTEA XL (5P5, 5P8) 10/2006-12/20152.0 TDIMPVDiesel12519684Front Wheel Drive71
SEATALTEA XL (5P5, 5P8) 10/2006-12/20152.0 TDI 16VMPVDiesel10319684Front Wheel Drive71
SEATALTEA XL (5P5, 5P8) 10/2006-12/20152.0 TFSIMPVPetrol14719844Front Wheel Drive71
SEATTOLEDO III (5P2) 04/2004-05/20091.8 TFSIMPVPetrol11817984Front Wheel Drive71
SEATTOLEDO III (5P2) 04/2004-05/20091.9 TDIMPVDiesel7718964Front Wheel Drive71
SEATTOLEDO III (5P2) 04/2004-05/20092.0 FSIMPVPetrol11019844Front Wheel Drive71
SEATTOLEDO III (5P2) 04/2004-05/20092.0 TDIMPVDiesel10019684Front Wheel Drive71
SEATTOLEDO III (5P2) 04/2004-05/20092.0 TDIMPVDiesel10319684Front Wheel Drive71
SEATTOLEDO III (5P2) 04/2004-05/20092.0 TDIMPVDiesel12519684Front Wheel Drive71
SEATTOLEDO III (5P2) 04/2004-05/20092.0 TDI 16VMPVDiesel10319684Front Wheel Drive71
SEATTOLEDO III (5P2) 04/2004-05/20092.0 TFSIMPVPetrol14719844Front Wheel Drive71
SKODAOCTAVIA II (1Z3) 02/2004-06/20131.2 TSIHatchbackPetrol7711974Front Wheel Drive4, 71
SKODAOCTAVIA II (1Z3) 02/2004-06/20131.6 TDIHatchbackDiesel7715984Front Wheel Drive4, 71
SKODAOCTAVIA II (1Z3) 02/2004-06/20131.8 TSIHatchbackPetrol11217984Front Wheel Drive4, 71
SKODAOCTAVIA II (1Z3) 02/2004-06/20131.8 TSIHatchbackPetrol11817984Front Wheel Drive4, 71
SKODAOCTAVIA II (1Z3) 02/2004-06/20131.9 TDIHatchbackDiesel7718964Front Wheel Drive4, 71
SKODAOCTAVIA II (1Z3) 02/2004-06/20132.0 FSIHatchbackPetrol11019844Front Wheel Drive4, 71
SKODAOCTAVIA II (1Z3) 02/2004-06/20132.0 RSHatchbackPetrol14719844Front Wheel Drive4, 71
SKODAOCTAVIA II (1Z3) 02/2004-06/20132.0 TDIHatchbackDiesel8119684Front Wheel Drive4, 71
SKODAOCTAVIA II (1Z3) 02/2004-06/20132.0 TDIHatchbackDiesel10019684Front Wheel Drive4, 71
SKODAOCTAVIA II (1Z3) 02/2004-06/20132.0 TDIHatchbackDiesel10319684Front Wheel Drive4, 71
SKODAOCTAVIA II (1Z3) 02/2004-06/20132.0 TDI 16VHatchbackDiesel10319684Front Wheel Drive4, 71
SKODAOCTAVIA II (1Z3) 02/2004-06/20132.0 TDI RSHatchbackDiesel12519684Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20131.2 TSIEstatePetrol7711974Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20131.6 TDIEstateDiesel7715984Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20131.8 TSIEstatePetrol11217984Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20131.8 TSIEstatePetrol11817984Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20131.9 TDIEstateDiesel7718964Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20132.0 FSIEstatePetrol11019844Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20132.0 RSEstatePetrol14719844Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20132.0 TDIEstateDiesel8119684Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20132.0 TDIEstateDiesel10319684Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20132.0 TDI 16VEstateDiesel10019684Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20132.0 TDI 16VEstateDiesel10319684Front Wheel Drive4, 71
SKODAOCTAVIA II Combi (1Z5) 02/2004-06/20132.0 TDI RSEstateDiesel12519684Front Wheel Drive4, 71
VWGOLF VI Convertible (517, 1K) 03/2011-05/20161.4 TSIConvertiblePetrol9013904Front Wheel Drive71, 187
VWGOLF VI Convertible (517, 1K) 03/2011-05/20161.4 TSIConvertiblePetrol11013954Front Wheel Drive71, 187
VWGOLF VI Convertible (517, 1K) 03/2011-05/20161.4 TSIConvertiblePetrol11813904Front Wheel Drive71, 187
VWGOLF VI Convertible (517, 1K) 03/2011-05/20161.6 TDIConvertibleDiesel7715984Front Wheel Drive71, 187
VWGOLF VI Convertible (517, 1K) 03/2011-05/20162.0 GTIConvertiblePetrol15519844Front Wheel Drive71, 187
VWGOLF VI Convertible (517, 1K) 03/2011-05/20162.0 TDIConvertibleDiesel8119684Front Wheel Drive71, 187
VWGOLF VI Convertible (517, 1K) 03/2011-05/20162.0 TDIConvertibleDiesel10319684Front Wheel Drive71, 187
VWGOLF VI Convertible (517, 1K) 03/2011-05/20162.0 TDIConvertibleDiesel11019684Front Wheel Drive71, 187
VWGOLF VI Convertible (517, 1K) 03/2011-05/20162.0 TSIConvertiblePetrol16219844Front Wheel Drive71, 187
VWJETTA III (1K2, 1KM) 09/2004-12/20131.4 TSISaloonPetrol10313904Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20131.4 TSISaloonPetrol11813904Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20131.4 TSISaloonPetrol12513904Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20131.6 TDISaloonDiesel7715984Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20131.9 TDISaloonDiesel7418964Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20131.9 TDISaloonDiesel7718964Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20132.0SaloonPetrol8519844Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20132.0 TDISaloonDiesel10019684Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20132.0 TDISaloonDiesel10319684Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20132.0 TDISaloonDiesel12519684Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20132.0 TDI 16VSaloonDiesel10319684Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20132.0 TFSISaloonPetrol12519844Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20132.0 TFSISaloonPetrol14719844Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20132.5SaloonPetrol11024805Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20132.5SaloonPetrol12524805Front Wheel Drive4, 71
VWJETTA III (1K2, 1KM) 09/2004-12/20132.8 VR6SaloonPetrol12827926Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20191.4 TSISaloonPetrol11013954Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20191.4 TSISaloonPetrol11813904Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20191.6SaloonPetrol6315984Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20191.6SaloonPetrol7715984Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20191.6SaloonPetrol8115984Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20191.6 TDISaloonDiesel7715984Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20191.8 TSISaloonPetrol12517984Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20192.0 TDISaloonDiesel8119684Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20192.0 TDISaloonDiesel10319684Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20192.0 TDISaloonDiesel11019684Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20192.0 TSISaloonPetrol14719844Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20192.0 TSISaloonPetrol15519844Front Wheel Drive4, 71
VWJETTA IV (162, 163, 16) 01/2008-12/20192.5SaloonPetrol12524805Front Wheel Drive4, 71

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 71: Only for cars with a clamp diameter of 55 mm on the front axle
  • Note 4: Excluding four wheel drive models
  • Note 187: At vehicles equipped with electronic damping DCC, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510141, Price 299,- EURO incl. VAT
