ST Coilover X Kit for 11/2014+ VW Passat (3G2, CB2)

132800AF
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

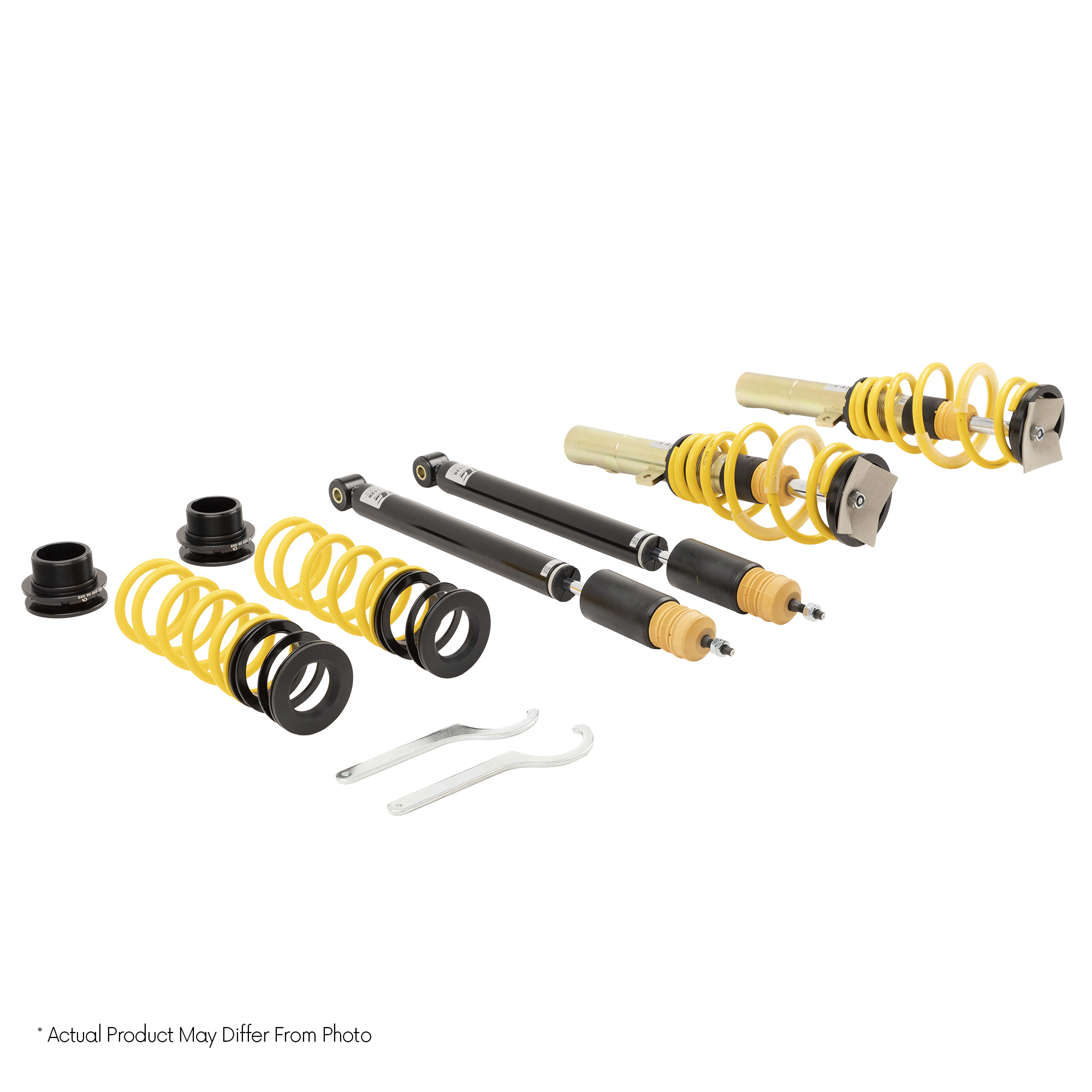

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)

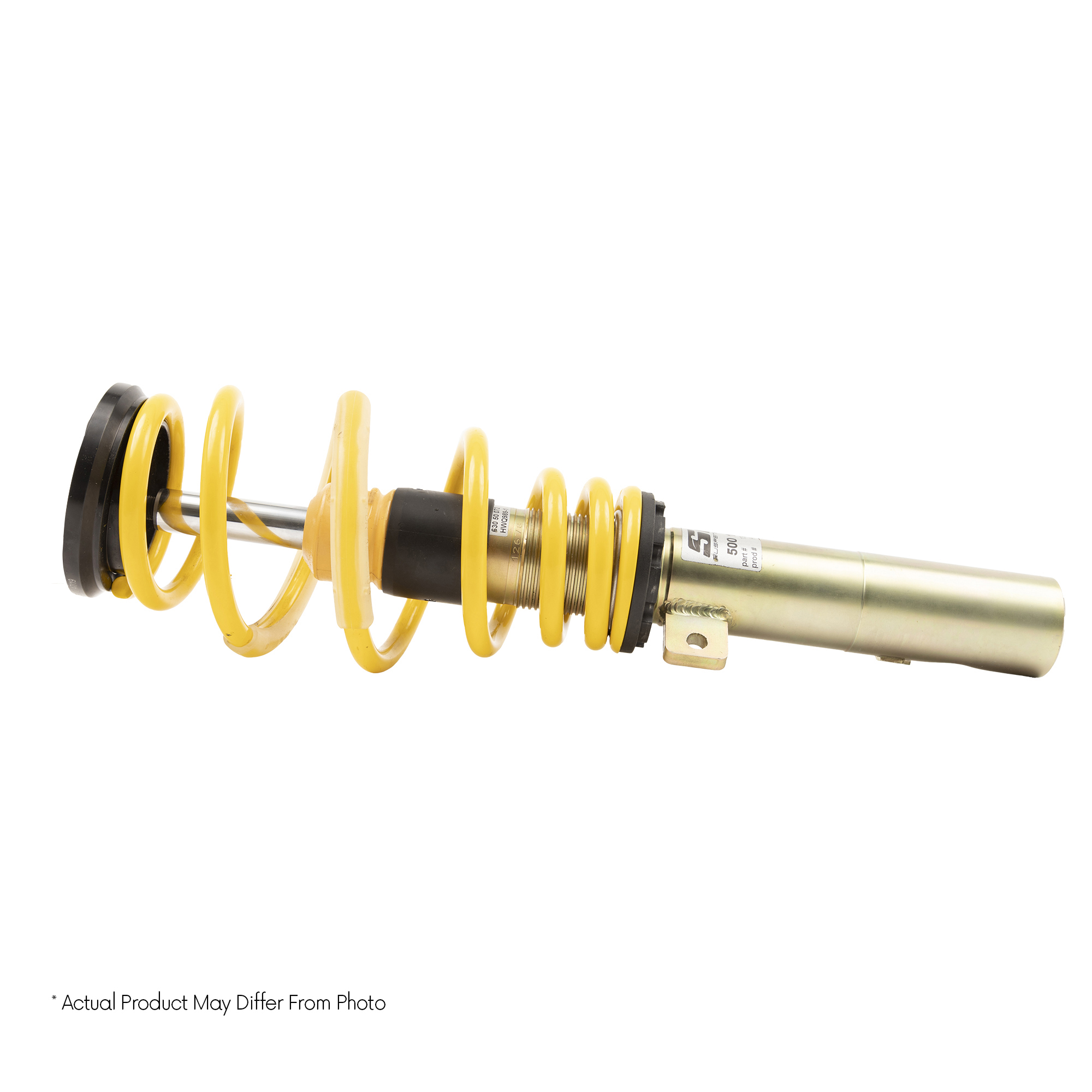

- Galvanized coilover struts with additional coating for optimized corrosion protection

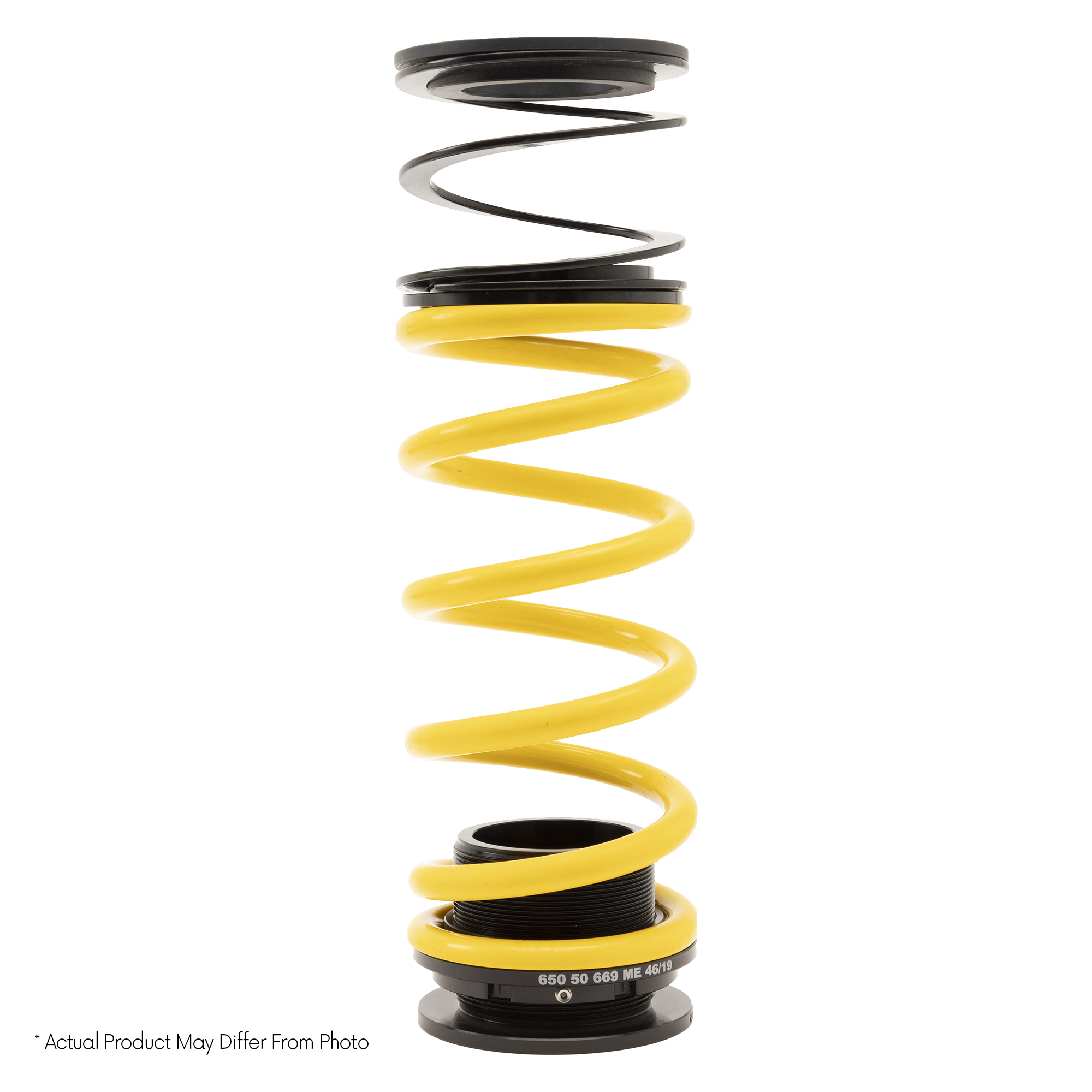

- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

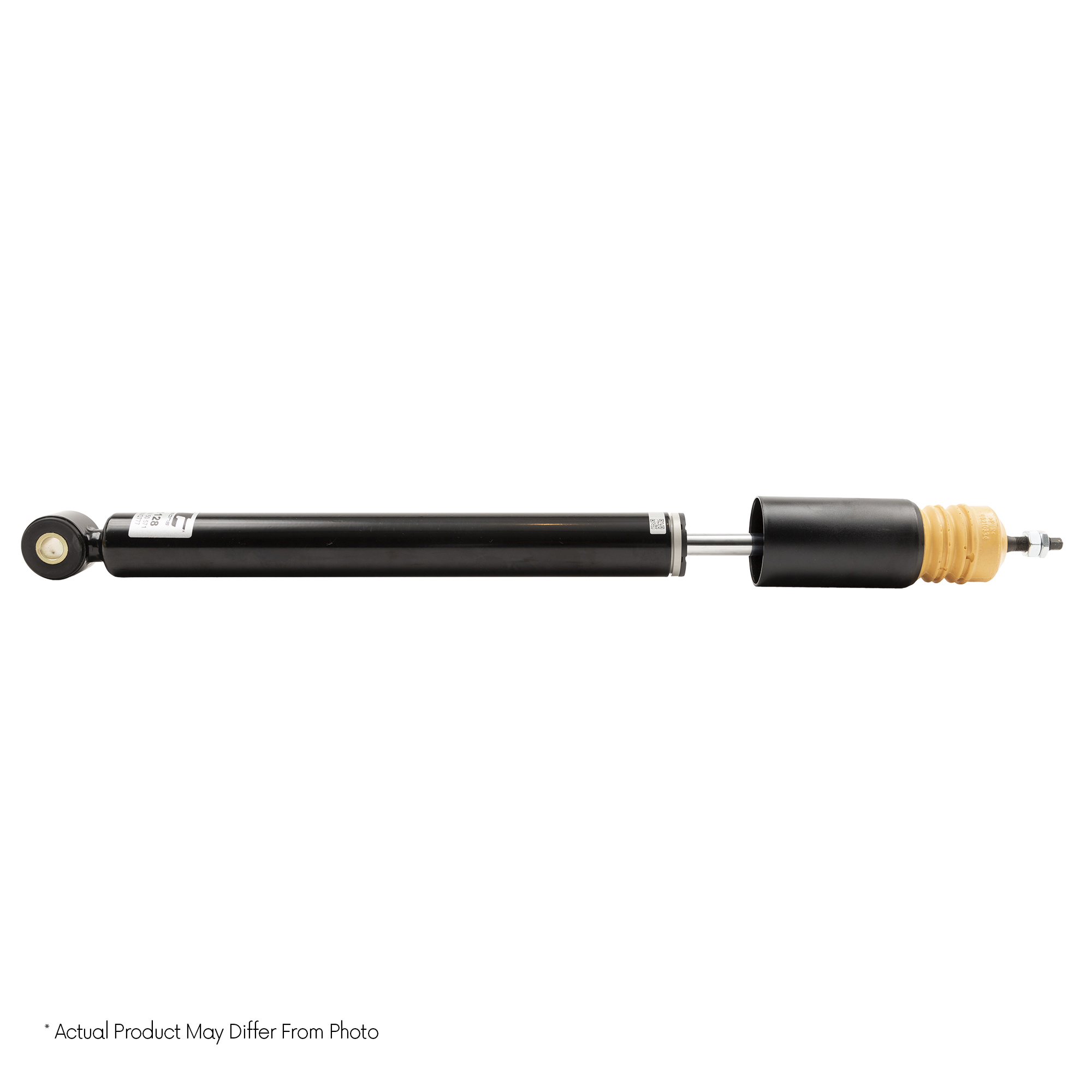

- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
AUDIQ2 (GA) GAB 06/2016-2.0 TDI quattroSUVDiesel11019684All-wheel Drive71, 209
AUDIQ2 (GA) GAB 06/2016-2.0 TDI quattroSUVDiesel14019684All-wheel Drive71, 209
AUDIQ2 (GA) GAB 06/2016-2.0 TFSI quattroSUVPetrol14019844All-wheel Drive71, 209
AUDIQ2 (GA) GAB 06/2016-35 TDI quattroSUVDiesel11019684All-wheel Drive71, 209
AUDIQ2 (GA) GAB 06/2016-40 TFSI quattroSUVPetrol14019844All-wheel Drive71, 209
AUDIQ2 (GA) GAB 06/2016-SQ2 TFSI quattroSUVPetrol22119844All-wheel Drive71, 209
CUPRALEON Sportstourer 10/2020-2.0 TDIEstateDiesel11019684Front-Wheel Drive71, 209
CUPRALEON Sportstourer 10/2020-2.0 TSIEstatePetrol14019844Front-Wheel Drive71, 209
CUPRALEON Sportstourer 10/2020-2.0 TSIEstatePetrol18019844Front-Wheel Drive71, 209
CUPRALEON Sportstourer 10/2020-2.0 TSIEstatePetrol22119844Front-Wheel Drive71, 209
SEATLEON Sportstourer (KL8) 03/2020-2.0 TDIEstateDiesel8519684Front Wheel Drive71, 209
SEATLEON Sportstourer (KL8) 03/2020-2.0 TDIEstateDiesel11019684Front Wheel Drive71, 209
SEATLEON Sportstourer (KL8) 03/2020-2.0 TFSIEstatePetrol14019844Front Wheel Drive71, 209
SKODASUPERB III (3V3, 3T) 03/2015-1.4 TSIHatchbackPetrol9213954Front Wheel Drive71, 209
SKODASUPERB III (3V3, 3T) 03/2015-1.6 TDIHatchbackDiesel8815984Front Wheel Drive71, 209
SKODASUPERB III (3V3, 3T) 03/2015-1.8 TSIHatchbackPetrol13217984Front Wheel Drive71, 209
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TDIHatchbackDiesel9019684Front Wheel Drive71, 209
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TDIHatchbackDiesel11019684Front Wheel Drive71, 209
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TDIHatchbackDiesel13019684Front Wheel Drive71, 209
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TDIHatchbackDiesel14019684Front Wheel Drive71, 209
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TDIHatchbackDiesel14719684Front Wheel Drive71, 209
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TSIHatchbackPetrol14019844Front Wheel Drive71, 209
SKODASUPERB III (3V3, 3T) 03/2015-2.0 TSIHatchbackPetrol16219844Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-1.6 TDISaloonDiesel8815984Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-1.8 TSISaloonPetrol13217984Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-2.0 TDISaloonDiesel8119684Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-2.0 TDISaloonDiesel9019684Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-2.0 TDISaloonDiesel11019684Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-2.0 TDISaloonDiesel13019684Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-2.0 TDISaloonDiesel13519684Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-2.0 TDISaloonDiesel14019684Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-2.0 TDISaloonDiesel14719684Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-2.0 TSISaloonPetrol14019844Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-2.0 TSISaloonPetrol16219844Front Wheel Drive71, 209
VWPASSAT 3G2 (3C) 08/2014-2.0 TSIStufenheckBenzin16219844Frontantrieb71, 209

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 209: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510342
  • Note 71: Only for cars with a clamp diameter of 55 mm on the front axle
