ST Coilover X Kit for 11/2012+ VW Golf VII (5G1, BQ1, BE1, BE2)

1328000H
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

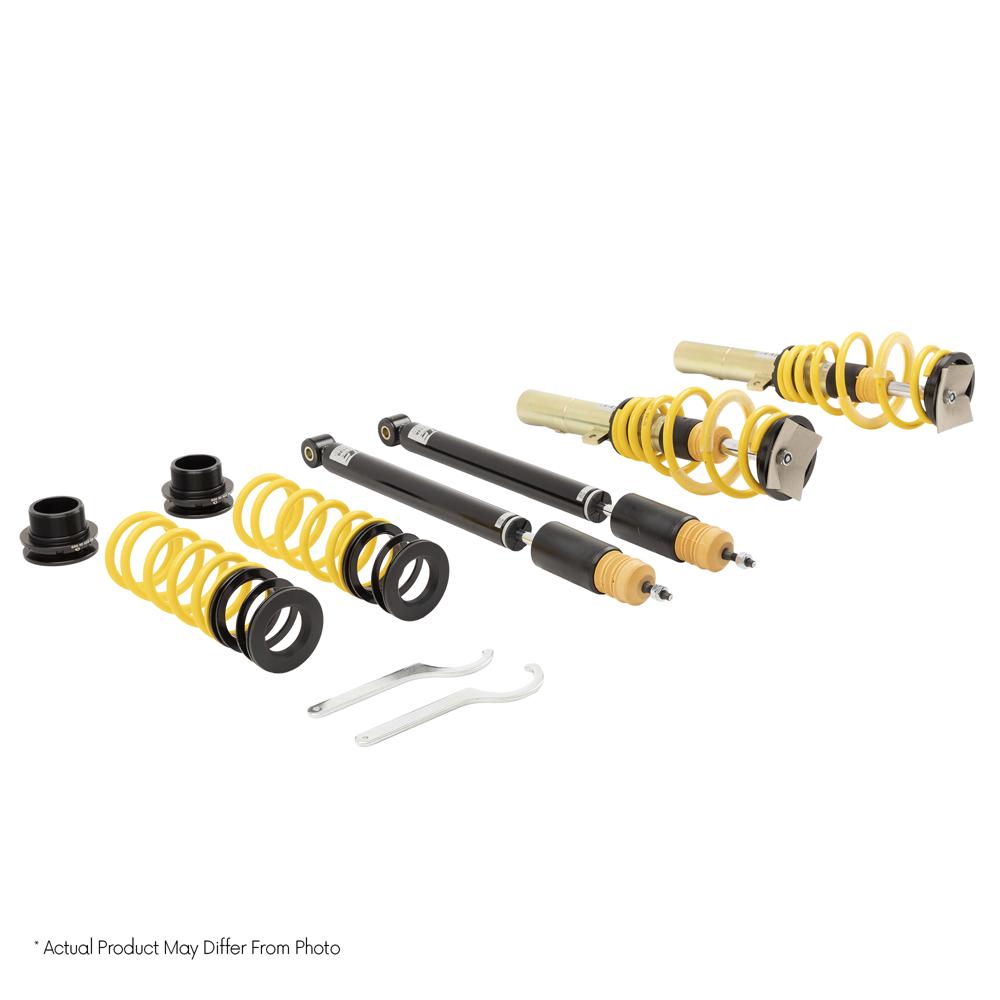

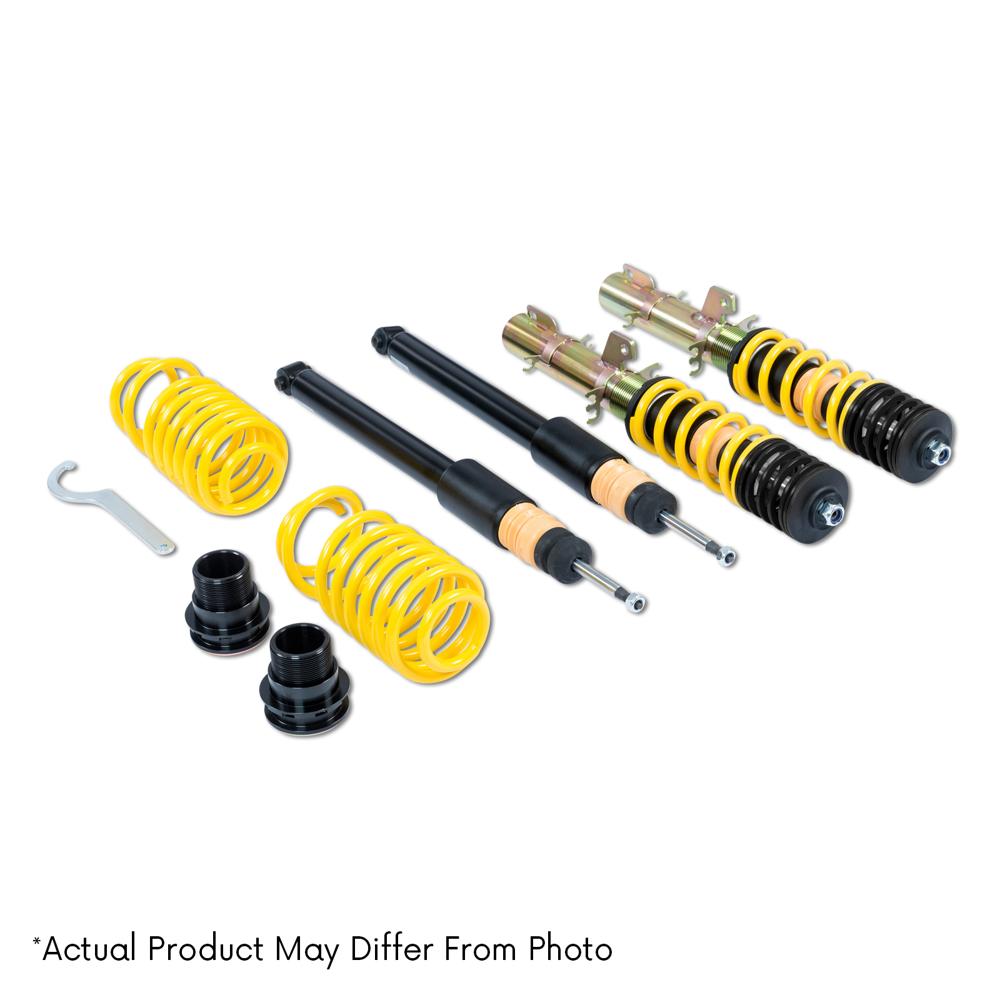

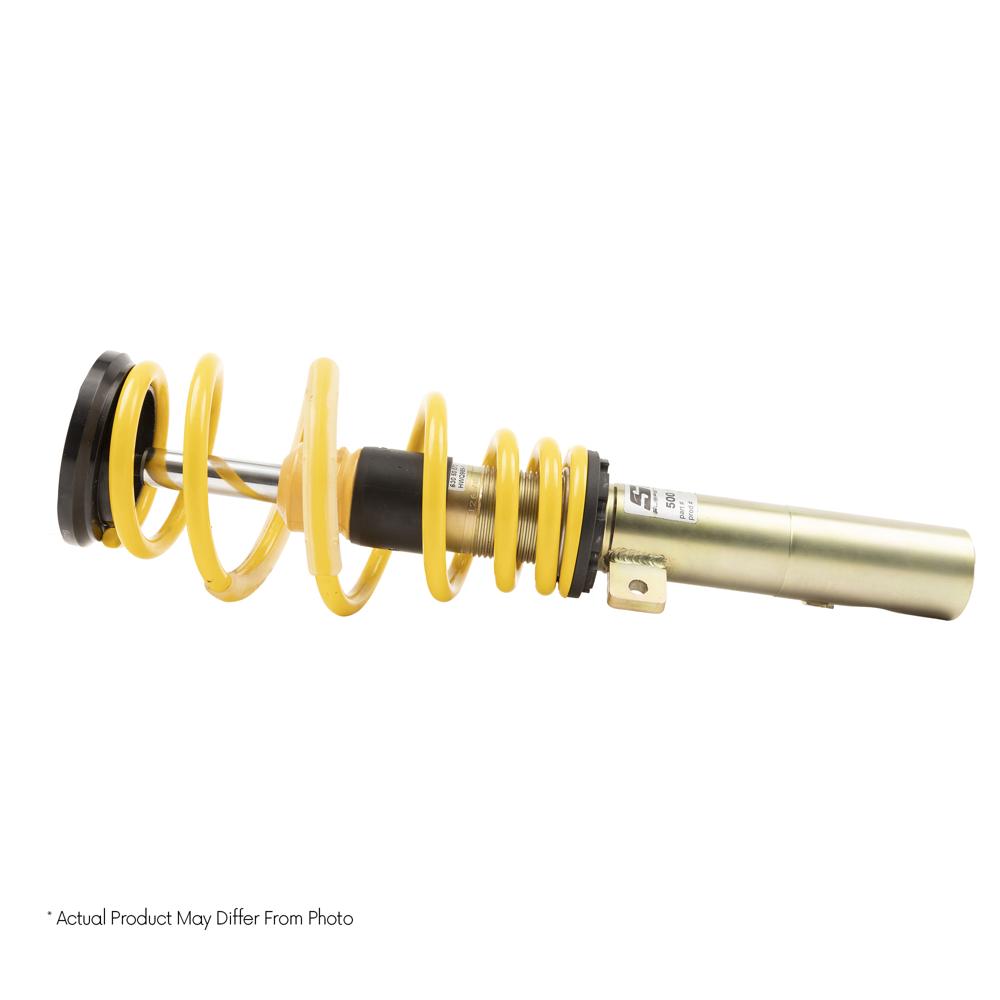

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

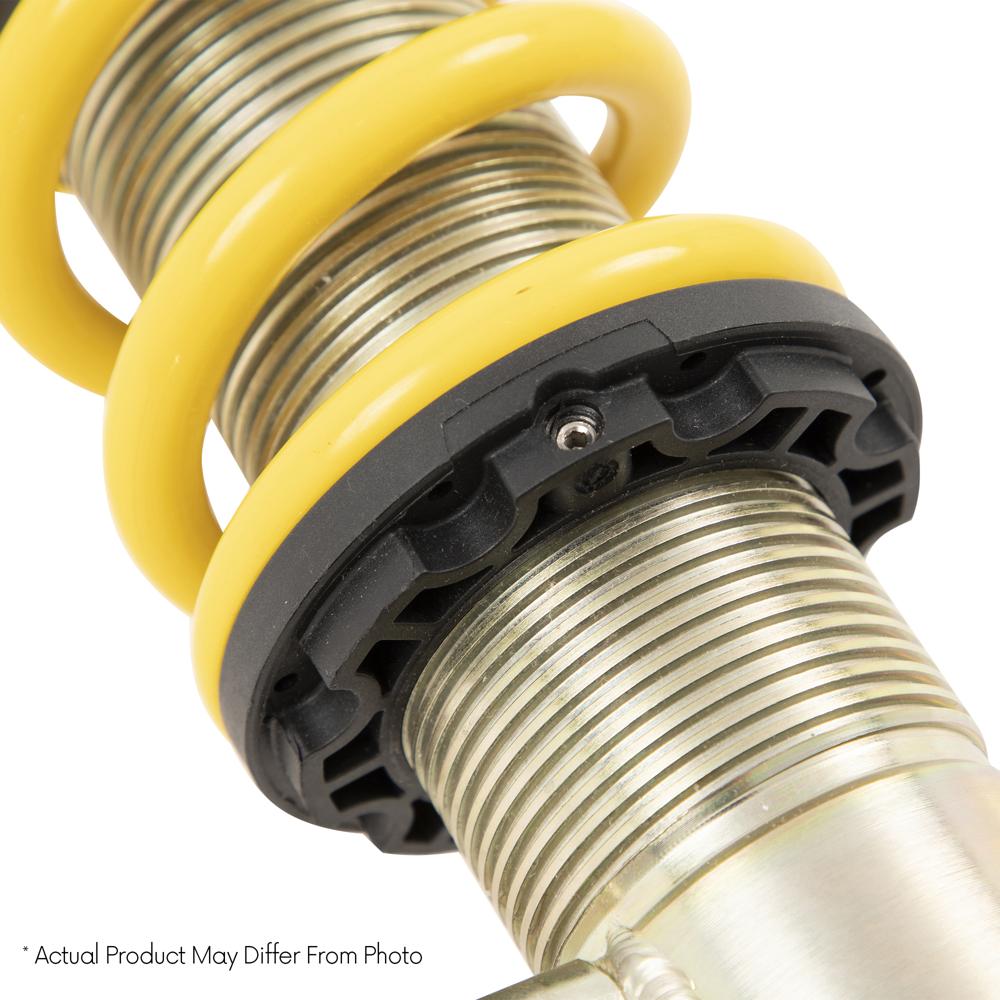

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection

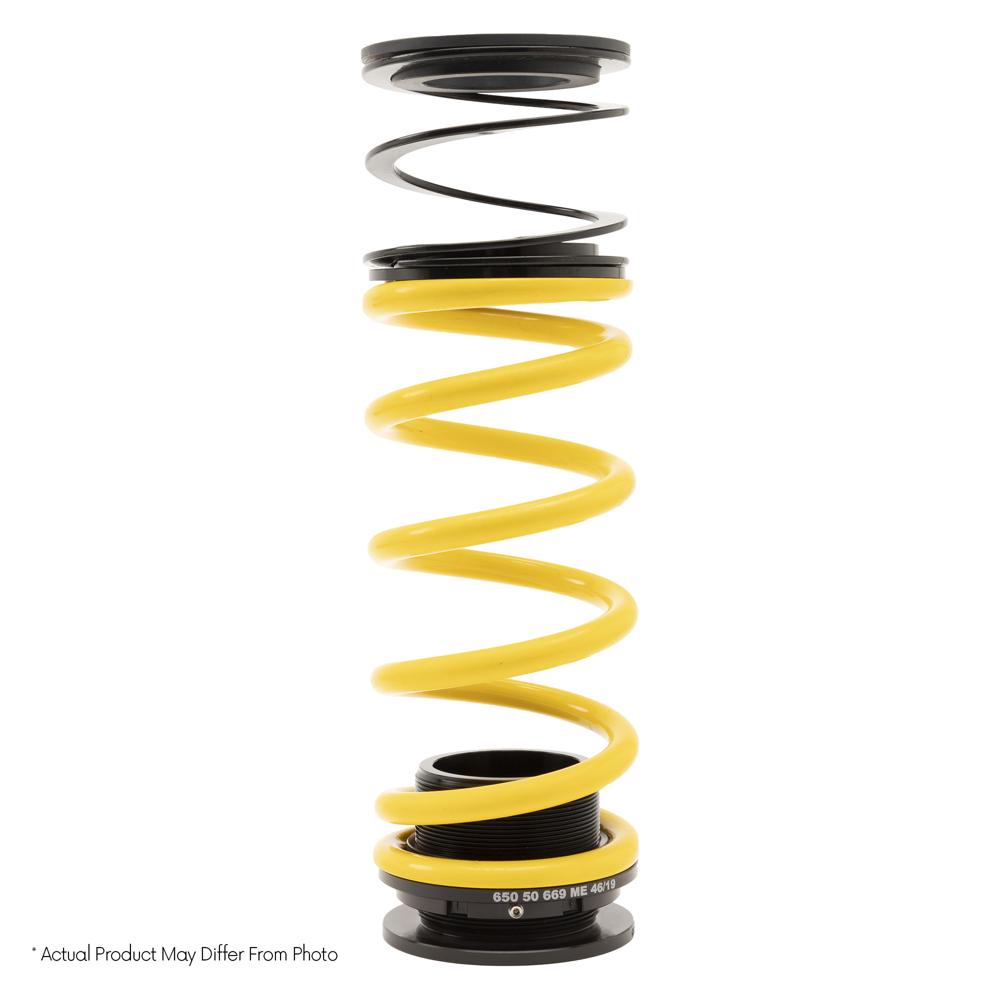

- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

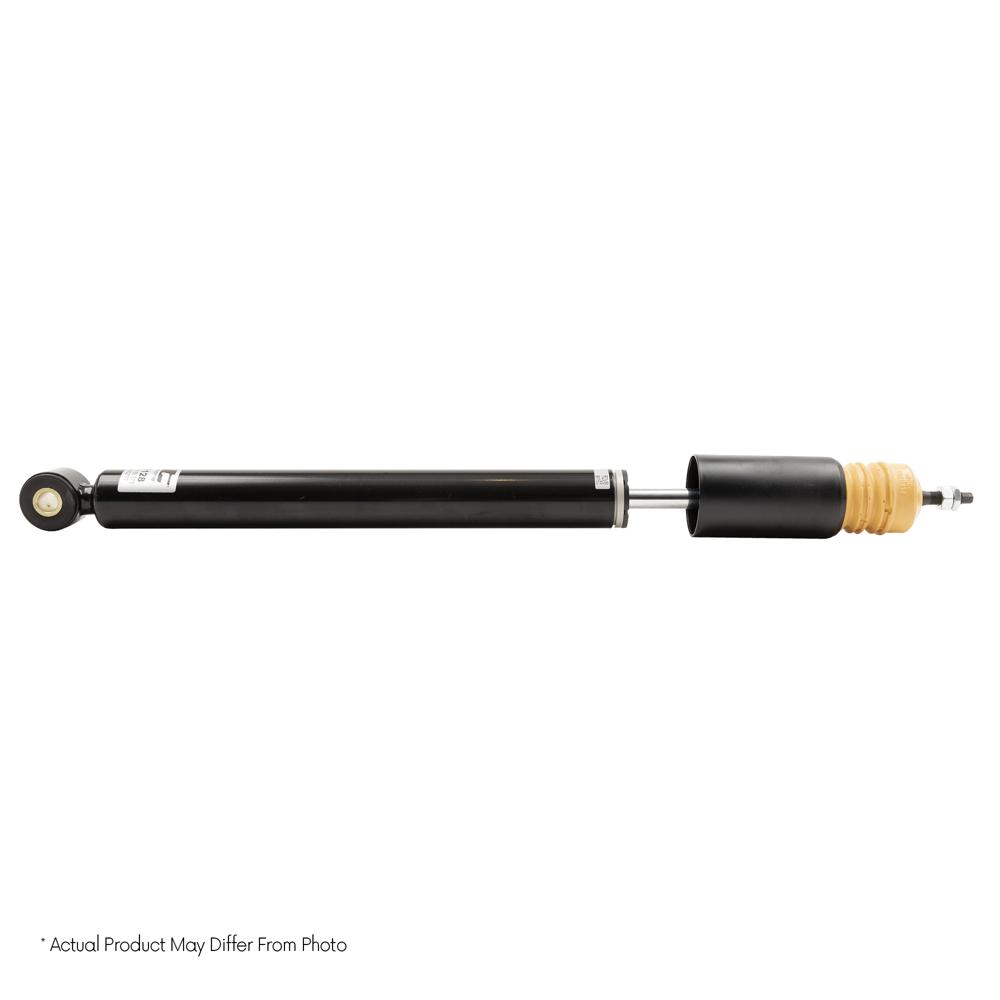

- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
SEATLEON (5F1) 09/2012-08/20201.6 TDIHatchbackDiesel6615984Front Wheel Drive72, 209
SEATLEON (5F1) 09/2012-08/20201.6 TDIHatchbackDiesel7715984Front Wheel Drive72, 209
SEATLEON (5F1) 09/2012-08/20201.6 TDIHatchbackDiesel8115984Front Wheel Drive72, 209
SEATLEON (5F1) 09/2012-08/20201.6 TDIHatchbackDiesel8515984Front Wheel Drive72, 209
SEATLEON (5F1) 09/2012-08/20201.8 TSIHatchbackPetrol13217984Front Wheel Drive72, 209
SEATLEON (5F1) 09/2012-08/20202.0 TDIHatchbackDiesel8119684Front Wheel Drive72, 209
SEATLEON (5F1) 09/2012-08/20202.0 TDIHatchbackDiesel10519684Front Wheel Drive72, 209
SEATLEON (5F1) 09/2012-08/20202.0 TDIHatchbackDiesel11019684Front Wheel Drive72, 209
SEATLEON (5F1) 09/2012-08/20202.0 TDIHatchbackDiesel13519684Front Wheel Drive72, 209
SEATLEON (5F1) 09/2012-08/20202.0 TSIHatchbackPetrol14019844Front Wheel Drive72, 209
SEATLEON SC (5F5) 01/2013-12/20191.6 TDICoupeDiesel6615984Front Wheel Drive72, 209
SEATLEON SC (5F5) 01/2013-12/20191.6 TDICoupeDiesel7715984Front Wheel Drive72, 209
SEATLEON SC (5F5) 01/2013-12/20191.6 TDICoupeDiesel8115984Front Wheel Drive72, 209
SEATLEON SC (5F5) 01/2013-12/20191.6 TDICoupeDiesel8515984Front Wheel Drive72, 209
SEATLEON SC (5F5) 01/2013-12/20191.8 TSICoupePetrol13217984Front Wheel Drive72, 209
SEATLEON SC (5F5) 01/2013-12/20192.0 TDICoupeDiesel8119684Front Wheel Drive72, 209
SEATLEON SC (5F5) 01/2013-12/20192.0 TDICoupeDiesel8119684Front Wheel Drive72, 209
SEATLEON SC (5F5) 01/2013-12/20192.0 TDICoupeDiesel10519684Front Wheel Drive72, 209
SEATLEON SC (5F5) 01/2013-12/20192.0 TDICoupeDiesel11019684Front Wheel Drive72, 209
SEATLEON SC (5F5) 01/2013-12/20192.0 TDICoupeDiesel13519684Front Wheel Drive72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.4 TSIHatchbackPetrol11013954Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.5 TSIHatchbackPetrol9614954Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.5 TSIHatchbackPetrol11014954Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.6HatchbackPetrol8115984Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.6 TDIHatchbackDiesel6615984Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.6 TDIHatchbackDiesel7715984Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.6 TDIHatchbackDiesel8115984Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.6 TDIHatchbackDiesel8515984Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.6 TDI 4motionHatchbackDiesel7715984All-wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.6 TDI 4motionHatchbackDiesel8115984All-wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20211.8 TSIHatchbackPetrol12517984Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20212.0 GTDHatchbackDiesel13019684Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20212.0 GTDHatchbackDiesel13519684Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20212.0 TDIHatchbackDiesel8119684Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20212.0 TDIHatchbackDiesel10519684Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20212.0 TDIHatchbackDiesel11019684Front Wheel Drive6, 72, 209
VWGOLF VII (5G1, BQ1, BE1, BE2, AU) 08/2012-03/20212.0 TDI 4motionHatchbackDiesel11019684All-wheel Drive6, 72, 209

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 209: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510342
  • Note 6: Not for vehicles with electronic damper control
  • Note 72: Only for cars with a clamp diameter of 50 mm on the front axle
