ST Coilover X Kit for 11/2000+ Audi A4 (8E2, B6)

13210030
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

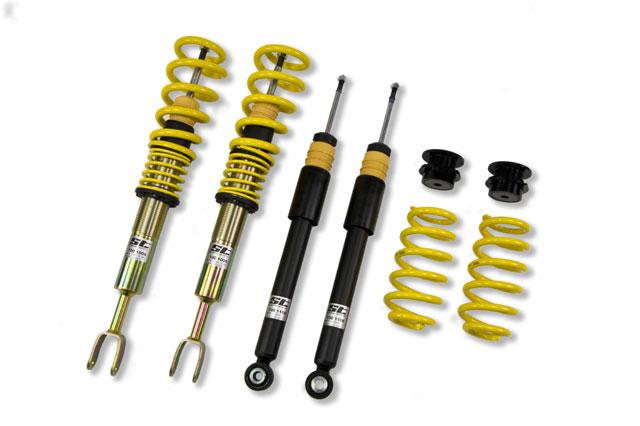

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
AUDIA4 (8E) 8E2, B6 11/2000-12/20051.8 T quattroSaloonPetrol12517814All-wheel Drive11
AUDIA4 (8E) 8E2, B6 11/2000-12/20051.8 T quattroSaloonPetrol14017814All-wheel Drive11
AUDIA4 (8E) 8E2, B6 11/2000-12/20051.9 TDI quattroSaloonDiesel9618964All-wheel Drive11
AUDIA4 (8E) 8E2, B6 11/2000-12/20052.5 TDI quattroSaloonDiesel13224966All-wheel Drive11
AUDIA4 (8E) 8E2, B6 11/2000-12/20053.0 quattroSaloonPetrol16029766All-wheel Drive11
AUDIA4 (8E) 8E2, B6 11/2000-12/20053.0 quattroSaloonPetrol16229766All-wheel Drive11
AUDIA4 (8E) 8E2, B6 11/2000-12/20053.0 quattroSaloonPetrol16429766All-wheel Drive11
AUDIA4 (8E) 8EC, QB6, B7 11/2004-06/20082.0 TDI quattroSaloonDiesel10319684All-wheel Drive11
AUDIA4 (8E) 8EC, QB6, B7 11/2004-06/20082.0 TDI quattroSaloonDiesel12019684All-wheel Drive11
AUDIA4 (8E) 8EC, QB6, B7 11/2004-06/20082.0 TDI quattroSaloonDiesel12519684All-wheel Drive11
AUDIA4 (8E) 8EC, QB6, B7 11/2004-06/20082.0 TFSI quattroSaloonPetrol14719844All-wheel Drive11
AUDIA4 (8E) 8EC, QB6, B7 11/2004-06/20082.0 TFSI quattroSaloonPetrol16219844All-wheel Drive11
AUDIA4 (8E) 8EC, QB6, B7 11/2004-06/20083.0 quattroSaloonPetrol16029766All-wheel Drive11
AUDIA4 (8E) 8EC, QB6, B7 11/2004-06/20083.0 TDI quattroSaloonDiesel15029676All-wheel Drive11
AUDIA4 (8E) 8EC, QB6, B7 11/2004-06/20083.0 TDI quattroSaloonDiesel17129676All-wheel Drive11
AUDIA4 (8E) 8EC, QB6, B7 11/2004-06/20083.2 FSI quattroSaloonPetrol18831236All-wheel Drive11
AUDIA4 Avant (8E) 8E5, B6 02/2000-12/20051.8 TEstatePetrol11017814Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8E5, B6 02/2000-12/20051.8 TEstatePetrol12017814Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8E5, B6 02/2000-12/20051.8 TEstatePetrol14017814Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8E5, B6 02/2000-12/20051.9 TDIEstateDiesel9618964Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8E5, B6 02/2000-12/20052.4EstatePetrol12023936Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8E5, B6 02/2000-12/20052.4EstatePetrol12523936Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8E5, B6 02/2000-12/20052.5 TDIEstateDiesel11424966Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8E5, B6 02/2000-12/20052.5 TDIEstateDiesel12024966Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8E5, B6 02/2000-12/20053.0EstatePetrol16029766Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8E5, B6 02/2000-12/20053.0EstatePetrol16229766Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20081.8 TEstatePetrol12017814Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.0 TDIEstateDiesel8919684Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.0 TDIEstateDiesel9319684Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.0 TDIEstateDiesel10019684Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.0 TDIEstateDiesel10319684Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.0 TDIEstateDiesel12019684Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.0 TDIEstateDiesel12519684Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.0 TDI 16VEstateDiesel10319684Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.0 TFSIEstatePetrol14719844Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.0 TFSIEstatePetrol16219844Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.5 TDIEstateDiesel12024966Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.7 TDiEstateDiesel12026986Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20082.7 TDIEstateDiesel13226986Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20083.0EstatePetrol16029766Front Wheel Drive4, 11
AUDIA4 Avant (8E) 8ED, QB6, B7 11/2004-06/20083.2 FSIEstatePetrol18831236Front Wheel Drive4, 11
AUDIA4 B7 Convertible (8HE) 01/2002-12/20091.8 TConvertiblePetrol12017814Front Wheel Drive4, 11
AUDIA4 B7 Convertible (8HE) 01/2002-12/20092.0 TDIConvertibleDiesel10019684Front Wheel Drive4, 11
AUDIA4 B7 Convertible (8HE) 01/2002-12/20092.0 TDIConvertibleDiesel10319684Front Wheel Drive4, 11
AUDIA4 B7 Convertible (8HE) 01/2002-12/20092.0 TFSI 16VConvertiblePetrol14719844Front Wheel Drive4, 11
AUDIA4 B7 Convertible (8HE) 01/2002-12/20092.7 TDIConvertibleDiesel13226986Front Wheel Drive4, 11
AUDIA4 B7 Convertible (8HE) 01/2002-12/20093.2 FSIConvertiblePetrol18831236Front Wheel Drive4, 11
AUDIA4 Convertible (8H) QB6, 8H7, B6, 8HE, B7 01/2002-12/20091.8 TConvertiblePetrol12017814Front Wheel Drive4, 11
AUDIA4 Convertible (8H) QB6, 8H7, B6, 8HE, B7 01/2002-12/20091.8 TConvertiblePetrol12517814Front Wheel Drive4, 11
AUDIA4 Convertible (8H) QB6, 8H7, B6, 8HE, B7 01/2002-12/20092.4ConvertiblePetrol12023936Front Wheel Drive4, 11
AUDIA4 Convertible (8H) QB6, 8H7, B6, 8HE, B7 01/2002-12/20092.4ConvertiblePetrol12523936Front Wheel Drive4, 11
AUDIA4 Convertible (8H) QB6, 8H7, B6, 8HE, B7 01/2002-12/20092.5 TDIConvertibleDiesel12024966Front Wheel Drive4, 11
AUDIA4 Convertible (8H) QB6, 8H7, B6, 8HE, B7 01/2002-12/20093.0ConvertiblePetrol16029766Front Wheel Drive4, 11
AUDIA4 Convertible (8H) QB6, 8H7, B6, 8HE, B7 01/2002-12/20093.0ConvertiblePetrol16229766Front Wheel Drive4, 11

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 11: Excluding models with automatic level control, or automatic level system can be adjusted in accordance
  • Note 4: Excluding four wheel drive models
