ST Coilover X Kit for 11/2000-02/2007 Ford Mondeo Mk III (B5Y)

13230016
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

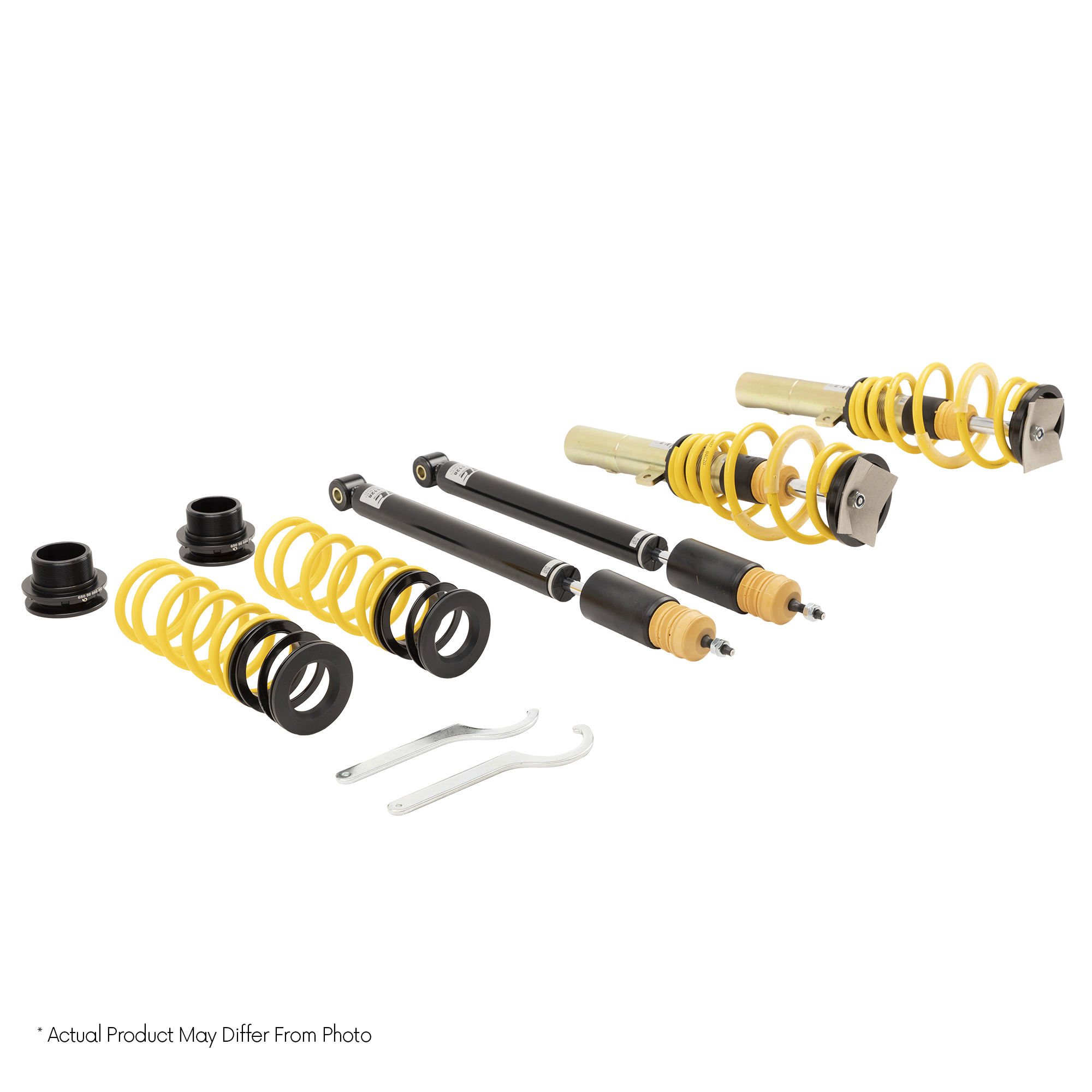

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
FORDMONDEO Mk III (B5Y) 10/2000-03/20071.8 16VHatchbackPetrol8117984Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/20071.8 16VHatchbackPetrol9217984Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/20071.8 SCiHatchbackPetrol9617984Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/20072.0 16VHatchbackPetrol10719994Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/20072.0 16V DI / TDDi / TDCiHatchbackDiesel6619984Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/20072.0 16V TDDi / TDCiHatchbackDiesel8519984Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/20072.0 DIHatchbackDiesel9219984Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/20072.0 TDCiHatchbackDiesel9619984Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/20072.2 TDCiHatchbackDiesel11021984Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/20072.2 TDCiHatchbackDiesel11421984Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/20072.5 V6 24VHatchbackPetrol12524956Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/20073.0 V6 24VHatchbackPetrol15029676Front Wheel Drive
FORDMONDEO Mk III (B5Y) 10/2000-03/2007ST220HatchbackPetrol16629676Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20071.8 16VSaloonPetrol8117984Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20071.8 16VSaloonPetrol9217984Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20071.8 SCiSaloonPetrol9617984Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20072.0SaloonPetrol10619994Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20072.0 16VSaloonPetrol10719994Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20072.0 16V DI / TDDi / TDCiSaloonDiesel6619984Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20072.0 16V TDDi / TDCiSaloonDiesel8519984Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20072.0 DISaloonDiesel9219984Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20072.0 TDCiSaloonDiesel9619984Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20072.2 TDCiSaloonDiesel11021984Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20072.2 TDCiSaloonDiesel11421984Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20072.5 V6SaloonPetrol12524516Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20072.5 V6 24VSaloonPetrol12524956Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/20073.0 V6 24VSaloonPetrol15029676Front Wheel Drive
FORDMONDEO Mk III Saloon (B4Y) 10/2000-09/2007ST220SaloonPetrol16629676Front Wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF
