ST Coilover X Kit for 10/2003+ VW Golf V (1K1)

13210069
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

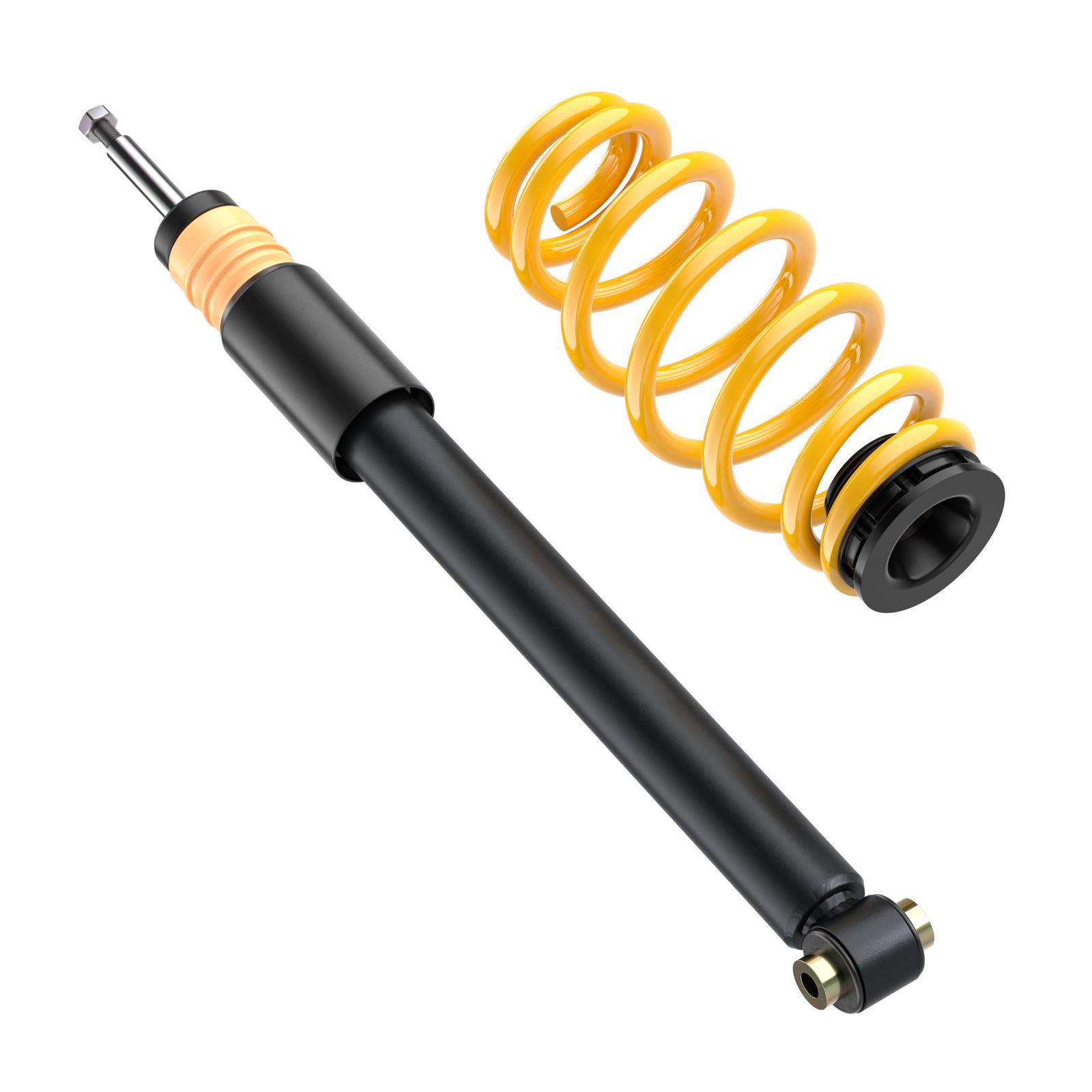

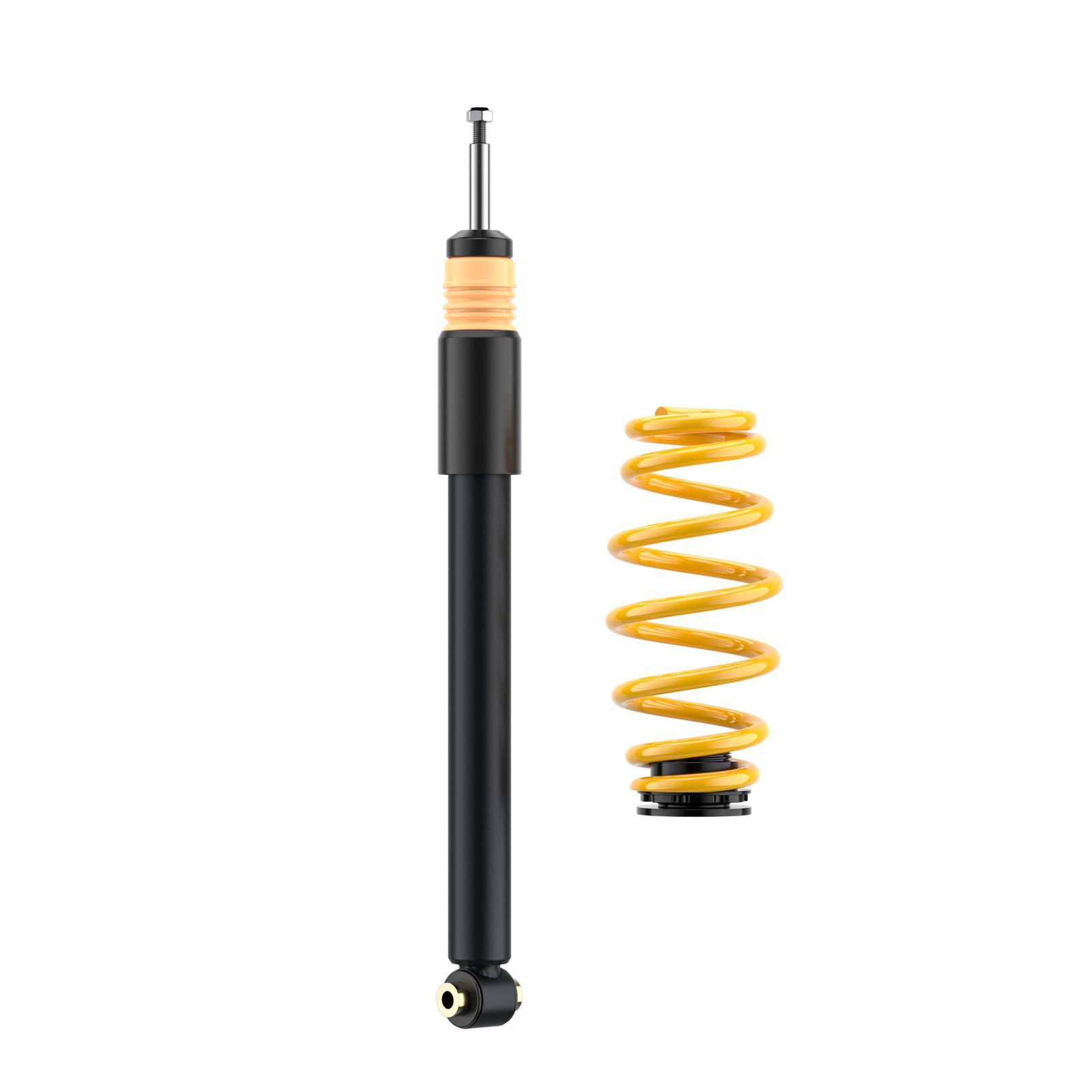

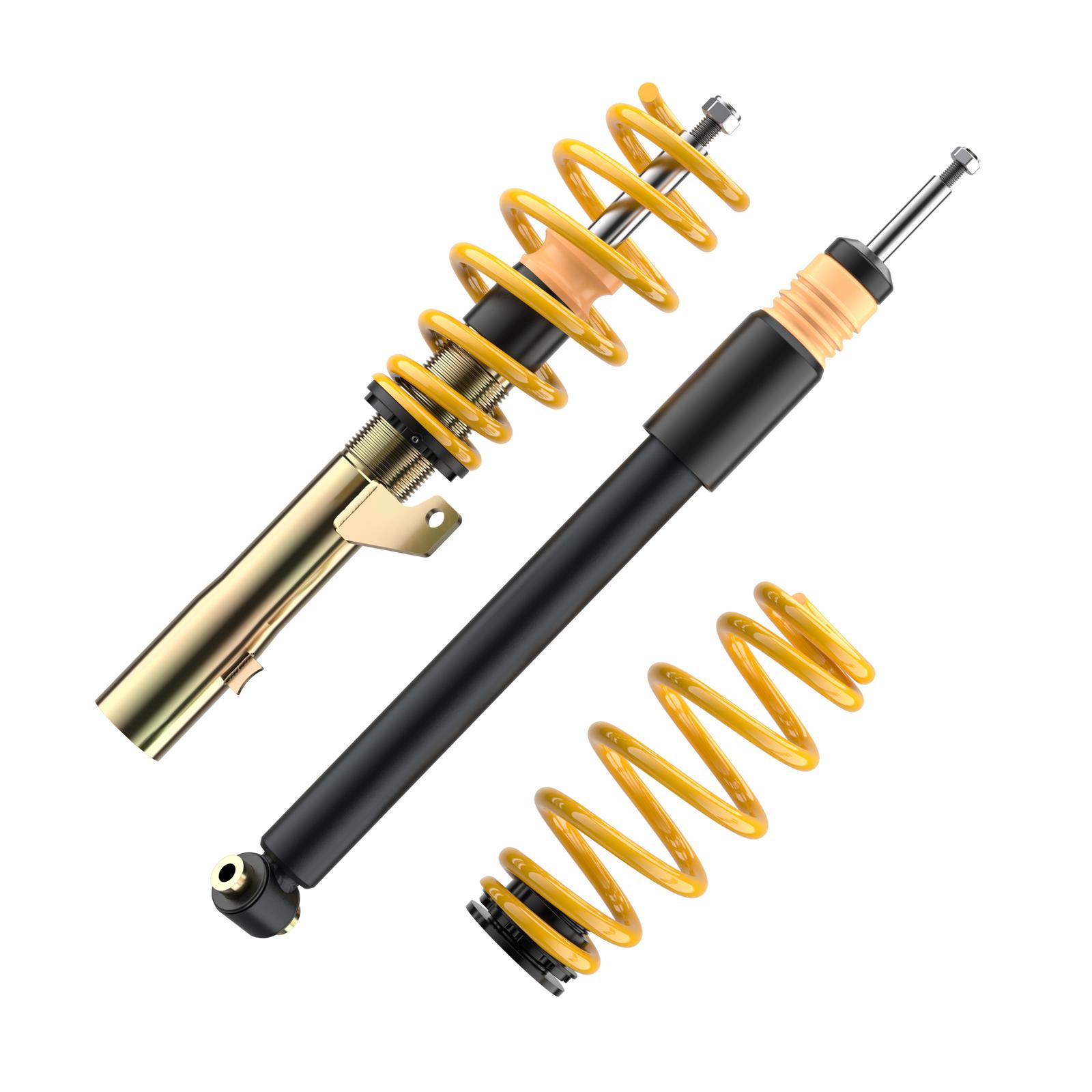

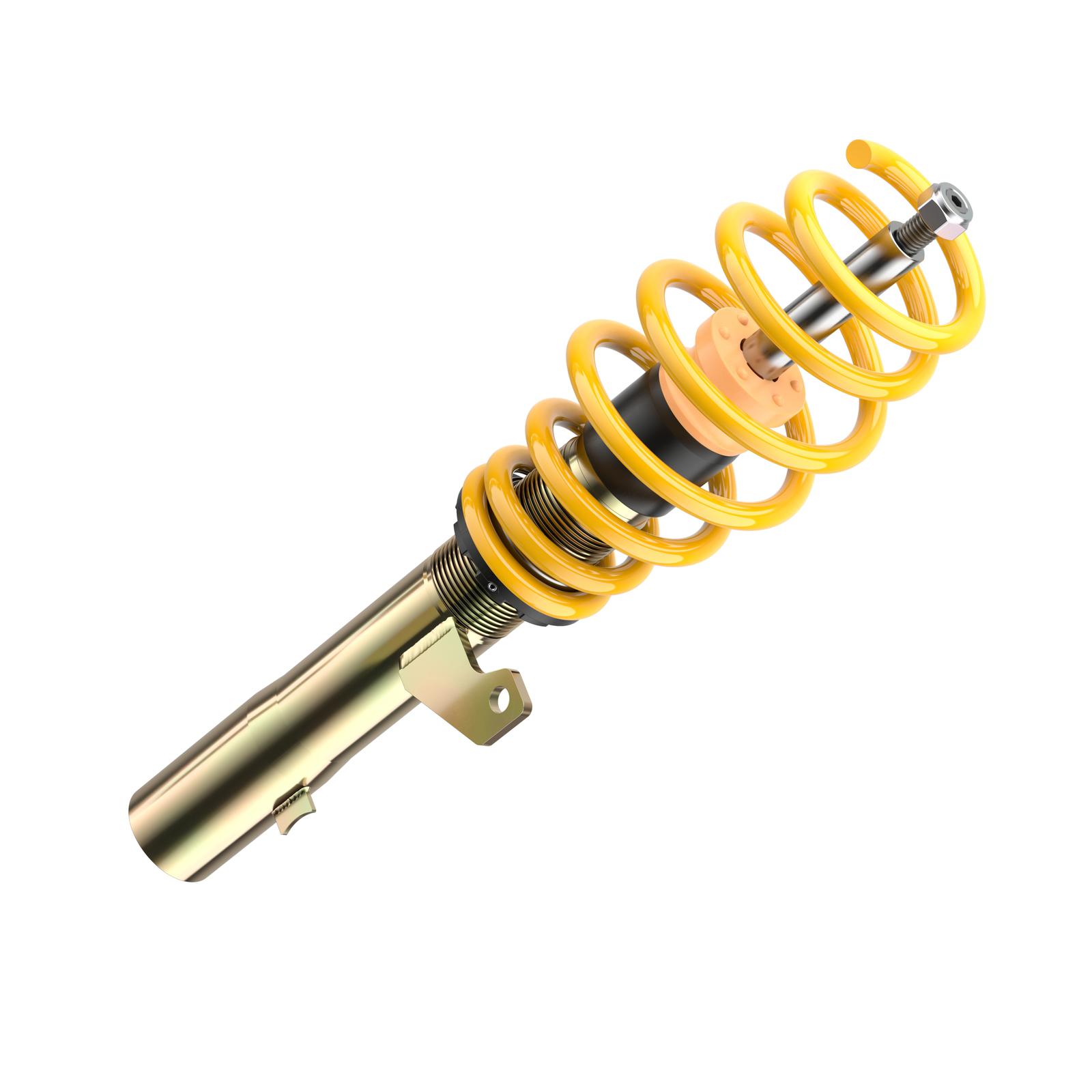

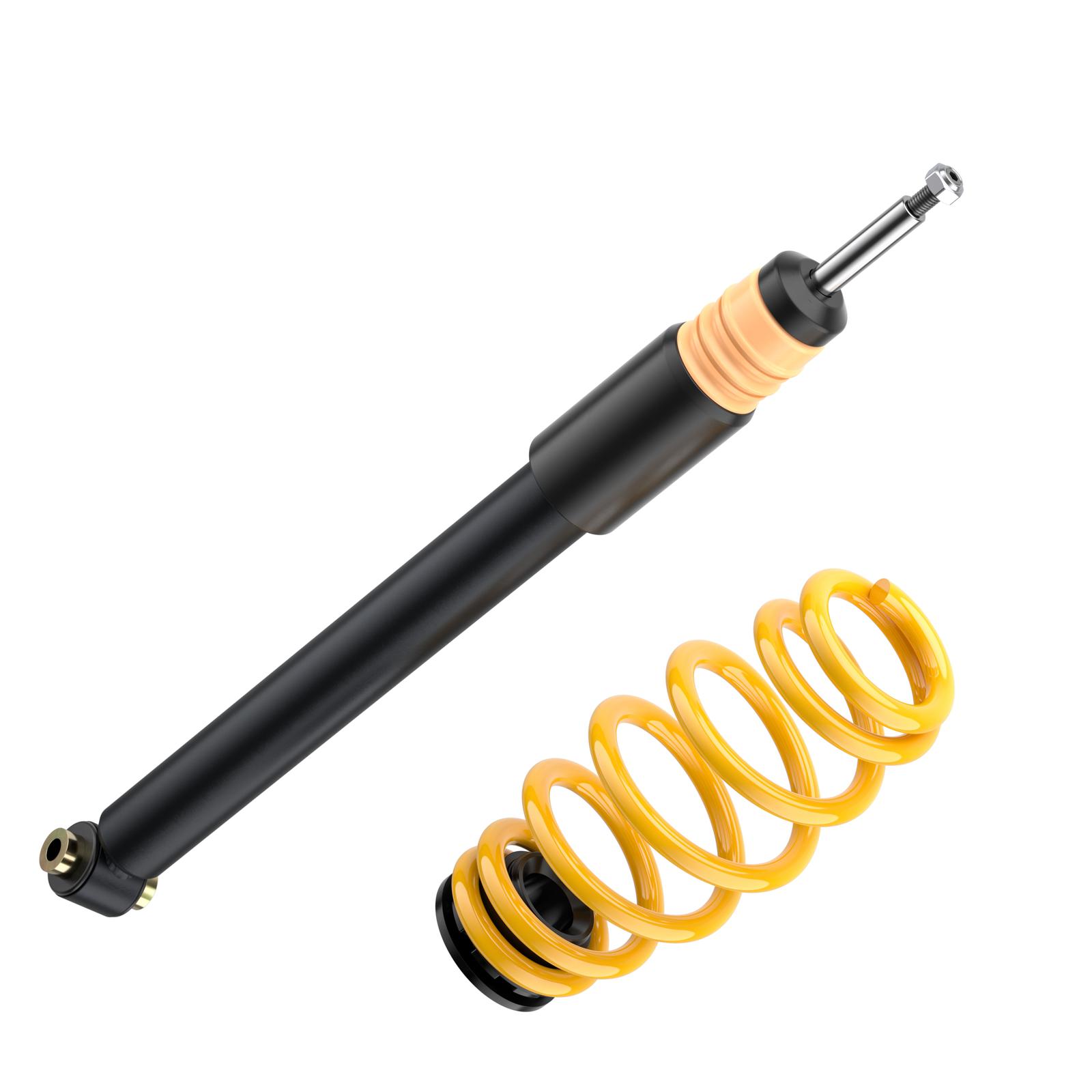

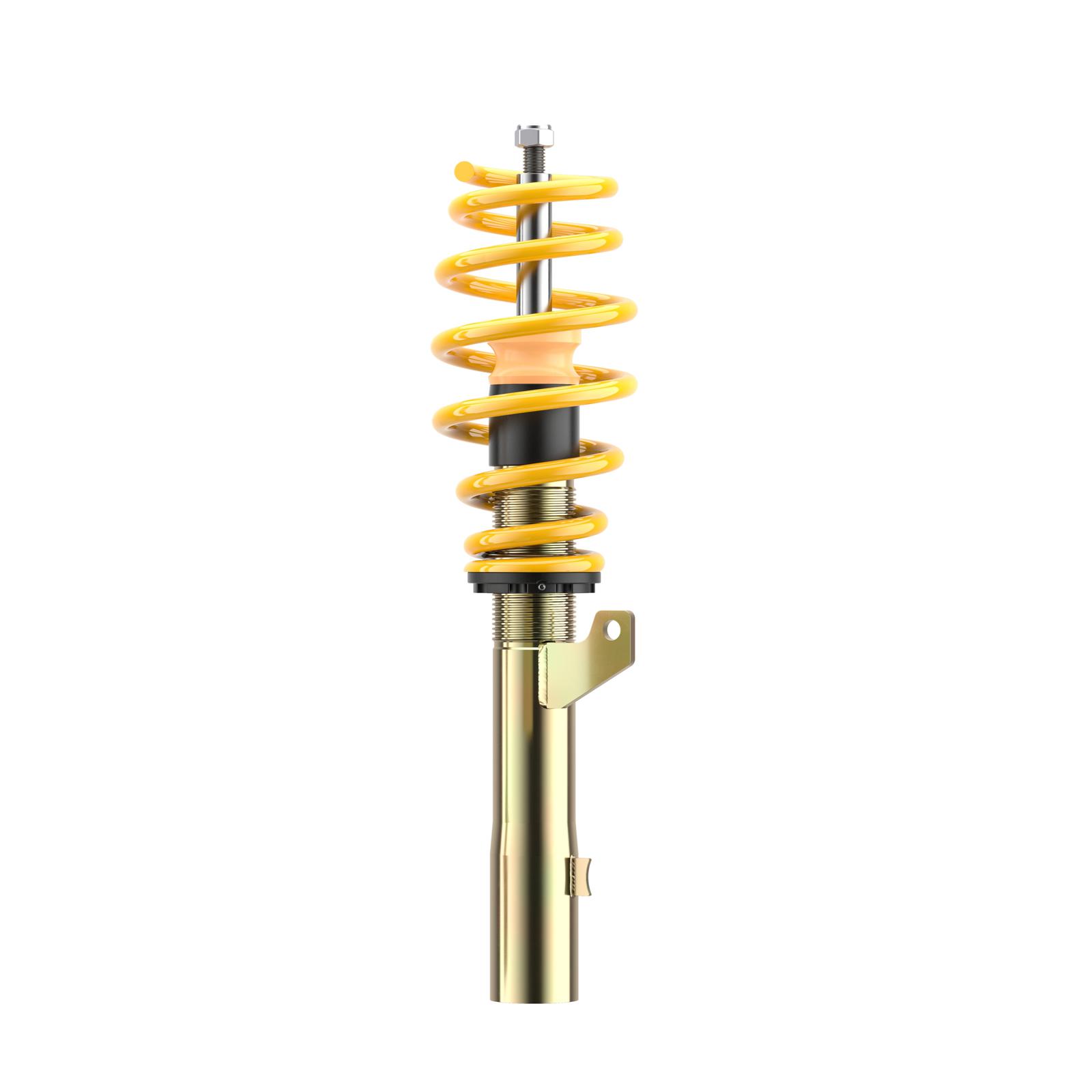

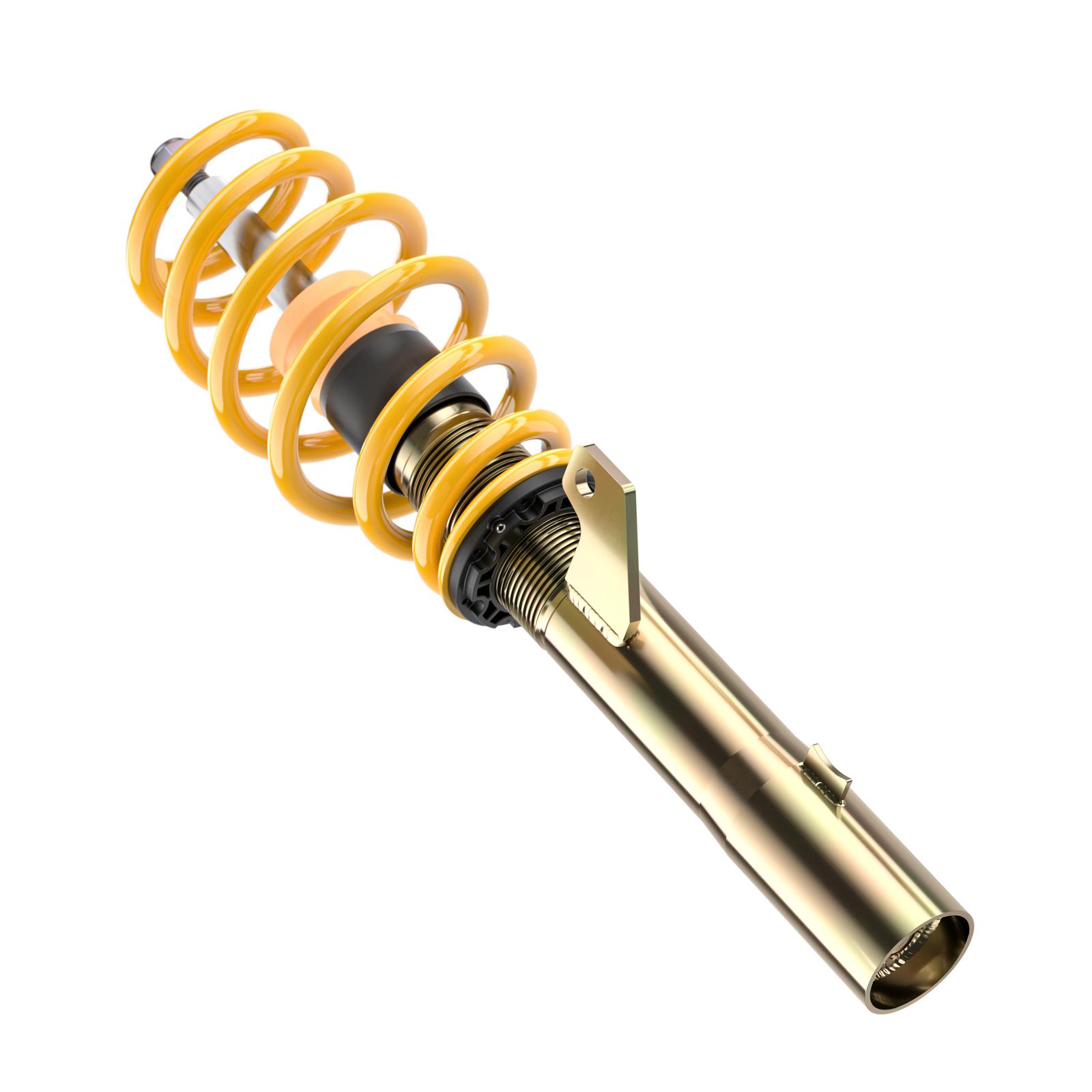

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
AUDIA3 (8P) 8P1 05/2003-12/20131.4 TFSIHatchbackPetrol9213904Front Wheel Drive4, 72, 188
AUDIA3 (8P) 8P1 05/2003-12/20131.6 TDIHatchbackDiesel7715984Front Wheel Drive4, 72, 188
AUDIA3 (8P) 8P1 05/2003-12/20131.8 TFSIHatchbackPetrol11817984Front Wheel Drive4, 72, 188
AUDIA3 (8P) 8P1 05/2003-12/20131.9 TDIHatchbackDiesel7718964Front Wheel Drive4, 72, 188
AUDIA3 (8P) 8P1 05/2003-12/20132.0 FSIHatchbackPetrol11019844Front Wheel Drive4, 72, 188
AUDIA3 (8P) 8P1 05/2003-12/20132.0 TDIHatchbackDiesel10019684Front Wheel Drive4, 72, 188
AUDIA3 (8P) 8P1 05/2003-12/20132.0 TDIHatchbackDiesel10319684Front Wheel Drive4, 72, 188
AUDIA3 (8P) 8P1 05/2003-12/20132.0 TDIHatchbackDiesel12019684Front Wheel Drive4, 72, 188
AUDIA3 (8P) 8P1 05/2003-12/20132.0 TDIHatchbackDiesel12519684Front Wheel Drive4, 72, 188
AUDIA3 (8P) 8P1 05/2003-12/20132.0 TDI 16VHatchbackDiesel10319684Front Wheel Drive4, 72, 188
AUDIA3 (8P) 8P1 05/2003-12/20132.0 TFSIHatchbackPetrol14719844Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20151.4 TFSIHatchbackPetrol9213904Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20151.6 TDIHatchbackDiesel7715984Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20151.8 TFSIHatchbackPetrol11817984Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20151.9 TDIHatchbackDiesel7718964Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20152.0 FSIHatchbackPetrol11019844Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20152.0 TDIHatchbackDiesel10019684Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20152.0 TDIHatchbackDiesel10319684Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20152.0 TDIHatchbackDiesel10419684Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20152.0 TDIHatchbackDiesel12019684Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20152.0 TDIHatchbackDiesel12519684Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20152.0 TDI 16VHatchbackDiesel10319684Front Wheel Drive4, 72, 188
AUDIA3 Sportback (8P) 8PA 09/2004-12/20152.0 TFSIHatchbackPetrol14719844Front Wheel Drive4, 72, 188
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.2 TSIHatchbackPetrol6311974Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.2 TSIHatchbackPetrol7711974Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.4 TSIHatchbackPetrol9013904Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.4 TSIHatchbackPetrol10313904Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.4 TSIHatchbackPetrol11813904Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.4 TSIHatchbackPetrol12513904Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.6 FSIHatchbackPetrol8515984Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.6 TDIHatchbackDiesel6615984Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.6 TDIHatchbackDiesel7715984Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.9 TDIHatchbackDiesel6618964Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20131.9 TDIHatchbackDiesel7718964Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20132.0 FSIHatchbackPetrol11019844Front Wheel Drive4, 72
VWGOLF PLUS (1KP, 5M1, 521) 12/2004-12/20132.0 TDIHatchbackDiesel8119684Front Wheel Drive4, 72
VWGOLF V (1K_) 10/2003-02/20091.4 TSIHatchbackPetrol10313904Front Wheel Drive4, 72
VWGOLF V (1K_) 10/2003-02/20091.9 TDIHatchbackDiesel6618964Front Wheel Drive4, 72
VWGOLF V (1K_) 10/2003-02/20091.9 TDIHatchbackDiesel7718964Front Wheel Drive4, 72
VWGOLF V (1K_) 10/2003-02/20092.0HatchbackPetrol8519844Front Wheel Drive4, 72
VWGOLF V (1K_) 10/2003-02/20092.0 FSIHatchbackPetrol11019844Front Wheel Drive4, 72
VWGOLF V (1K_) 10/2003-02/20092.0 TDIHatchbackDiesel10019684Front Wheel Drive4, 72
VWGOLF V (1K_) 10/2003-02/20092.0 TDIHatchbackDiesel10319684Front Wheel Drive4, 72
VWGOLF V (1K_) 10/2003-02/20092.0 TDI 16VHatchbackDiesel10319684Front Wheel Drive4, 72
VWGOLF V (1K_) 10/2003-02/20092.5HatchbackPetrol11224805Front Wheel Drive4, 72
VWGOLF V (1K_) 10/2003-02/2009RABBIT 2.5HatchbackPetrol12524805Front Wheel Drive4, 72
VWGOLF V Estate (1K_) 01/2007-07/20091.4 TSIEstatePetrol12513904Front Wheel Drive4, 72
VWGOLF V Estate (1K_) 01/2007-07/20091.9 TDIEstateDiesel7718964Front Wheel Drive4, 72
VWGOLF V Estate (1K_) 01/2007-07/20092.0 TDIEstateDiesel10019684Front Wheel Drive4, 72
VWGOLF V Estate (1K_) 01/2007-07/20092.0 TDIEstateDiesel10319684Front Wheel Drive4, 72
VWGOLF V Estate (1K_) 01/2007-07/20092.0 TDI 16VEstateDiesel10319684Front Wheel Drive4, 72
VWGOLF V Estate (1K_) 01/2007-07/20092.5EstatePetrol12524805Front Wheel Drive4, 72
VWGOLF VI Estate (AJ5, 1KM) 07/2009-07/20141.4 TSIEstatePetrol9013904Front Wheel Drive4, 72
VWGOLF VI Estate (AJ5, 1KM) 07/2009-07/20141.4 TSIEstatePetrol11813904Front Wheel Drive4, 72
VWGOLF VI Estate (AJ5, 1KM) 07/2009-07/20141.6 TDIEstateDiesel6615984Front Wheel Drive4, 72
VWGOLF VI Estate (AJ5, 1KM) 07/2009-07/20141.6 TDIEstateDiesel7715984Front Wheel Drive4, 72
VWGOLF VI Estate (AJ5, 1KM) 07/2009-07/20142.0EstatePetrol8519844Front Wheel Drive4, 72
VWGOLF VI Estate (AJ5, 1KM) 07/2009-07/20142.0 TDIEstateDiesel8119684Front Wheel Drive4, 72
VWGOLF VI Estate (AJ5, 1KM) 07/2009-07/20142.0 TDIEstateDiesel10019684Front Wheel Drive4, 72
VWGOLF VI Estate (AJ5, 1KM) 07/2009-07/20142.0 TDIEstateDiesel10319684Front Wheel Drive4, 72
VWGOLF VI Estate (AJ5, 1KM) 07/2009-07/20142.0 TSIEstatePetrol14719844Front Wheel Drive4, 72
VWGOLF VI Estate (AJ5, 1KM) 07/2009-07/20142.5EstatePetrol12524805Front Wheel Drive4, 72

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 188: At vehicles equipped with audi magnetic ride, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510124, Price 299,- EURO incl. VAT
  • Note 4: Excluding four wheel drive models
  • Note 72: Only for cars with a clamp diameter of 50 mm on the front axle
