ST Coilover X Kit for 10/1998-05/2003 Audi A3 (8L1)

13280031
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

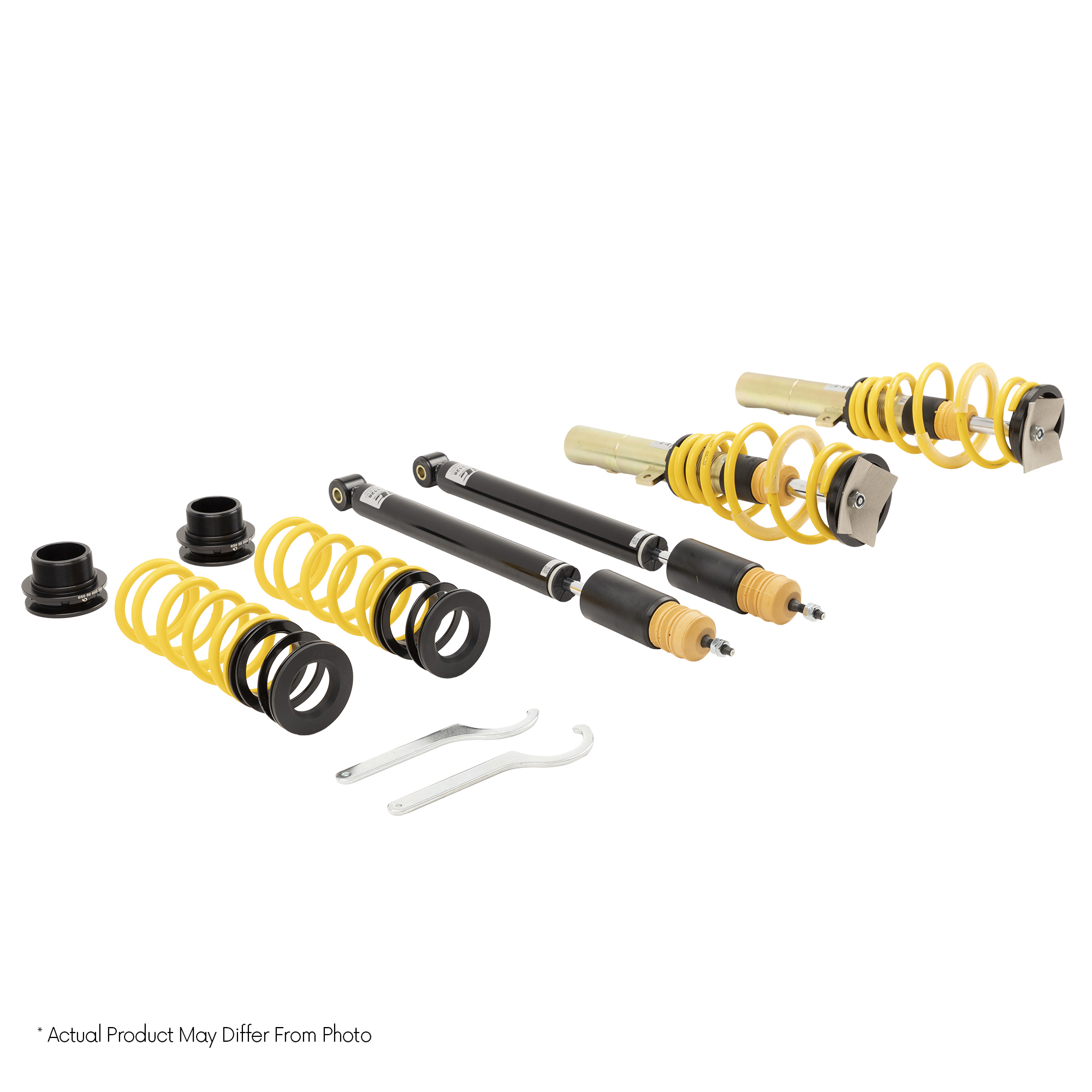

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

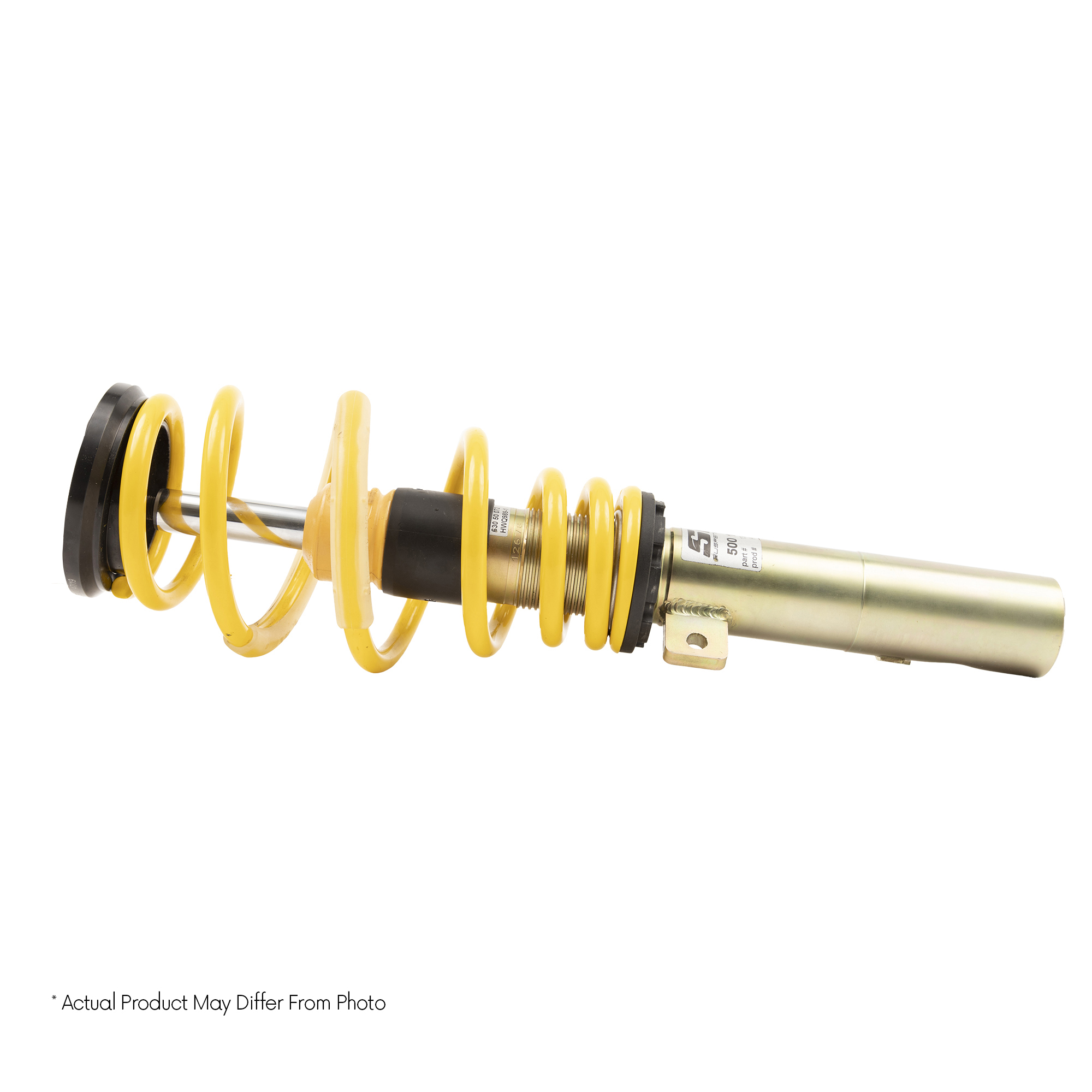

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection

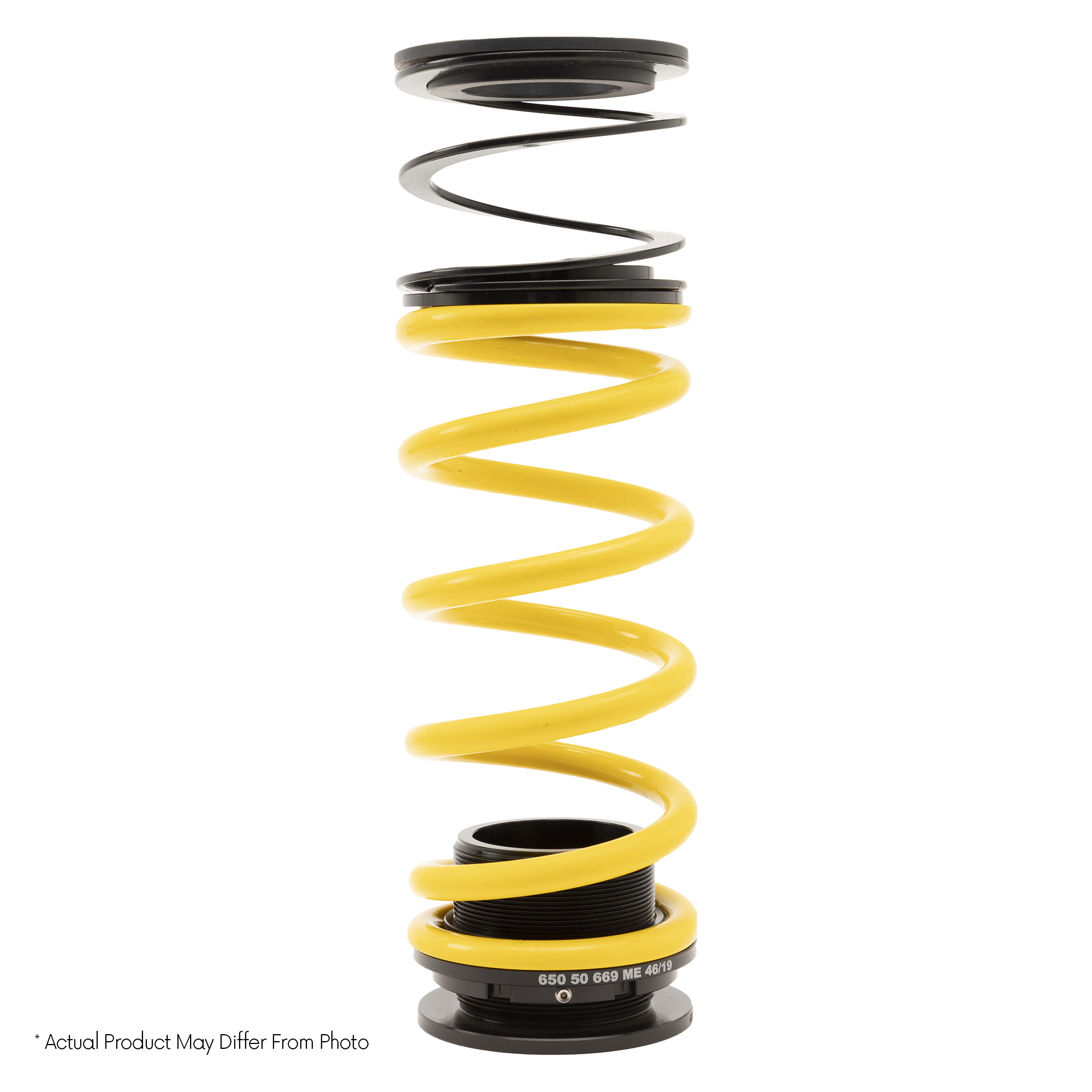

- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

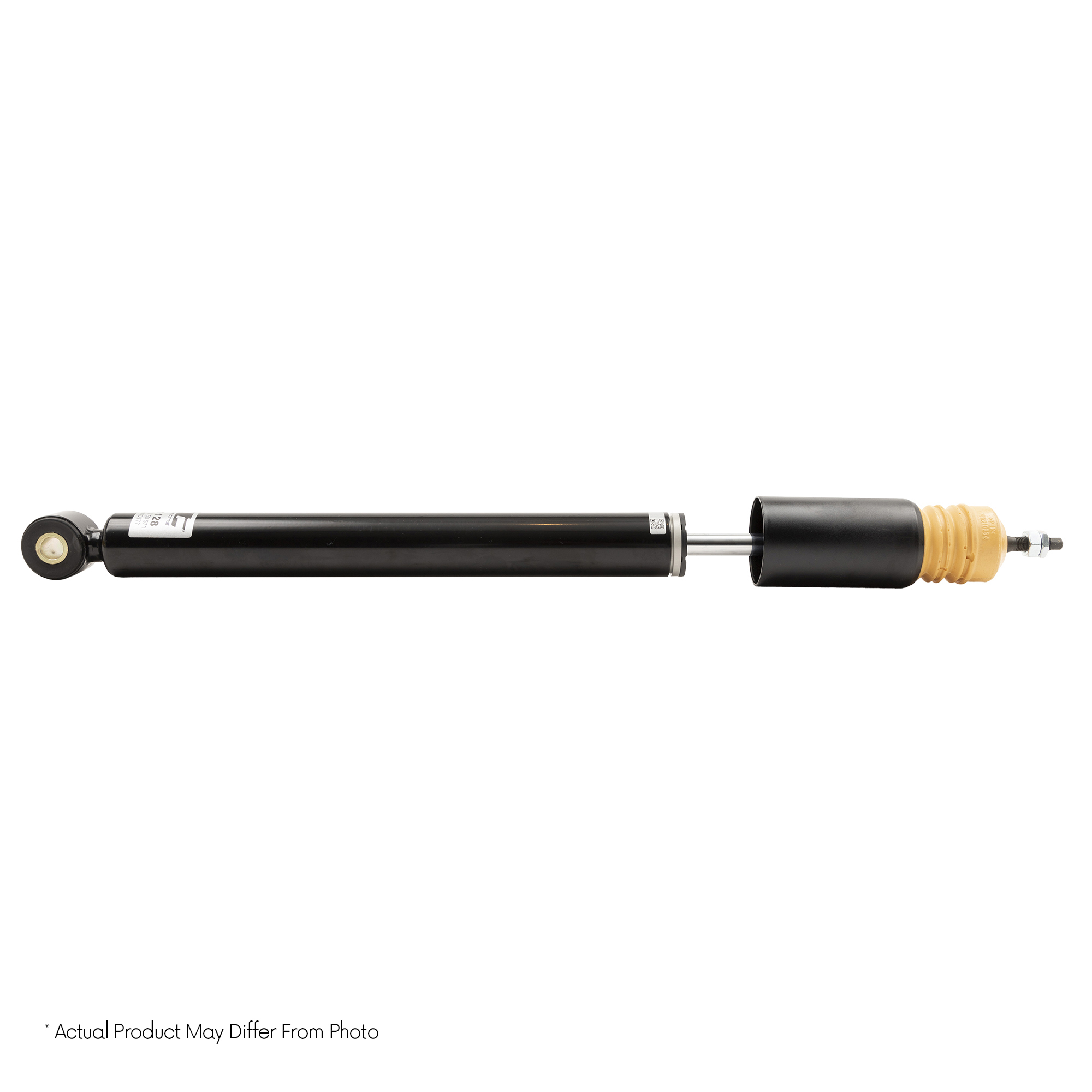

- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
AUDIA3 (8L) 8L1 09/1996-09/20061.8 T quattroHatchbackPetrol11017814All-wheel Drive164
AUDIA3 (8L) 8L1 09/1996-09/20061.8 T quattroHatchbackPetrol13217814All-wheel Drive164
AUDIA3 (8L) 8L1 09/1996-09/20061.9 TDI quattroHatchbackDiesel9618964All-wheel Drive164
AUDIA3 (8L) 8L1 09/1996-09/2006S3 quattroHatchbackPetrol15417814All-wheel Drive
AUDIA3 (8L) 8L1 09/1996-09/2006S3 quattroHatchbackPetrol16517814All-wheel Drive
SEATLEON (1M1) 11/1999-06/20061.8 20V T 4HatchbackPetrol13217814All-wheel Drive42, 164
SEATLEON (1M1) 11/1999-06/20061.9 TDI SyncroHatchbackDiesel11018964All-wheel Drive42, 164
SKODAOCTAVIA I (1U2) 09/1996-12/20101.8 T 4x4HatchbackPetrol11017814All-wheel Drive164
SKODAOCTAVIA I Combi (1U5) 07/1998-12/20101.8 T 4x4EstatePetrol11017814All-wheel Drive164
SKODAOCTAVIA I Combi (1U5) 07/1998-12/20101.9 TDI 4x4EstateDiesel6618964All-wheel Drive164
SKODAOCTAVIA I Combi (1U5) 07/1998-12/20101.9 TDI 4x4EstateDiesel7418964All-wheel Drive164
SKODAOCTAVIA I Combi (1U5) 07/1998-12/20102.0 4x4EstatePetrol8519844All-wheel Drive164
SKODAOCTAVIA I Combi (1U5) 07/1998-12/20102.0 4x4EstatePetrol8819844All-wheel Drive164
VWBORA (1J, 1J2) 10/1998-12/20131.8 4motionSaloonPetrol9217814All-wheel Drive164
VWBORA (1J, 1J2) 10/1998-12/20131.9 TDI 4motionSaloonDiesel6618964All-wheel Drive164
VWBORA (1J, 1J2) 10/1998-12/20131.9 TDI 4motionSaloonDiesel7418964All-wheel Drive164
VWBORA (1J, 1J2) 10/1998-12/20131.9 TDI 4motionSaloonDiesel8518964All-wheel Drive164
VWBORA (1J, 1J2) 10/1998-12/20131.9 TDI 4motionSaloonDiesel9618964All-wheel Drive164
VWBORA (1J, 1J2) 10/1998-12/20131.9 TDI 4motionSaloonDiesel11018964All-wheel Drive164
VWBORA (1J, 1J2) 10/1998-12/20132.0 4motionSaloonPetrol8519844All-wheel Drive164
VWBORA (1J, 1J2) 10/1998-12/20132.3 V5 4motionSaloonPetrol11023245All-wheel Drive164
VWBORA (1J, 1J2) 10/1998-12/20132.3 V5 4motionSaloonPetrol12523245All-wheel Drive164
VWBORA Estate (1J, 1J6) 05/1999-05/20051.8 4motionEstatePetrol9217814All-wheel Drive164
VWBORA Estate (1J, 1J6) 05/1999-05/20051.9 TDI 4motionEstateDiesel7418964All-wheel Drive164
VWBORA Estate (1J, 1J6) 05/1999-05/20051.9 TDI 4motionEstateDiesel8518964All-wheel Drive164
VWBORA Estate (1J, 1J6) 05/1999-05/20051.9 TDI 4motionEstateDiesel9618964All-wheel Drive164
VWBORA Estate (1J, 1J6) 05/1999-05/20051.9 TDI 4motionEstateDiesel11018964All-wheel Drive164
VWBORA Estate (1J, 1J6) 05/1999-05/20052.0 4motionEstatePetrol8519844All-wheel Drive164
VWBORA Estate (1J, 1J6) 05/1999-05/20052.3 V5 4motionEstatePetrol11023245All-wheel Drive164
VWBORA Estate (1J, 1J6) 05/1999-05/20052.3 V5 4motionEstatePetrol12523245All-wheel Drive164
VWGOLF IV (1J_) 08/1997-12/20071.8 4motionHatchbackPetrol9217814All-wheel Drive
VWGOLF IV (1J_) 08/1997-12/20071.9 TDI 4motionHatchbackDiesel6618964All-wheel Drive
VWGOLF IV (1J_) 08/1997-12/20071.9 TDI 4motionHatchbackDiesel7418964All-wheel Drive
VWGOLF IV (1J_) 08/1997-12/20071.9 TDI 4motionHatchbackDiesel8518964All-wheel Drive
VWGOLF IV (1J_) 08/1997-12/20071.9 TDI 4motionHatchbackDiesel9618964All-wheel Drive
VWGOLF IV (1J_) 08/1997-12/20071.9 TDI 4motionHatchbackDiesel11018964All-wheel Drive
VWGOLF IV (1J_) 08/1997-12/20072.0 4motionHatchbackPetrol8519844All-wheel Drive
VWGOLF IV (1J_) 08/1997-12/20072.3 V5 4motionHatchbackPetrol11023245All-wheel Drive
VWGOLF IV (1J_) 08/1997-12/20072.3 V5 4motionHatchbackPetrol12523245All-wheel Drive
VWGOLF IV Estate (1J_) 05/1999-06/20061.8 4motionEstatePetrol9217814All-wheel Drive
VWGOLF IV Estate (1J_) 05/1999-06/20061.9 TDI 4motionEstateDiesel6618964All-wheel Drive
VWGOLF IV Estate (1J_) 05/1999-06/20061.9 TDI 4motionEstateDiesel7418964All-wheel Drive
VWGOLF IV Estate (1J_) 05/1999-06/20061.9 TDI 4motionEstateDiesel8518964All-wheel Drive
VWGOLF IV Estate (1J_) 05/1999-06/20061.9 TDI 4motionEstateDiesel9618964All-wheel Drive
VWGOLF IV Estate (1J_) 05/1999-06/20061.9 TDI 4motionEstateDiesel11018964All-wheel Drive
VWGOLF IV Estate (1J_) 05/1999-06/20062.0 4motionEstatePetrol8519844All-wheel Drive
VWGOLF IV Estate (1J_) 05/1999-06/20062.3 V5 4motionEstatePetrol11023245All-wheel Drive
VWGOLF IV Estate (1J_) 05/1999-06/20062.3 V5 4motionEstatePetrol12523245All-wheel Drive

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 42: In combination with orginal wheels and tyres, wheelspacers might be necessary
  • Note 164: Rear axle shock absorbers are not atjustalbe for dumping. Sport shock absorbers with a harder dumping characteristic will be supplied
