ST Coilover X Kit for 10/1997+ VW Golf Mk IV (1J1)

13210005
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

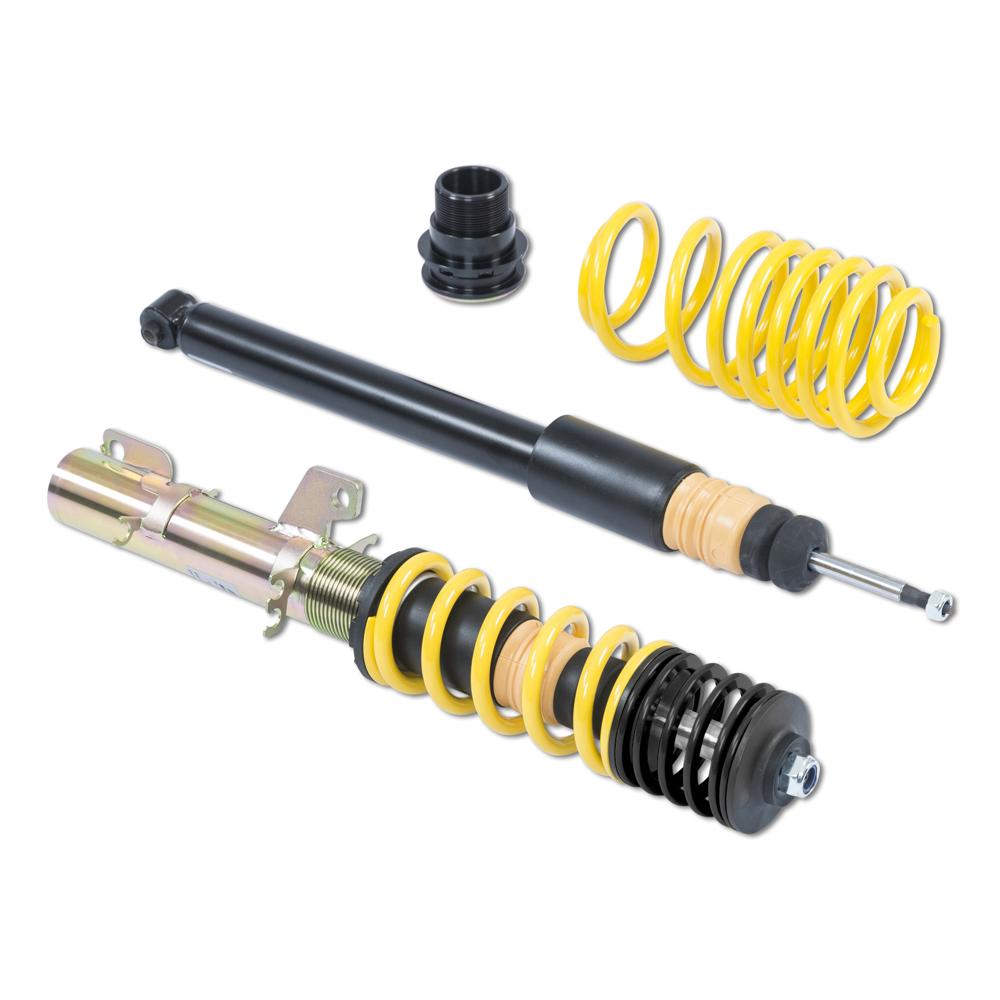

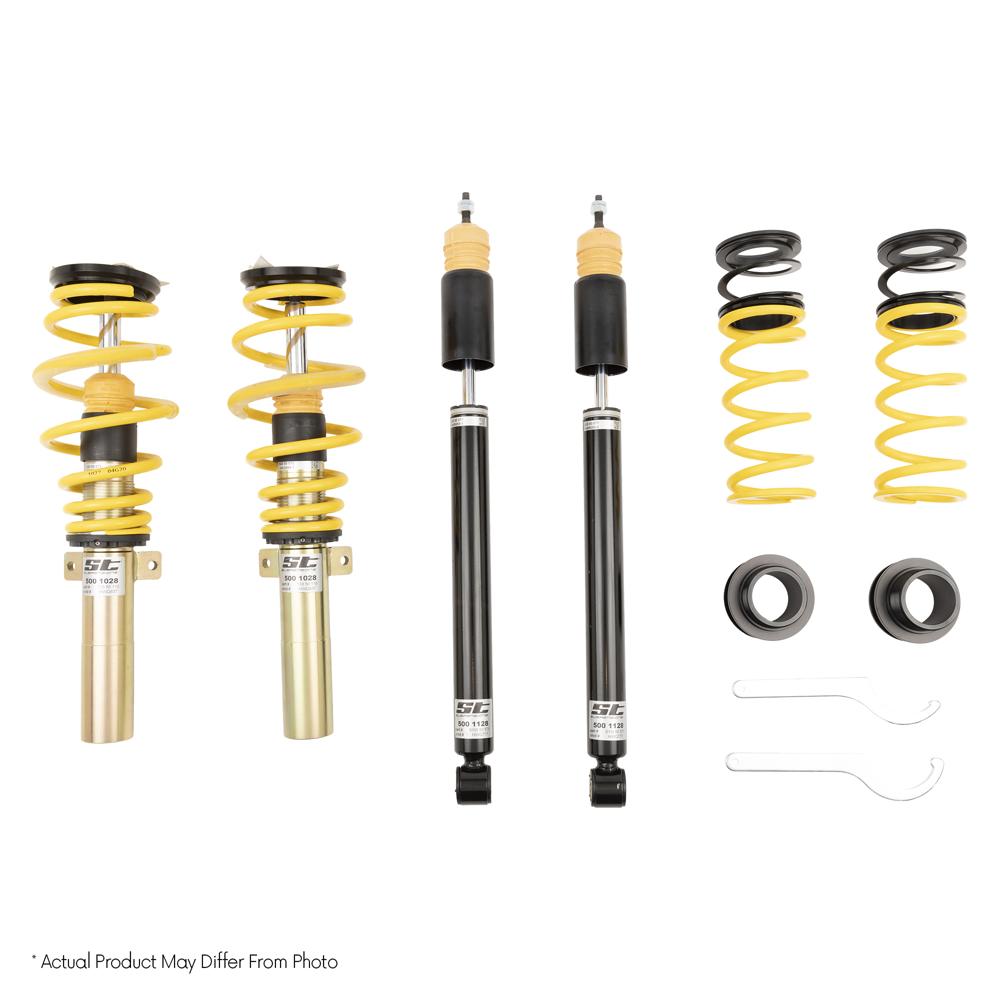

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

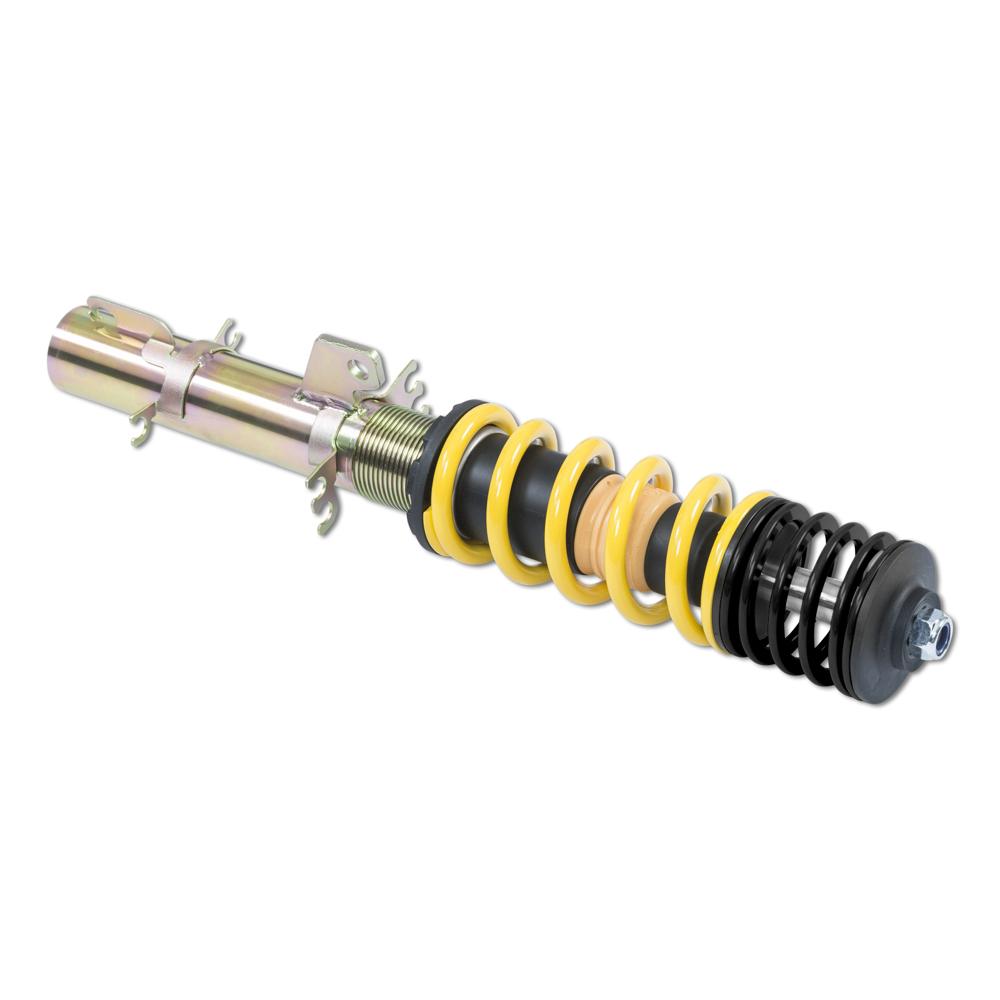

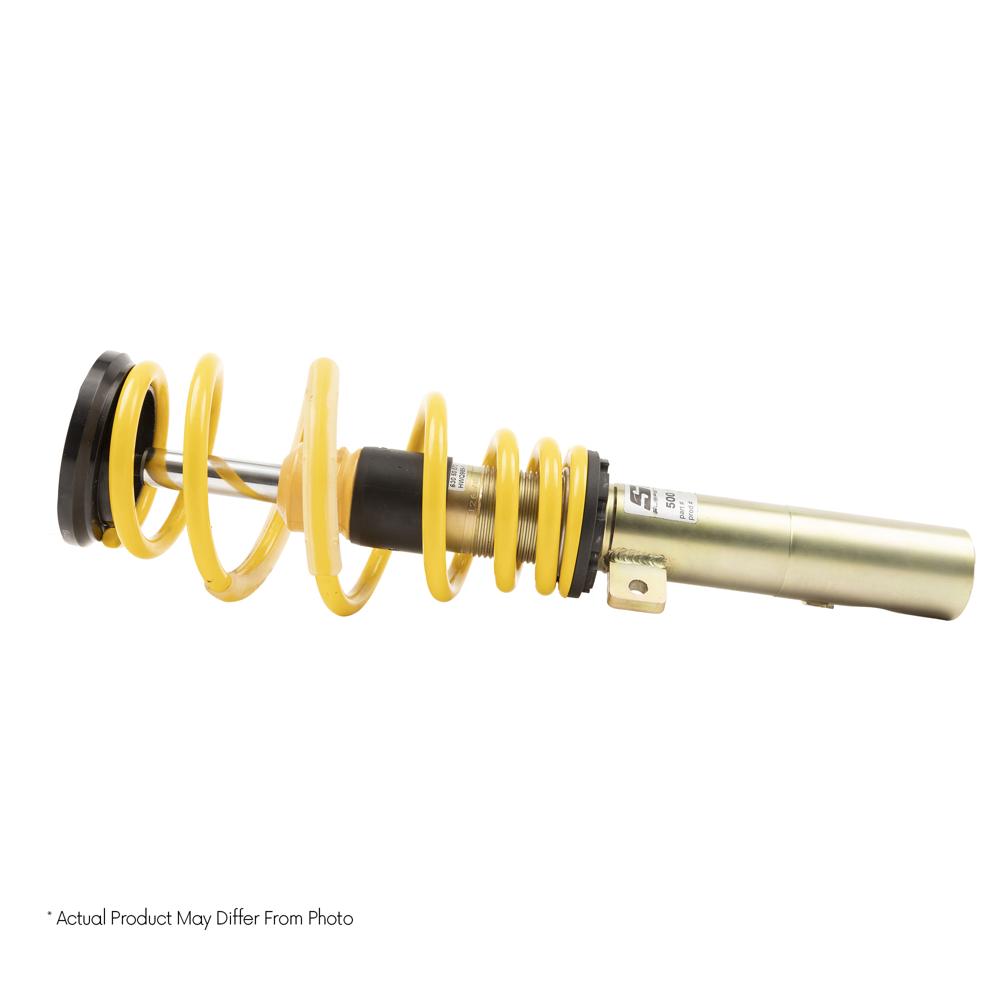

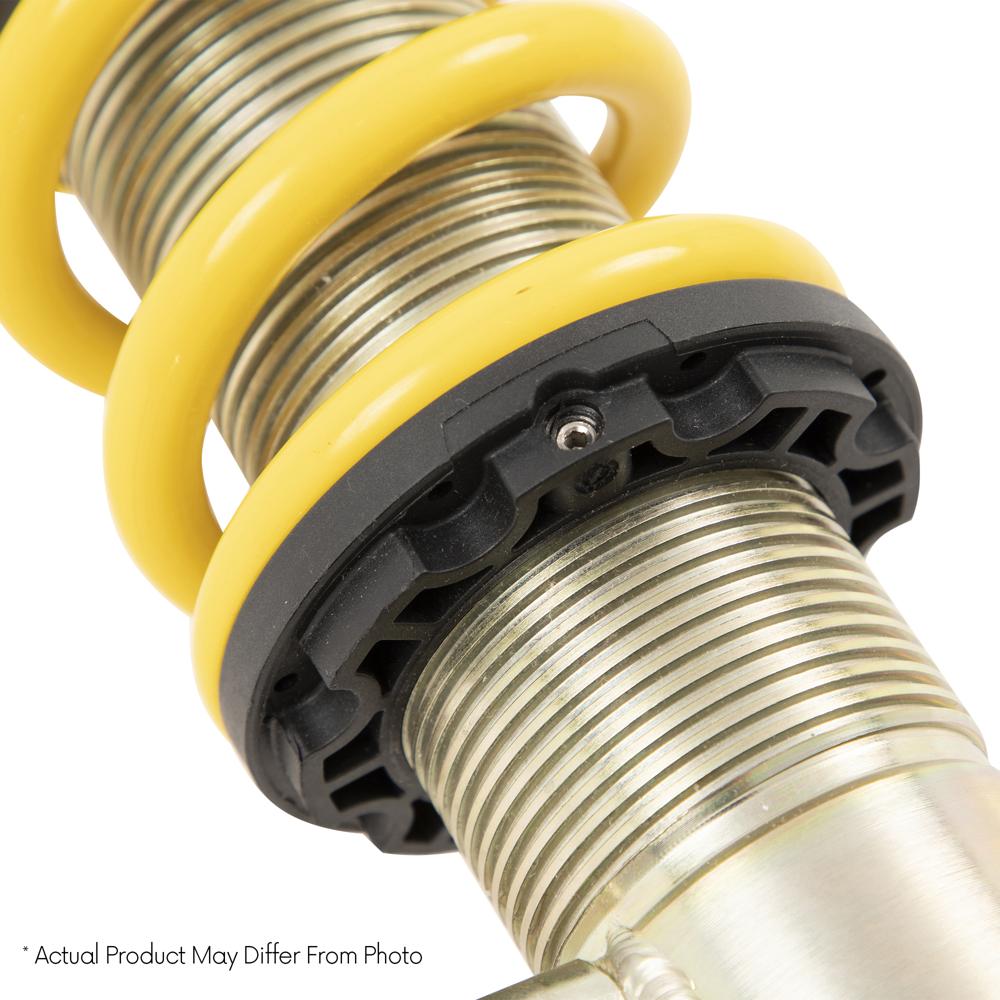

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection

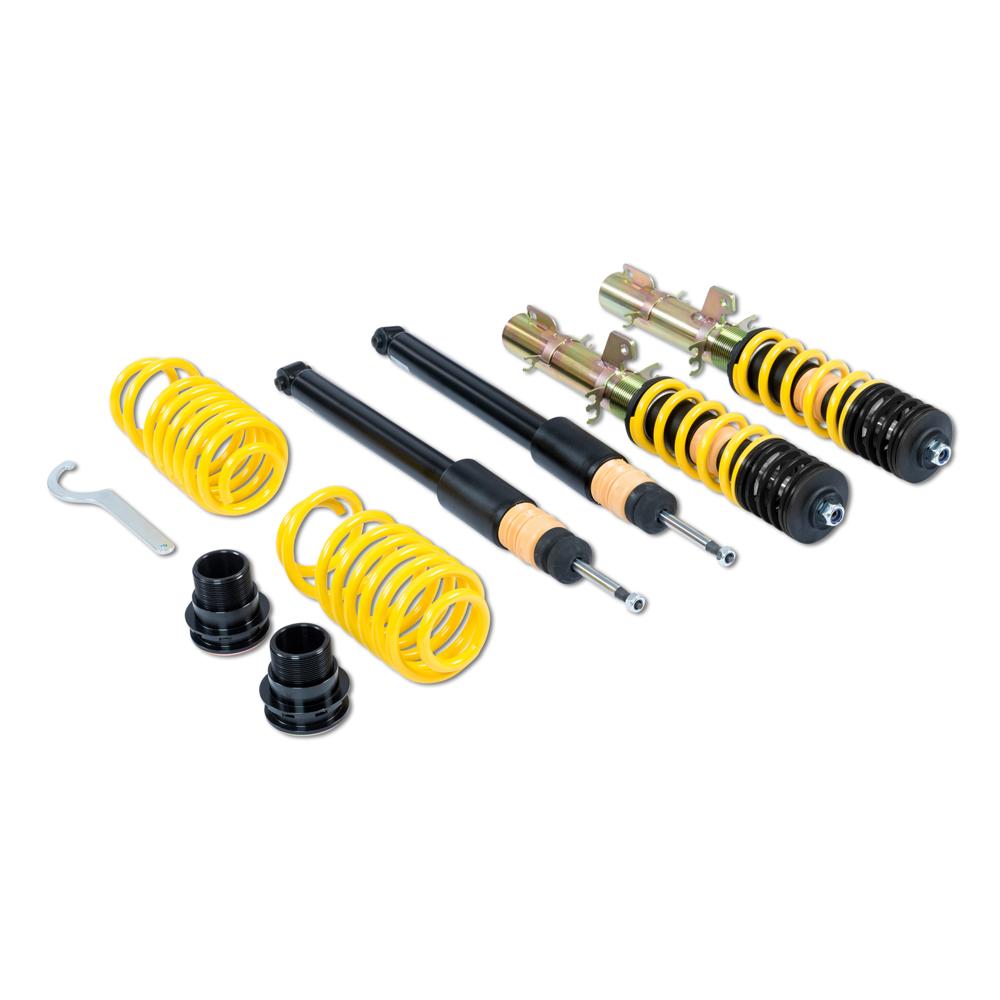

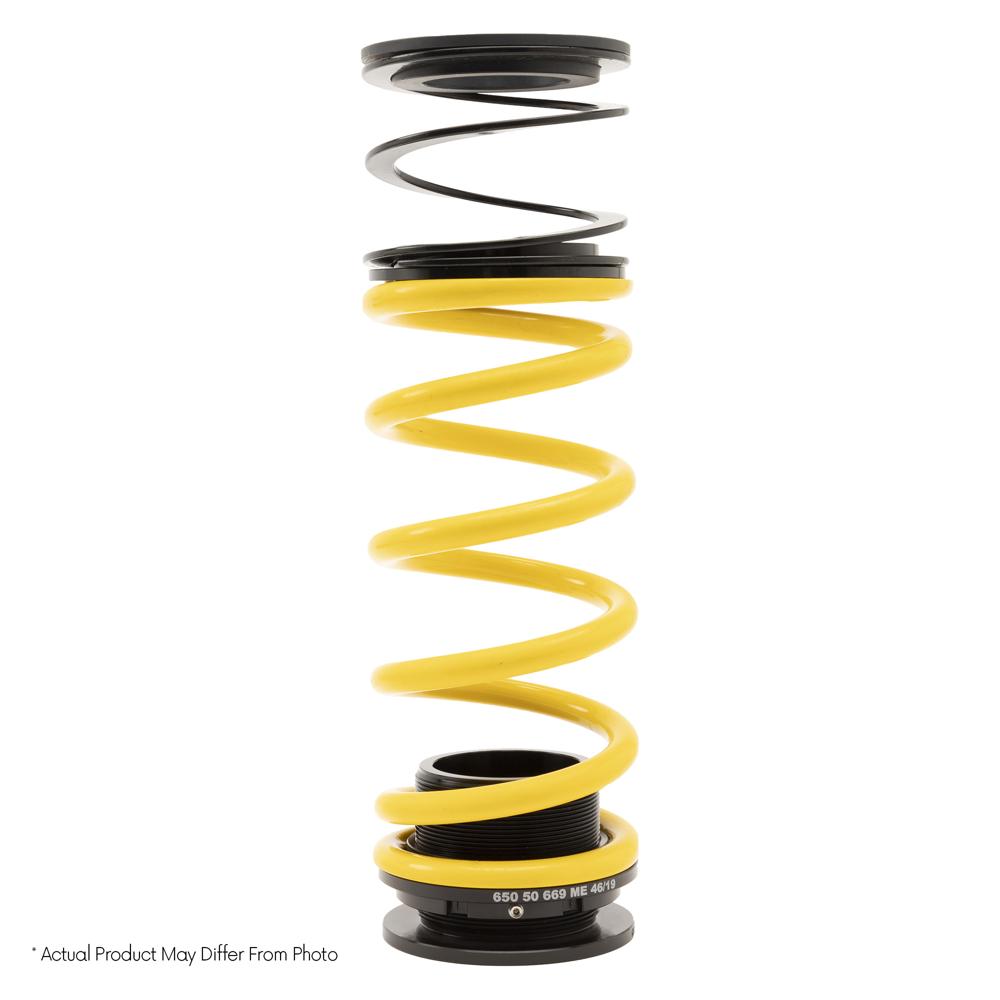

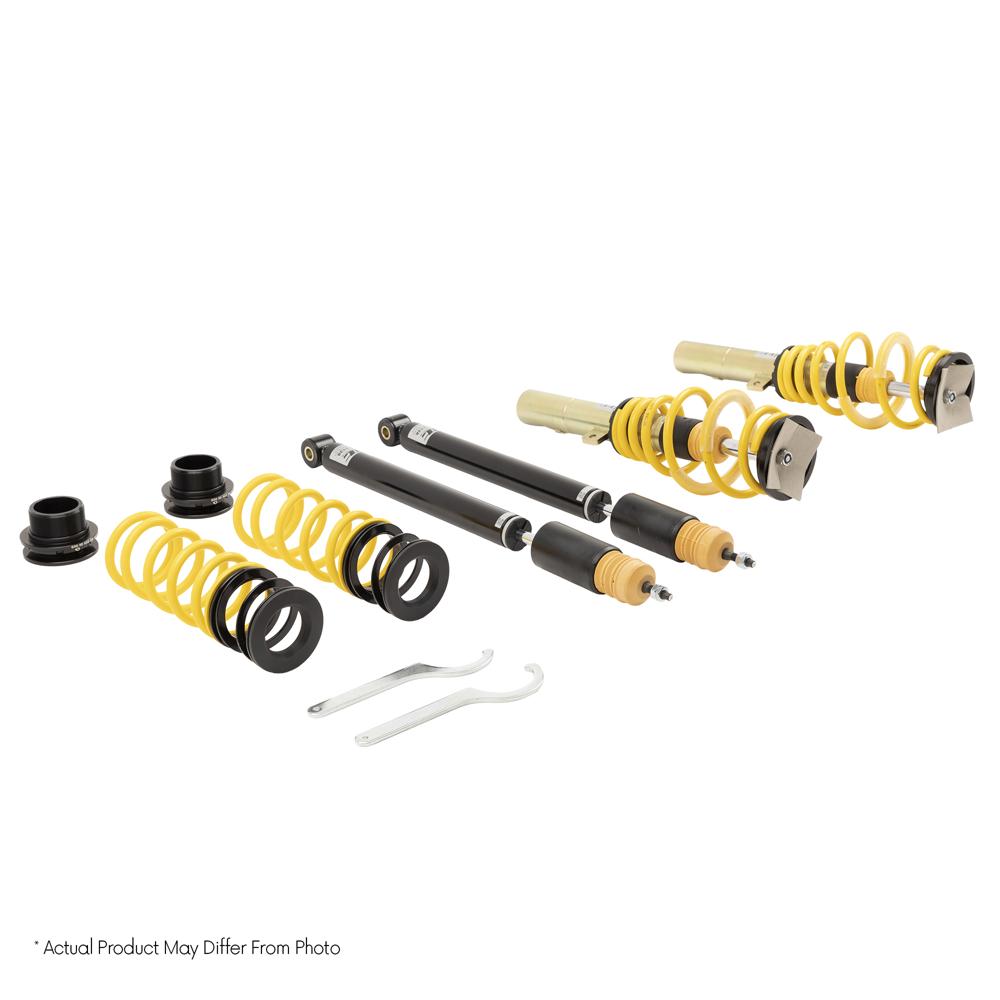

- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

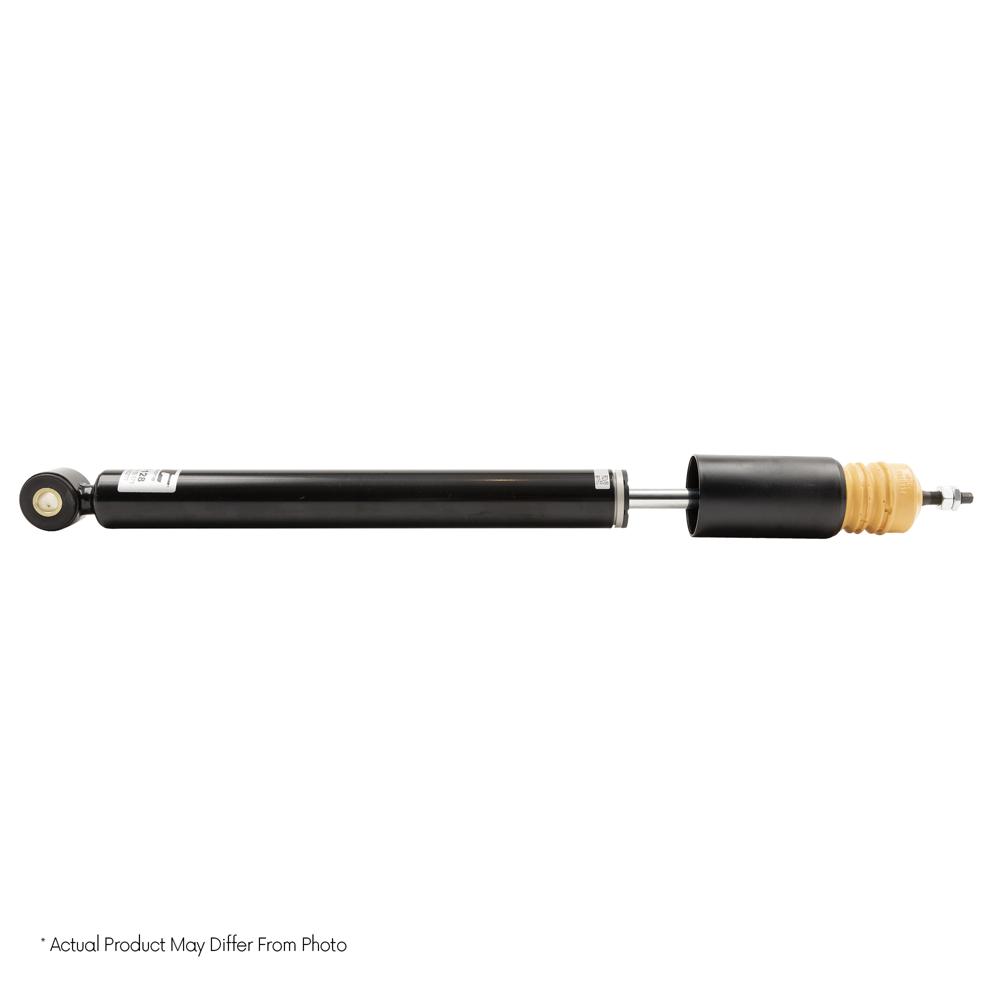

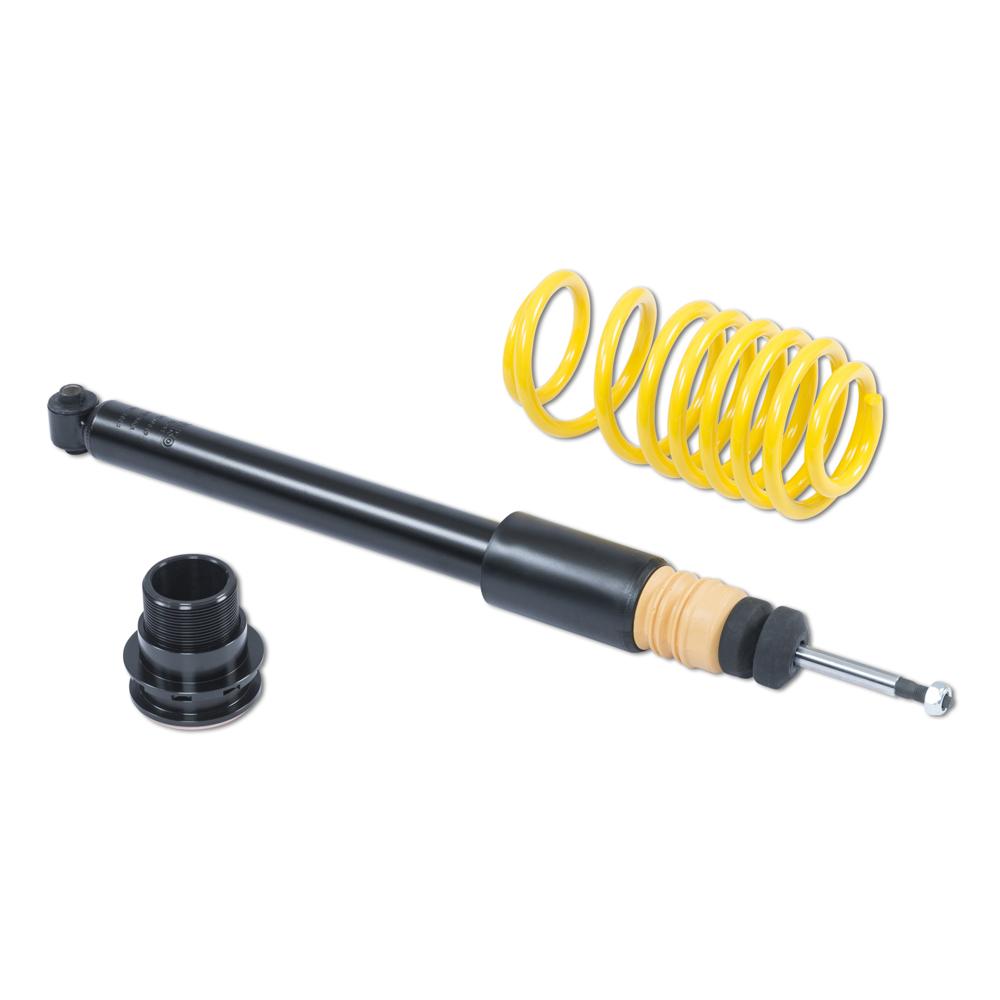

- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
AUDIA3 (8L) 8L1 09/1996-09/20061.6HatchbackPetrol7415954Front Wheel Drive42, 91, 121
AUDIA3 (8L) 8L1 09/1996-09/20061.6HatchbackPetrol7515954Front Wheel Drive42, 91, 121
AUDIA3 (8L) 8L1 09/1996-09/20061.8HatchbackPetrol9217814Front Wheel Drive42, 91, 121
AUDIA3 (8L) 8L1 09/1996-09/20061.8 THatchbackPetrol11017814Front Wheel Drive42, 91, 121
AUDIA3 (8L) 8L1 09/1996-09/20061.8 THatchbackPetrol13217814Front Wheel Drive42, 91, 121
AUDIA3 (8L) 8L1 09/1996-09/20061.9 TDIHatchbackDiesel6618964Front Wheel Drive42, 91, 121
AUDIA3 (8L) 8L1 09/1996-09/20061.9 TDIHatchbackDiesel7418964Front Wheel Drive42, 91, 121
AUDIA3 (8L) 8L1 09/1996-09/20061.9 TDIHatchbackDiesel8118964Front Wheel Drive42, 91, 121
AUDIA3 (8L) 8L1 09/1996-09/20061.9 TDIHatchbackDiesel9618964Front Wheel Drive42, 91, 121
AUDITT (8N) 8N3 10/1998-06/20061.8 TCoupePetrol11017814Front Wheel Drive4, 42, 156
AUDITT (8N) 8N3 10/1998-06/20061.8 TCoupePetrol12017814Front Wheel Drive4, 42, 156
AUDITT (8N) 8N3 10/1998-06/20061.8 TCoupePetrol13217814Front Wheel Drive4, 42, 156
AUDITT (8N) 8N3 10/1998-06/20061.8 TCoupePetrol13417814Front Wheel Drive4, 42, 156
AUDITT (8N) 8N3 10/1998-06/20061.8 TCoupePetrol14017814Front Wheel Drive4, 42, 156
AUDITT Roadster (8N) 8N9 10/1999-06/20061.8 TConvertiblePetrol11017814Front Wheel Drive4, 42, 156
AUDITT Roadster (8N) 8N9 10/1999-06/20061.8 TConvertiblePetrol12017814Front Wheel Drive4, 42, 156
AUDITT Roadster (8N) 8N9 10/1999-06/20061.8 TConvertiblePetrol13217814Front Wheel Drive4, 42, 156
AUDITT Roadster (8N) 8N9 10/1999-06/20061.8 TConvertiblePetrol13417814Front Wheel Drive4, 42, 156
AUDITT Roadster (8N) 8N9 10/1999-06/20061.8 TConvertiblePetrol14017814Front Wheel Drive4, 42, 156
SEATLEON (1M1) 11/1999-06/20061.4 16VHatchbackPetrol5513904Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.6HatchbackPetrol7415954Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.6HatchbackPetrol7515954Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.6 16 VHatchbackPetrol7715984Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.8 20VHatchbackPetrol9217814Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.8 20V THatchbackPetrol13217814Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.8 T Cupra RHatchbackPetrol15417814Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.8 T Cupra RHatchbackPetrol16517814Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.9 SDIHatchbackDiesel5018964Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.9 TDIHatchbackDiesel6618964Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.9 TDIHatchbackDiesel7418964Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.9 TDIHatchbackDiesel8118964Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.9 TDIHatchbackDiesel9618964Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20061.9 TDIHatchbackDiesel11018964Front Wheel Drive42, 91, 121
SEATLEON (1M1) 11/1999-06/20062.8HatchbackPetrol15027926Front Wheel Drive42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.4 16VHatchbackPetrol5513904Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.6HatchbackPetrol7415954Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.6HatchbackPetrol7415984Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.6HatchbackPetrol7515954Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.6 16VHatchbackPetrol7715984Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.6 FSIHatchbackPetrol8115984Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.8HatchbackPetrol9217814Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.8HatchbackPetrol12717814Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.8 THatchbackPetrol11017814Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.8 T GTIHatchbackPetrol13217814Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.9 SDIHatchbackDiesel5018964Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel6618964Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel7418964Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel8118964Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel8518964Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel9618964Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel11018964Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20072.0HatchbackPetrol8519844Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20072.3 V5HatchbackPetrol11023245Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20072.3 V5HatchbackPetrol12523245Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20072.8 VR6HatchbackPetrol13027926Front Wheel Drive2, 4, 42, 91, 121
VWGOLF IV (1J_) 08/1997-12/20072.8 VR6HatchbackPetrol14727926Front Wheel Drive2, 4, 42, 91, 121
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.4HatchbackPetrol5513904Front Wheel Drive42, 91, 121
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.6HatchbackPetrol7415954Front Wheel Drive42, 91, 121
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.6HatchbackPetrol7515954Front Wheel Drive42, 91, 121
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.8 THatchbackPetrol11017814Front Wheel Drive42, 91, 121
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.8 THatchbackPetrol13217814Front Wheel Drive42, 91, 121
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.9 TDIHatchbackDiesel6618964Front Wheel Drive42, 91, 121
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.9 TDIHatchbackDiesel7418964Front Wheel Drive42, 91, 121
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.9 TDIHatchbackDiesel7718964Front Wheel Drive42, 91, 121
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20102.0HatchbackPetrol8519844Front Wheel Drive42, 91, 121
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20102.3 V5HatchbackPetrol12523245Front Wheel Drive42, 91, 121
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20102.5HatchbackPetrol11024805Front Wheel Drive42, 91, 121

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 42: In combination with orginal wheels and tyres, wheelspacers might be necessary
  • Note 2: Not for station wagon models (Estate/ Avant/ Turnier/ Variant/ T-modell...)
  • Note 121: Please replace the anti-sway bar kit on max. tested lowering. This is for enough clearance of the right drive shaft. Anti-sway bar kit for cars without Xenon headlights: part no. 685 50 000 / Anti-sway bar kit for cars with Xenon headlights: part no. 685 50 005
  • Note 156: Only for vehicles with ESP-system
  • Note 91: We recommend a special anti roll bar kit (part no. 680 50 008) for models with a drive shaft diameter of min. 50mm. This is for improving the clearance of the right hand side drive shaft. Because of car specific differences a clearance is not always given
  • Note 4: Excluding four wheel drive models
