ST Coilover X Kit for 09/1991+ VW Golf Mk III Cabriolet (10000000)

13280003
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection

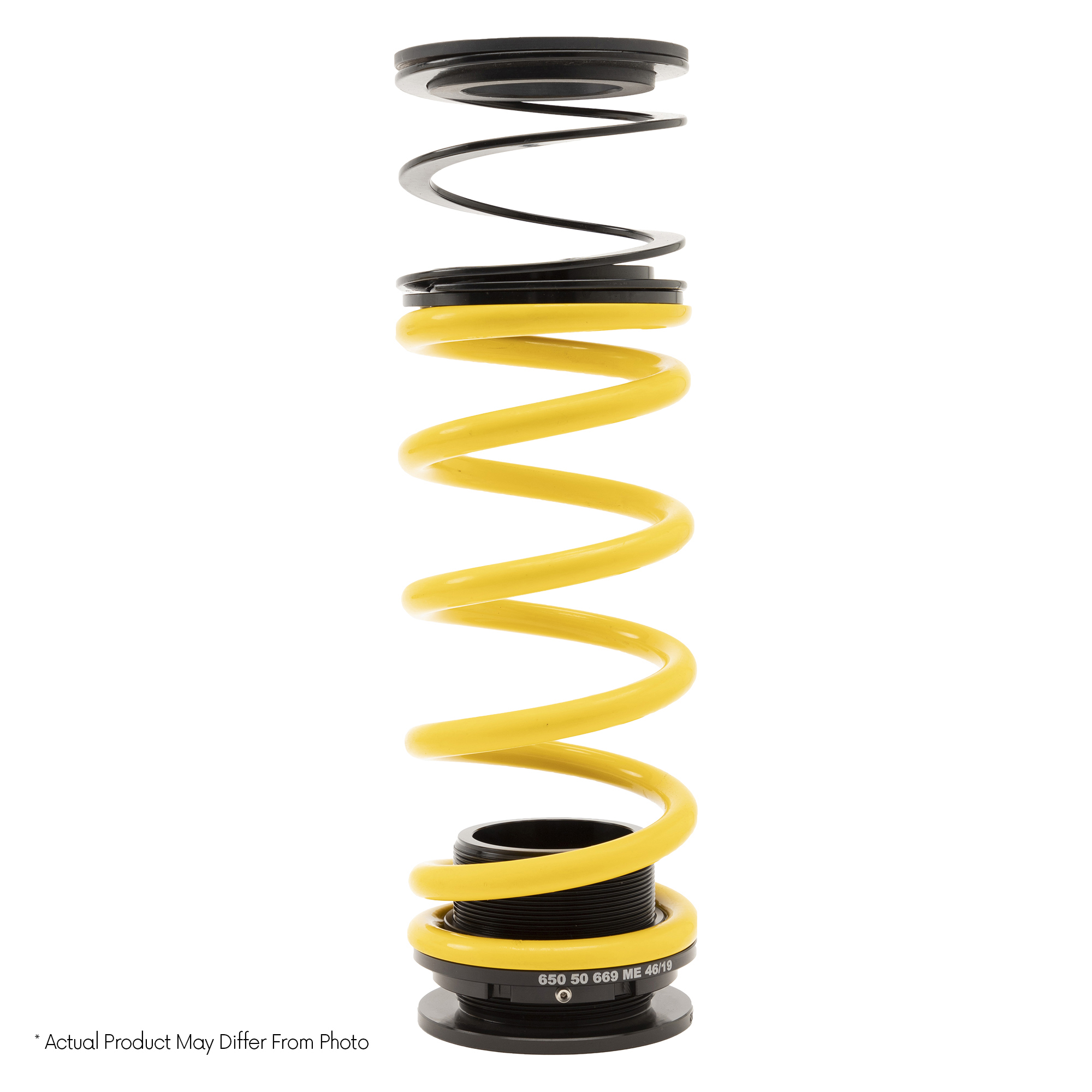

- Complete solution with adjustable spring plate, spring system and bumpers with dust protection

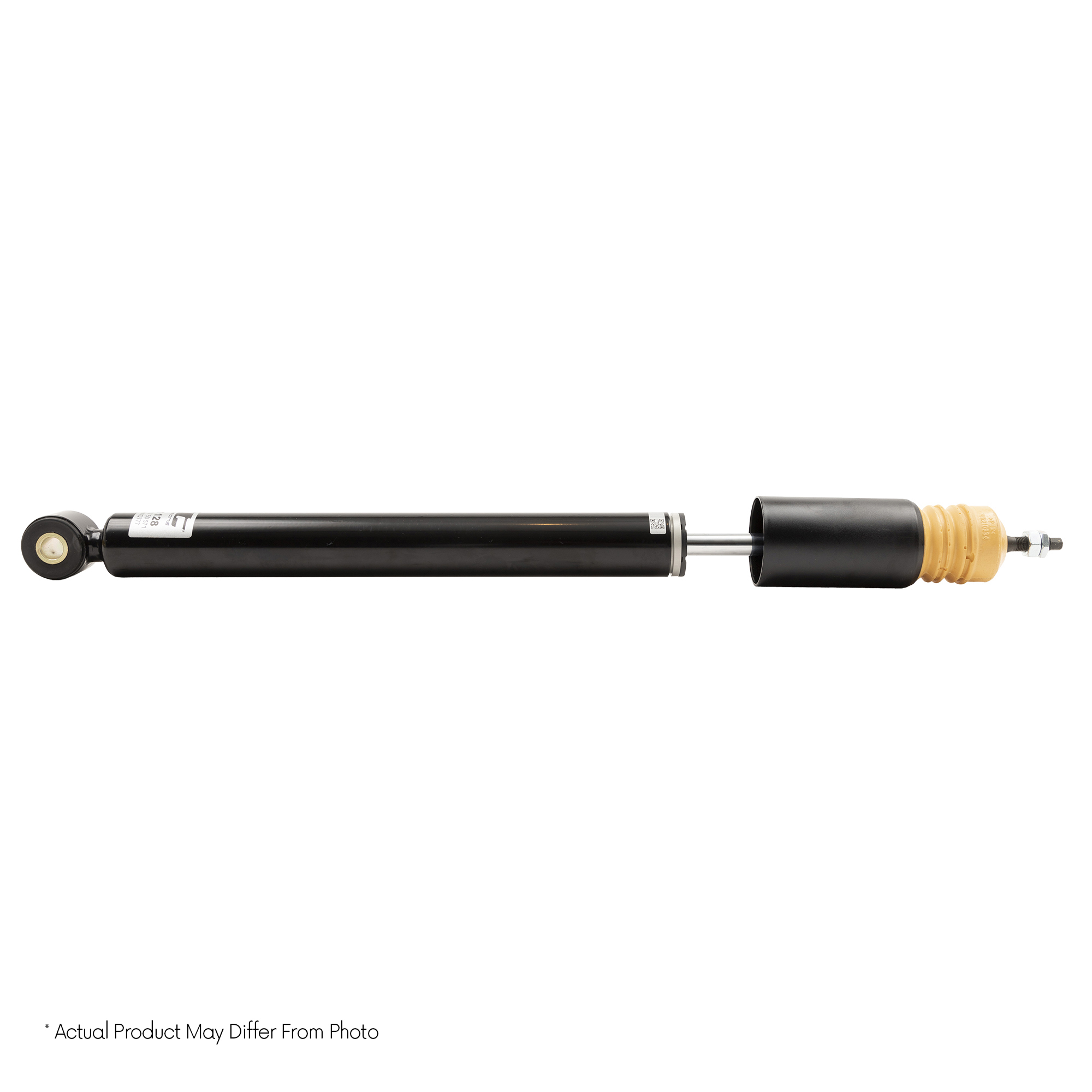

- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
VWGOLF III (1H_) 08/1991-07/19981.3HatchbackPetrol4012724Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19981.4HatchbackPetrol4013904Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19981.4HatchbackPetrol4413904Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19981.6HatchbackPetrol5515984Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19981.6HatchbackPetrol7415954Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19981.8HatchbackPetrol5517814Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19981.8HatchbackPetrol6617814Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19981.9 DHatchbackDiesel4718964Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19981.9 SDIHatchbackDiesel4718964Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19981.9 TD,GTDHatchbackDiesel5518964Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19981.9 TDIHatchbackDiesel6618964Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19981.9 TDIHatchbackDiesel8118964Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19982.0HatchbackPetrol6219684Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19982.0HatchbackPetrol8519844Front Wheel Drive4, 42
VWGOLF III (1H_) 08/1991-07/19982.0 GLHatchbackPetrol7919844Front Wheel Drive4, 42
VWGOLF III Convertible (1E_) 07/1993-05/19981.6ConvertiblePetrol7415954Front Wheel Drive4, 42
VWGOLF III Convertible (1E_) 07/1993-05/19981.8ConvertiblePetrol5517814Front Wheel Drive4, 42
VWGOLF III Convertible (1E_) 07/1993-05/19981.8ConvertiblePetrol6617814Front Wheel Drive4, 42
VWGOLF IV Convertible (1E_) 06/1998-12/20021.6ConvertiblePetrol7415954Front Wheel Drive4, 42
VWGOLF IV Convertible (1E_) 06/1998-12/20021.8ConvertiblePetrol5517814Front Wheel Drive4, 42
VWGOLF IV Convertible (1E_) 06/1998-12/20021.8ConvertiblePetrol6617814Front Wheel Drive4, 42
VWGOLF IV Convertible (1E_) 06/1998-12/20022.0ConvertiblePetrol8519844Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19981.4SaloonPetrol4013904Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19981.4SaloonPetrol4413904Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19981.6SaloonPetrol5515984Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19981.6SaloonPetrol7415954Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19981.8SaloonPetrol5517814Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19981.8SaloonPetrol6617814Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19981.9 DSaloonDiesel4818964Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19981.9 SDISaloonDiesel4718964Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19981.9 TDSaloonDiesel5518964Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19981.9 TDISaloonDiesel6618964Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19981.9 TDISaloonDiesel8118964Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19982.0SaloonPetrol8519844Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19982.0 GLSaloonPetrol6219684Front Wheel Drive4, 42
VWVENTO (1H2, 1H, 1HX0) 11/1991-09/19982.0 GLSaloonPetrol7919844Front Wheel Drive4, 42

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 42: In combination with orginal wheels and tyres, wheelspacers might be necessary
  • Note 4: Excluding four wheel drive models
