ST Coilover X Kit for 05/2008+ Mercedes Benz Clc-Class (CL203)

13225012
ST Suspension

Stock: Backorder Available

AU$2,049.00 Inc GST

Description

Description

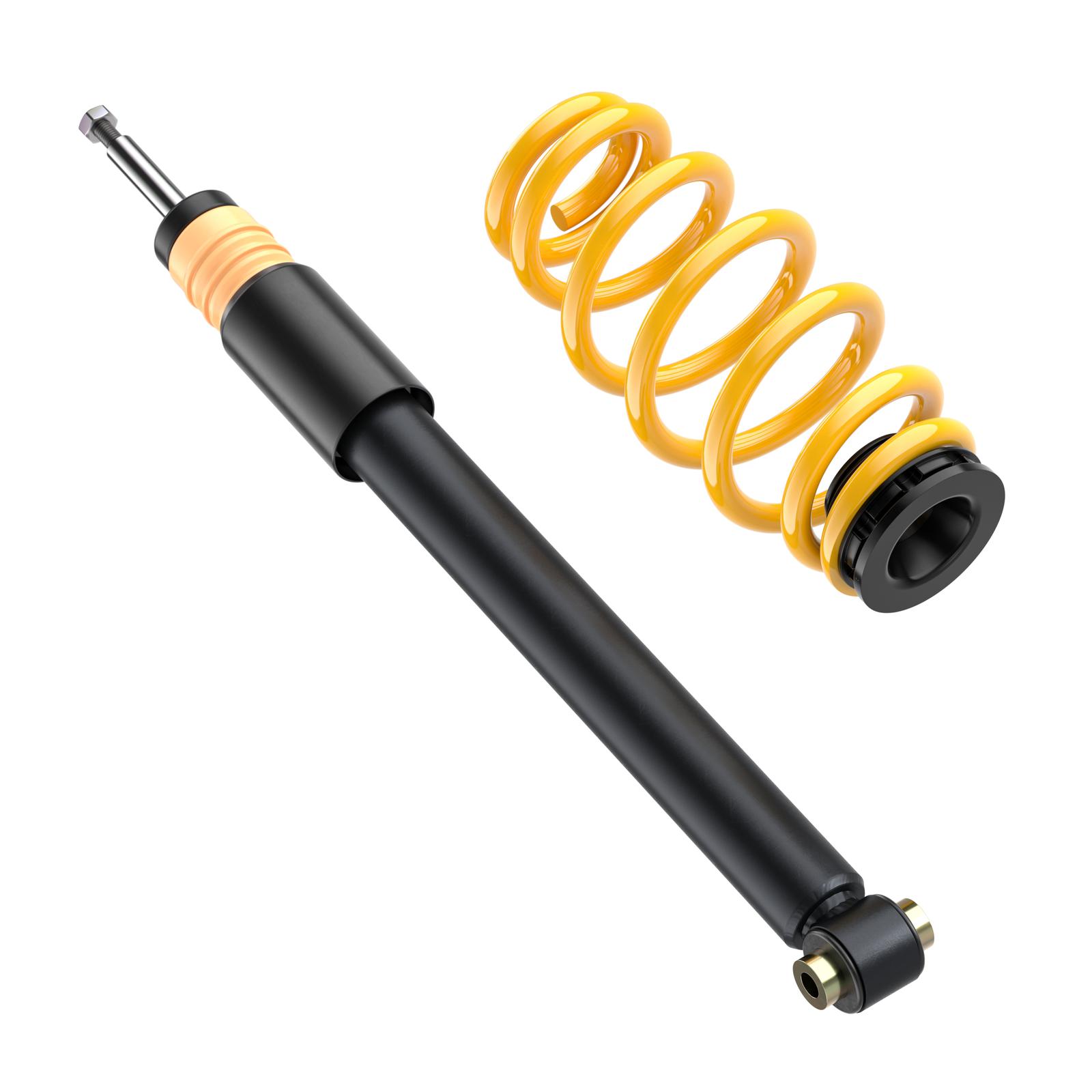

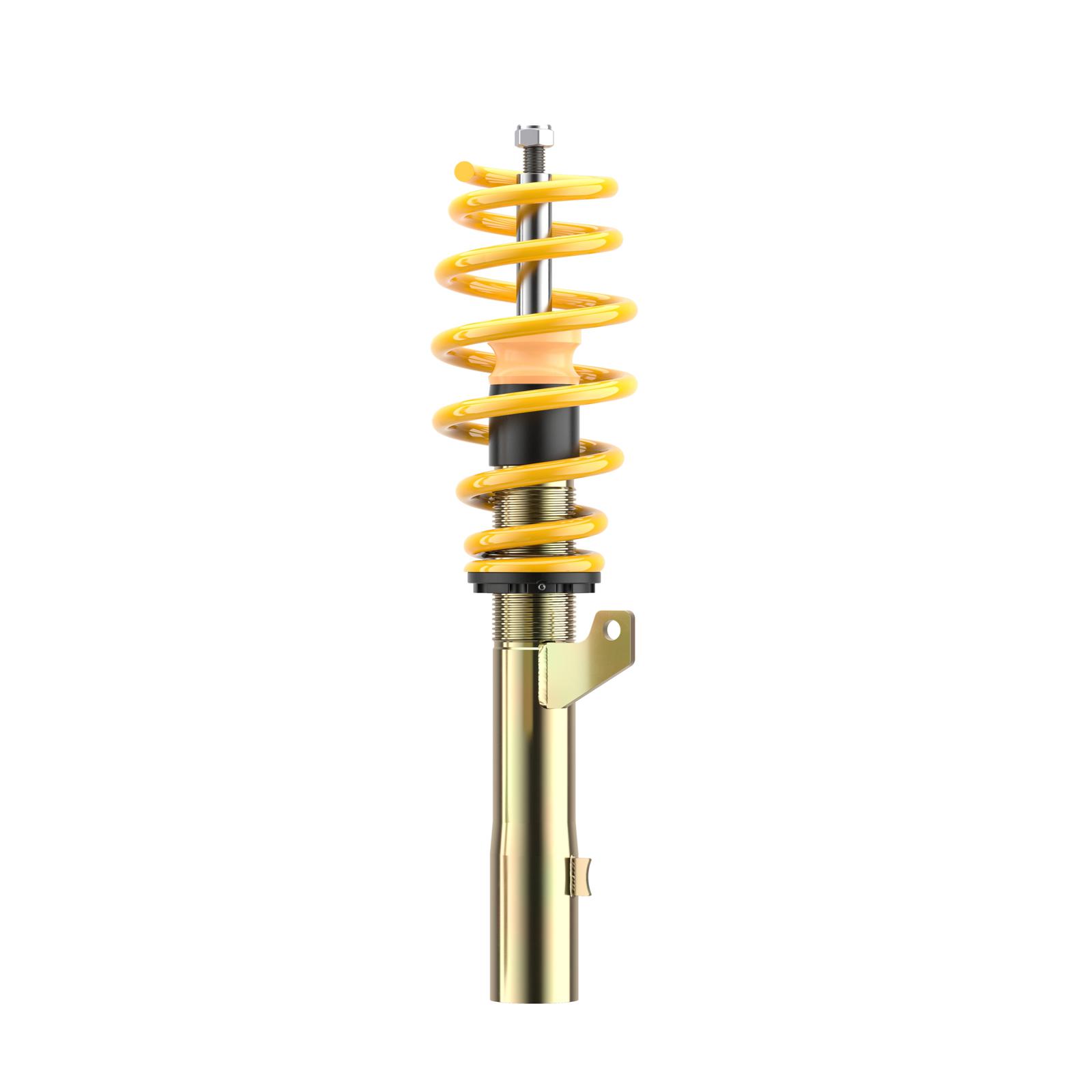

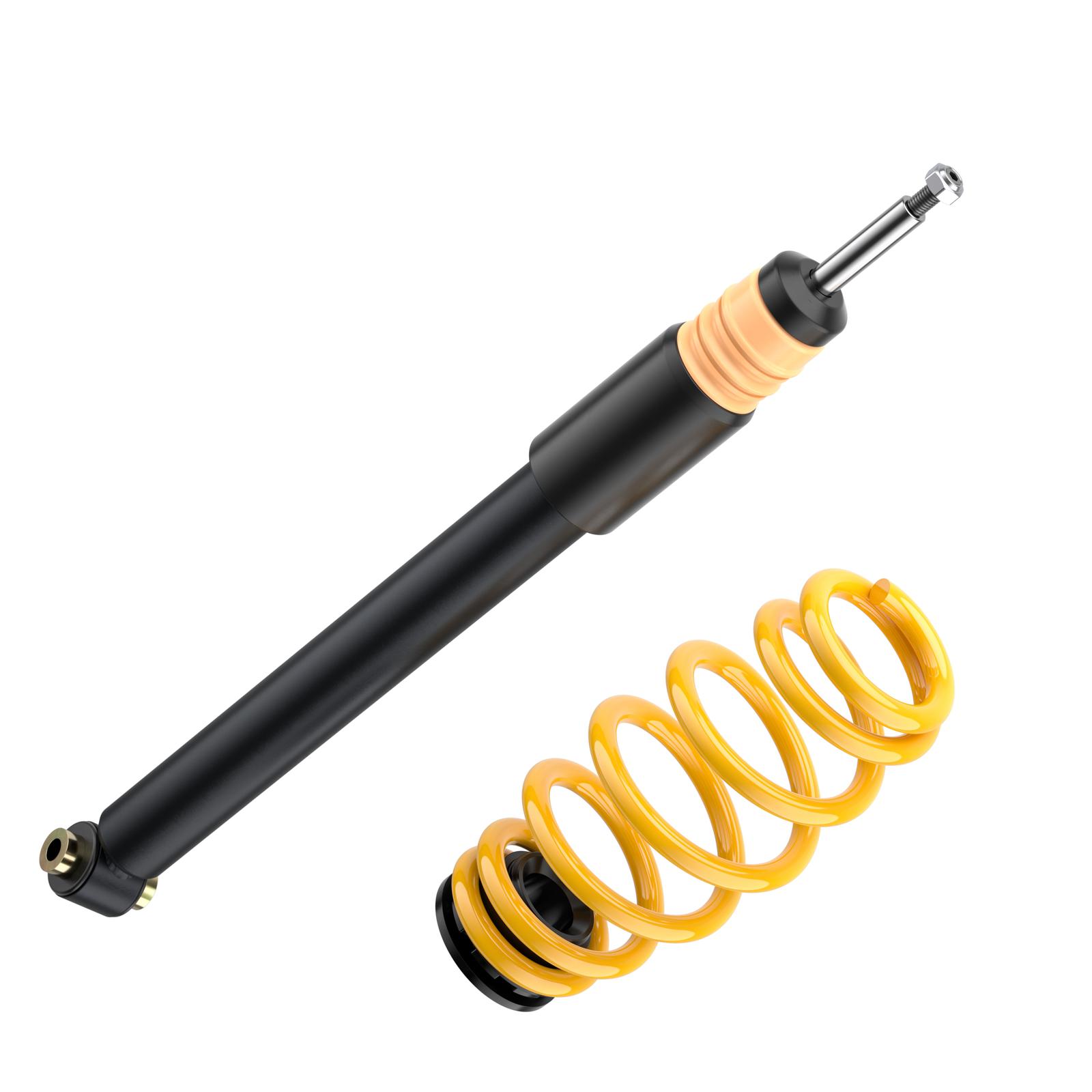

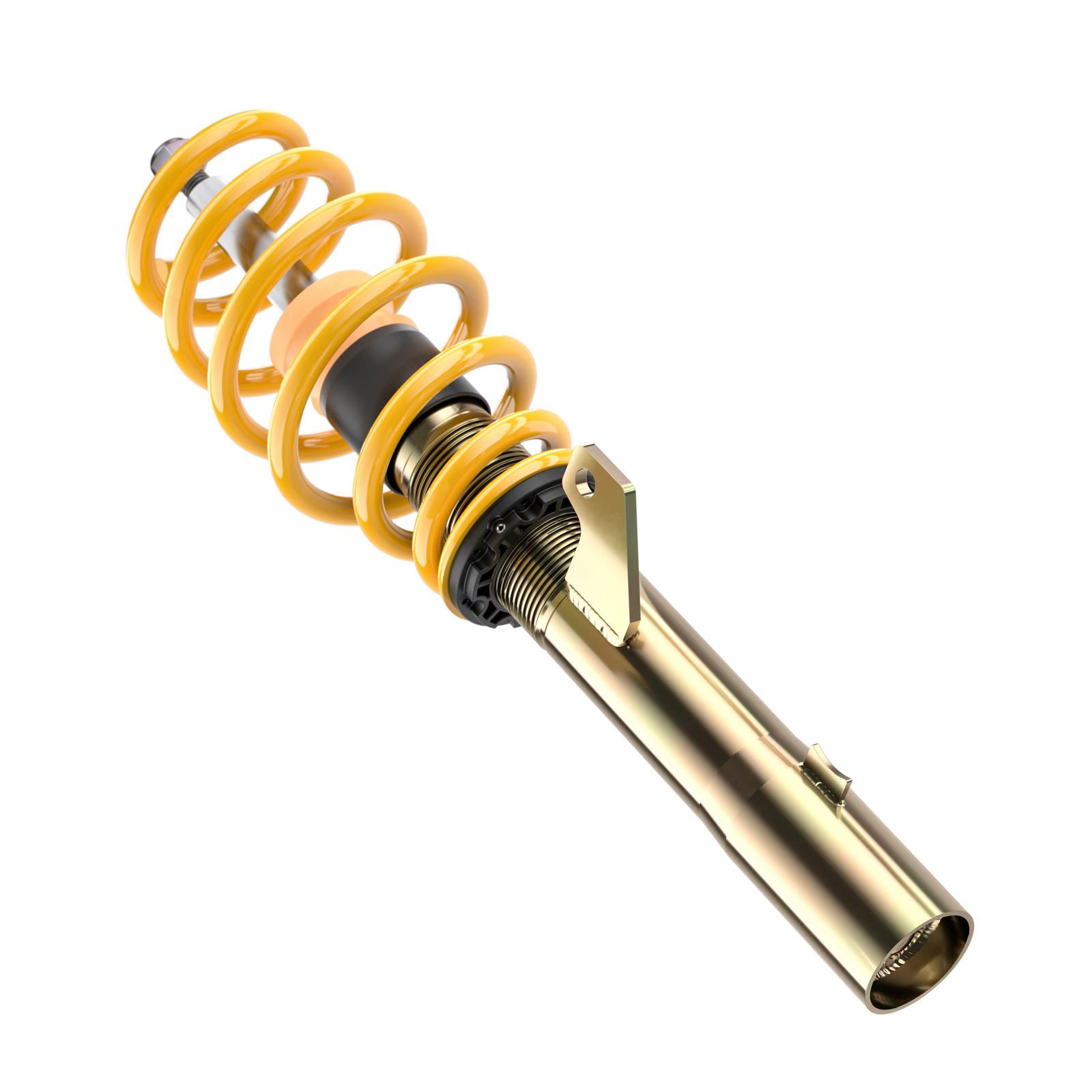

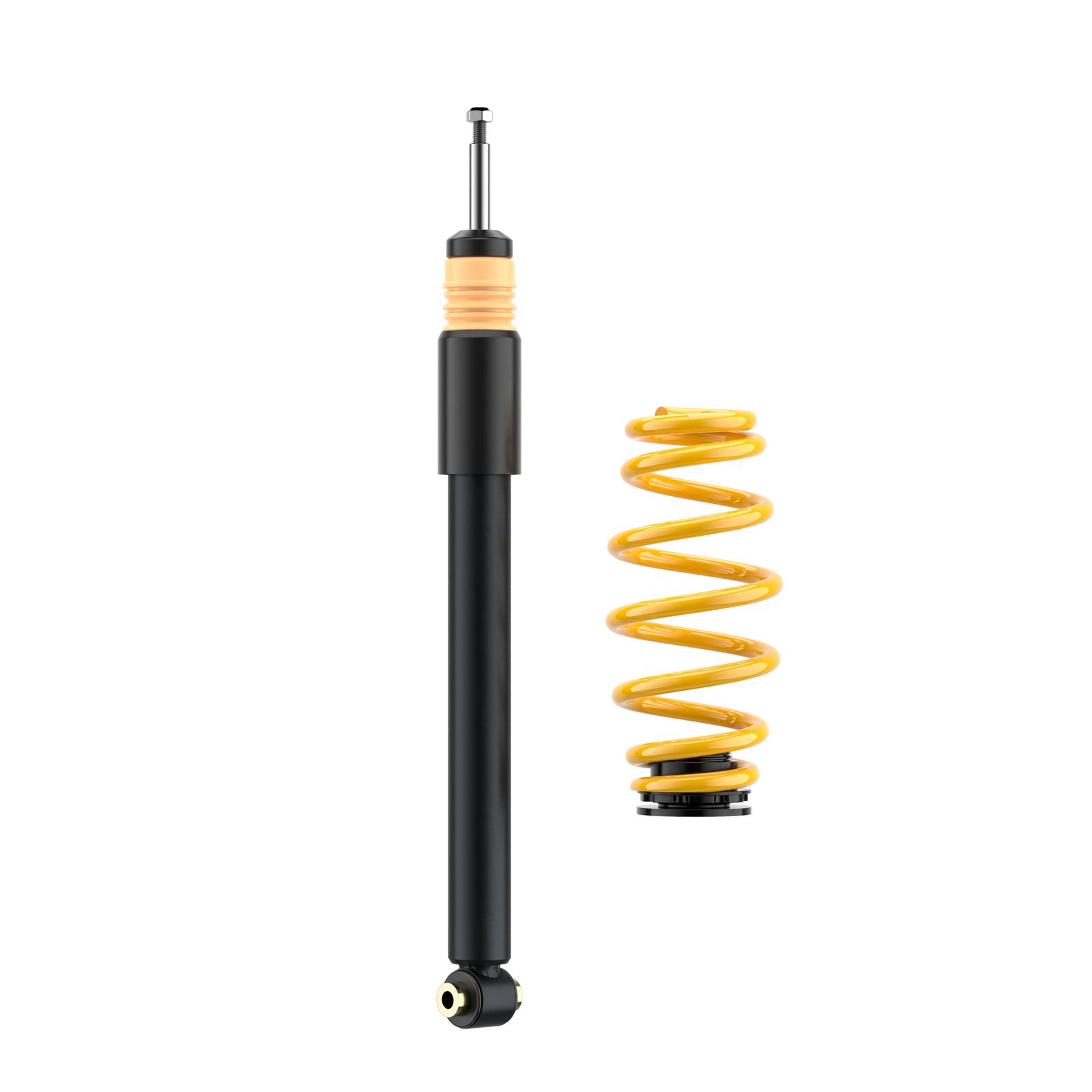

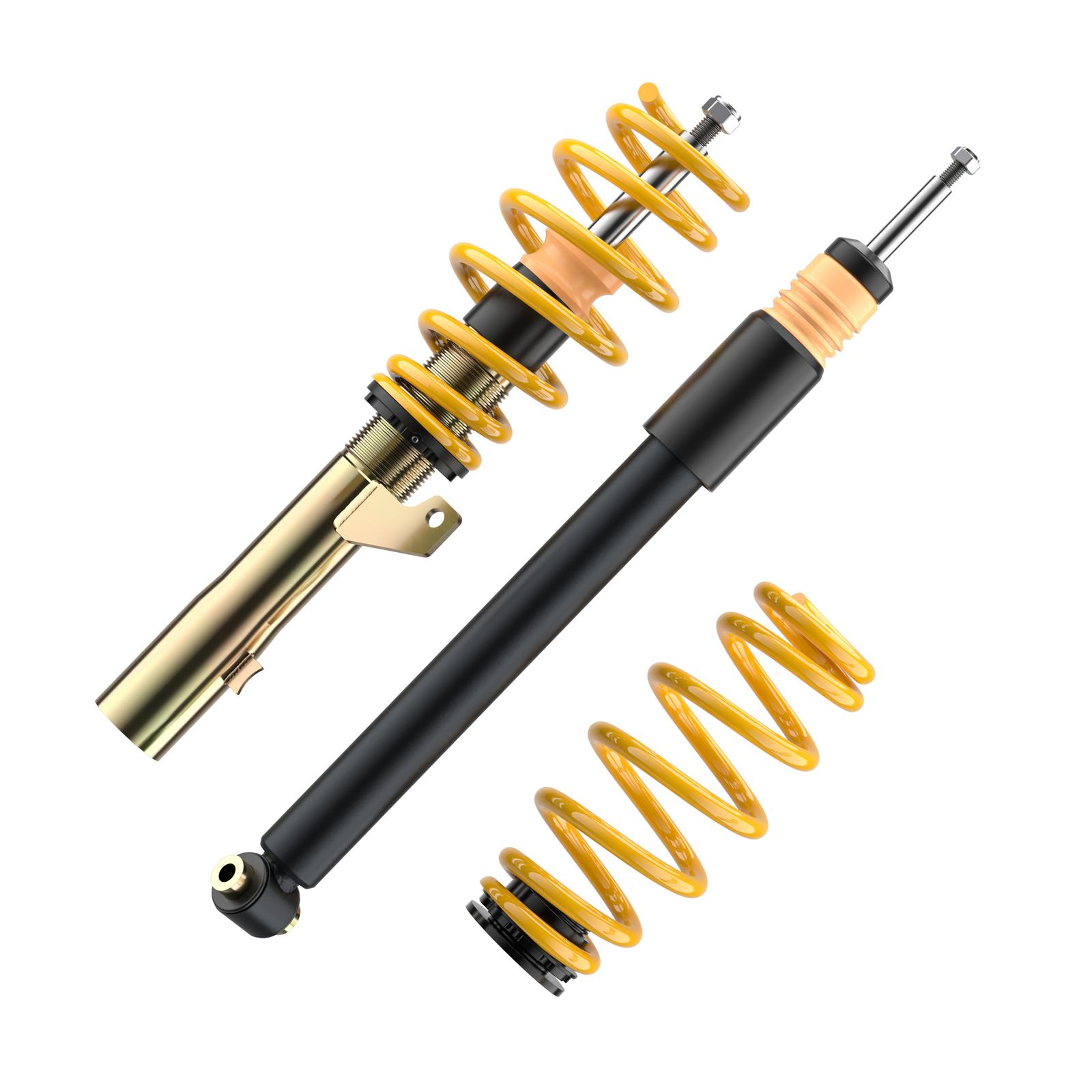

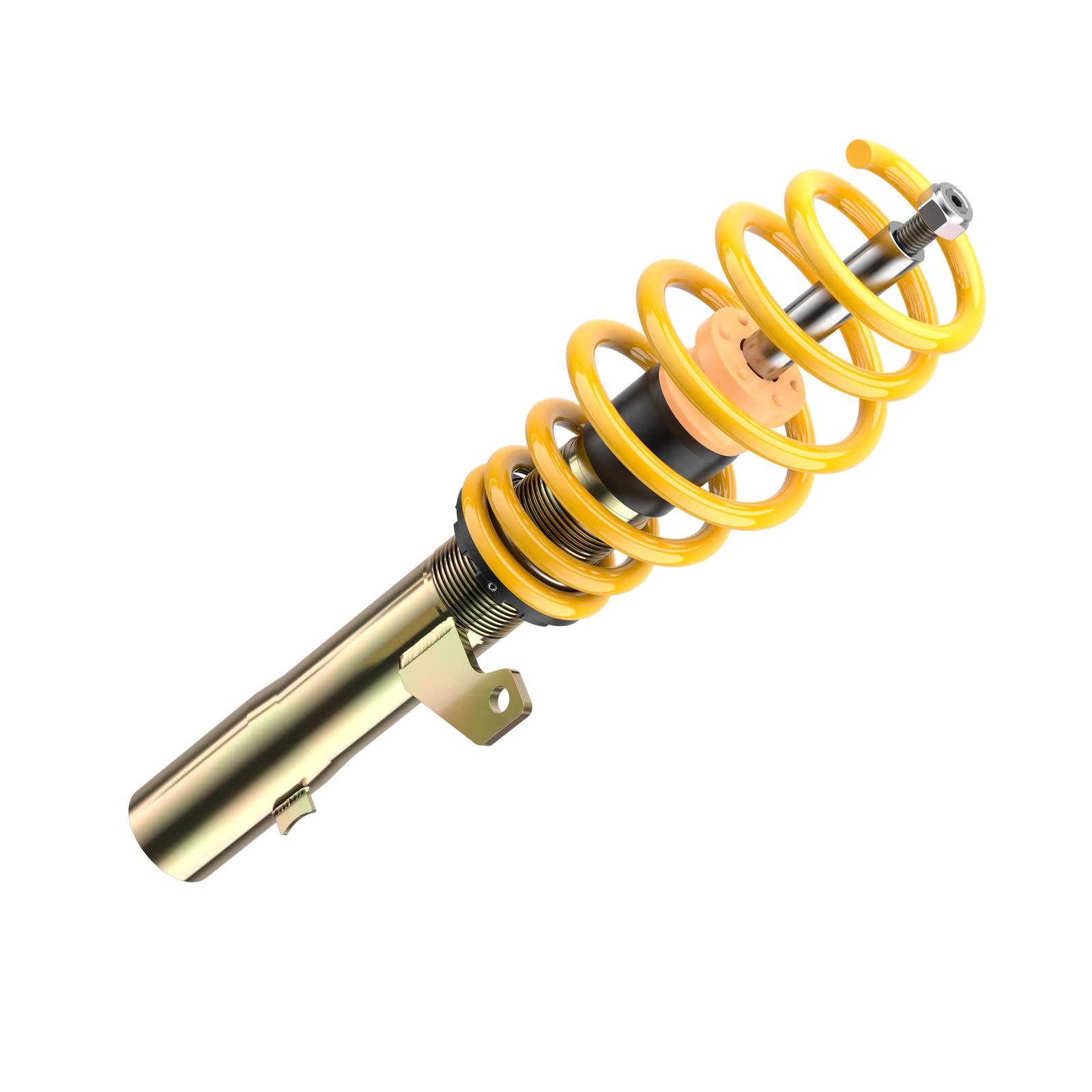

Coilovers ST X galvanized steel (with fixed damping)

Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.

Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).

Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.

Lowering with St\Tyle: the ST X coilovers
- Individual lowering within the tested adjustment range
- Front and rear axle thread adjustment (when possible)
- Galvanized coilover struts with additional coating for optimized corrosion protection
- Complete solution with adjustable spring plate, spring system and bumpers with dust protection
- Powerful twin-tube dampers with high-quality components for maximum longevity

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 180 (203.035)SaloonPetrol9519984Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 180 Kompressor (203.046)SaloonPetrol10517964Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 200 CDI (203.004)SaloonDiesel7521484Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 200 CDI (203.004)SaloonDiesel8521484Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 200 CDI (203.007)SaloonDiesel9021484Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 200 CGI Kompressor (203.043)SaloonPetrol12517964Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 200 Kompressor (203.042)SaloonPetrol12017964Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 200 Kompressor (203.045)SaloonPetrol12019984Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 220 CDI (203.006)SaloonDiesel10021484Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 220 CDI (203.006)SaloonDiesel10521484Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS (W203) 203 05/2000-12/2007C 230 Kompressor (203.040)SaloonPetrol14117964Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 180 (203.235)EstatePetrol9519984Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 180 Kompressor (203.246)EstatePetrol10517964Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 200 CDI (203.204, 203.207)EstateDiesel7521484Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 200 CDI (203.204)EstateDiesel8521484Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 200 CDI (203.207)EstateDiesel9021484Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 200 CGI Kompressor (203.243)EstatePetrol12517964Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 200 Kompressor (203.242)EstatePetrol12017964Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 200 Kompressor (203.245)EstatePetrol12019984Rear Wheel Drive2, 6, 8
MERCEDES-BENZC-CLASS T-Model (S203) 203K 03/2001-08/2007C 230 Kompressor (203.240)EstatePetrol14117964Rear Wheel Drive2, 6, 8
MERCEDES-BENZCLC-CLASS (CL203) 203 CL 05/2008-06/2011CLC 160 (203.731)CoupePetrol9515974Rear Wheel Drive42
MERCEDES-BENZCLC-CLASS (CL203) 203 CL 05/2008-06/2011CLC 180 Kompressor (203.746)CoupePetrol10517964Rear Wheel Drive42
MERCEDES-BENZCLC-CLASS (CL203) 203 CL 05/2008-06/2011CLC 200 CDI (203.707)CoupeDiesel9021484Rear Wheel Drive42
MERCEDES-BENZCLC-CLASS (CL203) 203 CL 05/2008-06/2011CLC 200 Kompressor (203.741)CoupePetrol13517964Rear Wheel Drive42
MERCEDES-BENZCLC-CLASS (CL203) 203 CL 05/2008-06/2011CLC 220 CDI (203.708)CoupeDiesel10021484Rear Wheel Drive42
MERCEDES-BENZCLC-CLASS (CL203) 203 CL 05/2008-06/2011CLC 220 CDI (203.708)CoupeDiesel11021484Rear Wheel Drive42
MERCEDES-BENZCLC-CLASS (CL203) 203 CL 05/2008-06/2011CLC 230 (203.752)CoupePetrol15024966Rear Wheel Drive42
MERCEDES-BENZCLC-CLASS (CL203) 203 CL 05/2008-06/2011CLC 250CoupePetrol15024966Rear Wheel Drive42
MERCEDES-BENZCLC-CLASS (CL203) 203 CL 05/2008-06/2011CLC 350 (203.756)CoupePetrol20034986Rear Wheel Drive42
MERCEDES-BENZCLK (C209) 209, 209 AMG, 209 DTM 05/2002-03/2010200 Kompressor (209.342)CoupePetrol12017964Rear Wheel Drive42
MERCEDES-BENZCLK Convertible (A209) 207, 209, 209 AMG, 209 DTM 06/2002-03/2010CLK 200 Kompressor (209.441)ConvertiblePetrol13517964Rear Wheel Drive42
MERCEDES-BENZCLK Convertible (A209) 207, 209, 209 AMG, 209 DTM 06/2002-03/2010CLK 200 Kompressor (209.442)ConvertiblePetrol12017964Rear Wheel Drive42

Media

Media

Parts Approval: PDF
Installation Instruction: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 8: Excluding 16V/20V/24V and RSI
  • Note 42: In combination with orginal wheels and tyres, wheelspacers might be necessary
  • Note 2: Not for station wagon models (Estate/ Avant/ Turnier/ Variant/ T-modell...)
  • Note 6: Not for vehicles with electronic damper control
