KW Coilover Kit V3 Leveling for VW (MK7) Golf GTI Clubsport / (MK8) Golf GTI / Golf w/ Deactivation for Electronic Dampers

352088000R

Stock: Backorder Available

RRP AU$4,829.00

AU$4,587.55 Inc GST

Save: AU$241.45 - 5% OFF

Description

Description

KW Leveling suspension is aimed at drivers who want the handling and comfort of a KW coilover while keeping close to factory ground clearance. Progressive springs and a comfort-oriented base damper setting suit poor roads and urban speed humps, and the ride height can be set slightly below or above standard. The V3 dampers adjust separately in rebound and compression. This kit is developed for the VW Golf GTI Clubsport (MK7) / Golf GTI / Golf (MK8).

Key Features

  • Near-factory ride height
  • Separately adjustable rebound and compression damping
  • Progressive comfort springs

Specifications

  • Version: V3 Leveling
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front height change: -15 to +5 mm
  • Rear height change: -15 to +5 mm
  • Front axle load: up to 1,090 kg
  • Rear axle load: up to 1,010 kg
  • Front strut diameter (vehicle): 55 mm

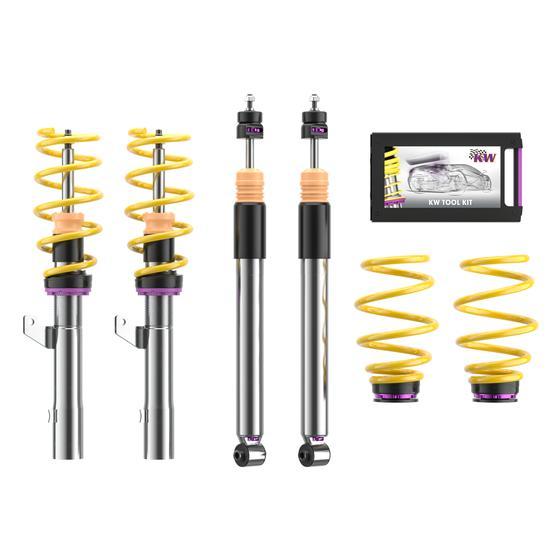

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers including cancellation kit for electronic damper control

Fitment

Fitment

Front axle load up to 1,090 kg; Rear axle load up to 1,010 kg.

For vehicles with electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTIPetrol · 169 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTIPetrol · 170 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTIPetrol · 180 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTI ClubsportPetrol · 195 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTI Clubsport SPetrol · 228 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 GTI TCRPetrol · 213 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2019+VWGolf VIII (CD1, DA1)2.0 GTIPetrol · 180 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2019+VWGolf VIII (CD1, DA1)2.0 GTIPetrol · 195 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2019+VWGolf VIII (CD1, DA1)2.0 GTI 50Petrol · 239 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2019+VWGolf VIII (CD1, DA1)2.0 GTI ClubsportPetrol · 221 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88

Media

Disclaimer

Disclaimer

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
