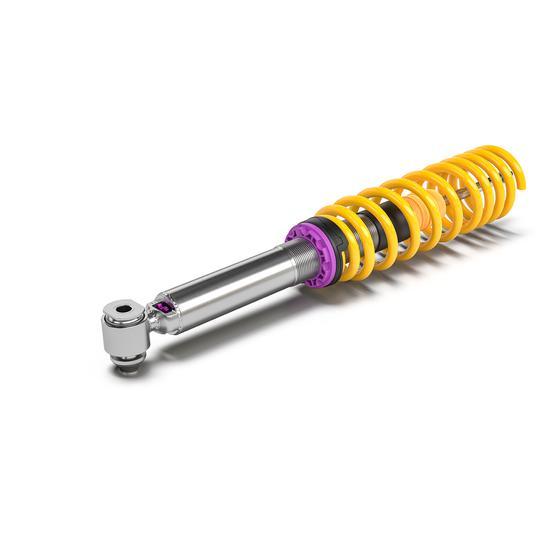

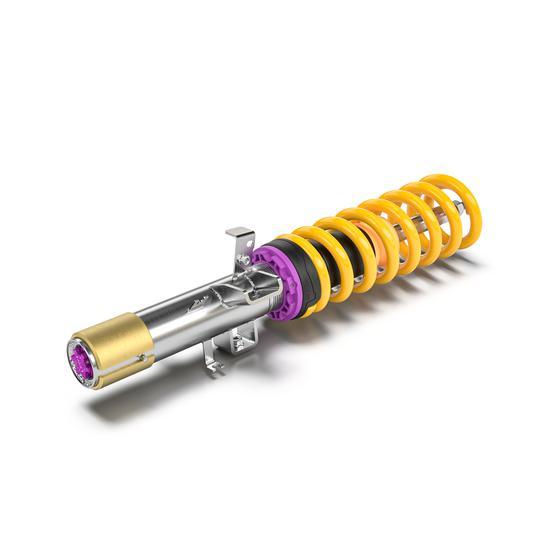

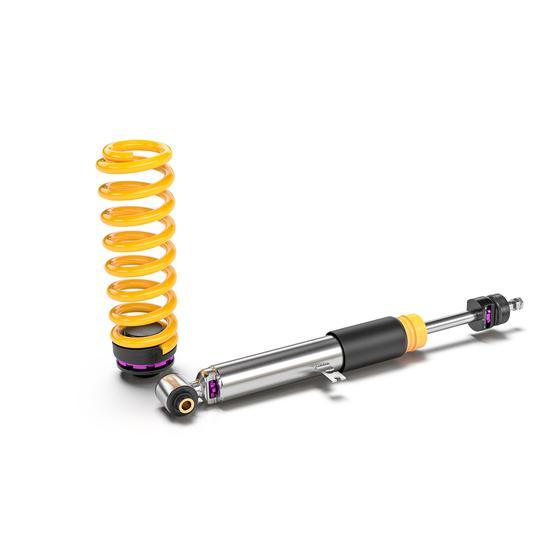

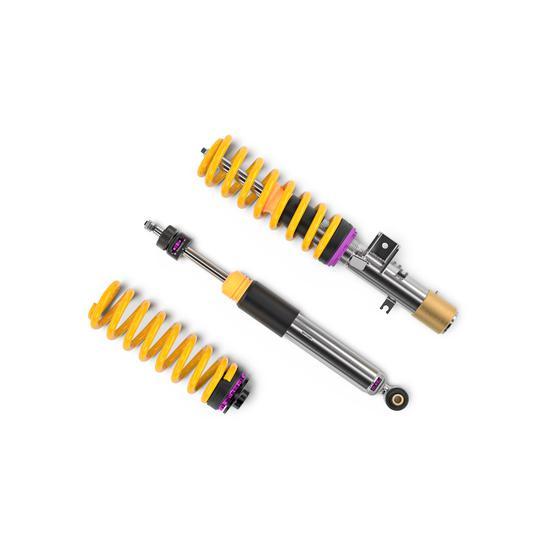

KW Leveling suspension V3 for 06/2016- Audi A5 Sportback (F5A, F5F)

35208100AR

Stock: Backorder Available

AU$5,069.00 Inc GST

Description

Description

Suspension V3 Leveling

Invisible - but you can feel it!

The KW Leveling suspensions are ideal for drivers who are not looking for maximum lowering, but seeking the driving dynamics and comfort of a KW Coilover suspension in combination with the almost original manufacturer’s series floor clearance.

The KW Leveling suspensions focus on the combination of increased driving dynamics and comfort in connection with a minimum lowering or, if desired, raising of the suspension. The KW Leveling suspensions are the ideal retrofit suspensions for frequent drivers on poorly developed roads or drivers that use their car mainly in metropolises and urban areas than have numerous speed bumps. The progressive suspension springs are designed to give their spring rate a plus in driving comfort. Accordingly, the KW Leveling suspensions have an adjustable, comfort-oriented basic damper tuning. If required, the KW leveling enables an adapted level regulation in the range of + 5 - 20 mm.

The KW V3 Leveling suspension is the ideal retrofit option for drivers who are looking for everyday practicality, increased rolling comfort, and sportiness. The separately adjustable dampers in compression and rebound with their "TVR-A" and "TVC-A" technology allow extensive damper tuning. This makes it easy to additionally influence the steering behavior, directional stability, tire grip, and handling characteristics significantly for safe control at the limit and increased driving comfort.

- Rebound and compression damping adjustable damper technology
- Stainless steel technology "inox-line"
- Individual, continous level regulation
- tested adjustment range
- High quality components for a long life
- Complete documentation for an easy handling
- Adjustable rebound damping with 16 exact clicks
- Adjustable compression damping with 12 exact clicks
- Unique, independent from each other working damping force adjustment

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
AUDIA4 Avant (B9) B8, 8W5 08/2015-2.0 TDI quattroEstateDiesel11019684All-wheel Drive2, 37, 67, 405
AUDIA4 Avant (B9) B8, 8W5 08/2015-2.0 TDI quattroEstateDiesel12019684All-wheel Drive2, 37, 67, 405
AUDIA4 Avant (B9) B8, 8W5 08/2015-2.0 TDI quattroEstateDiesel14019684All-wheel Drive2, 37, 67, 405
AUDIA4 Avant (B9) B8, 8W5 08/2015-2.0 TFSI Mild Hybrid quattroEstatePetrol/Electric18519844All-wheel Drive2, 37, 67, 405
AUDIA4 Avant (B9) B8, 8W5 08/2015-2.0 TFSI quattroEstatePetrol18319844All-wheel Drive2, 37, 67, 405
AUDIA4 Avant (B9) B8, 8W5 08/2015-2.0 TFSI quattroEstatePetrol18519844All-wheel Drive2, 37, 67, 405
AUDIA4 Avant (B9) B8, 8W5 08/2015-40 TDI Mild Hybrid quattroEstateDiesel/Electro15019684All-wheel Drive2, 37, 67, 405
AUDIA4 Avant (B9) B8, 8W5 08/2015-40 TDI quattroEstateDiesel14019684All-wheel Drive2, 37, 67, 405
AUDIA4 Avant (B9) B8, 8W5 08/2015-40 TFSI Mild Hybrid quattroEstatePetrol/Electric15019844All-wheel Drive2, 37, 67, 405
AUDIA4 Avant (B9) B8, 8W5 08/2015-45 TFSI Mild Hybrid quattroEstatePetrol/Electric18019844All-wheel Drive2, 37, 67, 405
AUDIA4 Avant (B9) B8, 8W5 08/2015-45 TFSI Mild Hybrid quattroEstatePetrol/Electric18319844All-wheel Drive2, 37, 67, 405
AUDIA4 Avant (B9) B8, 8W5 08/2015-45 TFSI Mild Hybrid quattroEstatePetrol/Electric19519844All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-2.0 TDI quattroHatchbackDiesel11019684All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-2.0 TDI quattroHatchbackDiesel14019684All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-2.0 TFSI Mild Hybrid quattroHatchbackPetrol/Electric18519844All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-2.0 TFSI quattroHatchbackPetrol18319844All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-2.0 TFSI quattroHatchbackPetrol18519844All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-40 TDI Mild Hybrid quattroHatchbackDiesel/Electro15019684All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-40 TDI quattroHatchbackDiesel14019684All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-40 TFSI Mild Hybrid quattroHatchbackPetrol/Electric15019844All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-40 TFSI quattroHatchbackPetrol15019844All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-45 TFSI Mild Hybrid quattroHatchbackPetrol/Electric18019844All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-45 TFSI Mild Hybrid quattroHatchbackPetrol/Electric19519844All-wheel Drive2, 37, 67, 405
AUDIA5 Sportback (B8) F5A 06/2016-45 TFSI quattroHatchbackPetrol19519844All-wheel Drive2, 37, 67, 405

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 405: only for cars with damper diameter 50mm (not 48,5mm) / clamp diameter 53mm on the front axle
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
