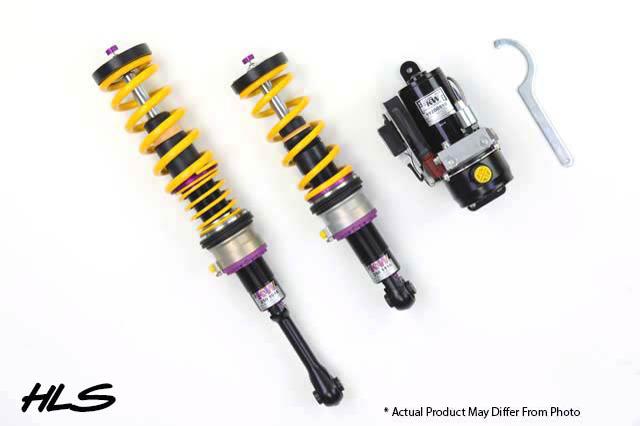

KW HLS 4 Hydraulic Lift System for Chevrolet (C6) Corvette Z06 / Corvette / (C5) Z06 - for KW Dampers

19261415
KW Suspension

Stock: Backorder Available

AU$9,979.00 Inc GST

Description

Description

KW's Hydraulic Lift System (HLS) raises the front axle (HLS 2) or both axles (HLS 4) at the push of a button, helping a lowered car clear speed humps, steep driveways and car park ramps without damage to splitters, underbody panels or the sump. Hydraulic lines and pump are matched to the vehicle, and the system is supplied for use with KW or factory dampers as listed below. This kit is developed for the Chevrolet Corvette Z06 / Corvette (C6) / Z06 (C5).

Key Features

  • Lift at the push of a button
  • Vehicle-specific hydraulic lines and pump

Specifications

  • HLS version: HLS 4 for KW dampers
  • Lift axle(s): Front and rear axles
  • Front lowering: 10–30 mm
  • Rear lowering: 0–20 mm
  • Front axle load: up to 873 kg
  • Rear axle load: up to 950 kg
  • Supplied as: Set (front + rear axle) including springs for KW coilover kit

Fitment

Fitment

Front axle load up to 873 kg; Rear axle load up to 950 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1997–2004ChevroletCorvette Convertible (Y)5.7Petrol · 253 kW · 5.7L · 8-cylRear-Wheel Drive37
1997–2004ChevroletCorvette Convertible (Y)5.7Petrol · 257 kW · 5.7L · 8-cylRear-Wheel Drive37
1997–2004ChevroletCorvette (Y)5.7Petrol · 257 kW · 5.7L · 8-cylRear-Wheel Drive37
1997–2004ChevroletCorvette (Y)5.7 Z06Petrol · 302 kW · 5.7L · 8-cylRear-Wheel Drive37
1997–2004ChevroletCorvette (Y)5.7 Z06Petrol · 287 kW · 5.7L · 8-cylRear-Wheel Drive37
2004–2013ChevroletCorvette (C6) GMX-245, GMX245A, GMX245S6.0Petrol · 298 kW · 6.0L · 8-cylRear-Wheel Drive37
2004–2013ChevroletCorvette (C6) GMX-245, GMX245A, GMX245SZ06 7.0Petrol · 377 kW · 7.0L · 8-cylRear-Wheel Drive37
2004–2013ChevroletCorvette Convertible (C6) GMX-245, GMX245S6.0Petrol · 298 kW · 6.0L · 8-cylRear-Wheel Drive37
2004–2013ChevroletCorvette (C6) GMX-245, GMX245A, GMX245S6.2Petrol · 316 kW · 6.2L · 8-cylRear-Wheel Drive37
2004–2013ChevroletCorvette (C6) GMX-245, GMX245A, GMX245SZ06 7.0Petrol · 371 kW · 7.0L · 8-cylRear-Wheel Drive37
2004–2013ChevroletCorvette (C6) GMX-245, GMX245A, GMX245S6.2Petrol · 321 kW · 6.2L · 8-cylRear-Wheel Drive37
2004–2013ChevroletCorvette Convertible (C6) GMX-245, GMX245S6.2Petrol · 321 kW · 6.2L · 8-cylRear-Wheel Drive37
2004–2013ChevroletCorvette Convertible (C6) GMX-245, GMX245S6.2Petrol · 316 kW · 6.2L · 8-cylRear-Wheel Drive37
1997–2004ChevroletCorvette Convertible (Y)5.7Petrol · 261 kW · 5.7L · 8-cylRear-Wheel Drive37
1997–2004ChevroletCorvette (Y)5.7Petrol · 261 kW · 5.7L · 8-cylRear-Wheel Drive37
2004–2013ChevroletCorvette Convertible (C6) GMX-245, GMX245SZ06 7.0Petrol · 377 kW · 7.0L · 8-cylRear-Wheel Drive37
1997–2004ChevroletCorvette (Y)5.7Petrol · 253 kW · 5.7L · 8-cylRear-Wheel Drive37

Media

Media

Disclaimer

Disclaimer

  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
