KW Height Adjustable Spring Kit for Audi (8V) RS3 / S3 - w/ Electronic Dampers

253100AL
KW Suspension

Stock: In Stock

AU$1,509.00 Inc GST

Description

Description

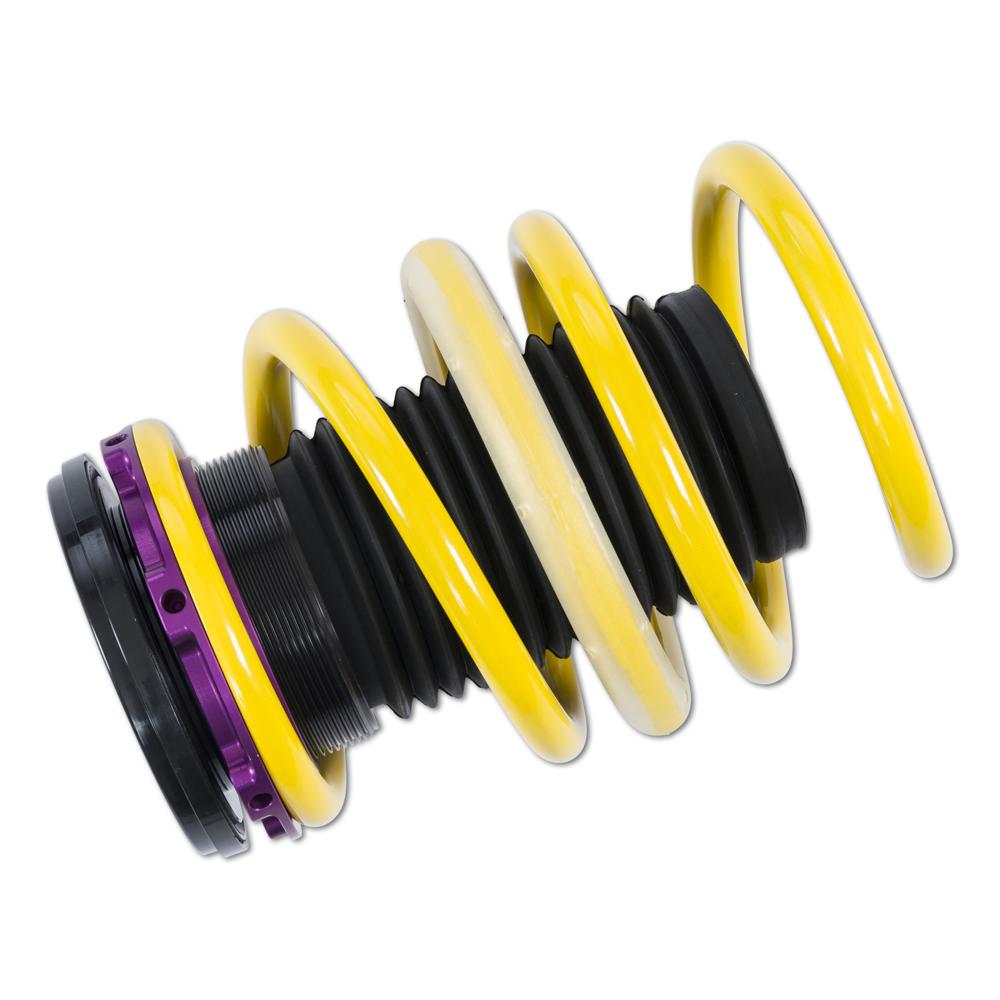

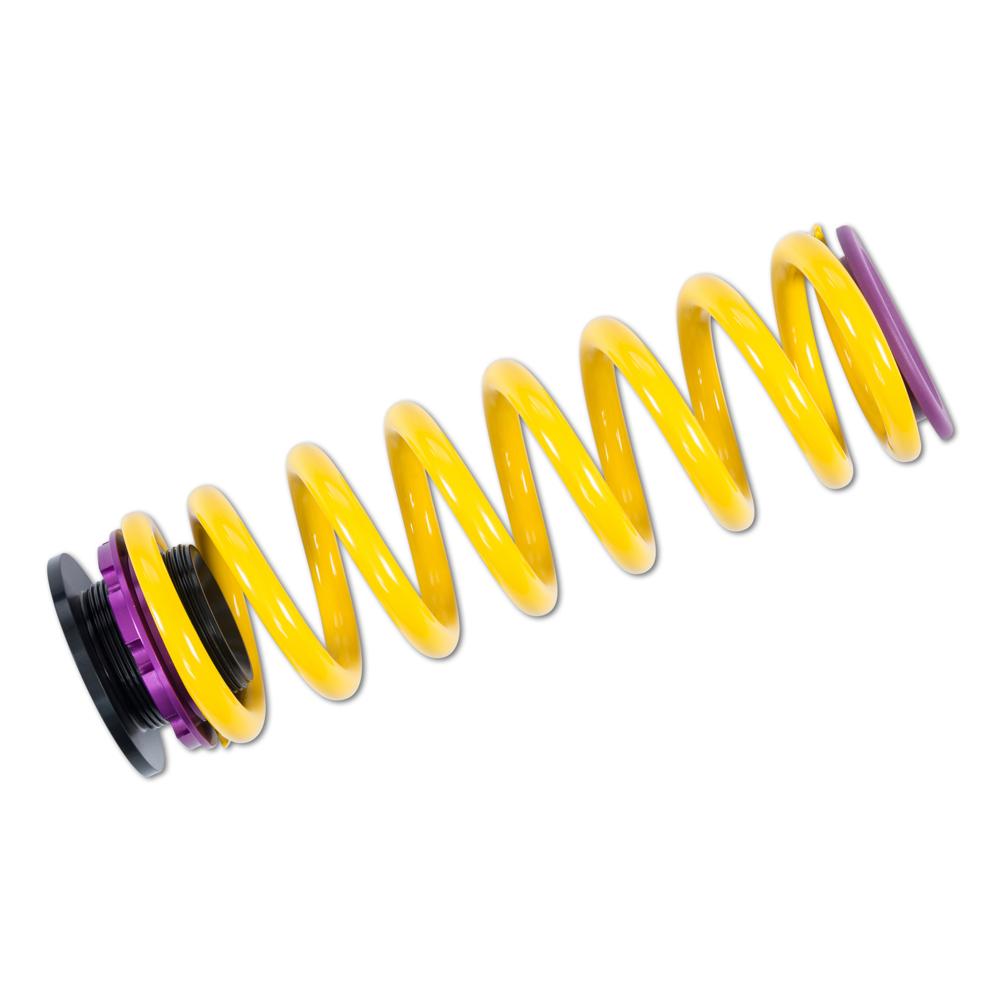

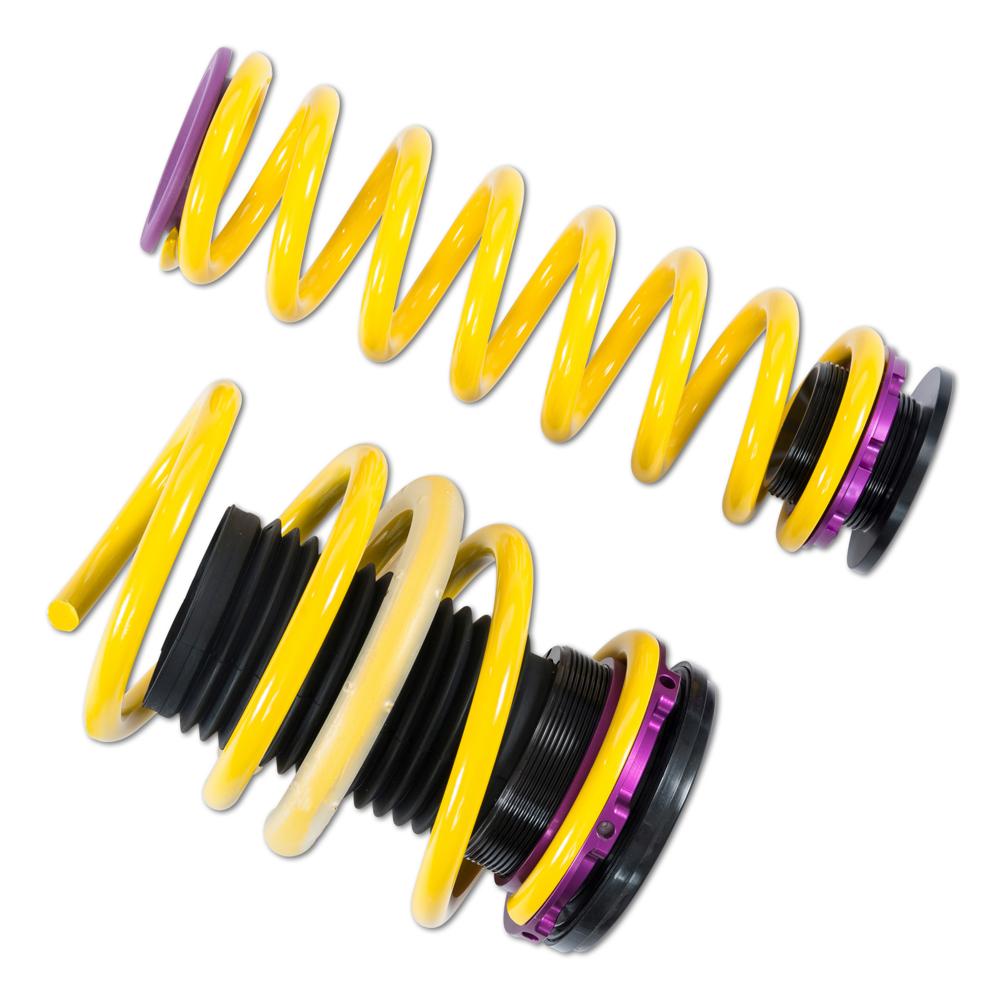

KW height-adjustable springs lower the car in combination with the factory dampers while allowing the ride height to be set anywhere within the tested range, unlike fixed lowering springs. The kit uses vehicle-specific spring seats and chrome-silicon steel springs matched to the factory dampers and wheel loads, with matching elastomers and dust protection. Factory electronic or hydraulic damper control remains active. This kit is developed for the Audi RS3 / S3 (8V).

Key Features

  • Works with the factory dampers
  • Continuous height adjustment within the tested range
  • Chrome-silicon steel springs

Specifications

  • Front lowering: 20–30 mm
  • Rear lowering: 0–15 mm
  • Front axle load: up to 1,100 kg
  • Rear axle load: up to 1,080 kg

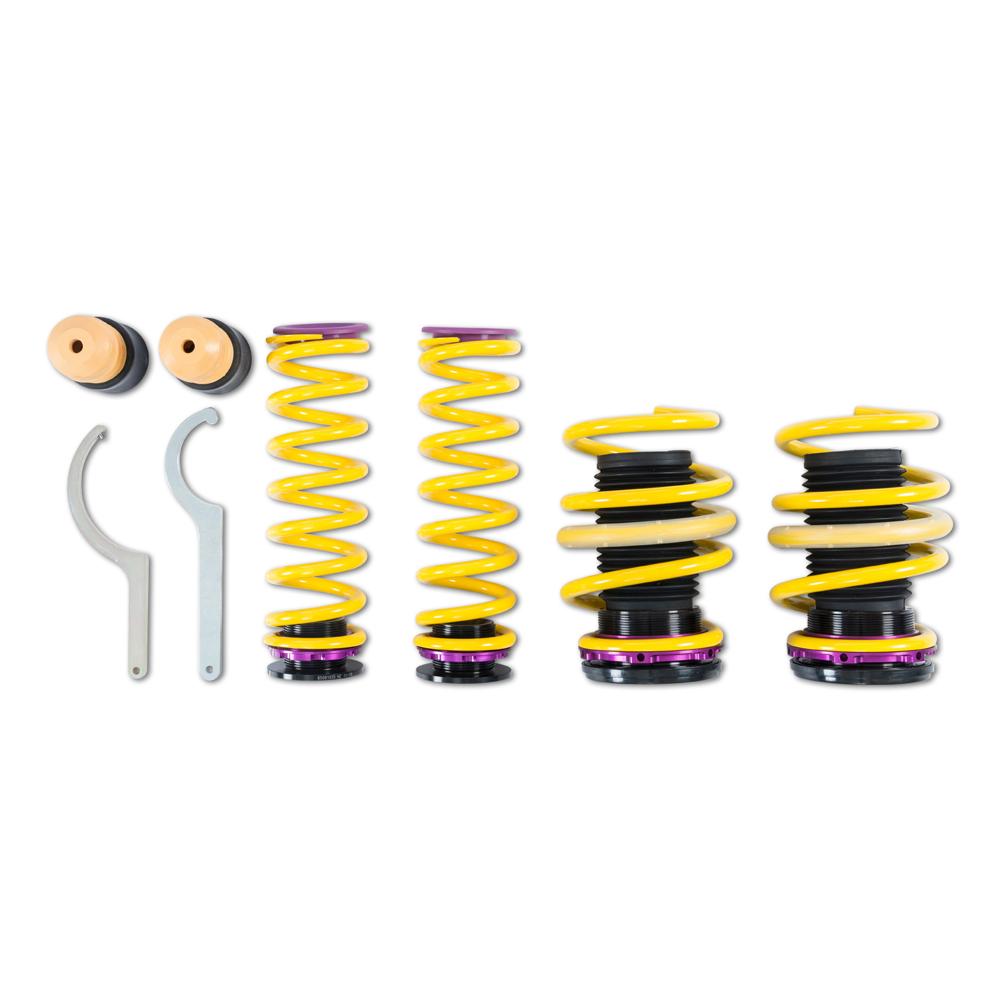

  • Supplied as: Set (front + rear axle)

Fitment

Fitment

Front axle load up to 1,100 kg; Rear axle load up to 1,080 kg.

For vehicles with electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2013–2021AudiA3 Convertible (8V) 8V7, 8VES3 quattroPetrol · 221 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2012–2020AudiA3 (8V) 8V1, 8VKS3 quattroPetrol · 210 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 210 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2012–2021AudiA3 Sportback (8V) 8VA, 8VFS3 quattroPetrol · 210 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2013–2021AudiA3 Convertible (8V) 8V7, 8VES3 quattroPetrol · 210 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 215 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2012–2021AudiA3 Sportback (8V) 8VA, 8VFRS3 quattroPetrol · 270 kW · 2.5L · 5-cylAll-Wheel Drive55, 91
2012–2020AudiA3 (8V) 8V1, 8VKS3 quattroPetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2012–2021AudiA3 Sportback (8V) 8VA, 8VFS3 quattroPetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2013–2021AudiA3 Convertible (8V) 8V7, 8VES3 quattroPetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2012–2020AudiA3 (8V) 8V1, 8VKS3 quattroPetrol · 213 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2012–2021AudiA3 Sportback (8V) 8VA, 8VFS3 quattroPetrol · 213 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 213 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2013–2021AudiA3 Convertible (8V) 8V7, 8VES3 quattroPetrol · 213 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2012–2021AudiA3 Sportback (8V) 8VA, 8VFRS3 quattroPetrol · 294 kW · 2.5L · 5-cylAll-Wheel Drive55, 91
2013–2021AudiA3 Saloon (8V) 8VS, 8VMRS3 quattroPetrol · 294 kW · 2.5L · 5-cylAll-Wheel Drive55, 91
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 221 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2013–2021AudiA3 Saloon (8V) 8VS, 8VMS3 quattroPetrol · 206 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2012–2020AudiA3 (8V) 8V1, 8VKS3 quattroPetrol · 206 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2012–2020AudiA3 (8V) 8V1, 8VKS3 quattroPetrol · 221 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2012–2021AudiA3 Sportback (8V) 8VA, 8VFS3 quattroPetrol · 221 kW · 2.0L · 4-cylAll-Wheel Drive55, 91
2012–2021AudiA3 Sportback (8V) 8VA, 8VFS3 quattroPetrol · 206 kW · 2.0L · 4-cylAll-Wheel Drive55, 91

Media

Media

Disclaimer

Disclaimer

  • Note 55: Only for vehicles which have electronic dampers.
  • Note 91: Front and rear height-adjustable (front and rear springs with height adjustment, usage only with factory dampers).
