KW Height Adjustable Spring Kit for Audi (C6) A6 Avant

25310055
KW Suspension

Stock: Backorder Available

AU$1,809.01 Inc GST

Description

Description

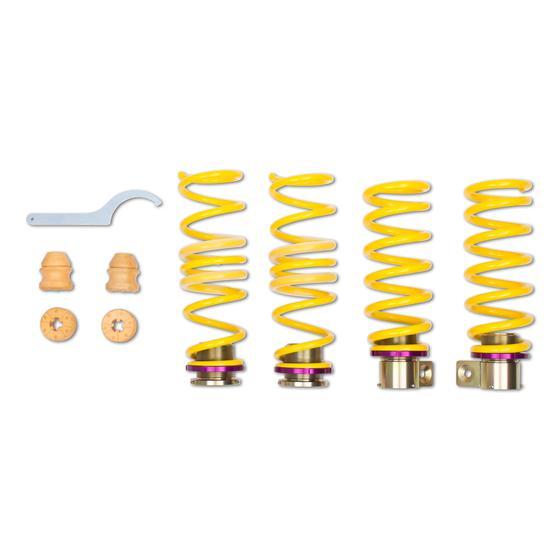

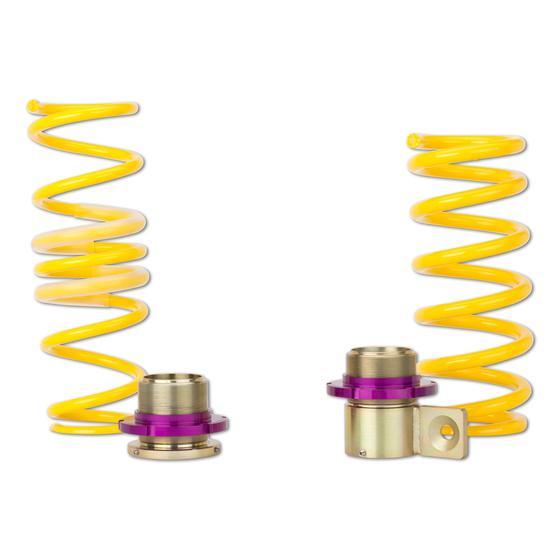

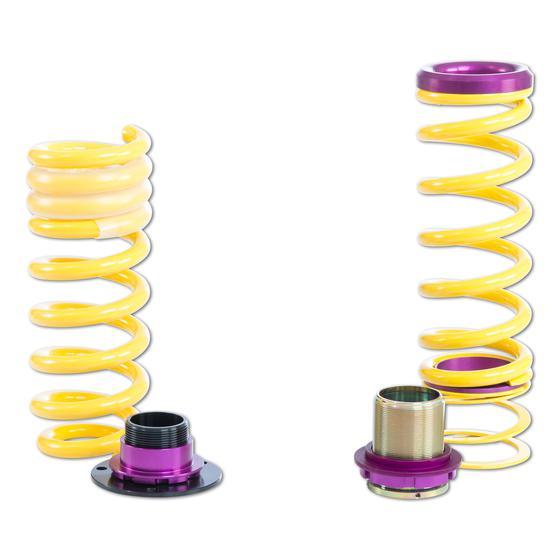

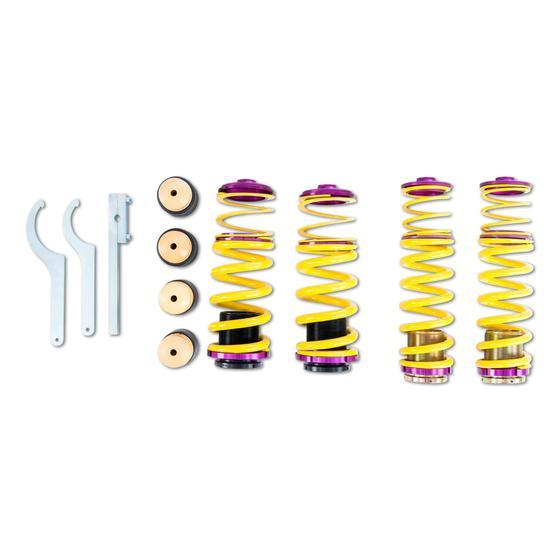

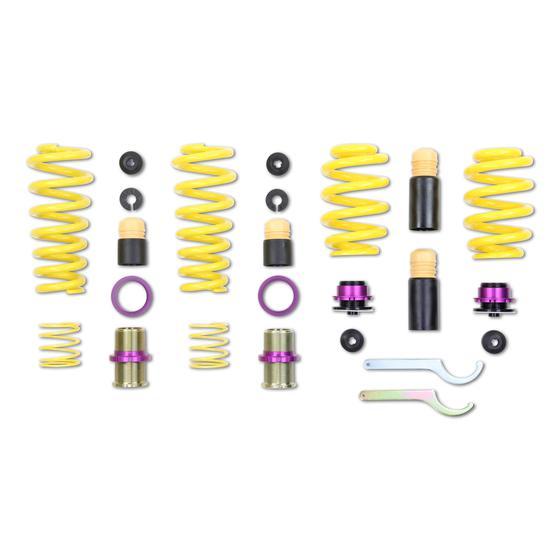

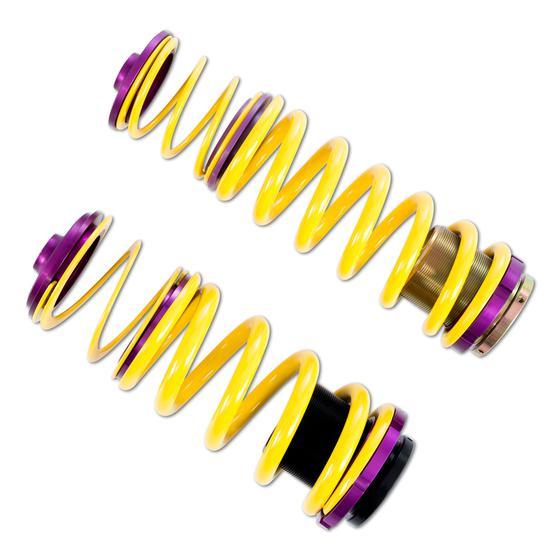

KW height-adjustable springs lower the car in combination with the factory dampers while allowing the ride height to be set anywhere within the tested range, unlike fixed lowering springs. The kit uses vehicle-specific spring seats and chrome-silicon steel springs matched to the factory dampers and wheel loads, with matching elastomers and dust protection. Factory electronic or hydraulic damper control remains active. This kit is developed for the Audi A6 Avant (C6).

Key Features

  • Works with the factory dampers
  • Continuous height adjustment within the tested range
  • Chrome-silicon steel springs

Specifications

  • Front lowering: 25–55 mm
  • Rear lowering: 25–55 mm
  • Front axle load: up to 1,240 kg
  • Rear axle load: up to 1,300 kg
  • Supplied as: Set (front + rear axle)

Fitment

Fitment

Front axle load up to 1,240 kg; Rear axle load up to 1,300 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2004–2011AudiA6 Avant (4F) 4F5, C62.0 TDIDiesel · 89 kW · 2.0L · 4-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.0 TDIDiesel · 103 kW · 2.0L · 4-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.0 TDIDiesel · 120 kW · 2.0L · 4-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.0 TDIDiesel · 125 kW · 2.0L · 4-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.0 TFSIPetrol · 125 kW · 2.0L · 4-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.4Petrol · 130 kW · 2.4L · 6-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.4 quattroPetrol · 130 kW · 2.4L · 6-cylAll-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.7 TDIDiesel · 120 kW · 2.7L · 6-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.7 TDIDiesel · 132 kW · 2.7L · 6-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.8 FSIPetrol · 140 kW · 2.8L · 6-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.8 FSIPetrol · 154 kW · 2.8L · 6-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.8 FSIPetrol · 162 kW · 2.8L · 6-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.8 FSI quattroPetrol · 140 kW · 2.8L · 6-cylAll-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.8 FSI quattroPetrol · 154 kW · 2.8L · 6-cylAll-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C62.8 FSI quattroPetrol · 162 kW · 2.8L · 6-cylAll-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C63.0Petrol · 160 kW · 3.0L · 6-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C63.0 TFSI quattroPetrol · 220 kW · 3.0L · 6-cylAll-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C63.0 quattroPetrol · 160 kW · 3.0L · 6-cylAll-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C63.2 FSIPetrol · 188 kW · 3.1L · 6-cylFront-Wheel Drive91
2004–2011AudiA6 Avant (4F) 4F5, C63.2 FSI quattroPetrol · 188 kW · 3.1L · 6-cylAll-Wheel Drive91

Media

Media

Disclaimer

Disclaimer

  • Note 91: Front and rear height-adjustable (front and rear springs with height adjustment, usage only with factory dampers).
