KW Coilover Kit V3 for VW (MK8) Golf R

352800CW

Stock: Backorder Available

RRP AU$4,569.00

AU$4,340.55 Inc GST

Save: AU$228.45 - 5% OFF

Description

Description

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the VW Golf R (MK8) 4motion.

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 25–45 mm
  • Rear lowering: 25–45 mm
  • Front axle load: up to 1,110 kg
  • Rear axle load: up to 990 kg
  • Front strut diameter (vehicle): 55 mm

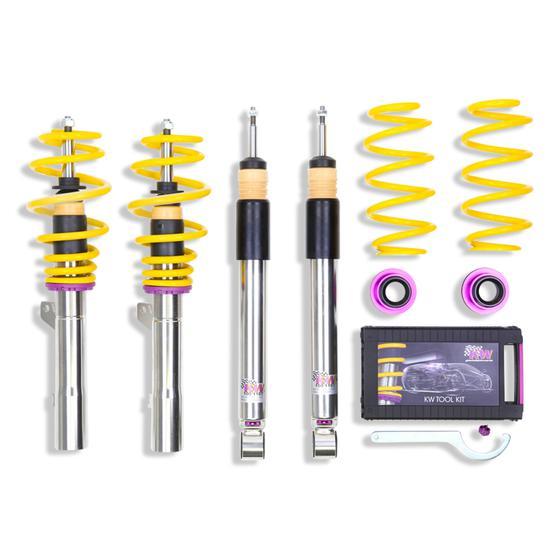

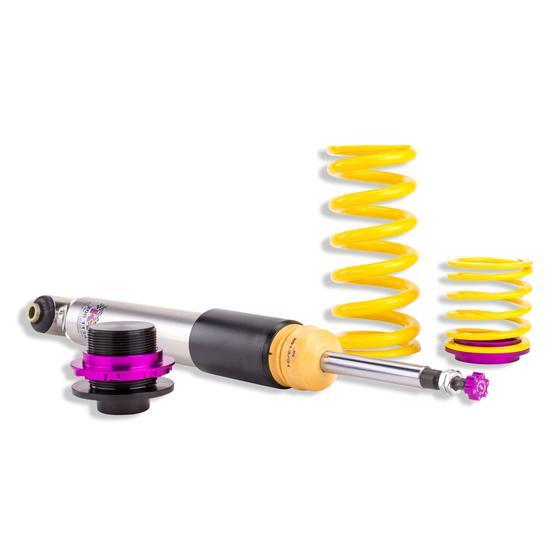

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Note For cars without DCC.

Fitment

Fitment

Front axle load up to 1,110 kg; Rear axle load up to 990 kg.

For vehicles without electronic damper control.

For cars without DCC.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2019+VWGolf VIII (CD1, DA1)2.0 GTIPetrol · 180 kW · 2.0L · 4-cylFront-Wheel Drive12, 37, 57, 67
2019+VWGolf VIII (CD1, DA1)2.0 GTIPetrol · 195 kW · 2.0L · 4-cylFront-Wheel Drive12, 37, 57, 67
2019+VWGolf VIII (CD1, DA1)2.0 GTI 50Petrol · 239 kW · 2.0L · 4-cylFront-Wheel Drive12, 37, 57, 67
2019+VWGolf VIII (CD1, DA1)2.0 GTI ClubsportPetrol · 221 kW · 2.0L · 4-cylFront-Wheel Drive12, 37, 57, 67
2019+VWGolf VIII (CD1, DA1)2.0 TSI R 4motionPetrol · 235 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC12, 37, 57, 67
2019+VWGolf VIII (CD1, DA1)2.0 TSI R 4motionPetrol · 245 kW · 2.0L · 4-cylAll-Wheel DriveFor cars without DCC12, 37, 57, 67

Media

Disclaimer

Disclaimer

  • Note 12: To identify the suspension struts, measure the diameter of the strut mounting screw at the steering knuckle. Screw diameter either M12 or M14.
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.

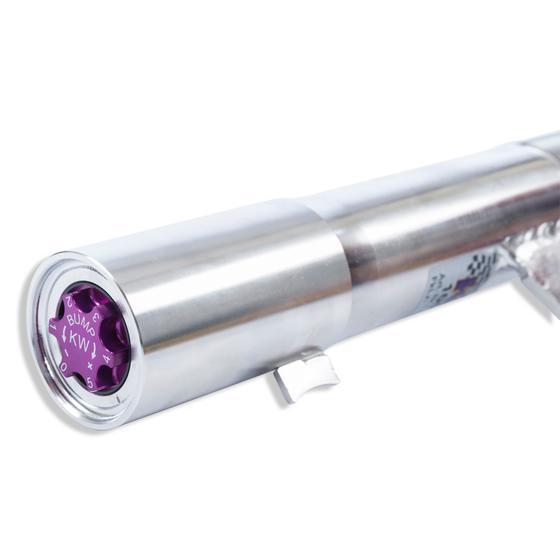

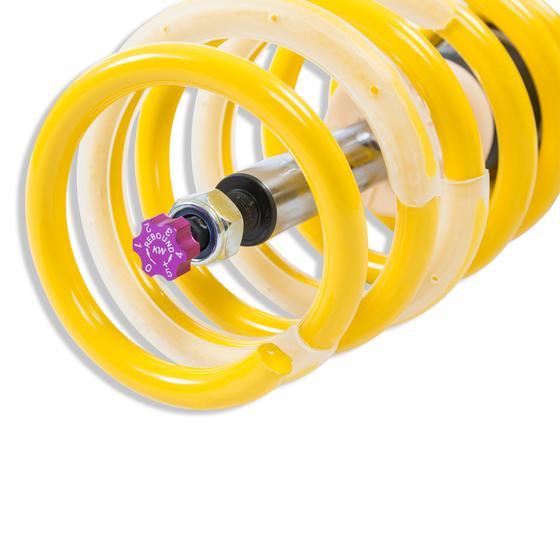

  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
