KW Coilover Kit V3 for VW (MK7) Golf Estate / Seat (5F) Leon ST / Skoda (5E) Octavia w/ Deactivation for Electronic Dampers - 55mm Front Strut

3528000V
KW Suspension

Stock: Backorder Available

AU$4,939.00 Inc GST

Description

Description

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the VW Golf Estate (MK7) / Seat Leon ST (5F) / Skoda Octavia (5E).

Key Features

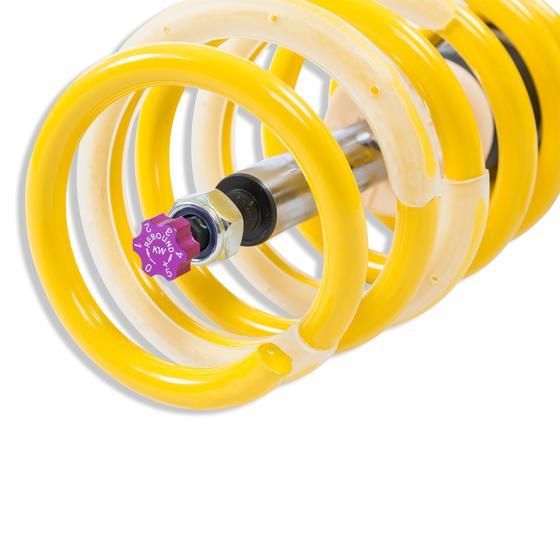

  • Rebound damping adjustable in 16 clicks

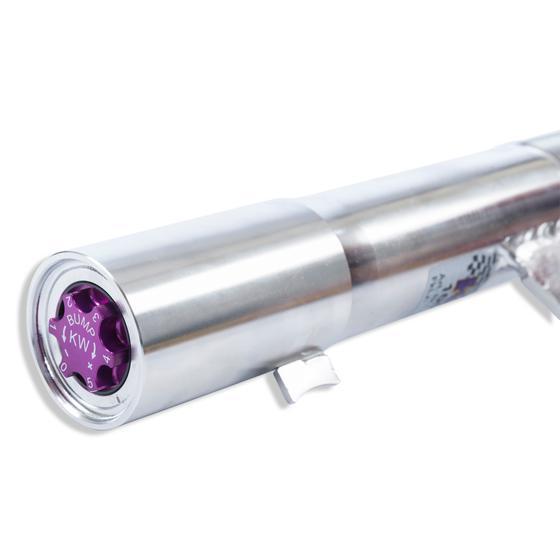

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 35–65 mm
  • Rear lowering: 35–65 mm
  • Front axle load: up to 965 kg
  • Rear axle load: up to 1,050 kg
  • Front strut diameter (vehicle): 55 mm

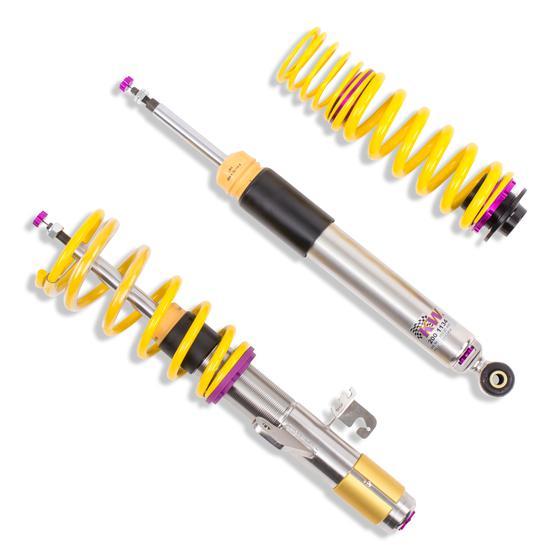

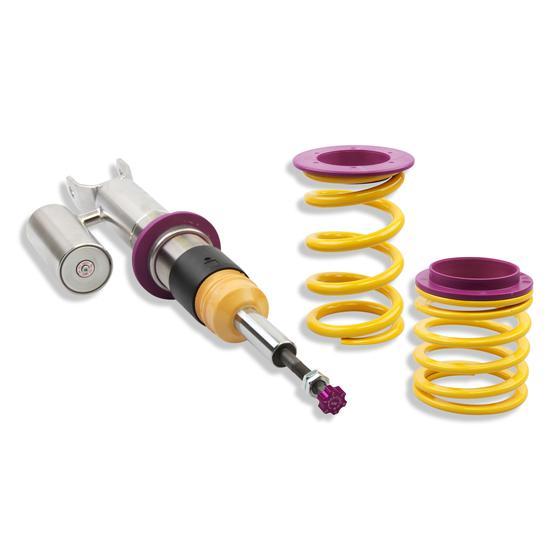

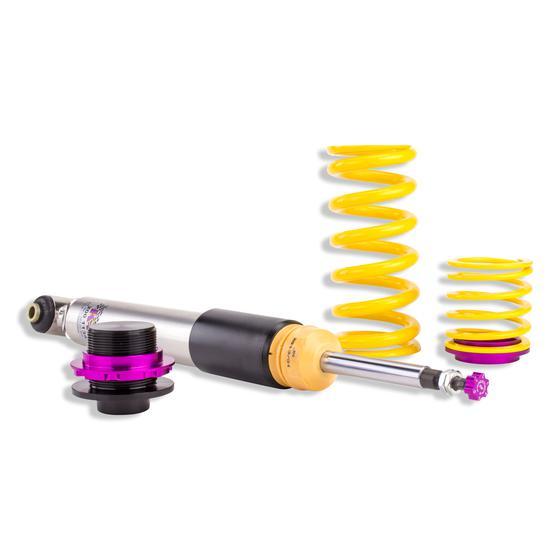

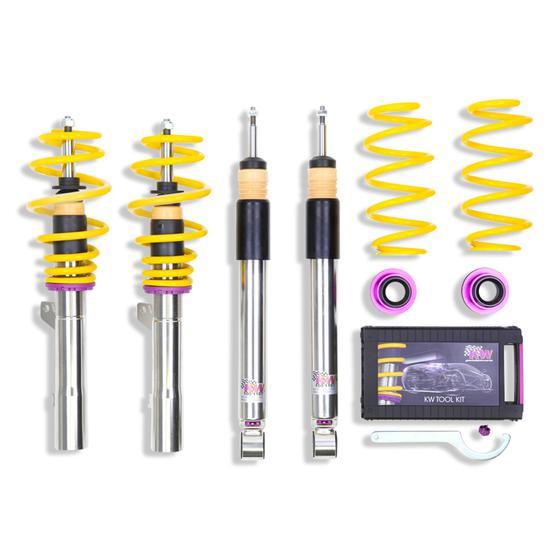

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers including cancellation kit for electronic damper control

Fitment

Fitment

Front axle load up to 965 kg; Rear axle load up to 1,050 kg.

For vehicles with electronic damper control.

References 2, 57, 67, 88. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2012–2020SeatLeon ST (5F8)1.6 TDIDiesel · 81 kW · 1.6L · 4-cylFront-Wheel Drive2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.2 TSIPetrol · 81 kW · 1.2L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.4 TSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.4 TSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.2 TSIPetrol · 81 kW · 1.2L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.4 TSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.4 TSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel Drive2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.8 TSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.6Petrol · 81 kW · 1.6L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.6 SREPetrol · 81 kW · 1.6L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.6Petrol · 81 kW · 1.6L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.0 TSIPetrol · 85 kW · 1.0L · 3-cylFront-Wheel Drive2, 57, 67, 88
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.2 TSIPetrol · 81 kW · 1.2L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.2 TSIPetrol · 81 kW · 1.2L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.4 TSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.4 TSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.0 TSIPetrol · 85 kW · 1.0L · 3-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.0 TSIPetrol · 85 kW · 1.0L · 3-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.0 TSIPetrol · 85 kW · 1.0L · 3-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.6 TDIDiesel · 85 kW · 1.6L · 4-cylFront-Wheel Drive2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.0 TSIPetrol · 81 kW · 1.0L · 3-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.0 TSIPetrol · 63 kW · 1.0L · 3-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.5 TSIPetrol · 110 kW · 1.5L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.5 TSIPetrol · 96 kW · 1.5L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.5 TSIPetrol · 110 kW · 1.5L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.5 TSIPetrol · 110 kW · 1.5L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.5 TSIPetrol · 96 kW · 1.5L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.5 TSIPetrol · 110 kW · 1.5L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.0 TSiPetrol · 63 kW · 1.0L · 3-cylFront-Wheel Drive2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.4 TSIPetrol · 103 kW · 1.4L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2020SeatLeon ST (5F8)2.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.8 TSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.4 TSIPetrol · 103 kW · 1.4L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.2 TSIPetrol · 77 kW · 1.2L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.2 TSIPetrol · 63 kW · 1.2L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.4 TSIPetrol · 90 kW · 1.4L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2020SeatLeon ST (5F8)1.6 TDIDiesel · 66 kW · 1.6L · 4-cylFront-Wheel Drive2, 57, 67, 88
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.4 TSIPetrol · 103 kW · 1.4L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.2 TSIPetrol · 63 kW · 1.2L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2021SkodaOctavia III (5E3, NL3, NR3)1.2 TSIPetrol · 77 kW · 1.2L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.2 TSIPetrol · 63 kW · 1.2L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.2 TSIPetrol · 77 kW · 1.2L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.4 TSIPetrol · 103 kW · 1.4L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SkodaOctavia III Combi (5E5, 5E6)1.8 TSIPetrol · 132 kW · 1.8L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.2 TSIPetrol · 63 kW · 1.2L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.2 TSIPetrol · 77 kW · 1.2L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2013–2022VWGolf VII Estate (AUV, BA5, BV5)1.4 TSIPetrol · 90 kW · 1.4L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2021SkodaOctavia III (5E3, NL3, NR3)2.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88
2012–2020SkodaOctavia III Combi (5E5, 5E6)2.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with DCC2, 57, 67, 88

Media

Media

Disclaimer

Disclaimer

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
