KW Coilover Kit V3 for BMW (F15) X5 xDrive50i / (F16) X6 xDrive50i - w/ Rear Air Suspension

352200AL
KW Suspension

Stock: Backorder Available

AU$5,449.00 Inc GST

Description

Description

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW X5 xDrive50i (F15) / X6 xDrive50i (F16).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 25–55 mm
  • Rear lowering: 15–45 mm
  • Front axle load: up to 1,420 kg
  • Rear axle load: up to 1,755 kg

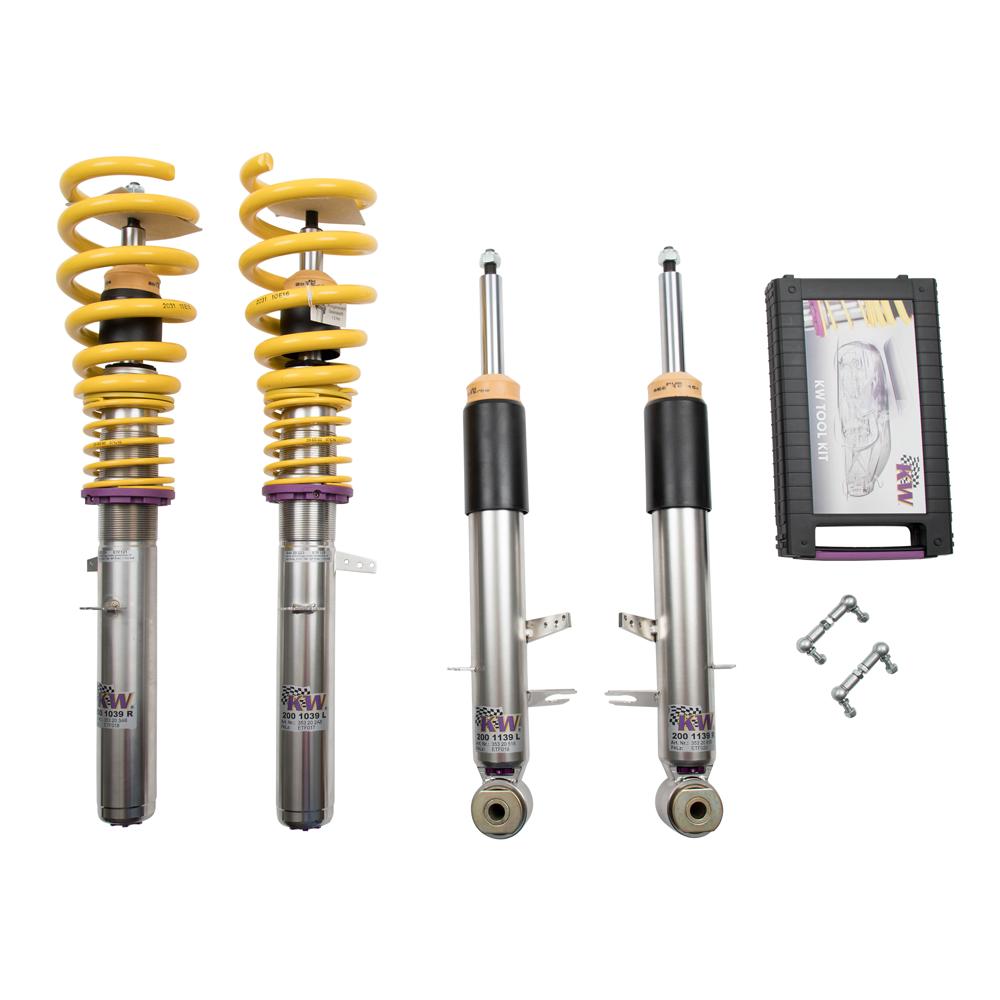

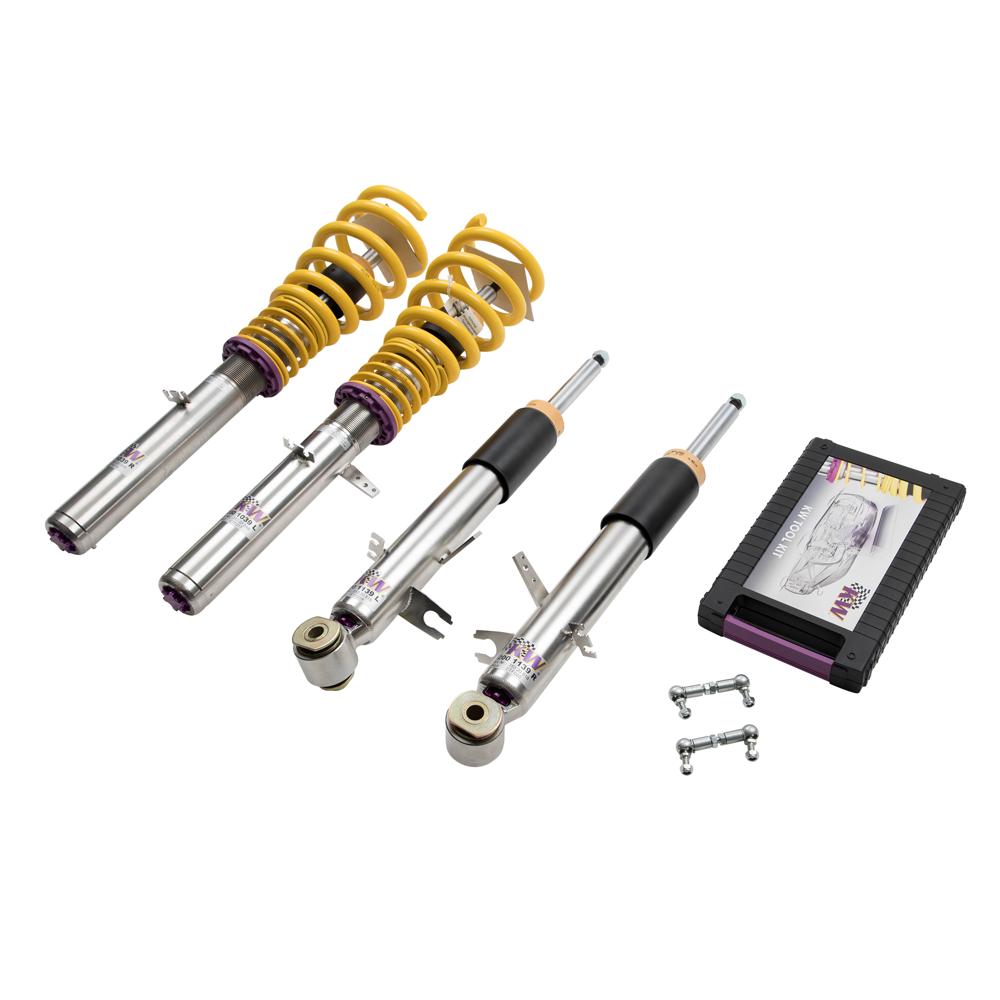

  • Supplied as: Front axle coilover struts, rear axle dampers
Note For cars with air springs at the rear axle (level control).

Fitment

Fitment

Front axle load up to 1,420 kg; Rear axle load up to 1,755 kg.

For vehicles without electronic damper control.

For cars with air springs at the rear axle (level control).

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 35 iPetrol · 225 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 25 dDiesel · 160 kW · 2.0L · 4-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 40 dDiesel · 230 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 50 iPetrol · 300 kW · 4.0L · 8-cylAll-Wheel Drive37, 42, 67
2014–2019BMWX6 (F16, F86) M7X, X6xDrive 30 dDiesel · 190 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2014–2019BMWX6 (F16, F86) M7X, X6xDrive 50 iPetrol · 330 kW · 4.4L · 8-cylAll-Wheel Drive37, 42, 67
2014–2019BMWX6 (F16, F86) M7X, X6xDrive 30 dDiesel · 155 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 35 iPetrol · 240 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2014–2019BMWX6 (F16, F86) M7X, X6xDrive 35 iPetrol · 225 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2014–2019BMWX6 (F16, F86) M7X, X6xDrive 40 dDiesel · 230 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 30 dDiesel · 204 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2014–2019BMWX6 (F16, F86) M7X, X6xDrive 30 dDiesel · 204 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2014–2019BMWX6 (F16, F86) M7X, X6xDrive 35 iPetrol · 240 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 25 dDiesel · 170 kW · 2.0L · 4-cylAll-Wheel Drive37, 42, 67
2014–2019BMWX6 (F16, F86) M7X, X6xDrive 50 iPetrol · 300 kW · 4.0L · 8-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 25 dDiesel · 155 kW · 2.0L · 4-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 28 iPetrol · 180 kW · 2.0L · 4-cylAll-Wheel Drive37, 42, 67
2014–2019BMWX6 (F16, F86) M7X, X6xDrive 28 iPetrol · 180 kW · 2.0L · 4-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 25 dDiesel · 160 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 30 dDiesel · 183 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2014–2019BMWX6 (F16, F86) M7X, X6xDrive 30 dDiesel · 183 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 30 dDiesel · 210 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67
2013–2018BMWX5 (F15, F85) M7X, X-N1, X5xDrive 30 dDiesel · 190 kW · 3.0L · 6-cylAll-Wheel Drive37, 42, 67

Media

Media

Disclaimer

Disclaimer

  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 42: For the rear axle sport shock absorbers will be supplied, the factory air spring will maintain. The lowering of the vehicle needs to be done according to the instructions.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
