KW Coilover Kit V3 for Toyota (ZN8) GR86 / (ZN6) GT86 / Subaru (ZC6) BRZ / (ZD8) BRZ

35258004

Stock: Backorder Available

RRP AU$4,729.00

AU$4,492.55 Inc GST

Save: AU$236.45 - 5% OFF

Description

Description

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Toyota GR86 (ZN8) / GT86 (ZN6) / Subaru BRZ (ZC6) / BRZ (ZD8).

Key Features

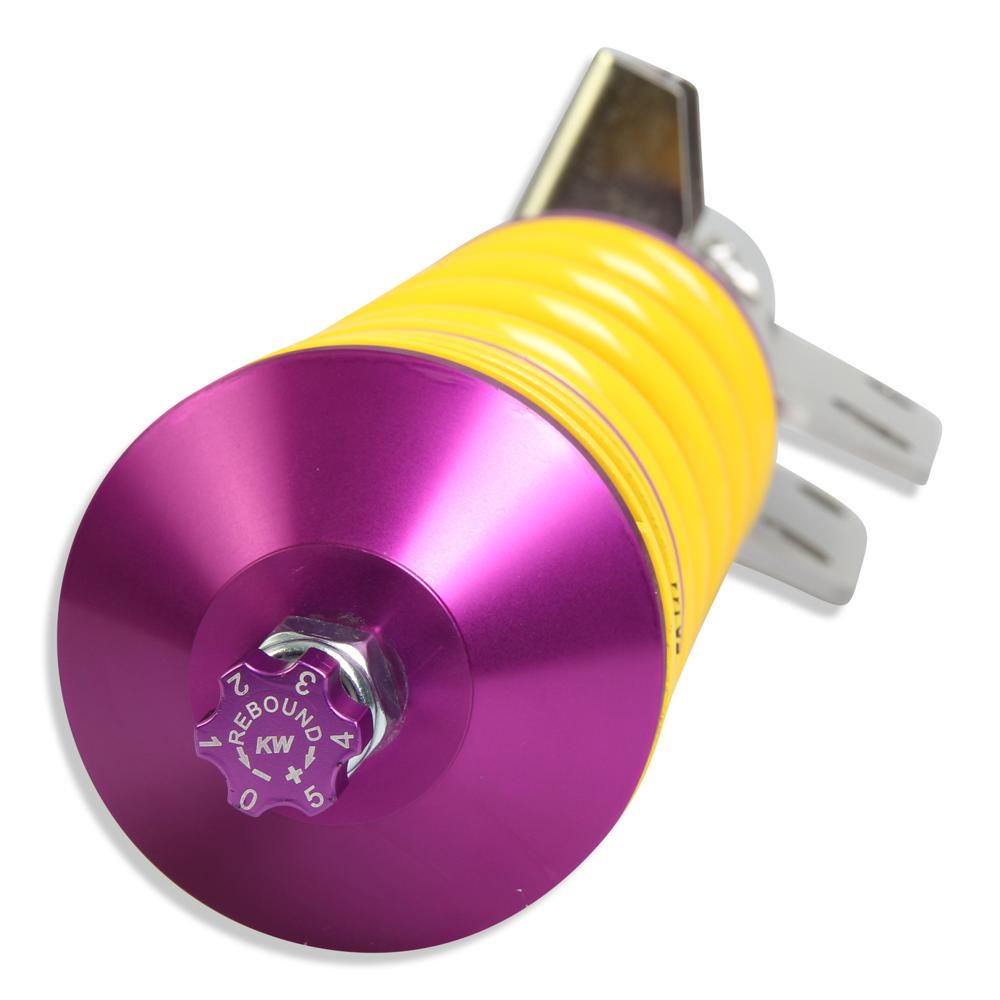

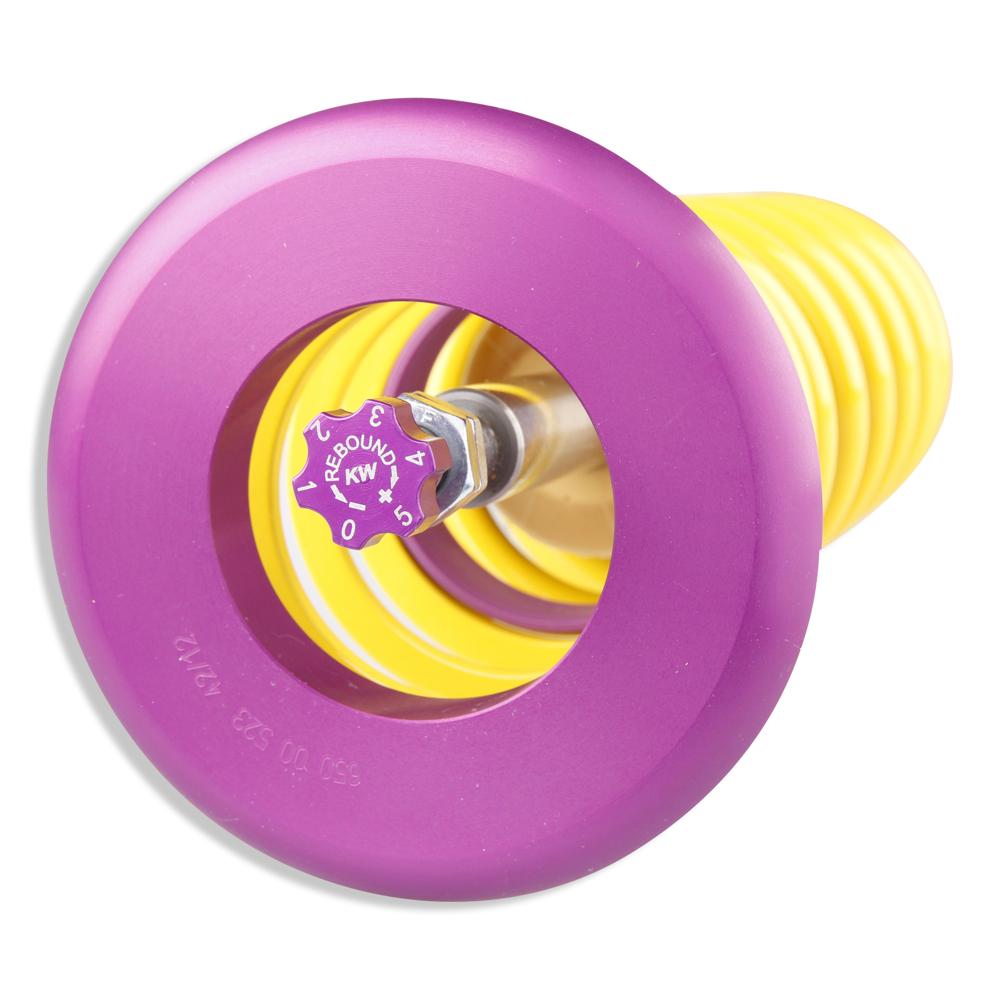

  • Rebound damping adjustable in 16 clicks

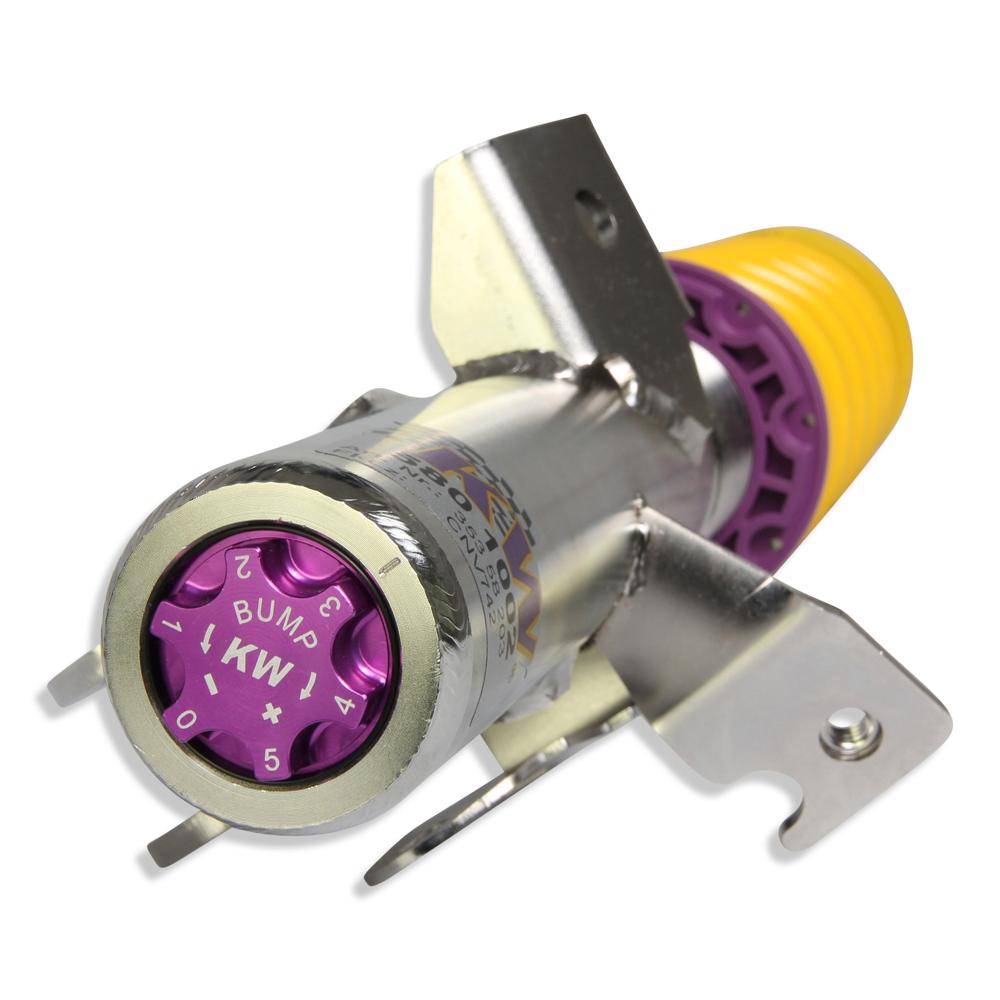

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 20–50 mm
  • Rear lowering: 25–55 mm
  • Front axle load: up to 876 kg
  • Rear axle load: up to 943 kg

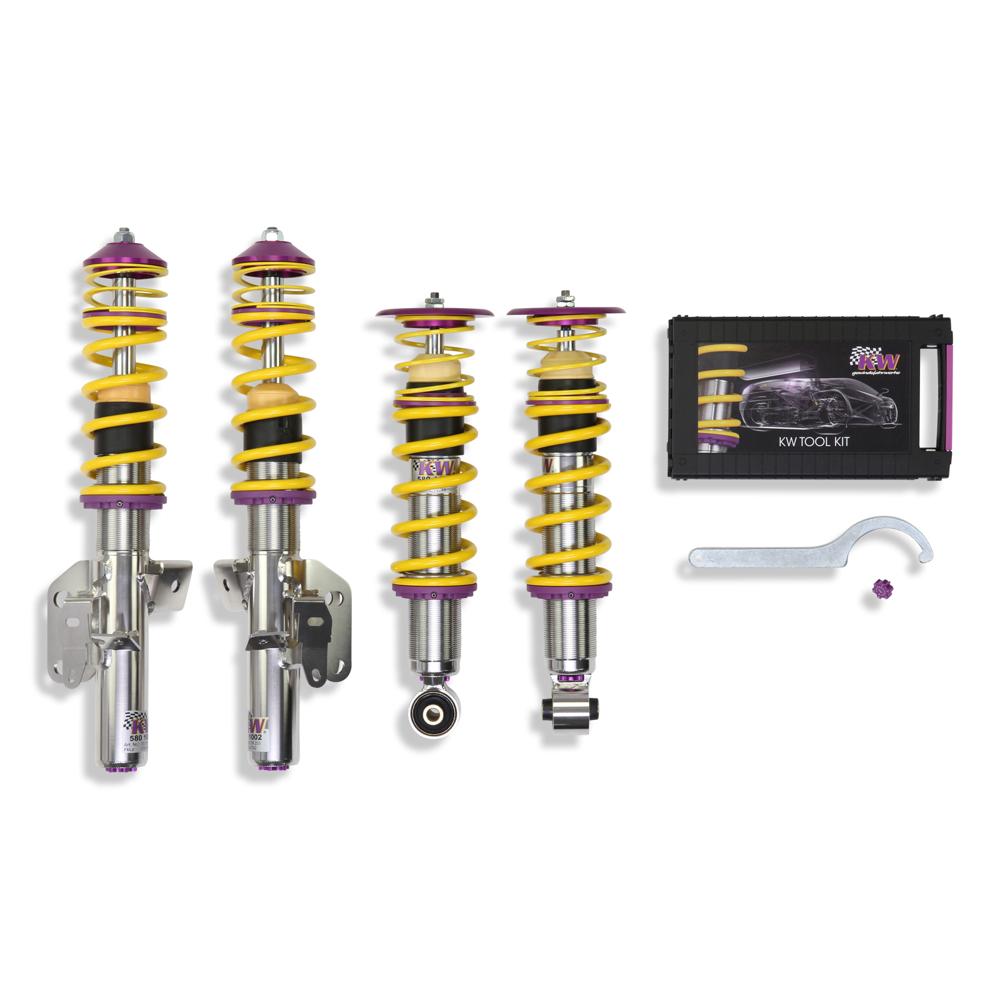

  • Supplied as: Front axle + rear axle coilover struts

Fitment

Fitment

Front axle load up to 876 kg; Rear axle load up to 943 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2012+SubaruBRZ (ZC)2Petrol · 153 kW · 2.0L · 4-cylRear-Wheel Drive1, 67
2012+ToyotaGT 86 Coupe (ZN6_, GC/GF)2.0 (ZN6EY_, ZN6K)Petrol · 152 kW · 2.0L · 4-cylRear-Wheel Drive1, 67
2012+SubaruBRZ (ZC)2Petrol · 152 kW · 2.0L · 4-cylRear-Wheel Drive1, 67
2012+ToyotaGT 86 Coupe (ZN6_, GC/GF)2.0 (ZN6)Petrol · 149 kW · 2.0L · 4-cylRear-Wheel Drive1, 67
2021+SubaruBRZ (Z2)2.4Petrol · 172 kW · 2.4L · 4-cylRear-Wheel Drive1, 67
2021+ToyotaGR 86 Coupe (ZN8)2.4 (ZN8BKE8)Petrol · 172 kW · 2.4L · 4-cylRear-Wheel Drive1, 67
2012+ToyotaGT 86 Coupe (ZN6_, GC/GF)2.0 (ZN6AC_, ZN6BC_, ZN6K)Petrol · 147 kW · 2.0L · 4-cylRear-Wheel Drive1, 67
2011+ScionFR-S Coupe2.0 SPetrol · 149 kW · 2.0L · 4-cylRear-Wheel Drive1, 67
2012+SubaruBRZ (ZC)2.0 (ZC6)Petrol · 147 kW · 2.0L · 4-cylRear-Wheel Drive1, 67

Media

Disclaimer

Disclaimer

  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
