KW Coilover Kit V3 for Audi (8P) A3 3.2L / A3 / A3 Convertible w/ Deactivation for Electronic Dampers

35210105
KW Suspension

Stock: Backorder Available

AU$5,329.01 Inc GST

Description

Description

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi A3 3.2 quattro / A3 quattro / A3 Convertible (8P).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 25–55 mm
  • Rear lowering: 25–55 mm
  • Front axle load: 1,106–1,170 kg
  • Rear axle load: up to 1,160 kg
  • Front strut diameter (vehicle): 55 mm

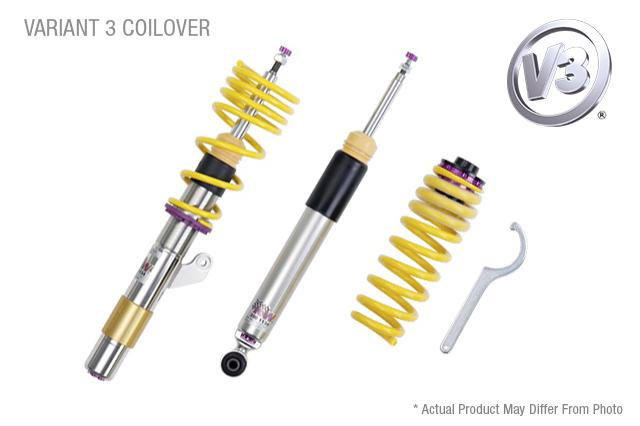

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers including cancellation kit for electronic damper control
Note For cars with electronic damping.

Fitment

Fitment

Front axle load 1,106–1,170 kg; Rear axle load up to 1,160 kg.

For vehicles with electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2003–2013AudiA3 (8P) 8P12.0 TDI 16V quattroDiesel · 103 kW · 2.0L · 4-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2003–2013AudiA3 (8P) 8P12.0 TDI quattroDiesel · 100 kW · 2.0L · 4-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2003–2013AudiA3 (8P) 8P12.0 TDI quattroDiesel · 103 kW · 2.0L · 4-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2003–2013AudiA3 (8P) 8P12.0 TDI quattroDiesel · 125 kW · 2.0L · 4-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2003–2013AudiA3 (8P) 8P12.0 TFSI quattroPetrol · 147 kW · 2.0L · 4-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2003–2013AudiA3 (8P) 8P13.2 V6 quattroPetrol · 184 kW · 3.2L · 6-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2008–2013AudiA3 Convertible (8P) 8P72.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2008–2013AudiA3 Convertible (8P) 8P72.0 TDIDiesel · 103 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2008–2013AudiA3 Convertible (8P) 8P72.0 TFSIPetrol · 147 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA1.8 TFSI quattroPetrol · 118 kW · 1.8L · 4-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA2.0 TDI 16V quattroDiesel · 103 kW · 2.0L · 4-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA2.0 TDI quattroDiesel · 103 kW · 2.0L · 4-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA2.0 TDI quattroDiesel · 125 kW · 2.0L · 4-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA2.0 TFSI quattroPetrol · 147 kW · 2.0L · 4-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA3.2 V6 quattroPetrol · 184 kW · 3.2L · 6-cylAll-Wheel DriveFor cars with electronic damping2, 57, 67, 88

Media

Media

Disclaimer

Disclaimer

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
