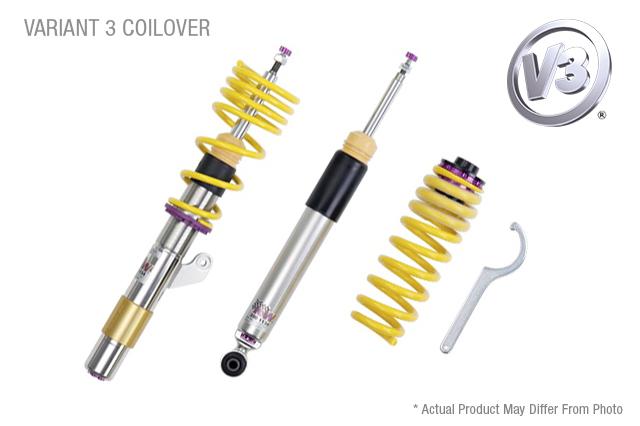

KW Coilover Kit V3 for Audi (B9) A5 Convertible 3.0L TDI - 48.5mm Front Strut

352100CB
KW Suspension

Stock: Backorder Available

AU$5,119.00 Inc GST

Description

Description

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi A5 Convertible 3.0 TDI (B9) quattro.

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 40–65 mm
  • Rear lowering: 40–65 mm
  • Front axle load: 1,201–1,260 kg
  • Rear axle load: up to 1,250 kg
  • Front strut diameter (vehicle): 48.5 mm
  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Fitment

Fitment

Front axle load 1,201–1,260 kg; Rear axle load up to 1,250 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2016+AudiA5 Convertible (B9) F573.0 TDI quattroDiesel · 160 kW · 3.0L · 6-cylAll-Wheel Drive2, 37, 67, 409
2016+AudiA5 Convertible (B9) F573.0 TDI quattroDiesel · 210 kW · 3.0L · 6-cylAll-Wheel Drive2, 37, 67, 409
2016+AudiA5 Convertible (B9) F5750 TDI quattroDiesel · 210 kW · 3.0L · 6-cylAll-Wheel Drive2, 37, 67, 409

Media

Media

Disclaimer

Disclaimer

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 409: Only for cars with damper diameter 48,5mm (not 50mm) on the front axle.
