KW Coilover Kit V3 for Abarth (348) 124 Spider / Mazda (ND) MX-5 / MX-5 RF

35275015
KW Suspension

Stock: Backorder Available

AU$5,189.00 Inc GST

Description

Description

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Abarth 124 Spider (348) / Mazda MX-5 / MX-5 RF (ND).

Key Features

  • Rebound damping adjustable in 16 clicks

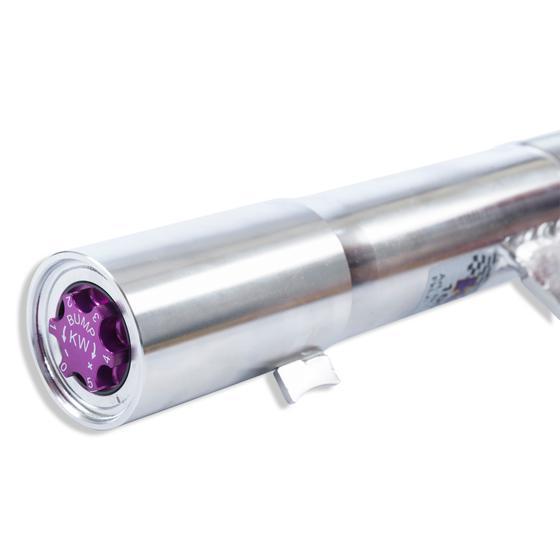

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Aluminium
  • Front lowering: 20–45 mm
  • Rear lowering: 20–45 mm
  • Front axle load: up to 695 kg
  • Rear axle load: up to 665 kg

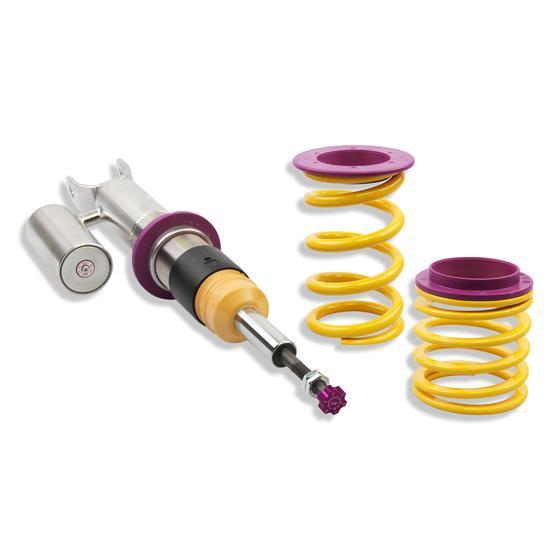

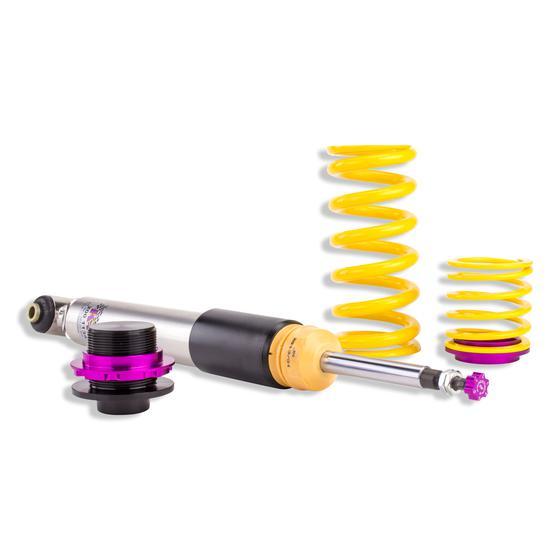

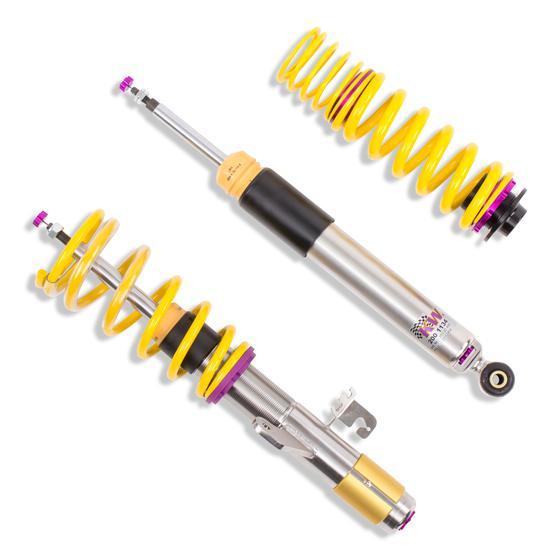

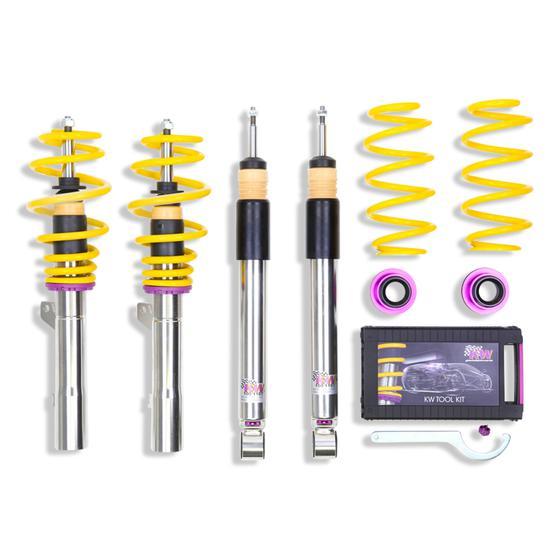

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Fitment

Fitment

Front axle load up to 695 kg; Rear axle load up to 665 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2015+MazdaMX-5 IV (ND__)1.5 (ND2E, ND5R)Petrol · 96 kW · 1.5L · 4-cylRear-Wheel Drive2, 67, 90
2015+MazdaMX-5 IV (ND__)2.0 (ND2E, ND6E)Petrol · 118 kW · 2.0L · 4-cylRear-Wheel Drive2, 67, 90
2015+MazdaMX-5 IV (ND__)2.0Petrol · 114 kW · 2.0L · 4-cylRear-Wheel Drive2, 67, 90
2016+Fiat124 Spider (348_)1.4 (348)Petrol · 119 kW · 1.4L · 4-cylRear-Wheel Drive2, 67, 90
2016+Fiat124 Spider (348_)1.4 (348)Petrol · 103 kW · 1.4L · 4-cylRear-Wheel Drive2, 67, 90
2016+Abarth124 Spider (348_) NF, NFM1.4 (348)Petrol · 125 kW · 1.4L · 4-cylRear-Wheel Drive2, 67, 90
2016+Fiat124 Spider (348_)1.4 (348)Petrol · 122 kW · 1.4L · 4-cylRear-Wheel Drive2, 67, 90
2016+MazdaMX-5 RF Targa (ND)2.0 (ND2E)Petrol · 118 kW · 2.0L · 4-cylRear-Wheel Drive2, 67, 90
2016+MazdaMX-5 RF Targa (ND)1.5Petrol · 96 kW · 1.5L · 4-cylRear-Wheel Drive2, 67, 90
2016+MazdaMX-5 RF Targa (ND)2.0 (ND2E, NDERC)Petrol · 116 kW · 2.0L · 4-cylRear-Wheel Drive2, 67, 90
2015+MazdaMX-5 IV (ND__)1.5 (ND6E, ND5RC)Petrol · 97 kW · 1.5L · 4-cylRear-Wheel Drive2, 67, 90
2015+MazdaMX-5 IV (ND__)2.0 (ND6E, NDERC)Petrol · 135 kW · 2.0L · 4-cylRear-Wheel Drive2, 67, 90
2016+MazdaMX-5 RF Targa (ND)1.5 (ND6E)Petrol · 97 kW · 1.5L · 4-cylRear-Wheel Drive2, 67, 90
2016+MazdaMX-5 RF Targa (ND)2.0 (ND6E)Petrol · 135 kW · 2.0L · 4-cylRear-Wheel Drive2, 67, 90

Media

Media

Disclaimer

Disclaimer

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).

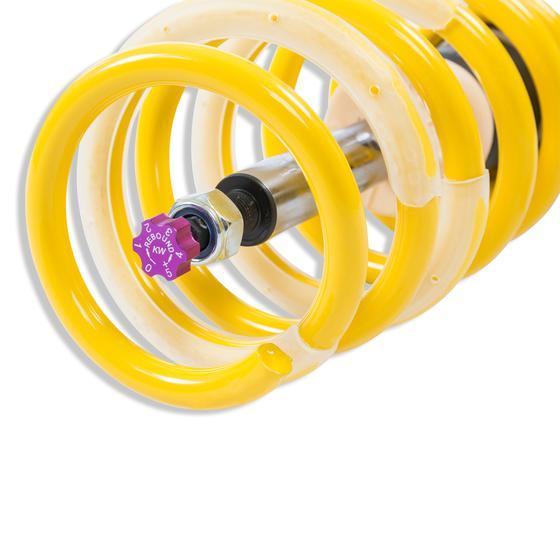

  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 90: Aluminium suspensions struts.
