KW Coilover Kit V3 for Kia (JD) Pro Ceed GT / Ceed GT / Hyundai (GD) i30

35268002
KW Suspension

Stock: Backorder Available

AU$4,489.00 Inc GST

Description

Description

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Kia Pro Ceed GT / Ceed GT (JD) / Hyundai i30 (GD).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 30–50 mm
  • Rear lowering: 20–45 mm
  • Front axle load: up to 1,050 kg
  • Rear axle load: up to 1,050 kg

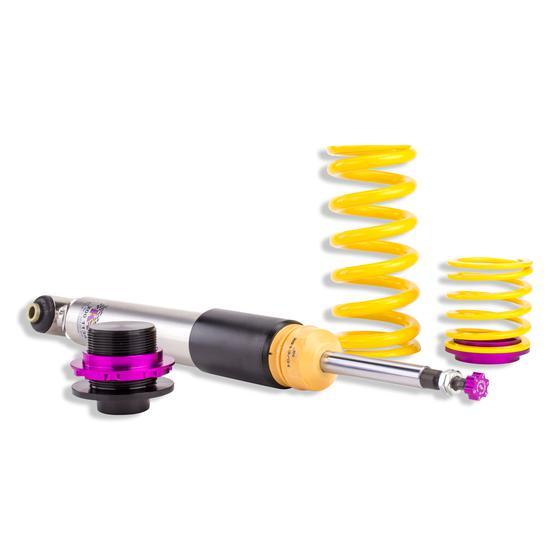

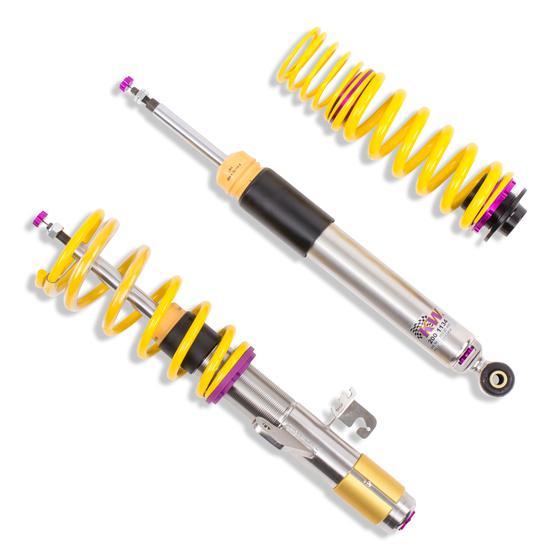

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Fitment

Fitment

Front axle load up to 1,050 kg; Rear axle load up to 1,050 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2011+Hyundaii30 (GD)1.4Petrol · 73 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.4Petrol · 74 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.4 CRDiDiesel · 66 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.6Petrol · 88 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.6Petrol · 95 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.6Petrol · 96 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.6 CRDiDiesel · 81 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.6 CRDiDiesel · 94 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.6 CRDiDiesel · 100 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.6 GDIPetrol · 99 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.6 T-GDIPetrol · 137 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.8Petrol · 107 kW · 1.8L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.8Petrol · 108 kW · 1.8L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)1.8Petrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)2.0Petrol · 124 kW · 2.0L · 4-cylFront-Wheel Drive2, 67
2011+Hyundaii30 (GD)2.0Petrol · 129 kW · 2.0L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.0 T-GDIPetrol · 74 kW · 1.0L · 3-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.0 T-GDIPetrol · 88 kW · 1.0L · 3-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.4 CRDi 90Diesel · 66 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.4 CVVTPetrol · 66 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.4 CVVTPetrol · 73 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.4 MPIPetrol · 74 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.6 CRDi 110Diesel · 81 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.6 CRDi 128Diesel · 94 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.6 CRDi 136Diesel · 100 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.6 CRDi 90Diesel · 66 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.6 CVVTPetrol · 95 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.6 CVVTPetrol · 96 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.6 GDIPetrol · 99 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2012–2018KiaCee'd (JD)1.6 GTPetrol · 150 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.0 T-GDIPetrol · 74 kW · 1.0L · 3-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.0 T-GDIPetrol · 88 kW · 1.0L · 3-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.4 CRDi 90Diesel · 66 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.4 CVVTPetrol · 73 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.4 CVVTPetrol · 74 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.4 MPIPetrol · 73 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.4 MPIPetrol · 74 kW · 1.4L · 4-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.6 CRDi 110Diesel · 81 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.6 CRDi 128Diesel · 94 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.6 CRDi 136Diesel · 100 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.6 CVVTPetrol · 95 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.6 GDIPetrol · 99 kW · 1.6L · 4-cylFront-Wheel Drive2, 67
2013–2018KiaPro Cee'd (JD)1.6 GTPetrol · 150 kW · 1.6L · 4-cylFront-Wheel Drive2, 67

Media

Media

Disclaimer

Disclaimer

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).

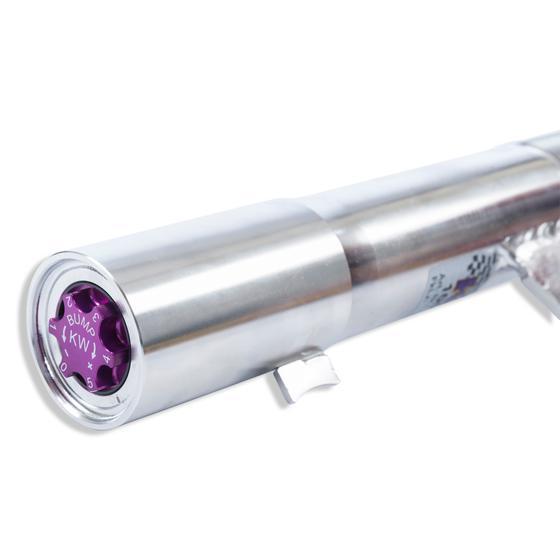

  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
