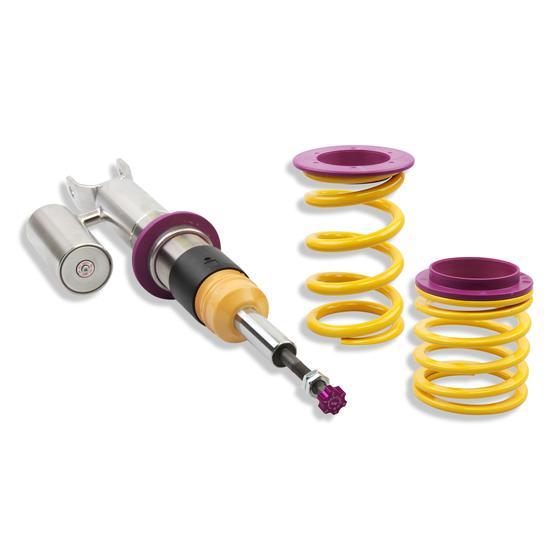

KW Coilover Kit V3 for Audi (8P) A3 w/ Deactivation for Electronic Dampers

35210100

Stock: Backorder Available

RRP AU$4,939.00

AU$4,692.05 Inc GST

Save: AU$246.95 - 5% OFF

Description

Description

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi A3 (8P).

Key Features

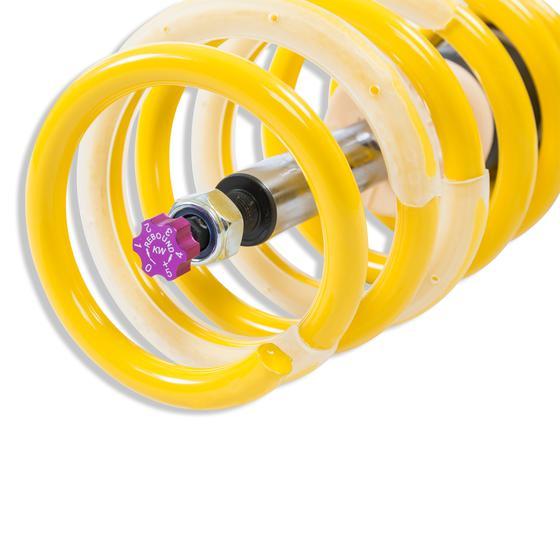

  • Rebound damping adjustable in 16 clicks

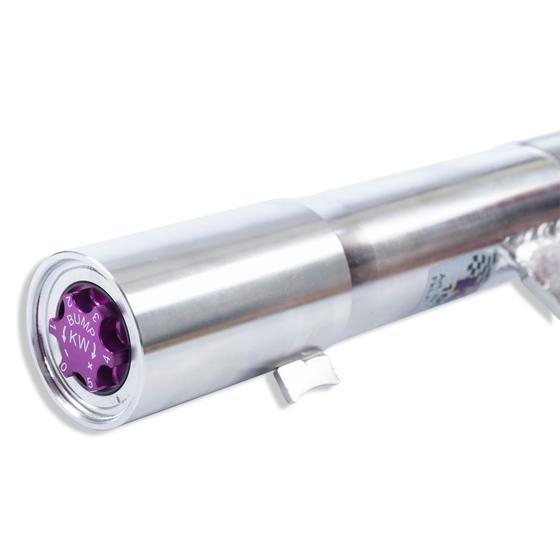

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 35–65 mm
  • Rear lowering: 35–65 mm
  • Front axle load: up to 1,035 kg
  • Rear axle load: up to 1,005 kg
  • Front strut diameter (vehicle): 50 mm

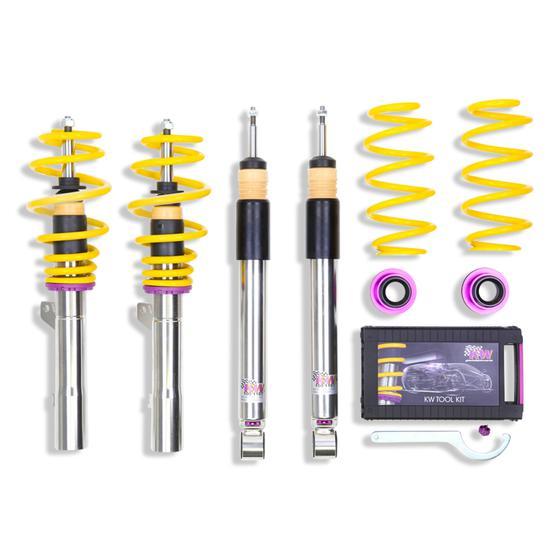

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers including cancellation kit for electronic damper control
Note For cars with electronic damping.

Fitment

Fitment

Front axle load up to 1,035 kg; Rear axle load up to 1,005 kg.

For vehicles with electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2004–2015AudiA3 Sportback (8P) 8PA2.0 TDIDiesel · 104 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2003–2013AudiA3 (8P) 8P12.0 FSIPetrol · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2003–2013AudiA3 (8P) 8P11.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2003–2013AudiA3 (8P) 8P11.9 TDIDiesel · 77 kW · 1.9L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2003–2013AudiA3 (8P) 8P11.6 FSIPetrol · 85 kW · 1.6L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA1.9 TDIDiesel · 77 kW · 1.9L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA1.6 FSIPetrol · 85 kW · 1.6L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA2.0 FSIPetrol · 110 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA2.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2003–2013AudiA3 (8P) 8P11.8 TFSIPetrol · 118 kW · 1.8L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA1.8 TFSIPetrol · 118 kW · 1.8L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2003–2013AudiA3 (8P) 8P11.4 TFSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA1.4 TFSIPetrol · 92 kW · 1.4L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2003–2013AudiA3 (8P) 8P11.6 TDIDiesel · 66 kW · 1.6L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2003–2013AudiA3 (8P) 8P11.6 TDIDiesel · 77 kW · 1.6L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA1.6 TDIDiesel · 66 kW · 1.6L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA1.6 TDIDiesel · 77 kW · 1.6L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2003–2013AudiA3 (8P) 8P11.2 TSIPetrol · 77 kW · 1.2L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88
2004–2015AudiA3 Sportback (8P) 8PA1.2 TSIPetrol · 77 kW · 1.2L · 4-cylFront-Wheel DriveFor cars with electronic damping2, 58, 67, 88

Media

Disclaimer

Disclaimer

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 58: Only for cars with a clamp diameter of 50mm on the front axle.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
