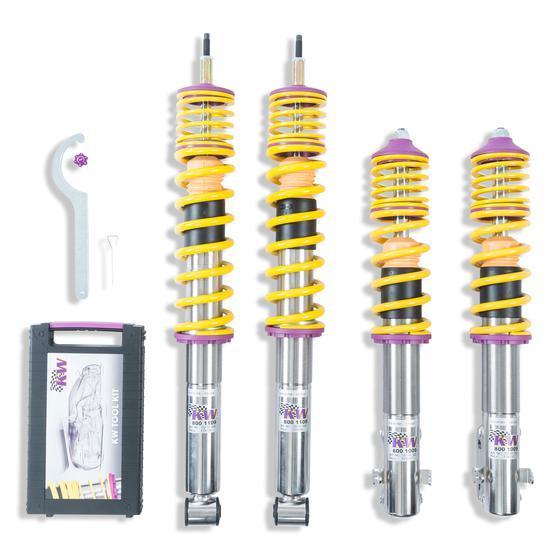

KW Coilover Kit V2 for VW (3H) Arteon R / Arteon R Shooting Brake w/ Deactivation for Electronic Dampers

152800DD
KW Suspension

Stock: Backorder Available

AU$3,849.00 Inc GST

Description

Description

KW's V2 adds adjustable rebound damping to KW's height-adjustable coilover platform. The twin-tube dampers offer 16 clicks of rebound adjustment, so the setup can be made firmer or more comfortable without changing the compression damping. As with all KW coilovers, the base setting is developed for each vehicle on KW's 7-post rig and in road testing, including the Nürburgring Nordschleife. This kit is developed for the VW Arteon R / Arteon R Shooting Brake (3H).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Vehicle-specific base damper setting
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V2
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 25–50 mm
  • Rear lowering: 25–50 mm
  • Front axle load: up to 1,200 kg
  • Rear axle load: up to 1,220 kg
  • Front strut diameter (vehicle): 55 mm

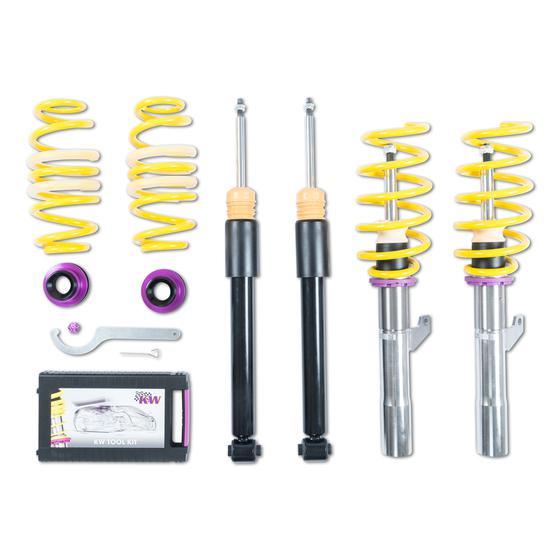

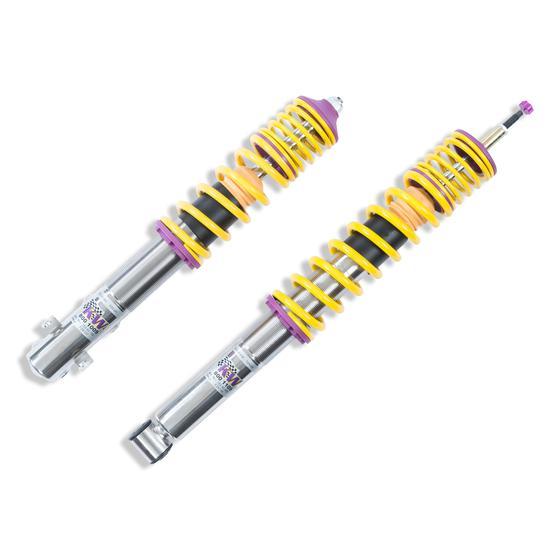

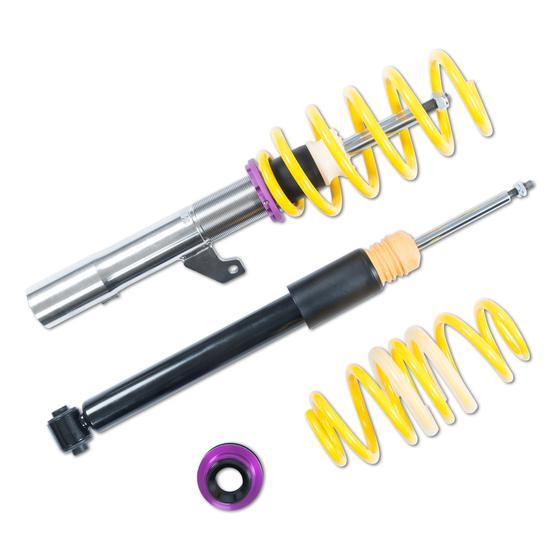

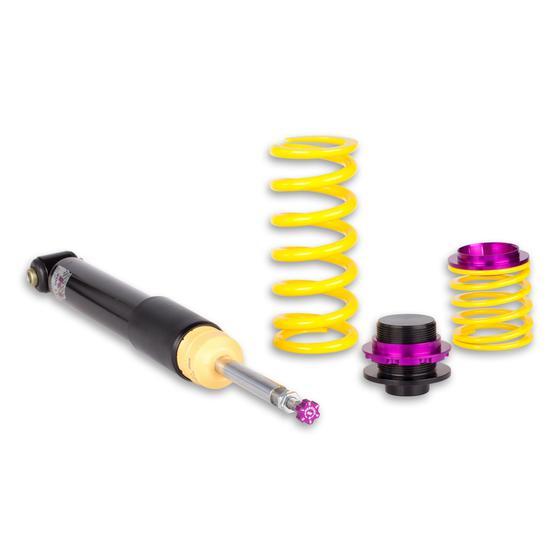

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers including cancellation kit for electronic damper control

Fitment

Fitment

Front axle load up to 1,200 kg; Rear axle load up to 1,220 kg.

For vehicles with electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2017+VWArteon (3H, 3H7)2.0 TSI 4motionPetrol · 206 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2017+VWArteon (3H, 3H7)2.0 TDI 4motionDiesel · 176 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2017+VWArteon (3H, 3H7)2.0 TDI 4motionDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2017+VWArteon (3H, 3H7)2.0 TSI 4motionPetrol · 200 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2020+VWArteon Shooting Brake (3H9)2.0 TDI 4motionDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2020+VWArteon Shooting Brake (3H9)2.0 TSi 4motionPetrol · 200 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2020+VWArteon Shooting Brake (3H9)2.0 TDI 4motionDiesel · 147 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2017+VWArteon (3H, 3H7)2.0 TDI 4motionDiesel · 147 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2020+VWArteon Shooting Brake (3H9)2.0 TSI 4motionPetrol · 206 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2017+VWArteon (3H, 3H7)2.0 TSI R 4motionPetrol · 235 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2020+VWArteon Shooting Brake (3H9)2.0 TSI RPetrol · 235 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2017+VWArteon (3H, 3H7)2.0 TSI 4motionPetrol · 224 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
2020+VWArteon Shooting Brake (3H9)2.0 TDI 4motionDiesel · 142 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88

Media

Media

Disclaimer

Disclaimer

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
