KW Coilover Kit V2 Comfort for 10/1997+ VW Golf Mk IV (1J1)

18010005

Stock: Backorder Available

AU$3,129.01 Inc GST

Description

Description

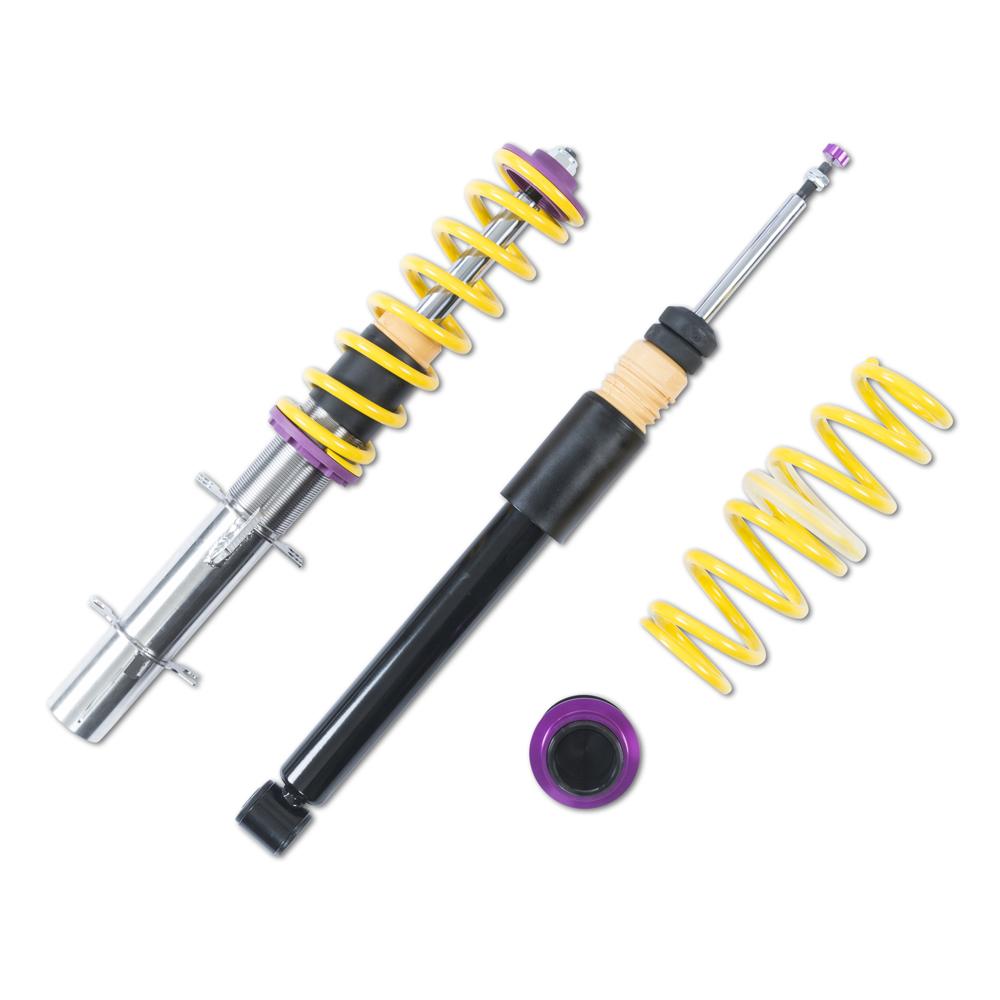

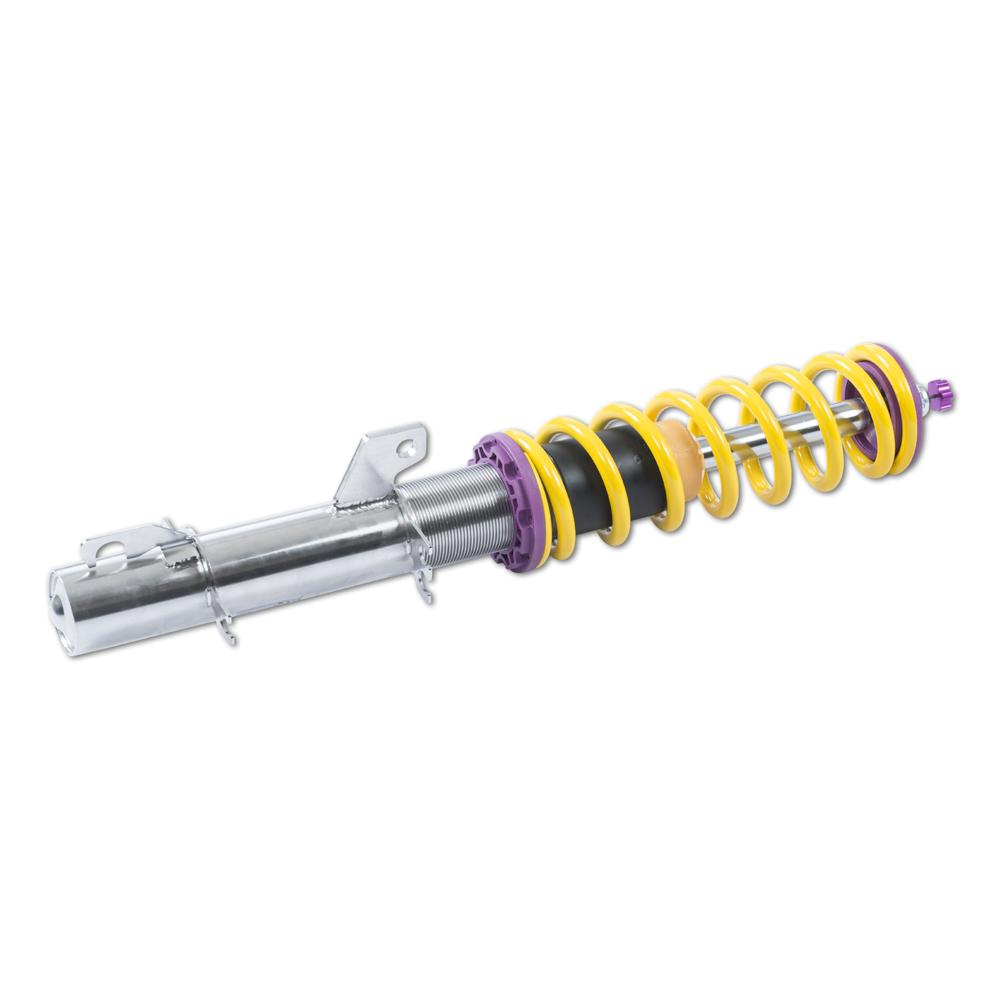

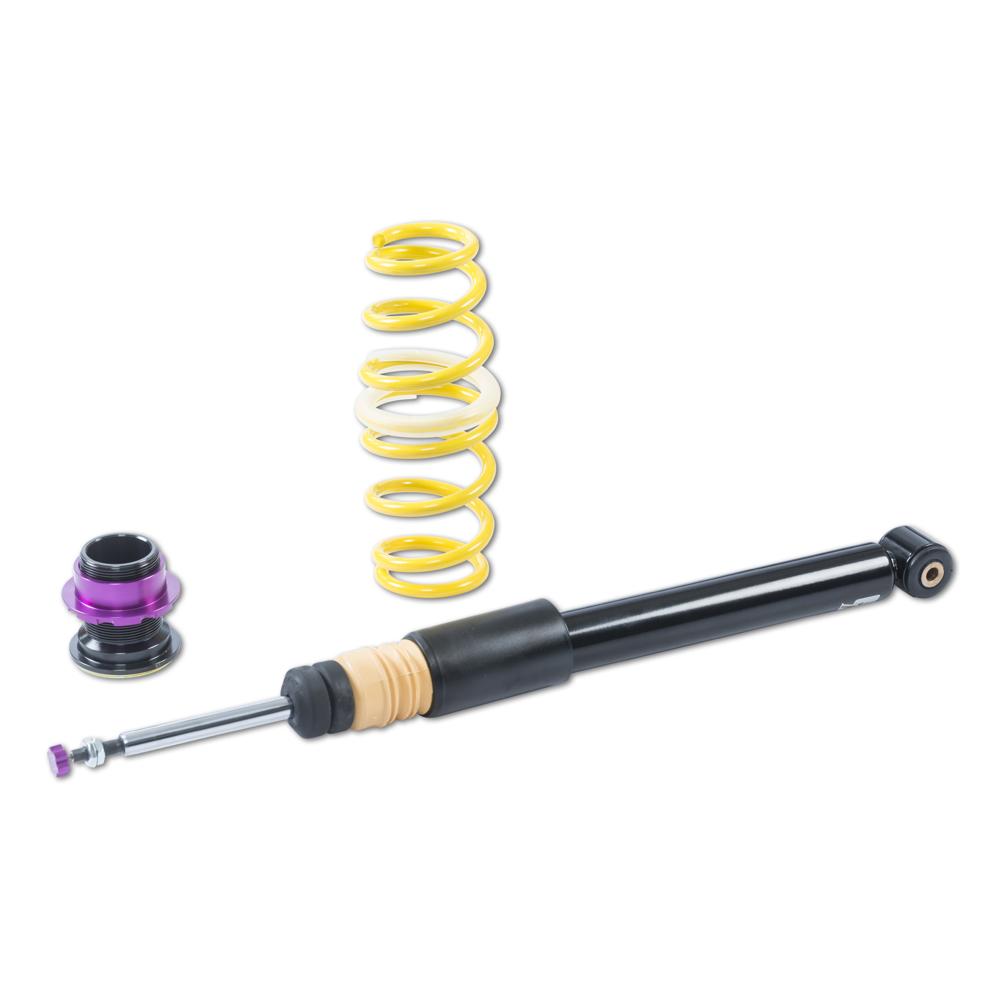

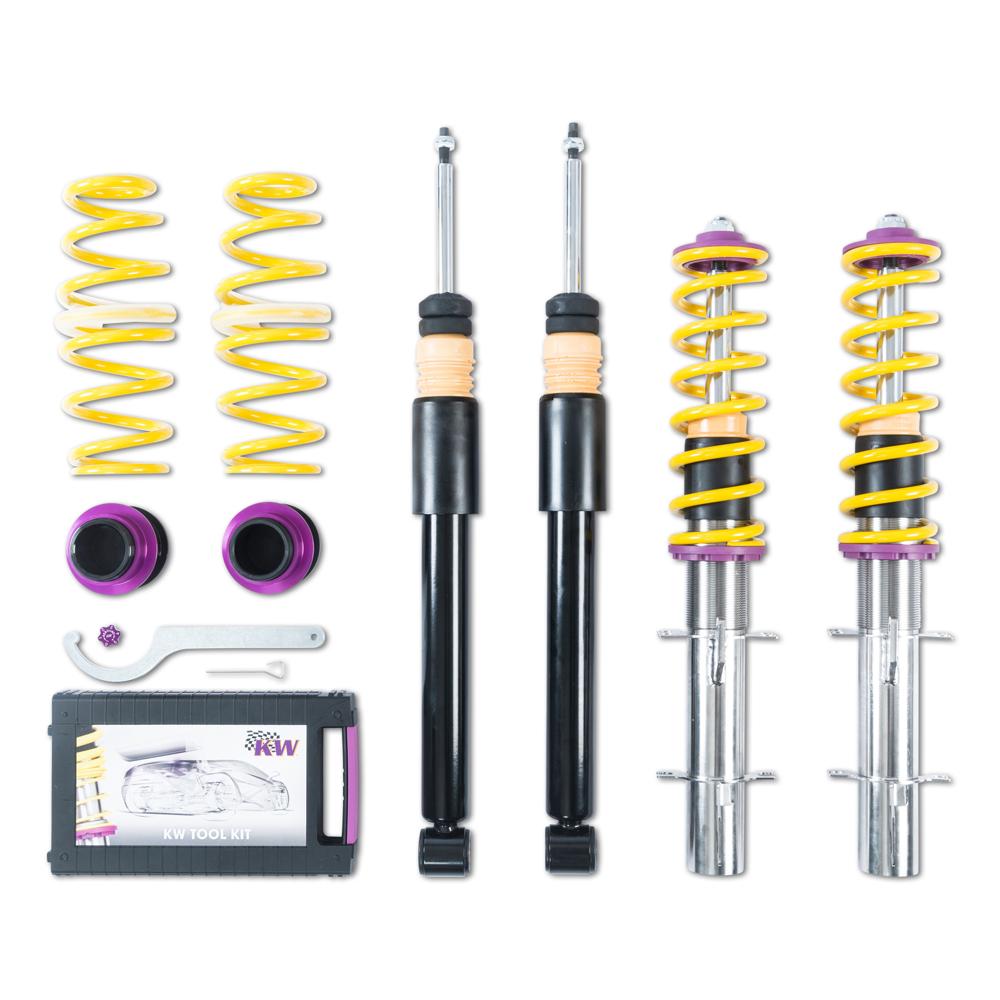

Coilover suspension V2 comfort

The KW V2 Comfort coilovers, for your comfort-oriented driving pleasure.

If your original suspension is too hard for your everyday life or even the comfort of your installed aftermarket suspension kit KW V2 Comfort sport suspension is the perfect solution for more driving comfort. It combines a minimal lowering within the vehicle-specific adjustment range of ten to 40 mm with a comfort-oriented damper setup developed from KW test engineers in numerous test runs in everyday life and on our KW 7-post rig.

Suspension too hard? KW Street Comfort is the answer
Whether on long trips on the motorway, or many miles on country roads, with KW V2 Comfort coilovers you can enjoy a comfortable setup. The shorter KW damper housings enable a comfortable setup despite the lowering. The KW V2 Comfort coilovers include comfort-oriented damping and spring characteristics which are perfectly adjusted to each other. Additionally the KW V2 Comfort coilovers allow you to individually adjust the rebound damping to suit your driving style and your sense of comfort.

Adjustable comfort - "no more hard times"

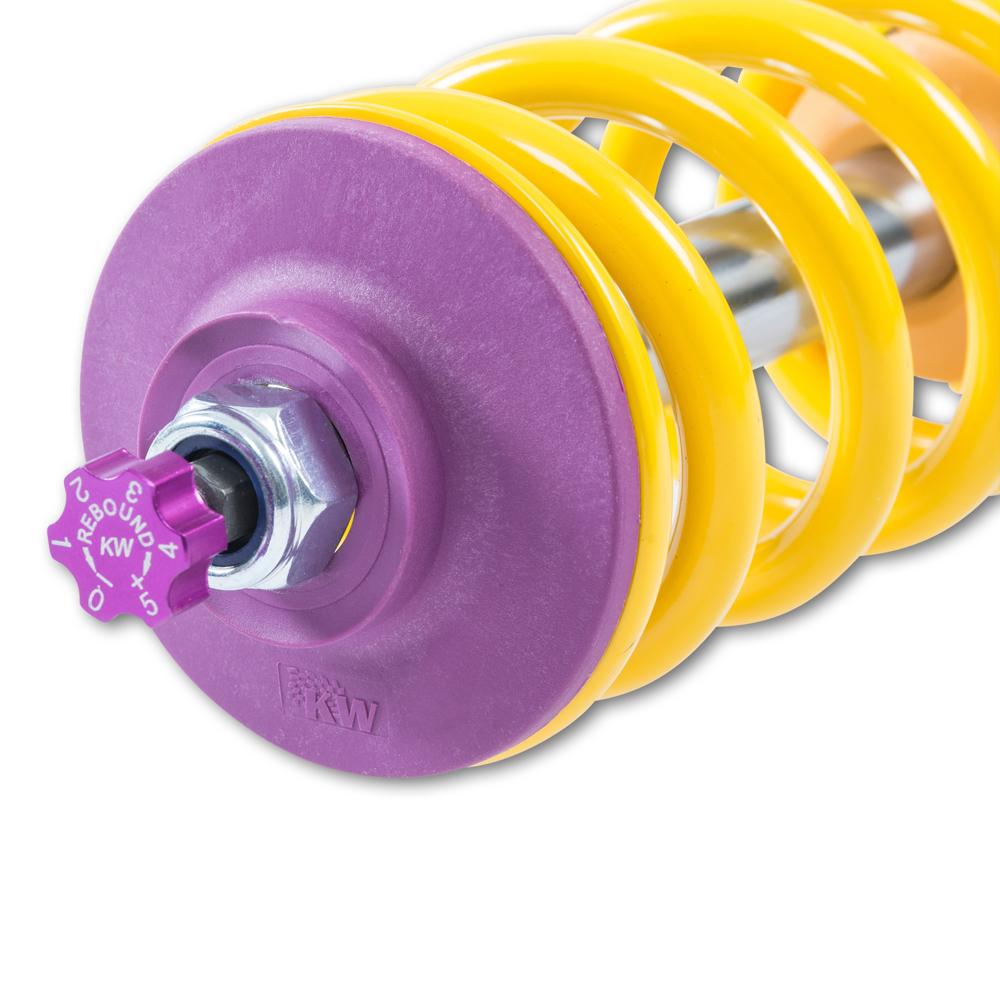

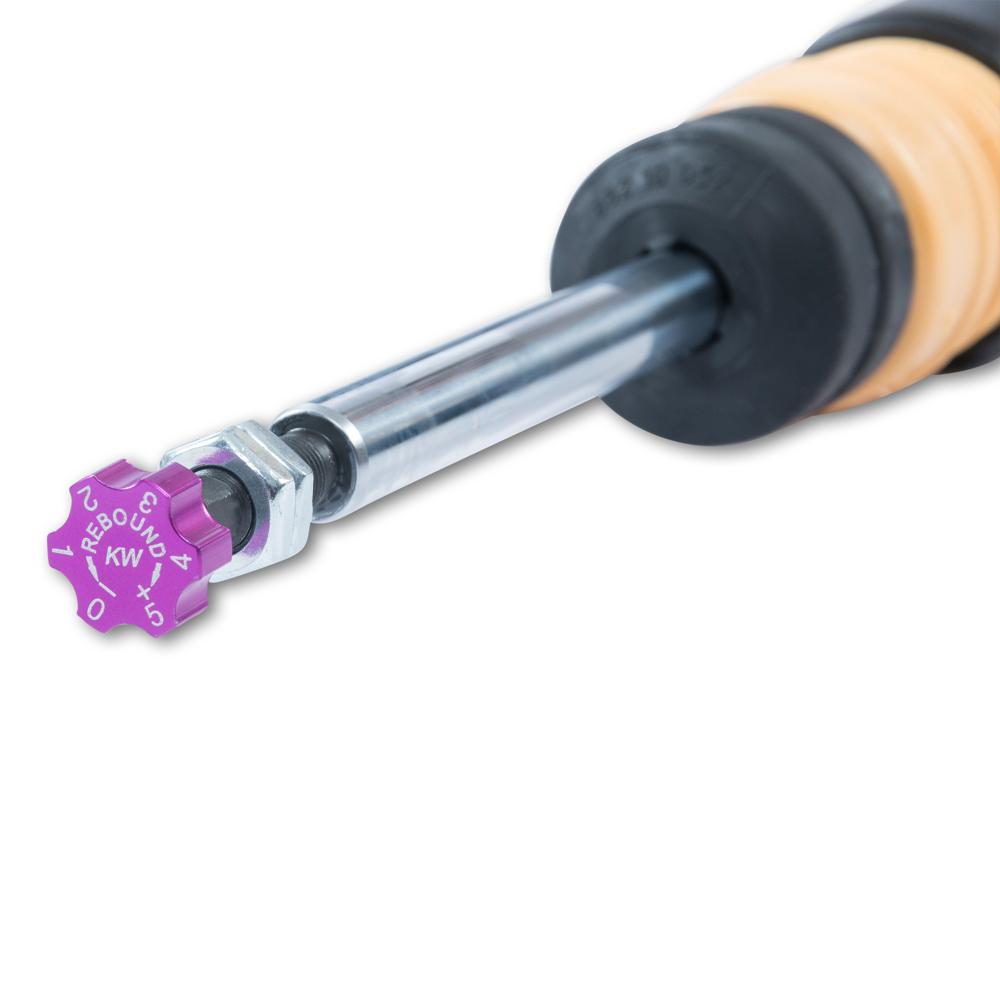

With KW V2 Comfort coilovers you can influence the handling and comfort by the individually adjustable rebound damping. With 16 precise clicks, you can adjust the KW dampers to a be more comfortable or a little firmer without affecting the compression damping. By increasing the rebound force with the adjustment wheel, the body movements are reduced. Your has more directional and cornering stability. If you change to bigger wheels than the wheel / tire combination which came from the car manufacturer, you can adapt the rebound damping to the driving behaviour of your car and your new alloy rims perfectly. Or you can reduce the rebound forces with a few clicks to gain even more comfort - just as you have always desired from a sport suspension.

Lowering of 10 to 40 mm

The KW V2 Comfort coilovers made in stainless steel technology "inox-line" enable a vehicle-specific lowering within the tested adjustment range of 10 to 40 mm. So you do not have to accept a fix lowering of a conventional spring kit any more. Due to the delicate processing and use of high quality components, the KW V2 Comfort coilover struts in stainless steel are 100 per cent corrosion-resistant and have an unlimited life.

The functioning of the lowering in connection with the dirt restistand trapezoid thread and the composite collar will not be affected even after many years of driving. With the individual lowering adjustment range, you can emphasize the sportiness of your vehicle visually.

- stainless steel technology "inox-line"
- minimum lowering
- tested adjustment range
- high quality components for a long life
- comfort-oriented damper setup
- adjustable rebound damping


Setup - Adjustable rebound damping with 16 clicks.
KW V2 Comfort coilovers are produced to focus solely on your driving pleasure. That´s why our test engineers are testing on numerous motorways and country roads for you. The KW V2 Comfort coilovers are suitable for all frequent travellers and families who want to combine the pleasure of minimal lowering and driving comfort.

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
AUDIA3 (8L) 8L1 09/1996-09/20061.6HatchbackPetrol7415954Front Wheel Drive2, 6, 86
AUDIA3 (8L) 8L1 09/1996-09/20061.6HatchbackPetrol7515954Front Wheel Drive2, 6, 86
AUDIA3 (8L) 8L1 09/1996-09/20061.8HatchbackPetrol9217814Front Wheel Drive2, 6, 86
AUDIA3 (8L) 8L1 09/1996-09/20061.8 THatchbackPetrol11017814Front Wheel Drive2, 6, 86
AUDIA3 (8L) 8L1 09/1996-09/20061.8 THatchbackPetrol13217814Front Wheel Drive2, 6, 86
AUDIA3 (8L) 8L1 09/1996-09/20061.9 TDIHatchbackDiesel6618964Front Wheel Drive2, 6, 86
AUDIA3 (8L) 8L1 09/1996-09/20061.9 TDIHatchbackDiesel7418964Front Wheel Drive2, 6, 86
AUDIA3 (8L) 8L1 09/1996-09/20061.9 TDIHatchbackDiesel8118964Front Wheel Drive2, 6, 86
AUDIA3 (8L) 8L1 09/1996-09/20061.9 TDIHatchbackDiesel9618964Front Wheel Drive2, 6, 86
AUDITT (8N) 8N3 10/1998-06/20061.8 TCoupePetrol11017814Front Wheel Drive2, 6, 14
AUDITT (8N) 8N3 10/1998-06/20061.8 TCoupePetrol12017814Front Wheel Drive2, 6, 14
AUDITT (8N) 8N3 10/1998-06/20061.8 TCoupePetrol13217814Front Wheel Drive2, 6, 14
AUDITT (8N) 8N3 10/1998-06/20061.8 TCoupePetrol13417814Front Wheel Drive2, 6, 14
AUDITT (8N) 8N3 10/1998-06/20061.8 TCoupePetrol14017814Front Wheel Drive2, 6, 14
AUDITT Roadster (8N) 8N9 10/1999-06/20061.8 TConvertiblePetrol11017814Front Wheel Drive2, 6, 14
AUDITT Roadster (8N) 8N9 10/1999-06/20061.8 TConvertiblePetrol12017814Front Wheel Drive2, 6, 14
AUDITT Roadster (8N) 8N9 10/1999-06/20061.8 TConvertiblePetrol13217814Front Wheel Drive2, 6, 14
AUDITT Roadster (8N) 8N9 10/1999-06/20061.8 TConvertiblePetrol13417814Front Wheel Drive2, 6, 14
AUDITT Roadster (8N) 8N9 10/1999-06/20061.8 TConvertiblePetrol14017814Front Wheel Drive2, 6, 14
SEATLEON (1M1) 11/1999-06/20061.4 16VHatchbackPetrol5513904Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.6HatchbackPetrol7415954Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.6HatchbackPetrol7515954Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.6 16 VHatchbackPetrol7715984Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.8 20VHatchbackPetrol9217814Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.8 20V THatchbackPetrol13217814Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.8 T Cupra RHatchbackPetrol15417814Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.8 T Cupra RHatchbackPetrol16517814Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.9 SDIHatchbackDiesel5018964Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.9 TDIHatchbackDiesel6618964Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.9 TDIHatchbackDiesel7418964Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.9 TDIHatchbackDiesel8118964Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.9 TDIHatchbackDiesel9618964Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20061.9 TDIHatchbackDiesel11018964Front Wheel Drive2, 6, 86
SEATLEON (1M1) 11/1999-06/20062.8HatchbackPetrol15027926Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.4 16VHatchbackPetrol5513904Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.6HatchbackPetrol7415954Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.6HatchbackPetrol7415984Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.6HatchbackPetrol7515954Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.6 16VHatchbackPetrol7715984Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.6 FSIHatchbackPetrol8115984Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.8HatchbackPetrol9217814Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.8HatchbackPetrol12717814Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.8 THatchbackPetrol11017814Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.8 T GTIHatchbackPetrol13217814Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.9 SDIHatchbackDiesel5018964Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel6618964Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel7418964Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel8118964Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel8518964Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel9618964Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20071.9 TDIHatchbackDiesel11018964Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20072.0HatchbackPetrol8519844Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20072.3 V5HatchbackPetrol11023245Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20072.3 V5HatchbackPetrol12523245Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20072.8 VR6HatchbackPetrol13027926Front Wheel Drive2, 6, 86
VWGOLF IV (1J_) 08/1997-12/20072.8 VR6HatchbackPetrol14727926Front Wheel Drive2, 6, 86
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.4HatchbackPetrol5513904Front Wheel Drive2, 6, 86
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.6HatchbackPetrol7415954Front Wheel Drive2, 6, 86
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.6HatchbackPetrol7515954Front Wheel Drive2, 6, 86
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.8 THatchbackPetrol11017814Front Wheel Drive2, 6, 86
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.8 THatchbackPetrol13217814Front Wheel Drive2, 6, 86
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.9 TDIHatchbackDiesel6618964Front Wheel Drive2, 6, 86
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.9 TDIHatchbackDiesel7418964Front Wheel Drive2, 6, 86
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20101.9 TDIHatchbackDiesel7718964Front Wheel Drive2, 6, 86
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20102.0HatchbackPetrol8519844Front Wheel Drive2, 6, 86
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20102.3 V5HatchbackPetrol12523245Front Wheel Drive2, 6, 86
VWNEW BEETLE (9C_, 1C1) 01/1998-11/20102.5HatchbackPetrol11024805Front Wheel Drive2, 6, 86
VWNEW BEETLE Convertible (1Y_) 09/2002-12/20111.4ConvertiblePetrol5513904Front Wheel Drive2, 6, 86
VWNEW BEETLE Convertible (1Y_) 09/2002-12/20111.6ConvertiblePetrol7515954Front Wheel Drive2, 6, 86
VWNEW BEETLE Convertible (1Y_) 09/2002-12/20111.8 TConvertiblePetrol11017814Front Wheel Drive2, 6, 86
VWNEW BEETLE Convertible (1Y_) 09/2002-12/20111.9 TDIConvertibleDiesel6618964Front Wheel Drive2, 6, 86
VWNEW BEETLE Convertible (1Y_) 09/2002-12/20111.9 TDIConvertibleDiesel7418964Front Wheel Drive2, 6, 86
VWNEW BEETLE Convertible (1Y_) 09/2002-12/20111.9 TDIConvertibleDiesel7718964Front Wheel Drive2, 6, 86
VWNEW BEETLE Convertible (1Y_) 09/2002-12/20112.0ConvertiblePetrol8519844Front Wheel Drive2, 6, 86
VWNEW BEETLE Convertible (1Y_) 09/2002-12/20112.5ConvertiblePetrol11024805Front Wheel Drive2, 6, 86

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 14: Only for vehicles with ESP
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
  • Note 86: We recommend to replace the anti-sway bar for more spring travel and comfort. KW Part No. 685 50 000, Price: 218,96 € incl. VAT Anti-sway bar conversion set for vehicles with Xenon headlights: KW Part No. 685 50 005, Price: 240,38 € incl. VAT
  • Note 6: When using original tires, wheel offset spacers may be required
