KW Coilover Kit V2 Comfort for Audi (C6) A6

18010049
KW Suspension

Stock: Backorder Available

AU$3,599.00 Inc GST

Description

Description

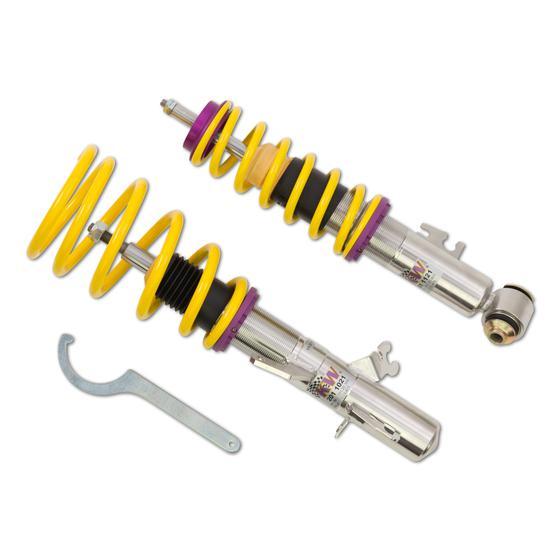

The KW V2 Comfort combines a moderate lowering with comfort-oriented spring and damper characteristics, aimed at drivers who find a factory or aftermarket suspension too firm for everyday use. Shorter KW damper housings allow a comfortable setup despite the lowering, and rebound damping can be adjusted in 16 clicks to suit the driver. This kit is developed for the Audi A6 (C6).

Key Features

  • Comfort-oriented spring and damper tuning

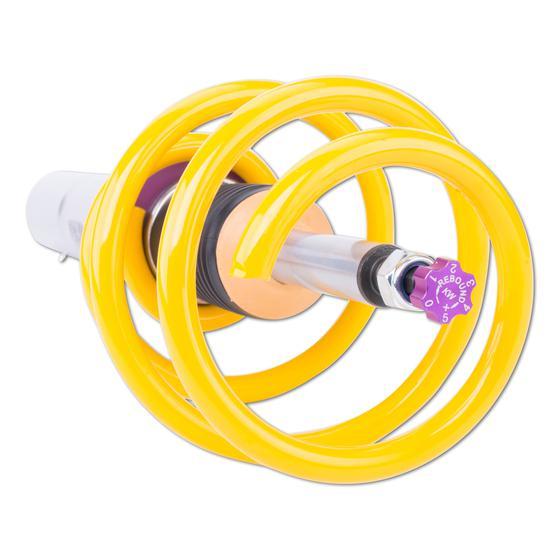

  • Rebound damping adjustable in 16 clicks
  • Height adjustable within the tested range

Specifications

  • Version: V2 Comfort
  • Damping: Adjustable rebound
  • Material: Stainless steel
  • Front lowering: 20–40 mm
  • Rear lowering: 20–40 mm
  • Front axle load: up to 1,240 kg
  • Rear axle load: up to 1,205 kg

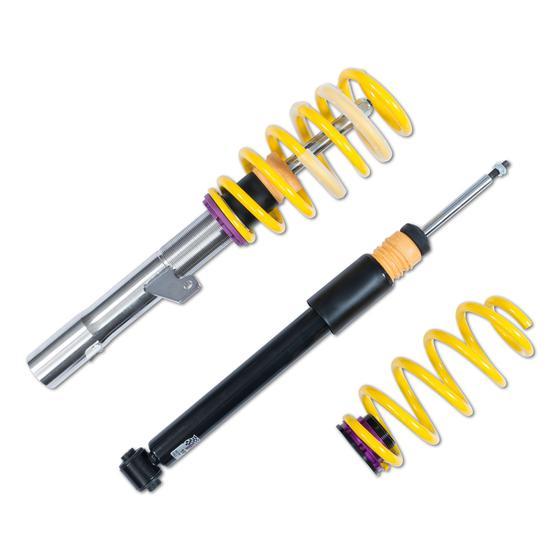

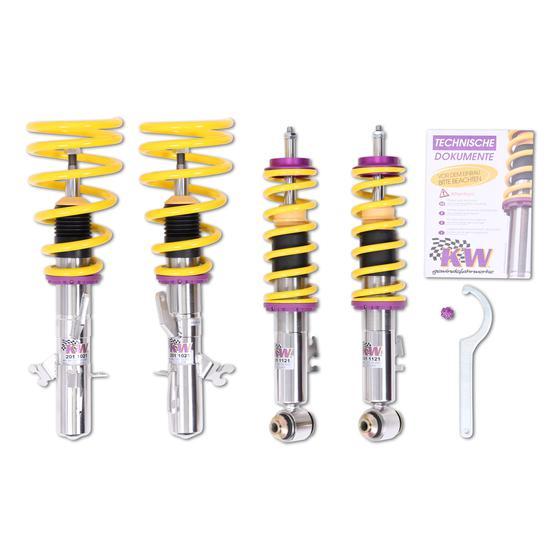

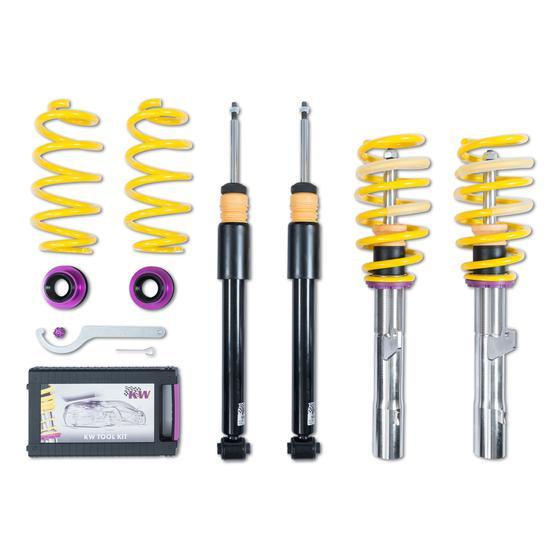

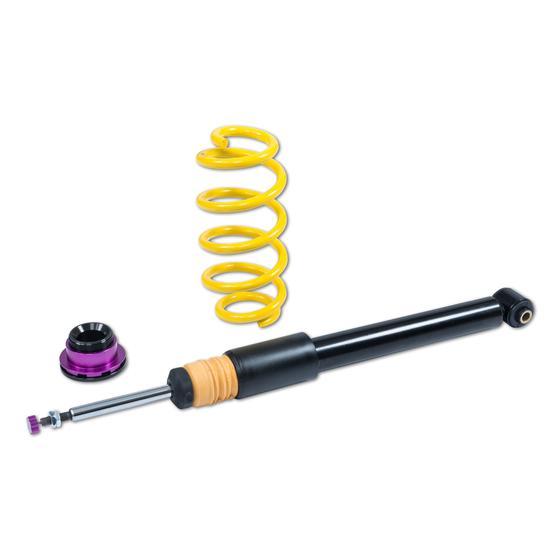

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Fitment

Fitment

Front axle load up to 1,240 kg; Rear axle load up to 1,205 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2004–2011AudiA6 (4F) 4F2, C62.0 TDIDiesel · 89 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.0 TDIDiesel · 103 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.0 TDIDiesel · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.0 TDIDiesel · 125 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.0 TFSIPetrol · 125 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.4Petrol · 130 kW · 2.4L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.4 quattroPetrol · 130 kW · 2.4L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.7 TDIDiesel · 120 kW · 2.7L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSIPetrol · 140 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSIPetrol · 154 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSIPetrol · 162 kW · 2.8L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSI quattroPetrol · 140 kW · 2.8L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSI quattroPetrol · 154 kW · 2.8L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.8 FSI quattroPetrol · 162 kW · 2.8L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.0Petrol · 160 kW · 3.0L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.0 quattroPetrol · 160 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.2 FSIPetrol · 188 kW · 3.1L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.2 FSIPetrol · 195 kW · 3.2L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.2 FSI quattroPetrol · 183 kW · 3.1L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.2 FSI quattroPetrol · 188 kW · 3.1L · 6-cylAll-Wheel Drive2, 8, 10, 62

Media

Media

Disclaimer

Disclaimer

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
  • Note 62: Not for cars with electronic damping.
