The Eventuri Carbon Intake for the Audi RS3 8Y (2020+) follows the RS3 8V system and caters for all power levels from stock to those exceeding 1000whp. It is developed to offer the highest possible flow rate while maintaining the lowest intake temperatures, with each component designed to give the turbo a smooth, free-flowing path.
The system uses Eventuri's patented carbon fibre housings, which provide an aerodynamically efficient airflow path from the filter to the turbo tubing. It is not just another cone filter with a heat shield but a unique design that invokes the Venturi effect. The housing shrouds a reverse-mounted filter and smoothly reduces the cross-sectional area, accelerating airflow while maintaining laminar conditions. The duct seals the filter opening to the front slam panel and is lifted at the front to add an opening behind the bonnet, so it is not limited to the stock entry feed.
Key Features
- Sealed design keeps intake temperatures at a minimum
- Venturi housing gives the maximum internal volume the RS3 engine bay allows and provides laminar flow to the turbo tube
- 100% pre-preg carbon fibre with no fibreglass gives smooth internal surfaces without sharp resin lines
- Bespoke dry filter with signature flow cones; the filter medium is ISO tested to ensure filtration is in line with OEM standards
- Duct fits inside the OEM ducting and is compatible with larger aftermarket throttle bodies, with flexible rubber edging that seals against the filter housing while allowing for engine movement
- Enlarged tube diameter suits hybrid and full-frame turbo builds
- Eventuri quotes a performance gain of 15-20hp, 13-18ft-lb for the RS3 with the stock turbo
- Flow bench testing recorded 530 CFM for the stock intake and 840 CFM for the Eventuri intake, an improvement of up to 58% in maximum possible flow rate
- Dyno testing by MSL Performance on a stock 8Y RS3 showed a measurable gain throughout the RPM range of up to 22hp
Specifications
- Intake tube internal diameter: 103 mm (4")
- Filter outside diameter: 210 mm (8.3")
- Filtration surface area: Over 130,000mm²
- Filter and carbon housing flow: Up to 940 CFM at 28" H2O
- Complete system flow: 840 CFM at 28" H2O
- Heat shield: Powder coated black with a gold reflective layer on the base and a stainless steel brace
- Additional duct opening: Behind the bonnet, equivalent to a hole over 7" in diameter

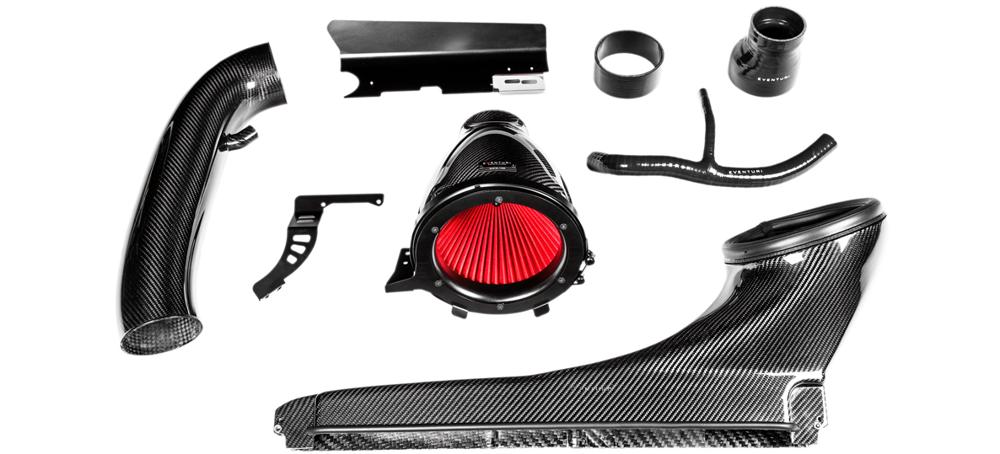

- Includes: Carbon Venturi filter housing with 103 mm outlet, aluminium cowl, bespoke high-flow dry cone filter, carbon inlet duct, carbon tube, OPF (DWNA) breather adapter, heat shield with gold reflective backing, laser-cut stainless steel brackets, silicon breather hose, silicone couplers and reducer
Note The heat shield may not fit some full-frame turbo systems with a different exhaust manifold.
