Eventuri Gen 1 Black Carbon Intake for Audi RS3 (8V) - RHD

EVE-8VRS3-CF-RHD-INT

Stock: In Stock

AU$3,689.00 Inc GST

Supplier design and components

Carbon Fibre

The filter housing comprises of a high flow filter, aluminium cowl, laser cut brackets, and the carbon pod itself. The carbon pods shroud the reverse-mounted filter and smoothly shape the airflow down to the intake tubes. This smooth reduction in cross-sectional area invokes the Venturi effect, where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack.

This diagram shows the comparison between the patented design and a regular intake system.

Supplier test notes

1) The sealed system keeps IATs low - the RS3 engine bay can get heat-soaked very quickly, so an open cone filter will cause an increase in IAT values, resulting in a loss of performance.

2) The Venturi housing provides a smooth transition from the filter to the intake tubes, which are both matched to an internal diameter of 88mm. This helps the turbo to run more efficiently.

3) The entire system is constructed from pure pre-preg carbon fibre, which is great at insulating from heat.

Description

Description

The Eventuri Gen 1 Black Carbon Intake for the Audi 8V RS3 (RHD) was developed to de-restrict the turbo inlet path and maintain low inlet temperatures. The first objective is met with 88 mm internal diameter tubing all the way to the turbo and Eventuri's unique Venturi housing, which maintains laminar flow. The second is met with a sealed system fed from the stock cold air feed, so the turbo does not draw heated air from the engine bay. The intake duct draws air from the stock feed and is maximised in volume to allow the highest flow rate through the filter.

The system uses Eventuri's patent pending carbon fibre housings, which provide an aerodynamically efficient airflow path from the filter to the turbo tubing. The filter housing shrouds a reverse-mounted filter and smoothly reduces the cross-sectional area, invoking the Venturi effect to accelerate airflow while maintaining laminar conditions.

Key Features

  • Sealed system keeps intake air temperatures low in the heat-soak-prone RS3 engine bay
  • Carbon fibre duct fits inside the OEM ducting and channels air from the slam panel area to the filter housing, with flexible rubber edging that seals against the filter housing while allowing for engine movement
  • Intake tubes crafted from 100% prepreg carbon fibre with smooth bends that maintain laminar flow
  • Entire system constructed from pre-preg carbon fibre, which insulates well from heat
  • Enlarged tube diameter allows larger or hybrid turbos to run with less restriction
  • Eventuri quotes a performance gain of 17-20hp, 22-25ft-lb
  • Dyno testing showed a gain of approximately 17hp and 25ft-lb of torque, and Vbox road testing showed the 60-130mph acceleration time reduced by approximately 0.3 seconds with just the intake added

Specifications

  • Intake tube internal diameter: 88 mm (stock tubing is 77 mm)

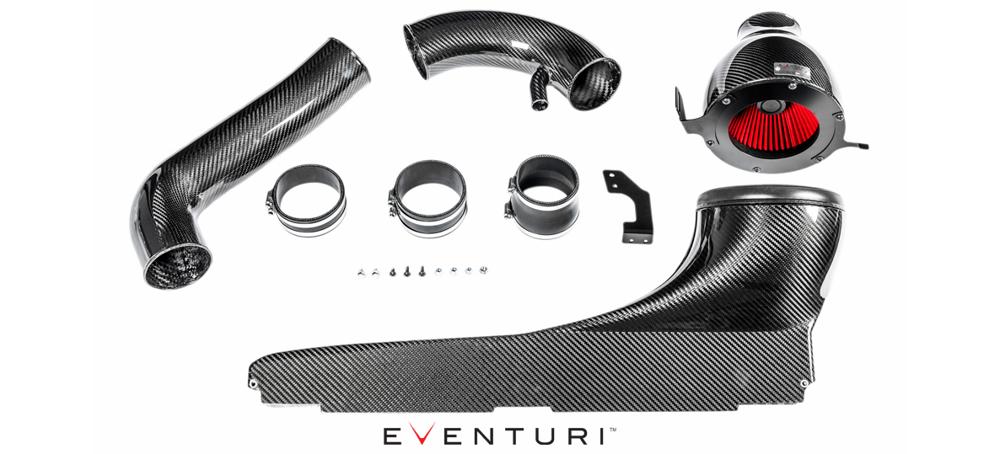

  • Includes: Carbon fibre Venturi filter housing with aluminium cowl, high-flow urethane cone filters, carbon fibre inlet duct, carbon fibre connecting tube, laser-cut stainless steel brackets, couplers and reducer
  • Drive side: Right-hand drive (RHD)

Fitment

Fitment

Vehicle compatibility

  • Audi 8V RS3 Gen 1 - right-hand drive.
