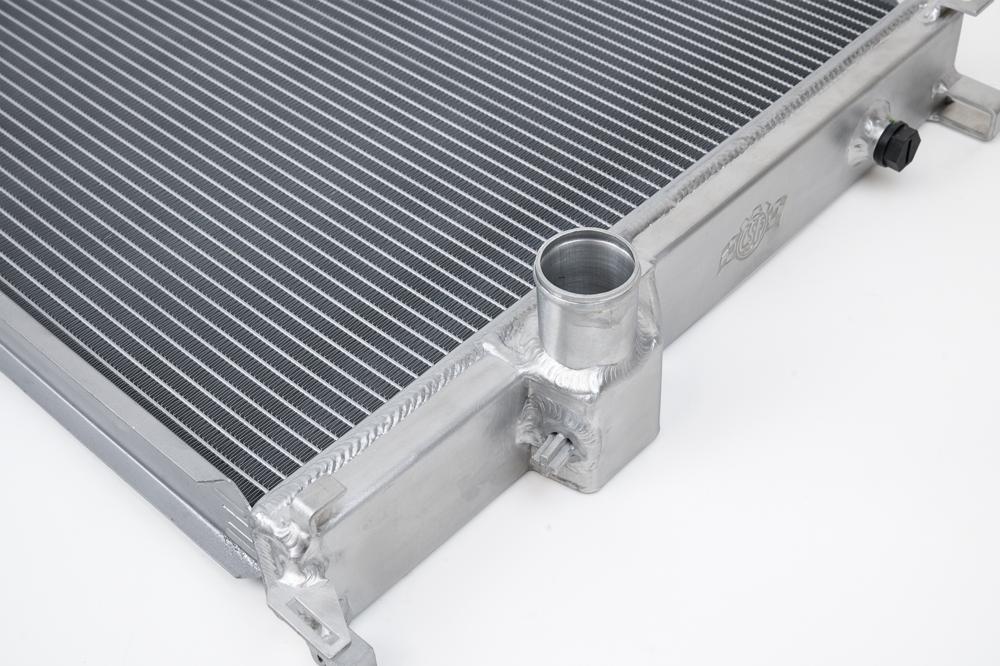

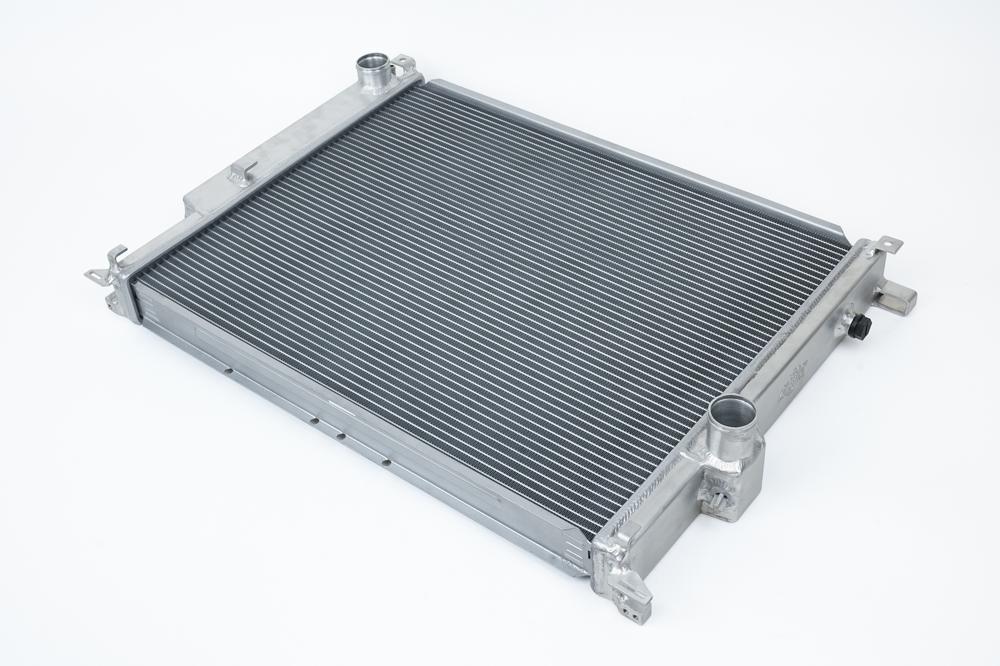

The CSF BMW E36 S54 Swap Radiator features 100% all-aluminium TIG-welded construction. Designed for BMW S54 engine swaps, the radiator also supports S50 and S52 swaps when used with the oil cooler combination.

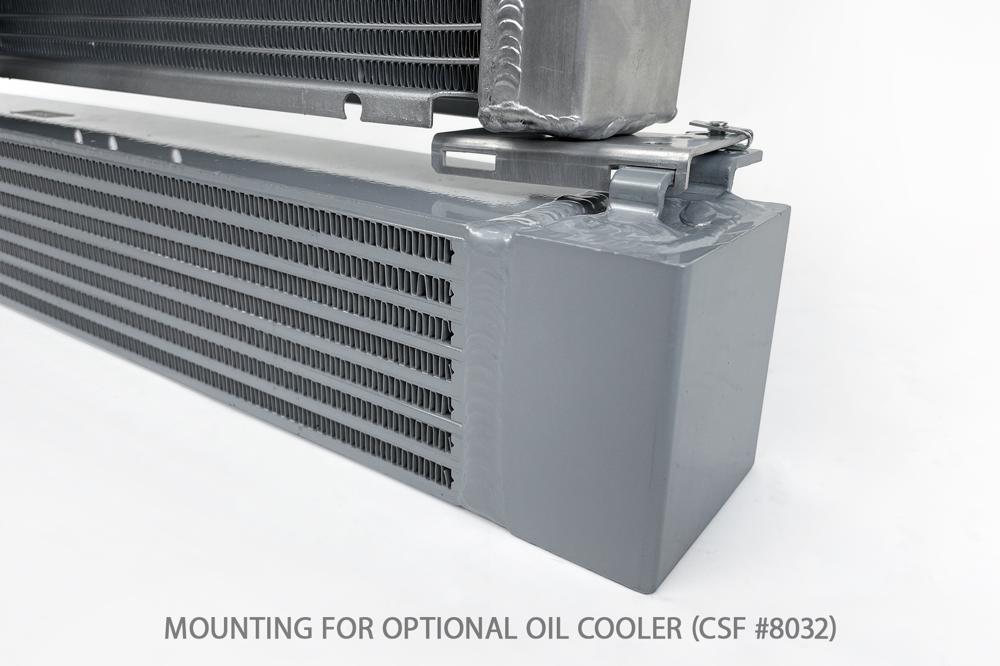

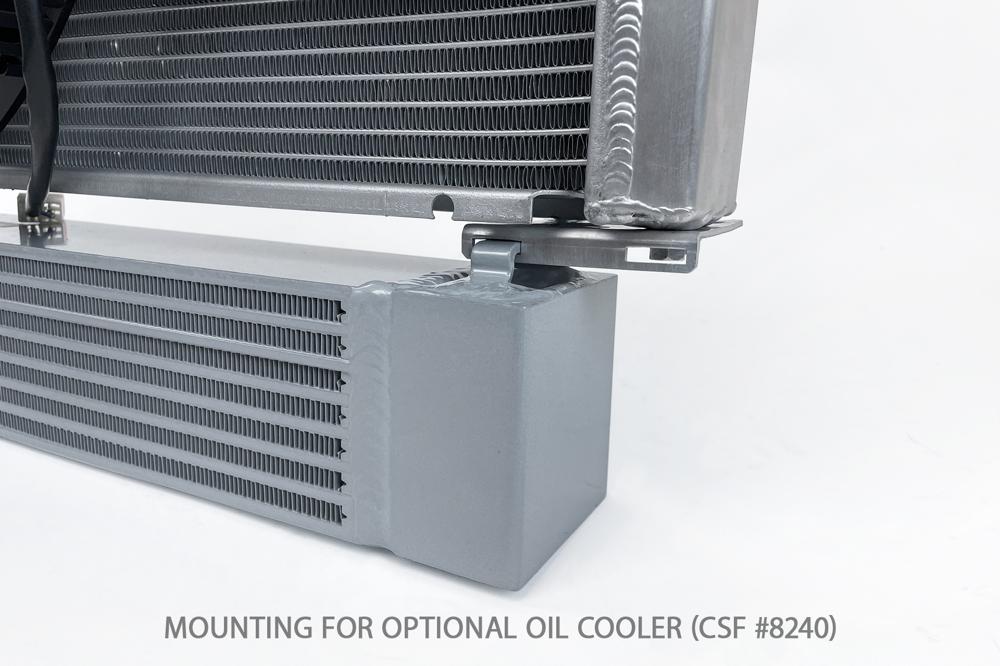

Includes brackets for a single SPAL fan (SPAL #30100400); the fan is not included. A clutch-type fan can be retained. Includes oil cooler mounting brackets compatible with CSF #8240 and CSF #8032 oil coolers. The reduced radiator height allows these race-spec oil coolers to sit in a factory-style location.
Key Features
- Core with CSF B-Tube technology and multi-louvred fins
- CNC-machined mounting brackets and fittings, with E36 OEM-style slip-on inlet and outlet connections

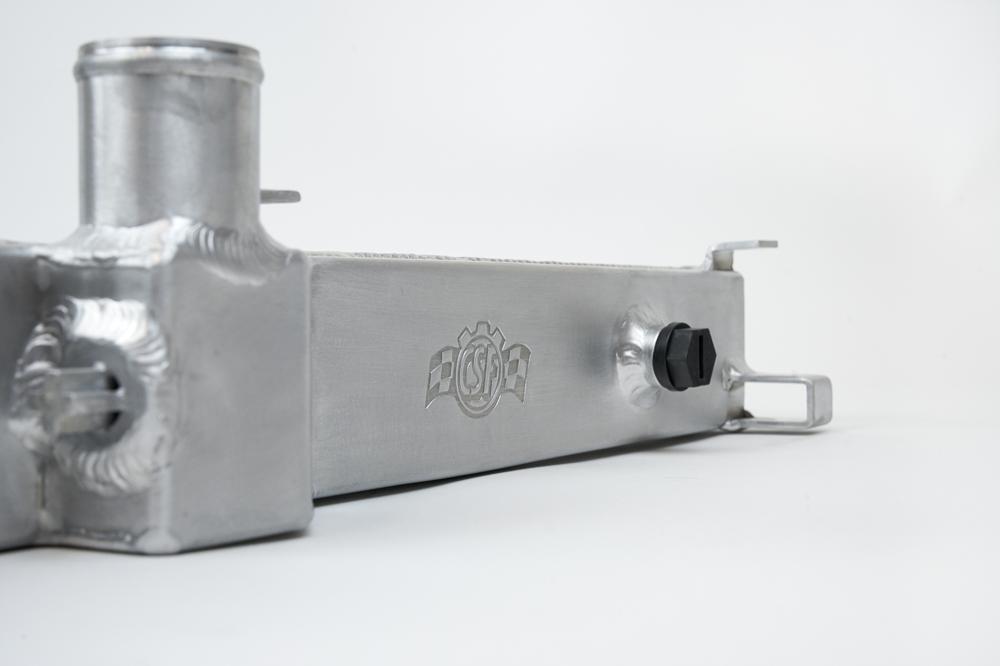

- All-aluminium race-style drain plug

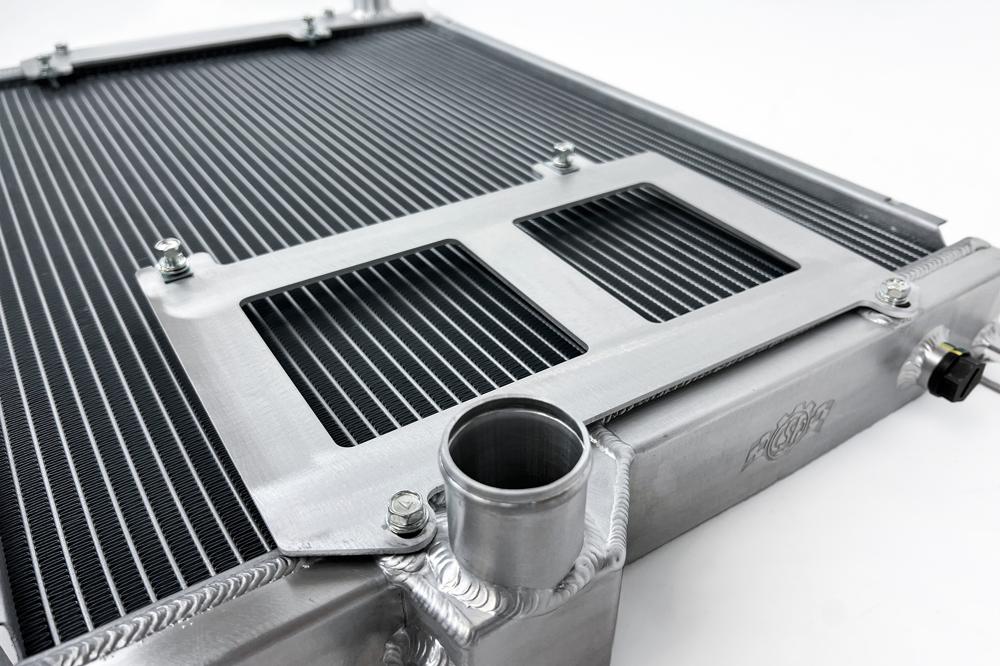

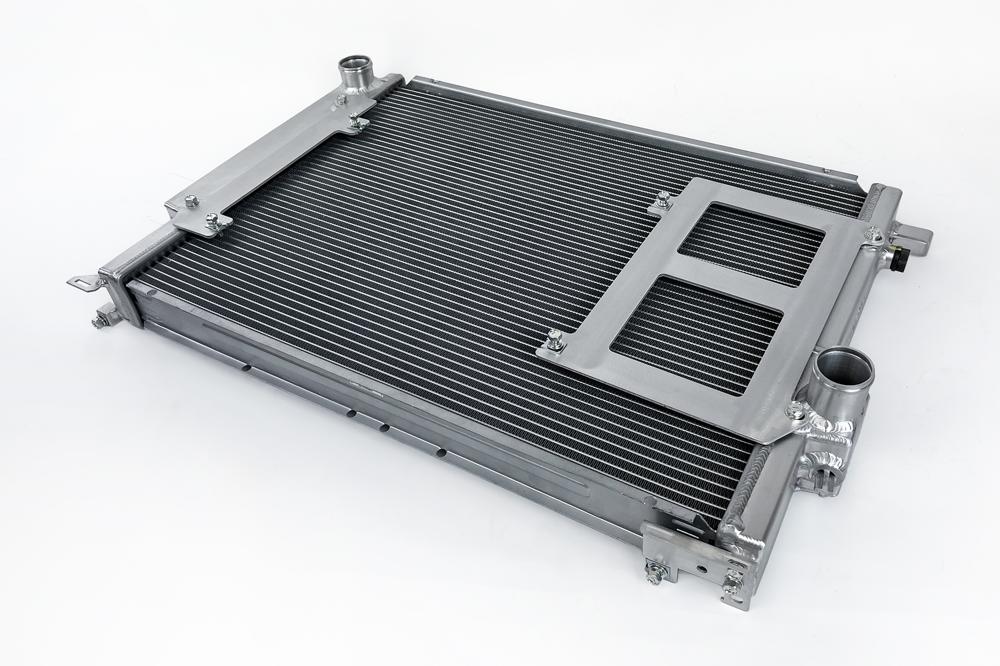

- Includes 2 top covers, black and satin, and a custom radiator cover plate that conceals the coolant overflow line
- Drop-in radiator installation requires no modifications
- Individually leak and pressure tested
- CSF B-Tube technology increases heat transfer by approximately 15% over regular oval welded tubes
Specifications
- Core: 2-row, 42 mm aluminium
- Fin height: 6.5 mm
- Finish: Smooth satin
- Fan bracket: Single 16" SPAL fan
- Warranty: 2-year limited
