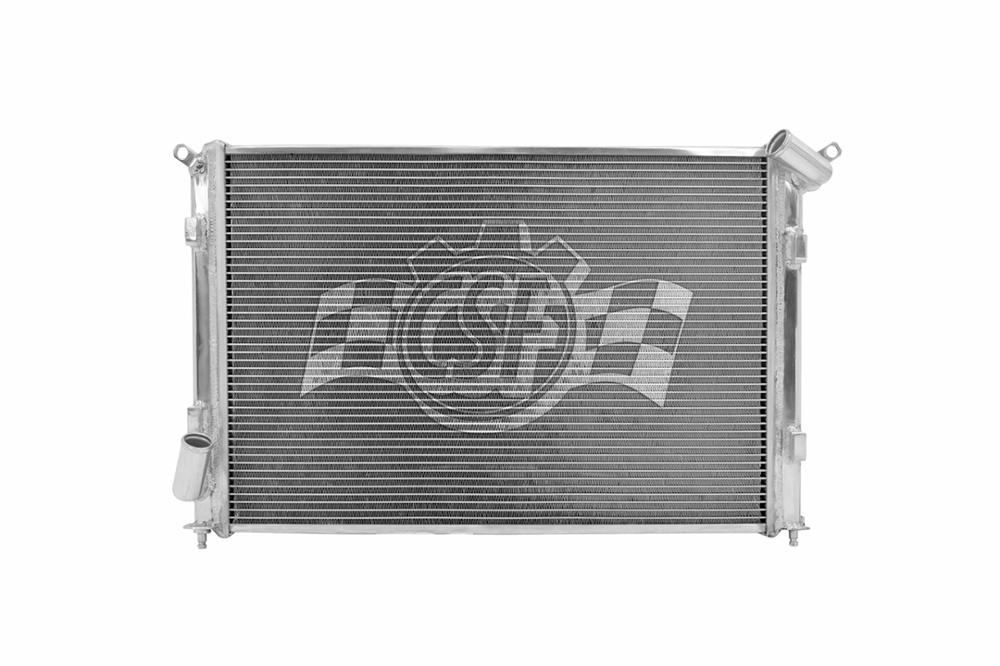

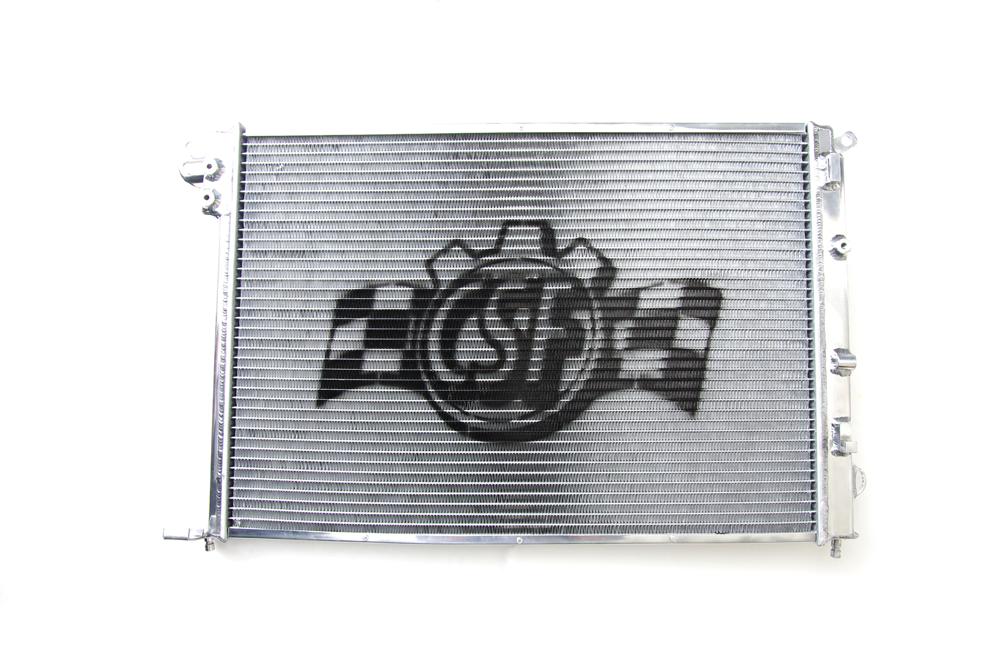

The CSF High-Performance All-Aluminium Radiator for the 2002-2007 Mini Cooper S (R50/R52/R53) is designed for 1.6L four-cylinder models with a manual transmission. It features a smooth satin finish and a drop-in design requiring no installation modifications.
Key Features
- Core featuring CSF B-Tube technology
- Multi-louvred fins

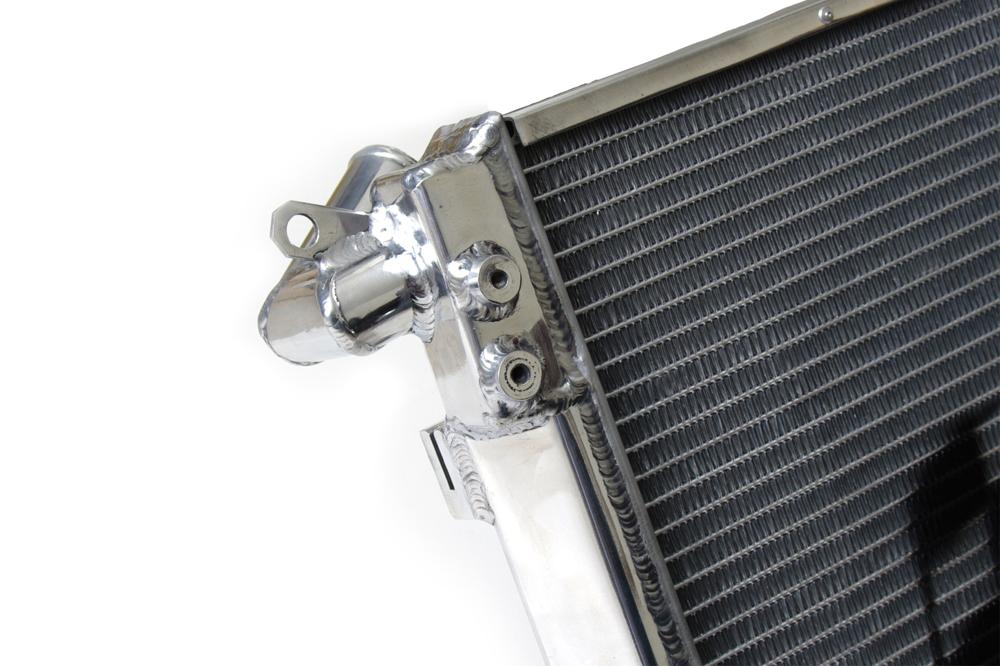

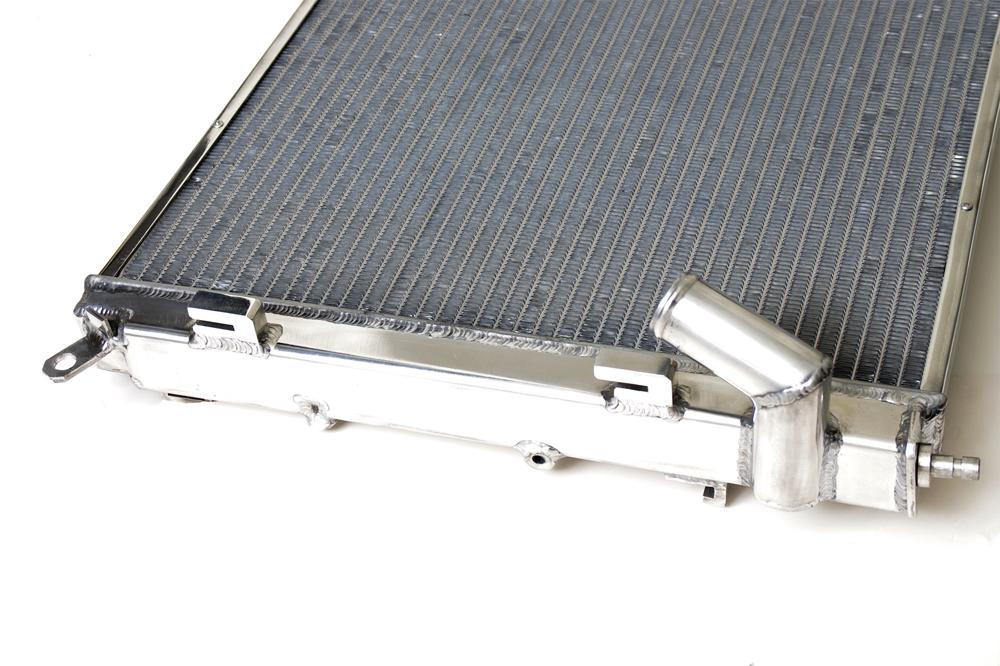

- CNC-machined quick-connect inlet and outlet connections
- CNC-machined brackets and fittings
- All-aluminium race-style drain plug
- CSF's B-Tube design increases the heat transfer surface area of the tubes by approximately 15% over regular tubes, giving the efficiency of two smaller tubes against one large tube in the same space
The B-shaped tubes are formed and seam-brazed, while the multi-louvred fins are aligned to support airflow through the core.
Specifications
- Core: Two-row, 42 mm
- Fin height: 6.5 mm
- OEM part numbers: Mini: 17117541091, 17117570489, 17101475554
- Warranty: 2-year
It accepts attaching OEM components, including quick-connect hoses, the air conditioning condenser, mounting brackets and fan shroud.
