Just like the homologated motorsport applications for the Porsche 911 GT3 R (991 series), the KW Clubsport applications feature a 3-way adjustable front axle strut in an upside-down design as well as a 4-way adjustable solid piston rear axle damper. No other Clubsport coilover suspension with parts certification comes closer to the suspension technology used in GT3-class motorsport. This provides the ideal performance upgrade to fully exploit your sports car’s potential during track days, driver training events, tourist drives on Grand Prix circuits, and fast laps on the Nürburgring Nordschleife.

Developed to break lap records: The KW Clubsport Coilover Suspension

Even in their base tuning, KW Clubsport coilover suspensions are configured for the varied track surfaces, banked turns, crests, and chicanes of the 20.8 km Nürburgring Nordschleife. After all, we are one of the most successful suspension manufacturers and suppliers in motorsport, with our roots at the Nordschleife.

In the NLS Endurance Championship alone, we equip nearly half of the starting grid, and KW suspension technology is standard in numerous customer racing programs.

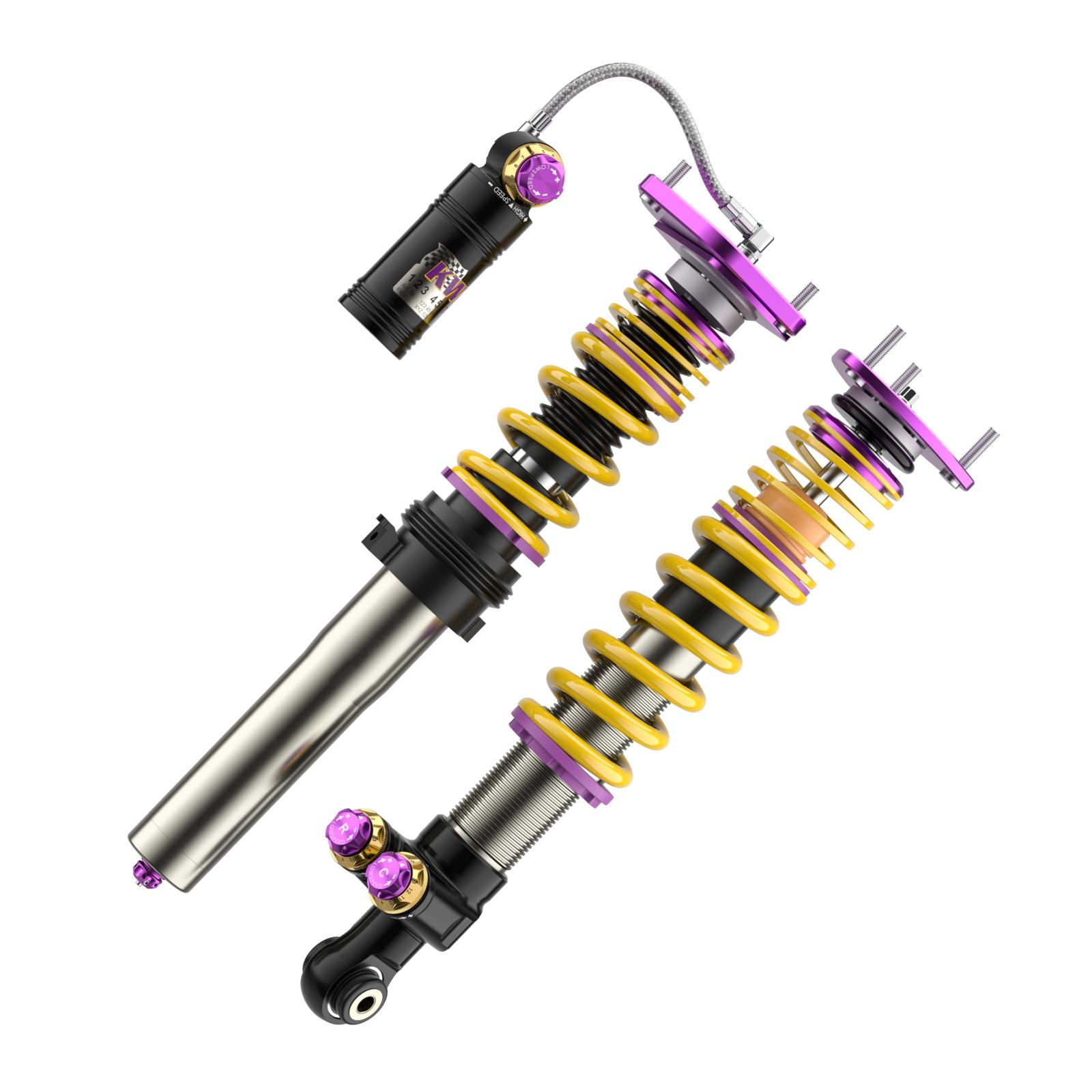

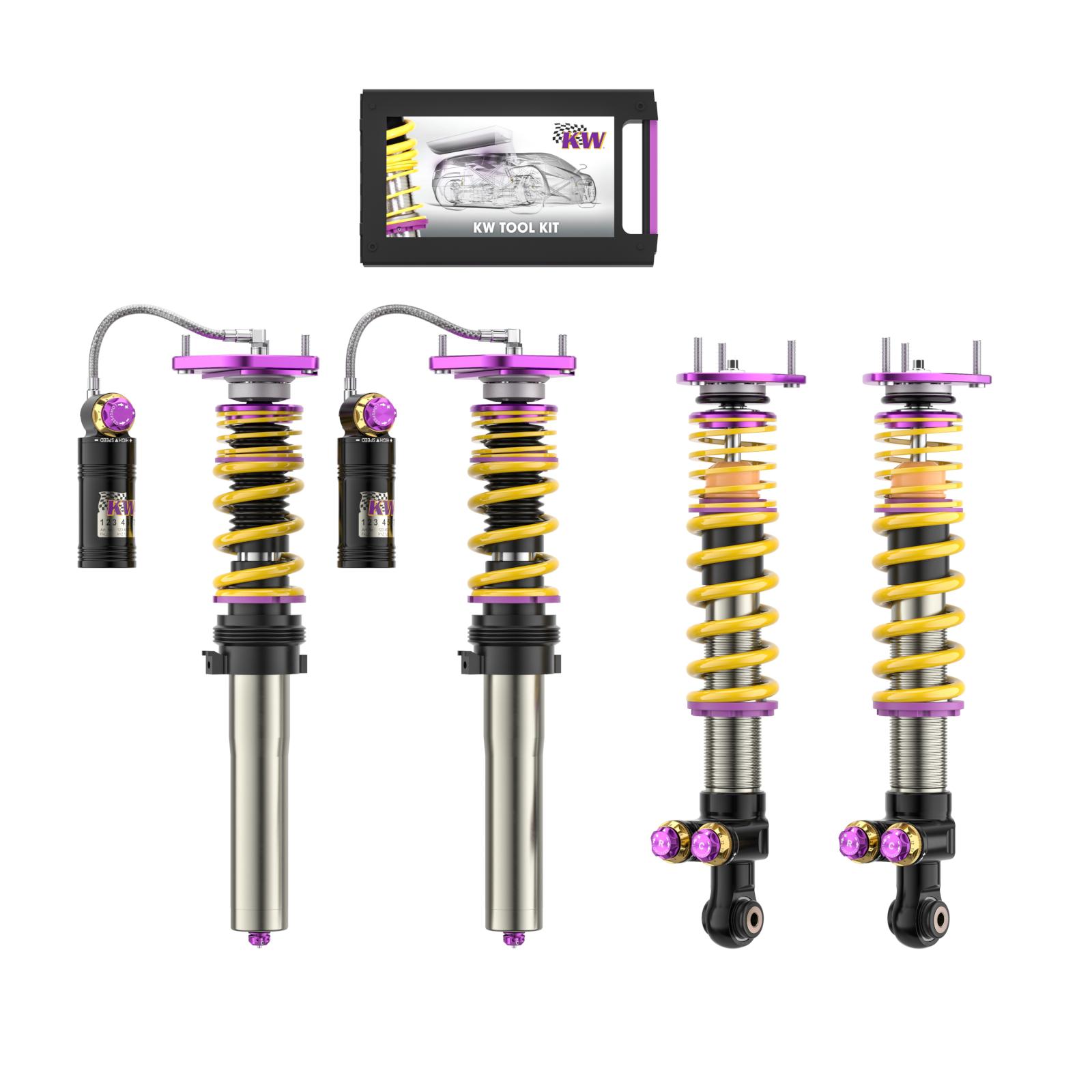

KW V4 Clubsport / V5 Clubsport Coilover Suspension in Detail


The vehicle-specific base setup of the KW V4 Clubsport / V5 Clubsport coilover suspension is developed through extensive testing on the Nordschleife and the KW 7-post dynamic test rig. This setup can be further adjusted using click settings to match corner weights, vehicle weight, and changes in chassis stiffness, such as a bolt-in cage, a welded safety cell, or strut braces.

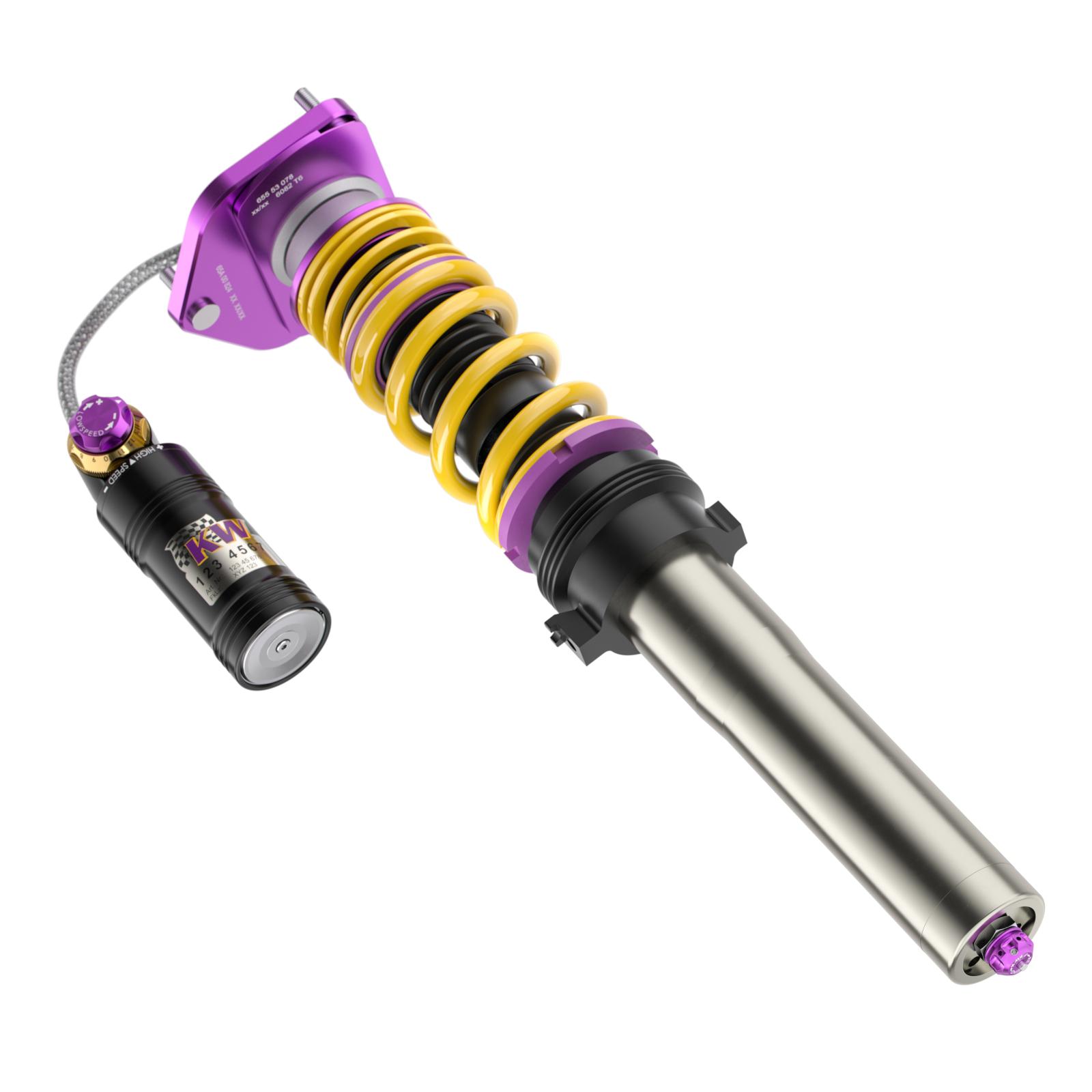

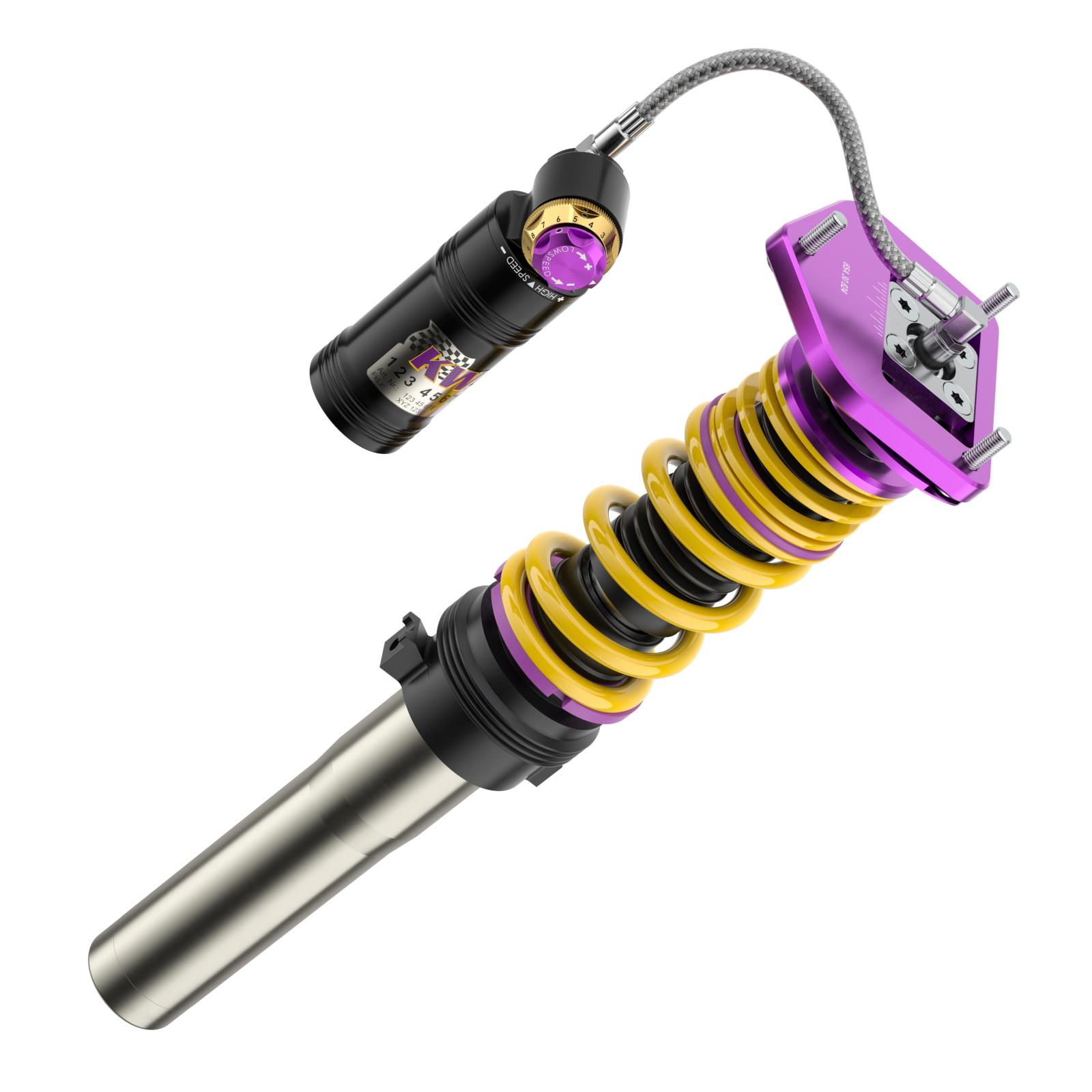

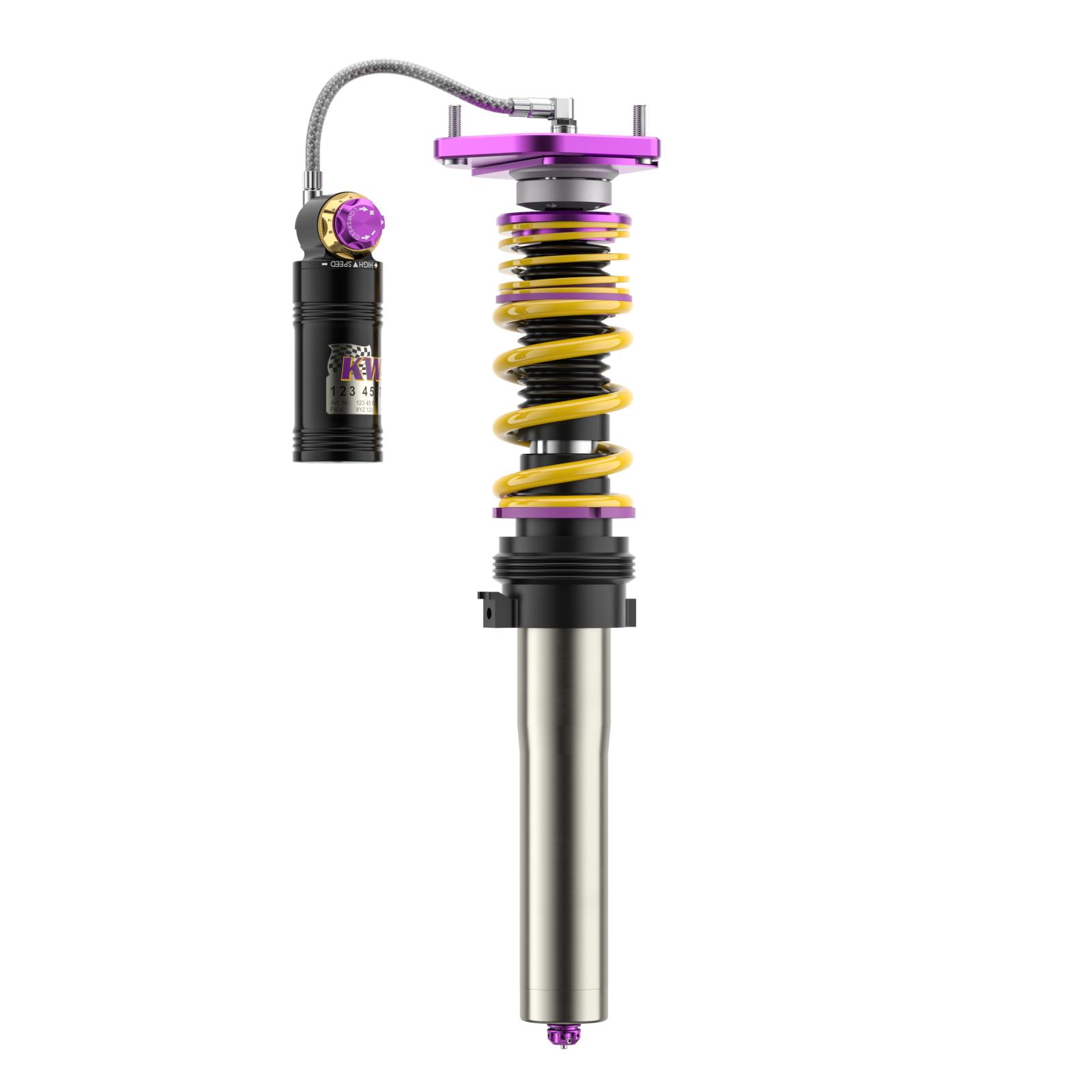

At the front axle, damper forces are generated at the working piston of the KW single-tube damper and by the low-speed and high-speed compression valves located in the external reservoir. For precise tuning to the track layout, the integrated click adjusters offer 16 clicks for rebound , 13 clicks for low-speed and 14 clicks for high-speed compression damping. The independent reservoir also allows for gas pressure volume adjustment.

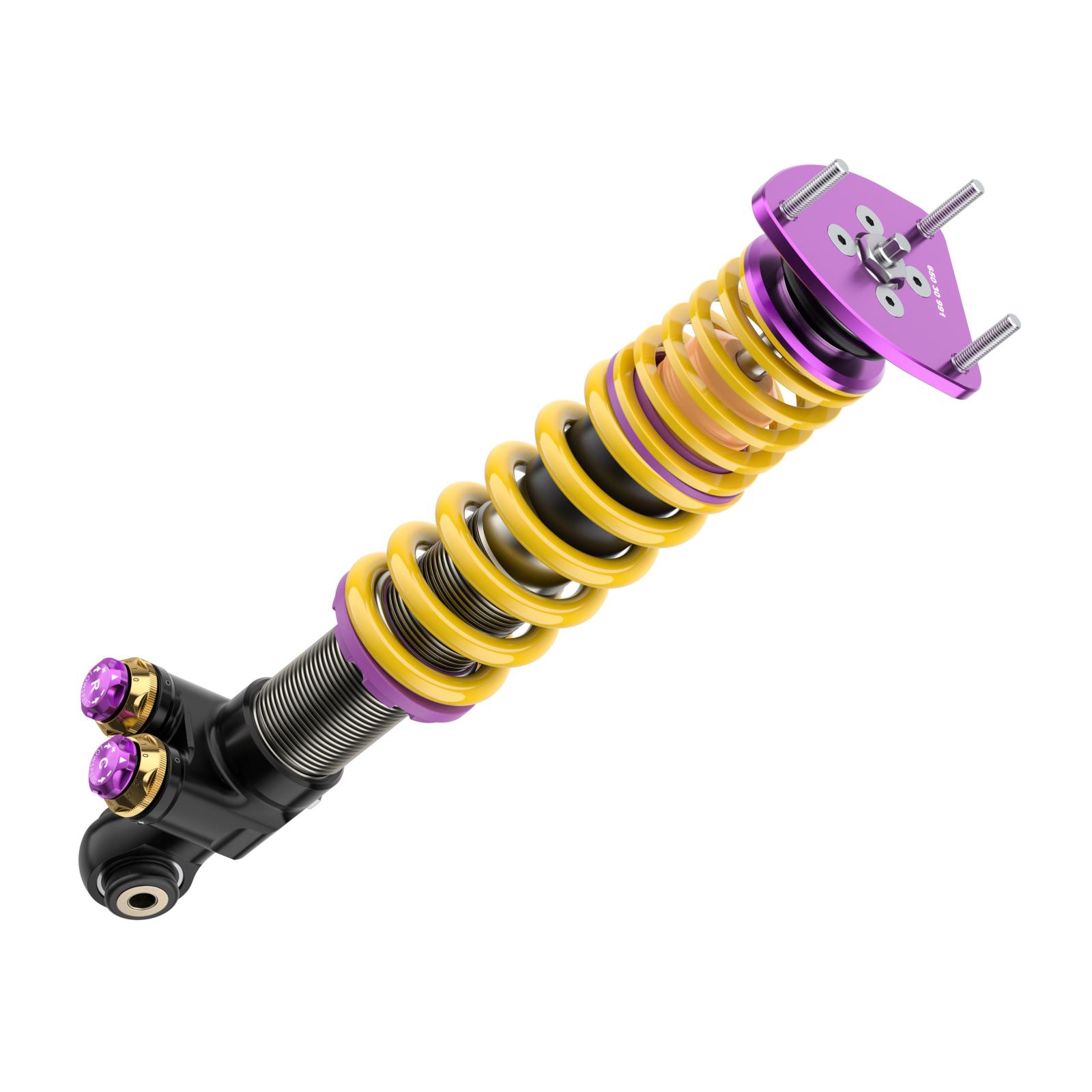

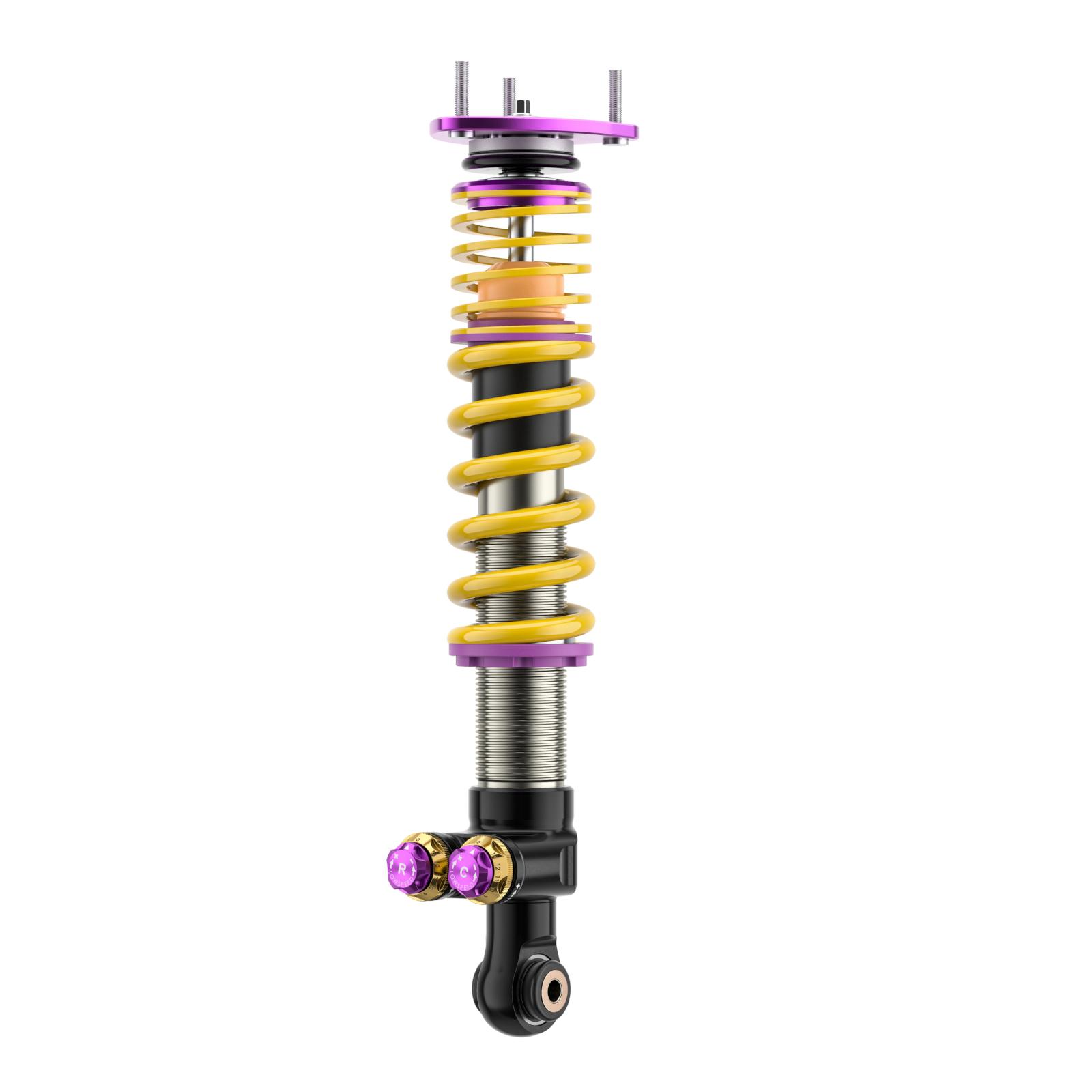

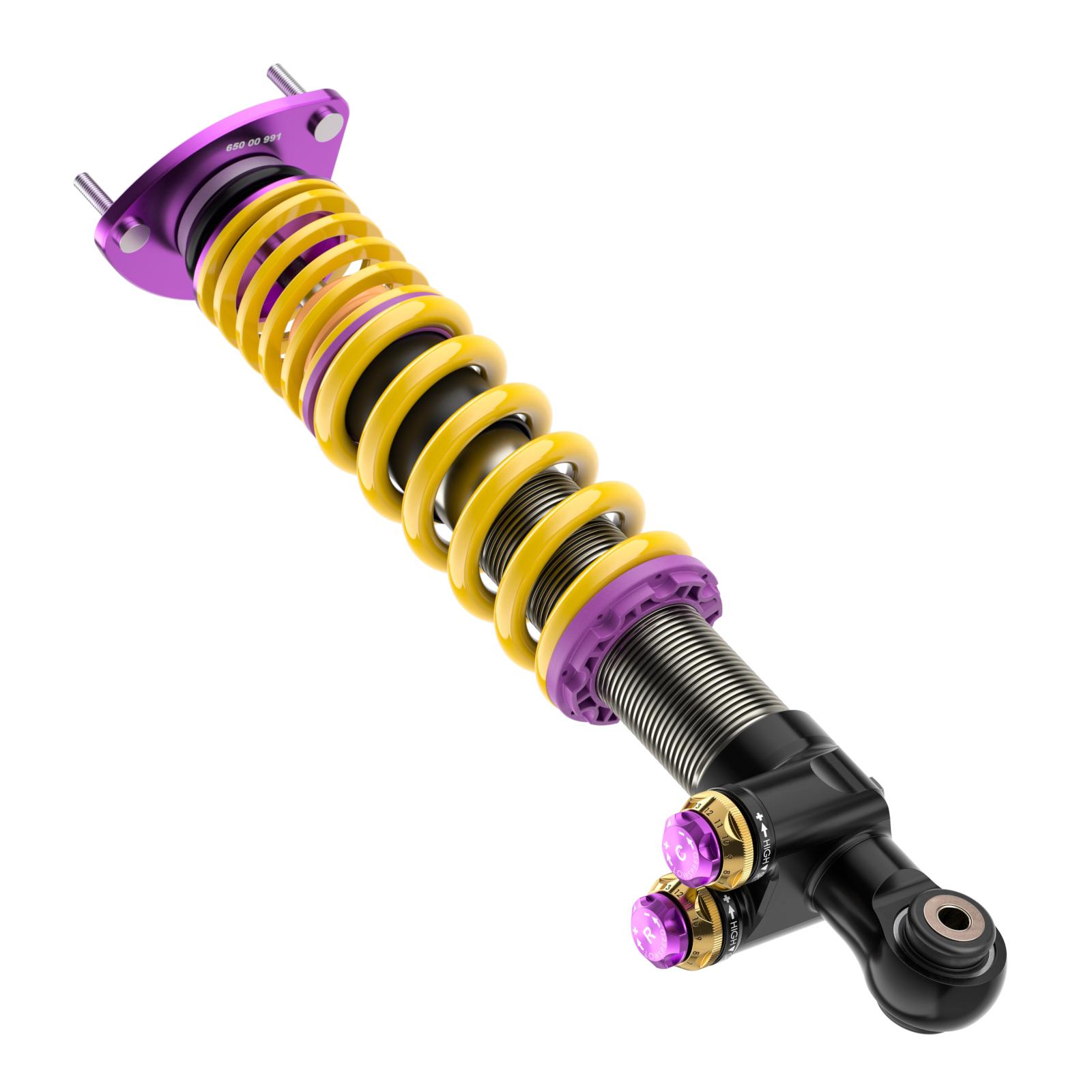

At the rear axle, we use 4-way adjustable KW twin-tube dampers with displacement pistons (KW Solid Piston Technology). An external reservoir is not required. The compression and rebound valves, arranged in series, are located separately from the working piston. Individual damper settings are made using the purple and yellow click adjusters located directly on the damper body. With 13 precise clicks for each of the 14 positions, the low-speed and high-speed damping forces for both compression and rebound can be adjusted. Even with minimal suspension travel, steering input, or small surface irregularities, the suspension responds instantly.


V4 Clubsport Technology – Upside-Down Front Suspension Strut for Road & Track

- Upside-down single-tube damper design to resist extreme lateral forces
- 16-click adjustable rebound damping
- 13-click low-speed and 14-click high-speed compression adjustability
- Aluminum uniball top mounts
- Continuously adjustable lowering
- Certified adjustment range
- High-quality components for long service life
- Unique, independently adjustable damping available for technically appropriate applications with aluminum uniball top mounts


V5 Clubsport Technology – Solid Piston Technology for Road & Track

- More sensitive and high-frequency damping response
- Cavitation-free operation
- Low gas pressure range from 6 to 10 bar
- Unique, independently adjustable damping forces
- Freely adjustable damping in both rebound and compression
- 13-click adjustability in both low-speed and high-speed compression
- 13-click adjustability in both low-speed and high-speed rebound
- Continuously adjustable lowering
- Certified adjustment range
- Aluminum uniball top mounts
- High-quality components for long service life



Setup: Application and Damping Tuning

KW V4 Clubsport / V5 Clubsport coilover suspensions impress with their vehicle-specific tuning for track-day events on the Nürburgring Nordschleife and offer the flexibility to quickly adapt the suspension for other racetracks or custom high-performance sports car setups.
