BELLTECH 646SPAC PERFORMANCE COILOVER KIT PLUS W/ DAMPING/HEIGHT ADJUSTABLE FRONT COILOVERS

About this product

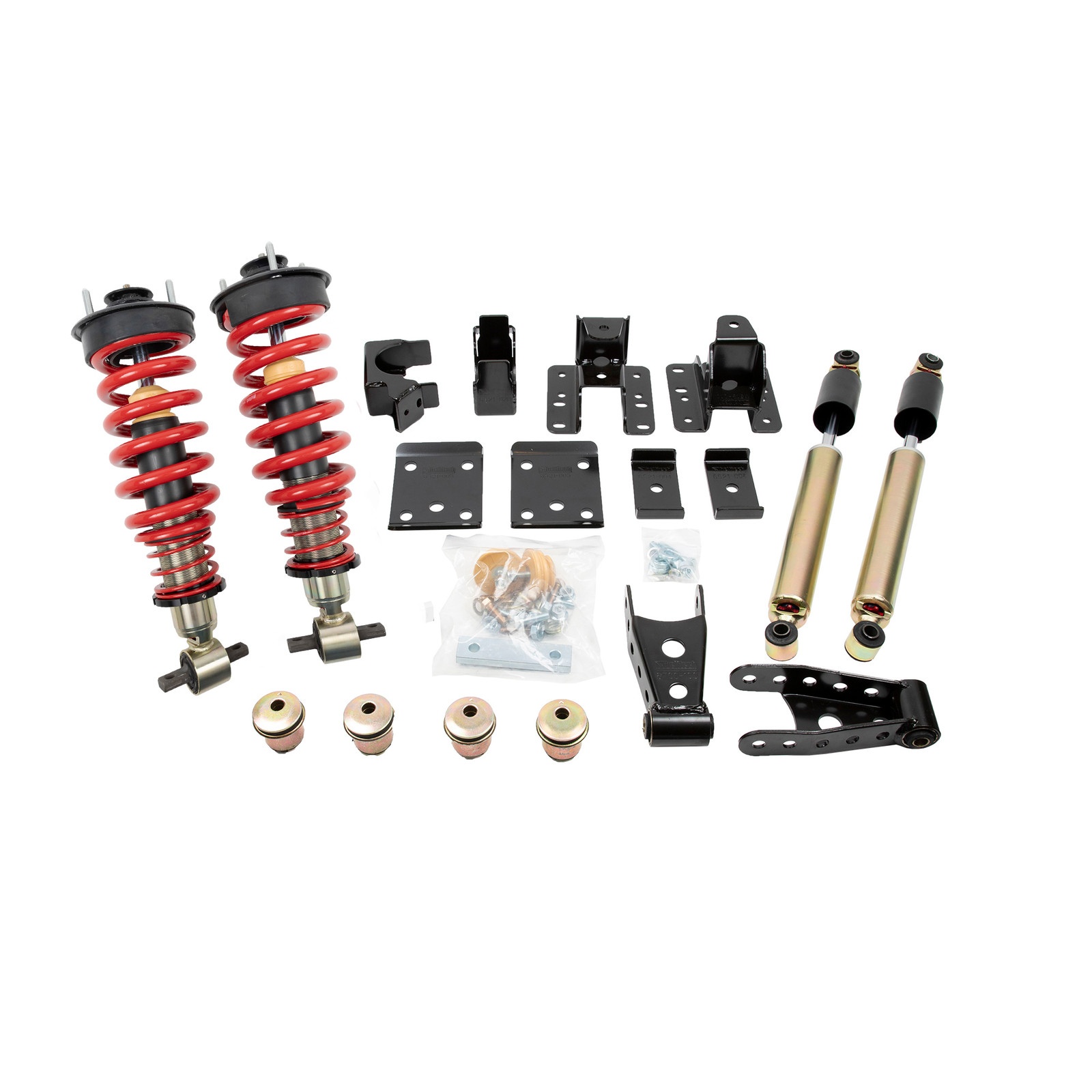

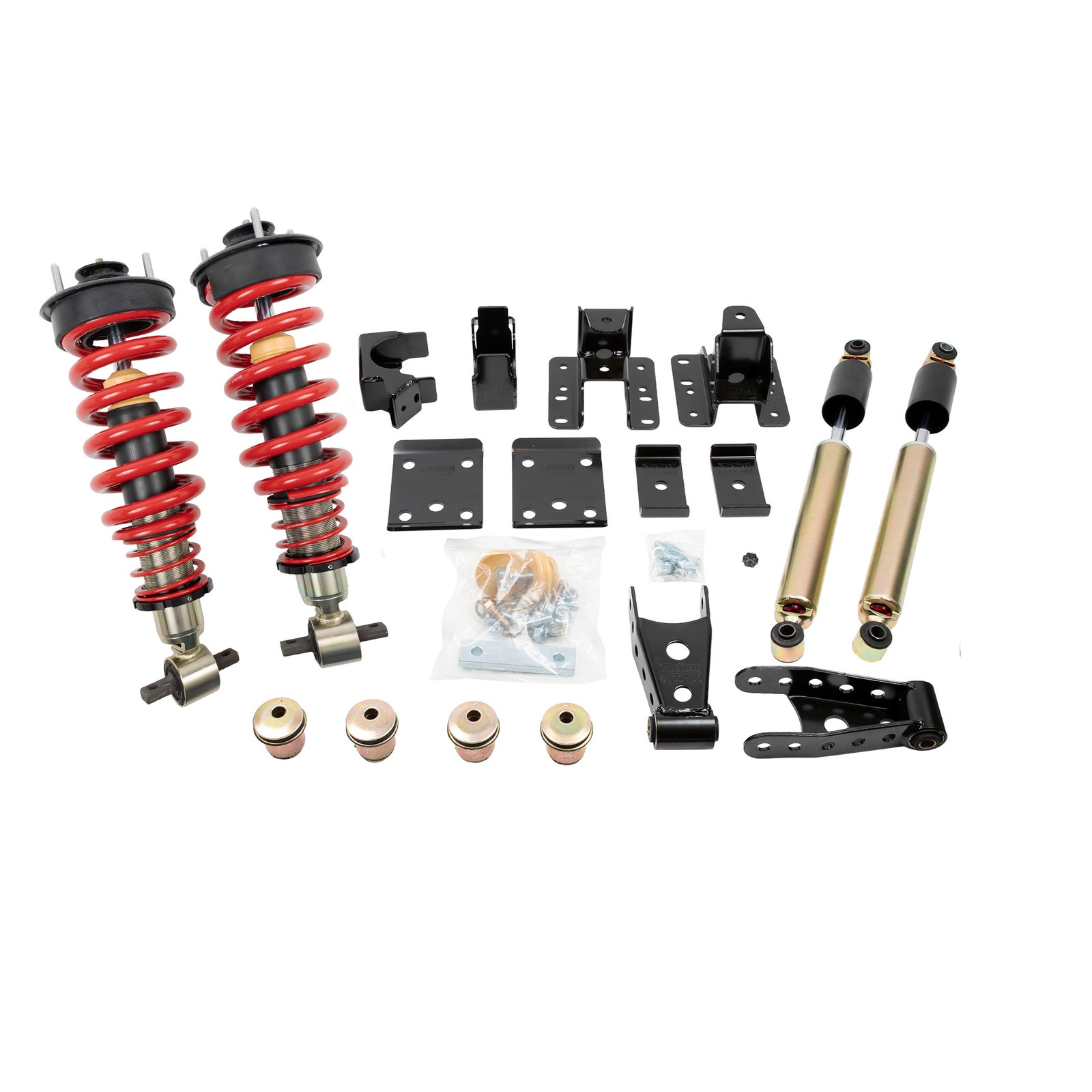

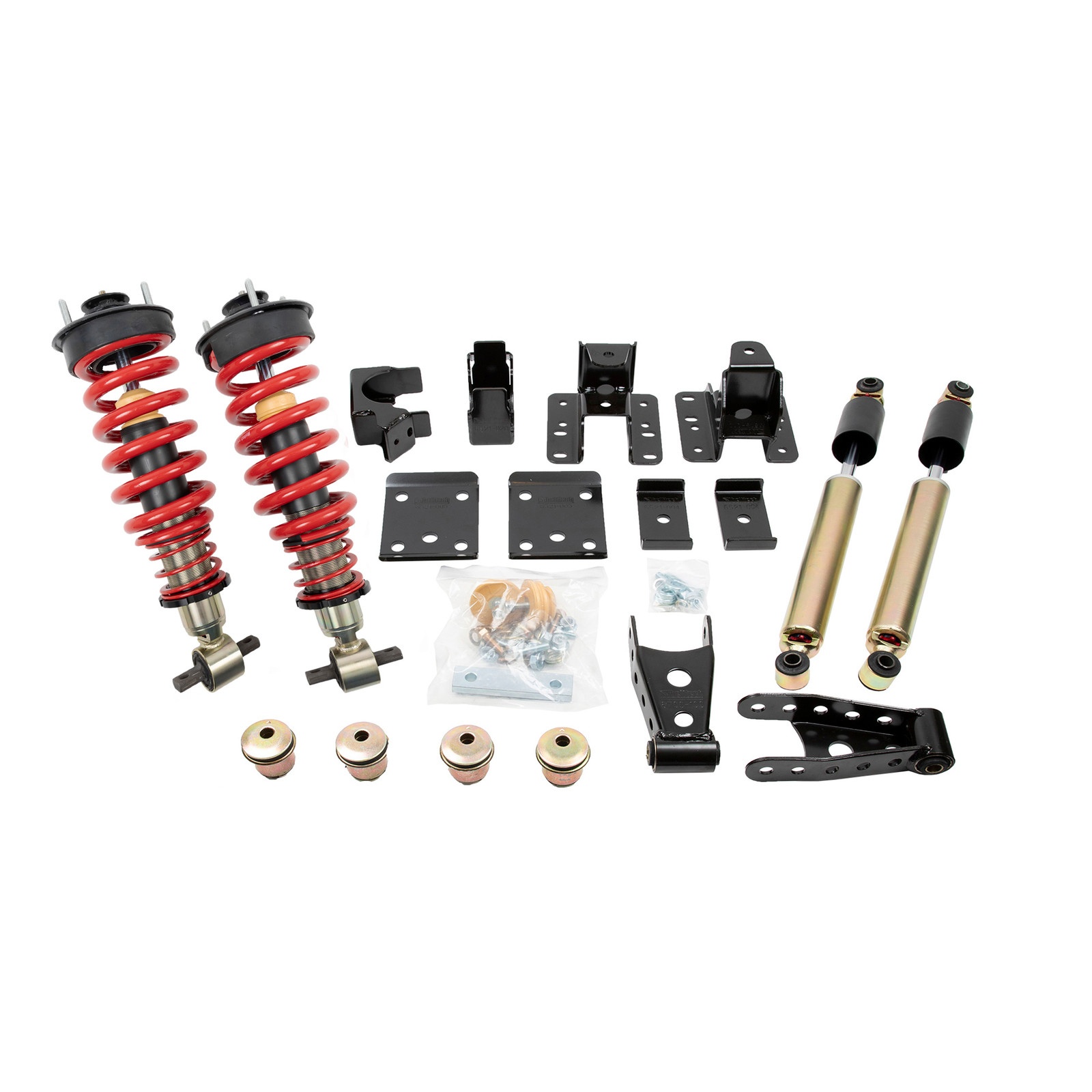

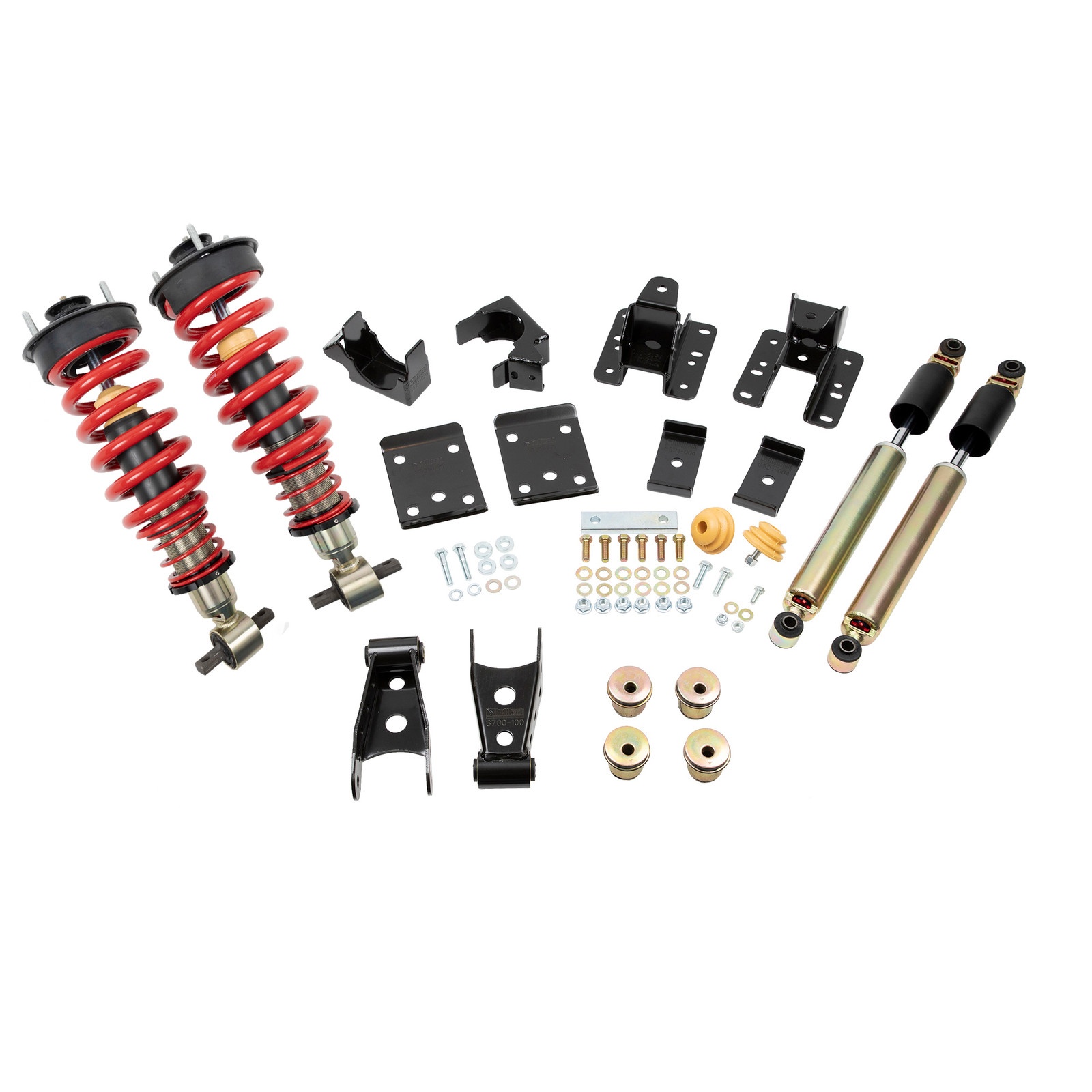

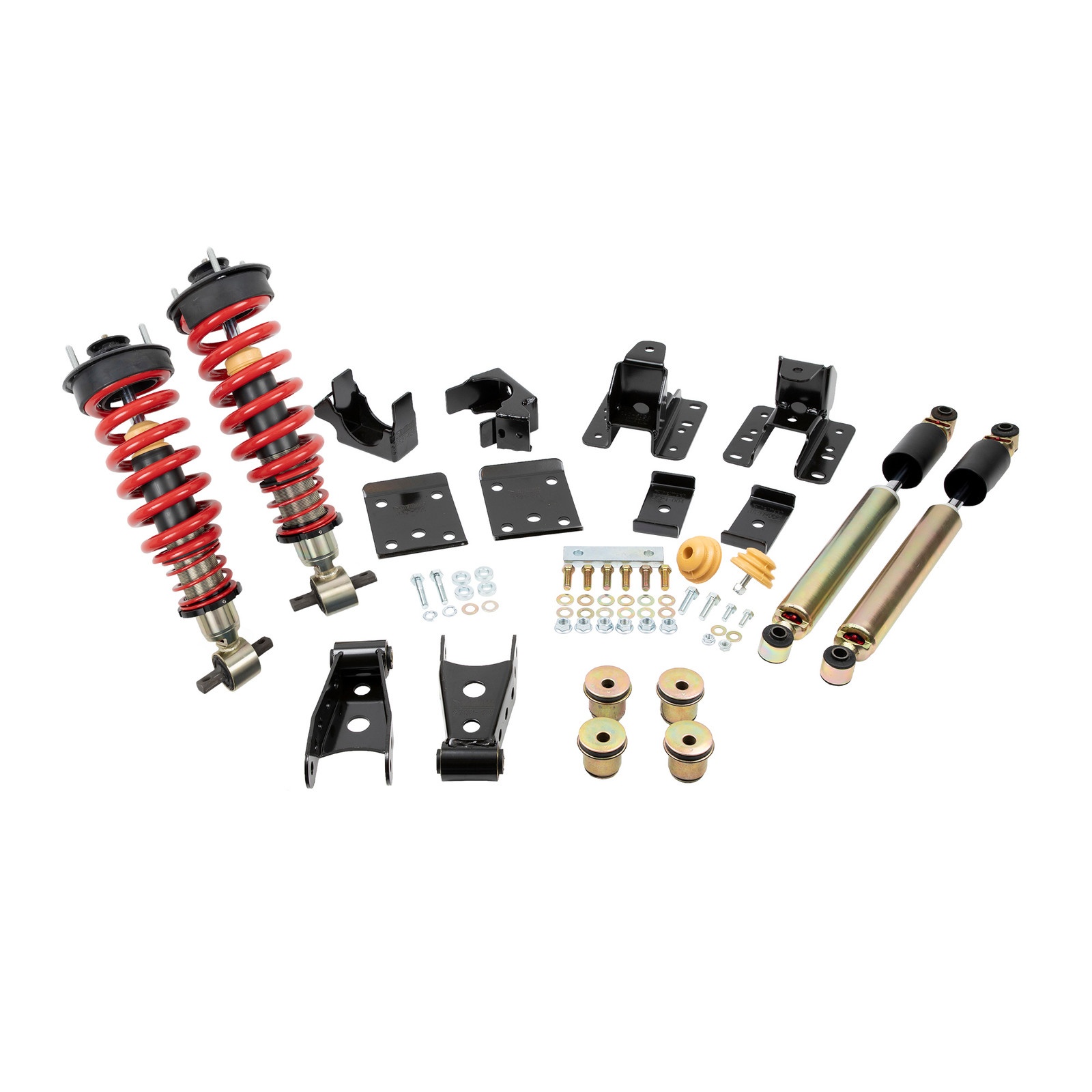

Outstanding performance, improved handling, and enhanced style are just a few of the upgrades you gain when swapping your OE suspension for Belltech’s 2021+ Ford F-150 2WD Performance Handling Lowering Kit. Our kit drops the front of your vehicle 3" to 5.5" and the rear 6.5", giving it a drastically improved appearance and a lower centre of gravity. With Belltech suspension, we go well beyond looks and deliver the ride quality you have been dreaming of. The kit includes Belltech coilovers containing preset Street Performance dampers in the front and preset Street Performance shocks in the rear. This advanced, meticulous technology is what gives you a smooth, even-feeling ride.

Belltech’s Performance Handling Lowering Kit takes you to the next level with a sturdy drop spindle set. The spindles bring your wheels’ mounting position higher in the wheel well to lower your F-150 2" closer to the ground. Belltech drop spindles are made of high-strength ductile iron and are powder-coated for a long-lasting, durable finish. The F-150 drop spindle is specifically designed to retain your truck’s factory suspension geometry. Robust Belltech lowering coilovers use high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech threaded damper with a large 2.4" (60mm) body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout suspension travel. The external threads and durable spring perch offer additional height adjustability from 1" to 3.5". We feature a large main spring and smaller helper spring, both made of cold-formed tensile steel and powder-coated to prevent rust and wear. A progressive-rate polymer, open-cell bump stop and OE-style top mounts simplify installation.

The rear end showcases Belltech preset Street Performance shocks perfectly tuned for your F-150. They feature large 2" (50mm) damper bodies and use 35mm independent rebound and compression valves to deliver precise, luxurious damping. Like the coilover dampers, our shocks are made with a low-friction design and use a rust-preventative coating to increase their lifespans. To achieve 6.5" of lowering, Belltech includes an easy-to-install flip kit and C-notch. The flip kit contains high-quality hardware and durable finished components. It seamlessly repositions your axle without interfering with any OE parts. The expertly engineered C-notch kit includes an outer frame plate with inside support plate for maximum frame rigidity and axle clearance.

Belltech’s Performance Handling Lowering Kit delivers advanced, meticulous technology to give you a smooth, balanced-feeling ride with an eye-catching, high-performance level.

• Lowering range: 2" to 5.5" front and 6.5" rear
• Complete ready-to-install front height adjustable coilovers
• Vehicle-specific factory preset damping
• 35mm independent rebound and compression valves
• Large 2.4" (60mm) Street Performance dampers at the front
• Street Performance 2" (50mm) shocks at the rear
• High-quality bolt-on flip kit with lift hangers
• Enhanced performance and handling
• Reduced body roll
• Improved ride quality
• Lowers centre of gravity
• Easy installation
