BELLTECH 1052SP LOWERING KIT W/ STREET PERFORMANCE SHOCKS

1052SP

Stock: Backorder Available

AU$POA

Description

Description

About this product

Technology is constantly changing and improving. At Belltech, we are dedicated to staying ahead of the game and strive to be the very best at delivering exceptional performance and handling you can feel. Our Street Performance lowering kits are no exception. We have engineered a product that will continually deliver the driving experience you seek.

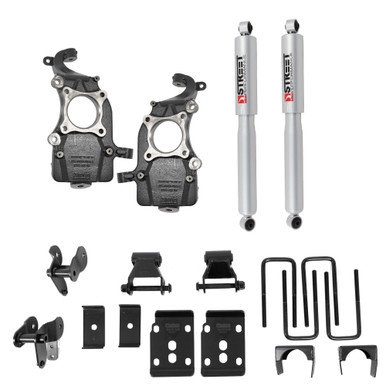

The kit includes two high-strength ductile spindles to lower the front of your vehicle by 2". To drop the rear of your vehicle 4.5", we include a Belltech flip kit, which relocates the axle without any negative interference with other vehicle components. The 1052SP kit goes beyond lowering and enhances the way your Ford performs by including two Belltech Street Performance shocks.

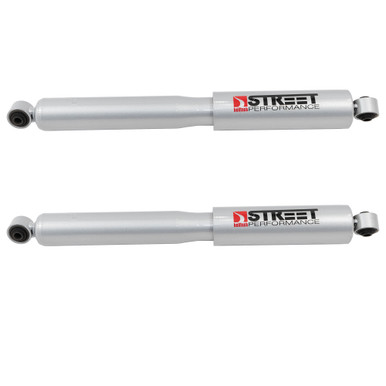

Each shock is made of powder-coated, heavy-duty galvanised steel so it will last and not rust over time. The shock's 35mm independent rebound and compression valves and low-friction design give it flawless damping, and the forces within each damper have been perfectly preset and tuned for your specific vehicle. Each shock also features a large 2.2" (55mm) body that holds increased amounts of oil to keep it cool and give you outstanding suspension behaviour even over long periods of time. To add strength and durability, a 15mm hardened chrome piston rod is applied. Create the ultimate driving machine with the help of our advanced Belltech Street Performance shocks.

  • Large, 2.2" (55mm) heavy-duty shock body
  • Sturdy 15mm piston rod
  • 35mm independent rebound and compression valves
  • High-strength ductile iron spindles provide 2" height reduction in the front
  • Belltech flip kit offers 4.5" drop in rear
  • Street Performance Shocks
  • Greater oil capacity
  • Improves vehicle handling and performance
  • Powder-coated for longevity
  • Rust resistant and protected from dirt and debris
  • Perfectly damped
  • Outstanding suspension behaviour
  • Low-friction design

Fitment

Fitment

YearMakeModelSubmodelDrive TypeEngineFuel TypeBody TypeNotes
2021 - 2023FordF-150King RanchRWD3.5LGASCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150King RanchRWD5.0LFLEXCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150LariatRWD2.7LGASCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150LariatRWD2.7LGASExtended Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150LariatRWD3.5LGASCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150LariatRWD3.5LGASExtended Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150LariatRWD5.0LFLEXCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150LariatRWD5.0LFLEXExtended Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150LimitedRWD3.5LGASCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150PlatinumRWD3.5LGASCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150PlatinumRWD5.0LFLEXCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2024 - 2025FordF-150STXRWD2.7LGASCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2024 - 2025FordF-150STXRWD2.7LGASExtended Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2024 - 2025FordF-150STXRWD5.0LFLEXCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2024 - 2025FordF-150STXRWD5.0LFLEXExtended Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2025FordF-150XLRWD2.7LGASCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2025FordF-150XLRWD2.7LGASExtended Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2025FordF-150XLRWD2.7LGASStandard Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150XLRWD3.3LFLEXCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150XLRWD3.3LFLEXExtended Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2023FordF-150XLRWD3.3LFLEXStandard Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2025FordF-150XLRWD3.5LGASCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2025FordF-150XLRWD3.5LGASExtended Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2025FordF-150XLRWD3.5LGASStandard Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"
2021 - 2025FordF-150XLRWD5.0LFLEXCrew Cab PickupF10: For Vehicles with a 2-piece driveline order CCB relocation kit #4993; F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD); Lowering Rate: F: 2" / R: 4.5"; BB: Minimum Wheel size 20"

Media

Media

Drop Spindle Set: PDF

Flip Kit: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Vehicle compatibility: 2021+ Ford F-150 2WD.
  • Lowering rate: Front 2", Rear 4.5".
  • Does not fit models equipped with Ford's Continuously Controlled Damping (CCD).
  • For vehicles with a 2-piece driveline, order CCB relocation kit #4993.
  • Minimum wheel size 20".
