About this product
Fits: 2016–2023 Toyota Tacoma 4WD (Excludes TRD Pro)

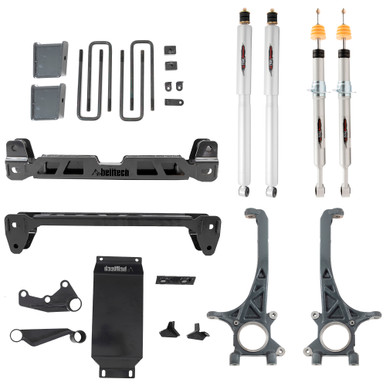

Durability, longevity, and versatility all come to mind when thinking of a Toyota Tacoma. Belltech mirrors these quality characteristics in our 3rd generation Toyota Tacoma 4WD complete lift kit. We have created something that takes your truck to entirely new levels of functionality and performance. The 154301TP complete kit features our height-adjustable Trail Performance struts in the front and rear Trail Performance Twin Tube shocks. Both the struts and shocks feature perfectly preset, low-friction dampers that are precisely tuned for your truck and do not lose damping forces over time or under stress. Using this advanced damper technology provides a smooth, high-quality ride.
The front end utilises an extremely successful grouping of components. The Trail Performance lift struts use an easy-to-place, ring spacer design that gives you height adjustability in ½" increments. Another successful component pairing is our Belltech lift spindles, which are made of ductile iron and powder-coated to increase longevity. Belltech lift spindles are purposely designed to reduce weight, increase strength, and keep proper ball joint angles. In keeping ideal ball-joint angles, we maintain factory geometry. Our kit also retains your vehicle's factory turning radius and does not increase track width. Also included in the front end are Belltech high clearance crossmembers constructed of ¼" thick steel. Our crossmembers are made to be immensely rigid. They bring down the control arms to maintain factory suspension geometry and integrate a mounting point for the differential. Connecting the crossmember to the differential are our diff drop-down brackets, which mimic OE alignment. Our kit makes it easy to reuse your OE skid plate but adds a lower ¼" thick skid plate to protect the differential. A steering stop bracket is used to prevent overextension of the steering rack, and sway bar relocation brackets reposition your OE sway bars to keep proper alignment.
At the rear, Belltech improves ride quality with Trail Performance Twin Tube Shocks. Heavy-duty powder-coated 5" steel lift blocks and extended length U-bolts add height and clearance, while a carrier bearing spacer drops the driveshaft down to maintain factory pinion angles.
We supply high-quality hardware and relocation brackets, placing brake lines in appropriate settings when necessary. We pair our phenomenal, long-lasting Belltech components with the factory alignment system making installation easy so you will have more time to explore. Take new roads and challenging terrain with Belltech's complete Tacoma lift kit.

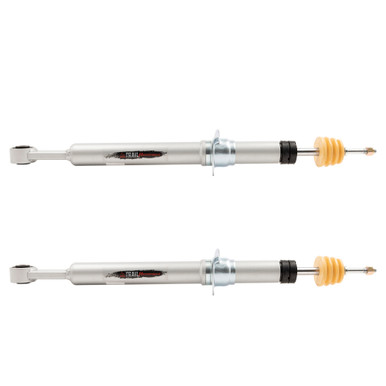

- Trail Performance height adjustable struts
- Trail Performance Twin Tube shocks
- Height adjustable 4" to 6"
- Retains factory alignment
- Maintains OE suspension geometry and factory turning radius
- Includes differential drop-down bracket
- Easy installation
- High-quality hardware
- Improved ride-quality
- Adds clearance
- Allows room for larger tyres/wheels
- ¼" thick skid plate protects differential
- Retains factory track width
- High-clearance, rigid crossmembers
