About this product
Part Number: 150203TPC
Fits: 2016–2018 GM Silverado/Sierra 1500 2WD/4WD

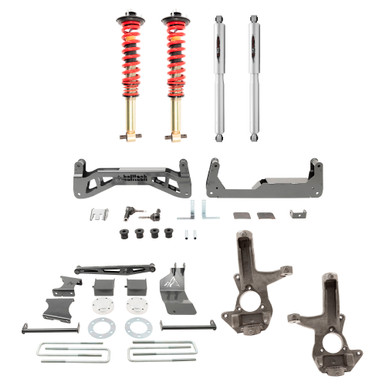

Choose advanced handling and performance for your 2016 to 2018 GM 1500 2WD/4WD with Belltech’s engineered 7" to 9" complete lift kit. This kit enhances your vehicle’s ride quality and outperforms other lift kits on the market with exacting design details that achieve a striking appearance and superior quality. Belltech engineers have tooled the GM 1500 lift kits to a T, improving ride quality and making advanced safety a top priority.
At the front, the kit includes 2.4" (60 mm) large-bodied, finely tuned, height-adjustable Trail Performance coilovers, which house increased oil volume and employ a low-friction design to give you consistent damping. The coilover damper bodies are threaded so you can position the spring perch to achieve a ride height from 7" to 9" of lift. The unique design uses a ¼" steel skid plate to shield the front differential. Heavy-duty lift spindles are used in place of your OE spindles to retain factory suspension geometry. To retain proper driveline angles we supply a differential drop kit. Belltech crossmembers are made of ¼" steel and powder-coated to prevent rust and wear.
For the rear, the GM Silverado/Sierra lift kit includes two vehicle-specific, precisely tuned preset Trail Performance lift shocks with large, 2.2" (55 mm) damper bodies for ideal damping and consistent results. Our shock methodology produces an exceedingly smooth ride, reducing the harshness of flawed roads or challenging trails. To get the rear level with the front we include two heavy-duty ¼" steel, 6" lift blocks with extended U-bolts.
Both front and rear hardware kits contain high-grade hardware and brake line relocation brackets to keep lines safely out of the way. Belltech lift kits improve handling, add clearance, and give you the option to use larger wheels and tyres, increasing your contact patch. Belltech lift kits undergo rigorous testing in extreme circumstances to deliver a high-performance, heavy-duty suspension solution.
- Lift range: 7"–9" front and 6" rear
- Complete ready-to-install front height-adjustable Trail Performance coilovers
- Coilovers contain large 2.4" (60 mm) Trail Performance dampers
- Vehicle-specific factory preset damping
- 35 mm independent rebound and compression valves
- Rear Trail Performance 2.2" (55 mm) shocks
- Robust 6" rear lift blocks with extended U-bolts
- Durable lift spindles
- ¼" steel brackets and crossmembers
- Improved ride quality over factory
- Precision designed and engineered in the USA
- Easy installation – minimal cutting, no welding needed, direct bolt-on kit
- Limited Lifetime Warranty
