BELLTECH 1105SPC PERFORMANCE COILOVER KIT W/ FRONT AND REAR HEIGHT ADJUSTABLE COILOVERS

1105SPC
Belltech

Stock: Backorder Available

AU$POA

Description

Description

About this product

Part Number: 1105SPC

Discover a new level of performance with the latest line of Belltech 2021+ GM SUV lowering kits. Our kit lowers the front of your vehicle 0” to −2” and −1” to −2.5” at the rear for an excellent stance and a lower centre of gravity. We go well beyond looks and deliver the ride quality you have been dreaming of.

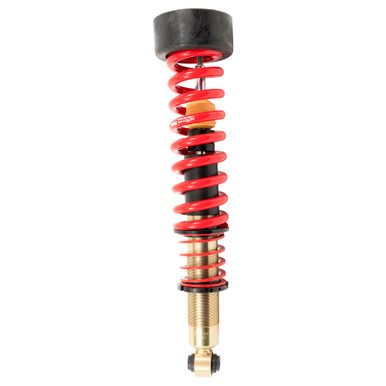

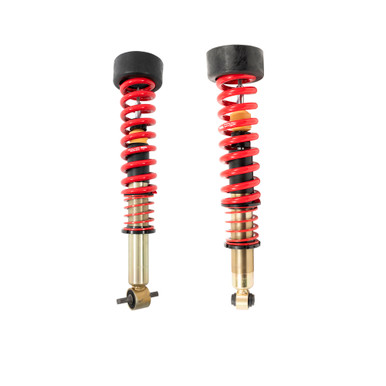

The front and rear suspension includes robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech damper that features a large, 2.4” (60 mm) damper body and 35 mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customisable height adjustability. We feature a large main spring and smaller helper spring. Both are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive-rate polymer, open-cell bump stop for ideal engagement, and the OE top mounts for simplified installation.

Belltech’s 2021+ GM SUV complete lowering kit brings out the best in your ride with eye-catching appearance and extraordinary performance. Easy installation plus quality components result in a refined ride for years to come.

  • Customisable front lowering options of 0” to −2”
  • Customisable rear lowering options of −1” to −2.5”
  • Large-bodied 2.4” (60 mm) preset Street Performance dampers
  • 35 mm independent rebound and compression valves
  • Cold-formed steel springs
  • Lowers centre of gravity
  • Preserves OE ride quality and suspension geometry
  • Easy to install
  • Engineered to exemplify ride quality and performance

Fitment

Fitment

YearMakeModelSubmodelDrive TypeEngineFuel TypeBody TypeNotes
2021 - 2025ChevroletTahoeLS4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletTahoeLSRWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletTahoeLT4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletTahoeLTRWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletTahoePremier4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2022 - 2025ChevroletTahoePremier4WD6.2LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletTahoePremierRWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2022 - 2025ChevroletTahoePremierRWD6.2LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletTahoeRST4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2022 - 2025ChevroletTahoeRST4WD6.2LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletTahoeRSTRWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2022 - 2025ChevroletTahoeRSTRWD6.2LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletTahoeZ714WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2022 - 2025ChevroletTahoeZ714WD6.2LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2024GMCYukonSLE4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2024GMCYukonSLERWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2024GMCYukonSLT4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2024GMCYukonSLTRWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.; CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.; Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"

Media

Media

Front Coilover Kit: PDF
Rear Coilover Kit: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Does not fit models equipped with ARC or Magnetic Ride (Mag Ride) shocks.
  • Rear upper control arm (UCA) part number 25122 is required when lowering more than 2" at the rear.
  • Lowering range: Front 0.5–2.0 inches / Rear 1.0–2.5 inches.
