2019–2023 Ford Ranger 2WD (All Cabs) Lowering Kit
Outstanding performance, superior handling, and brilliant style are just a few of the upgrades you receive when swapping your OE suspension for Belltech’s 2019+ Ford Ranger 2WD lowering kit. Our kit drops the front of your vehicle 0 to -2.75 inches and the rear -6 inches, giving it a profoundly improved appearance and a lower centre of gravity. With Belltech suspension, we go well beyond looks and produce the ride quality you have been anticipating.

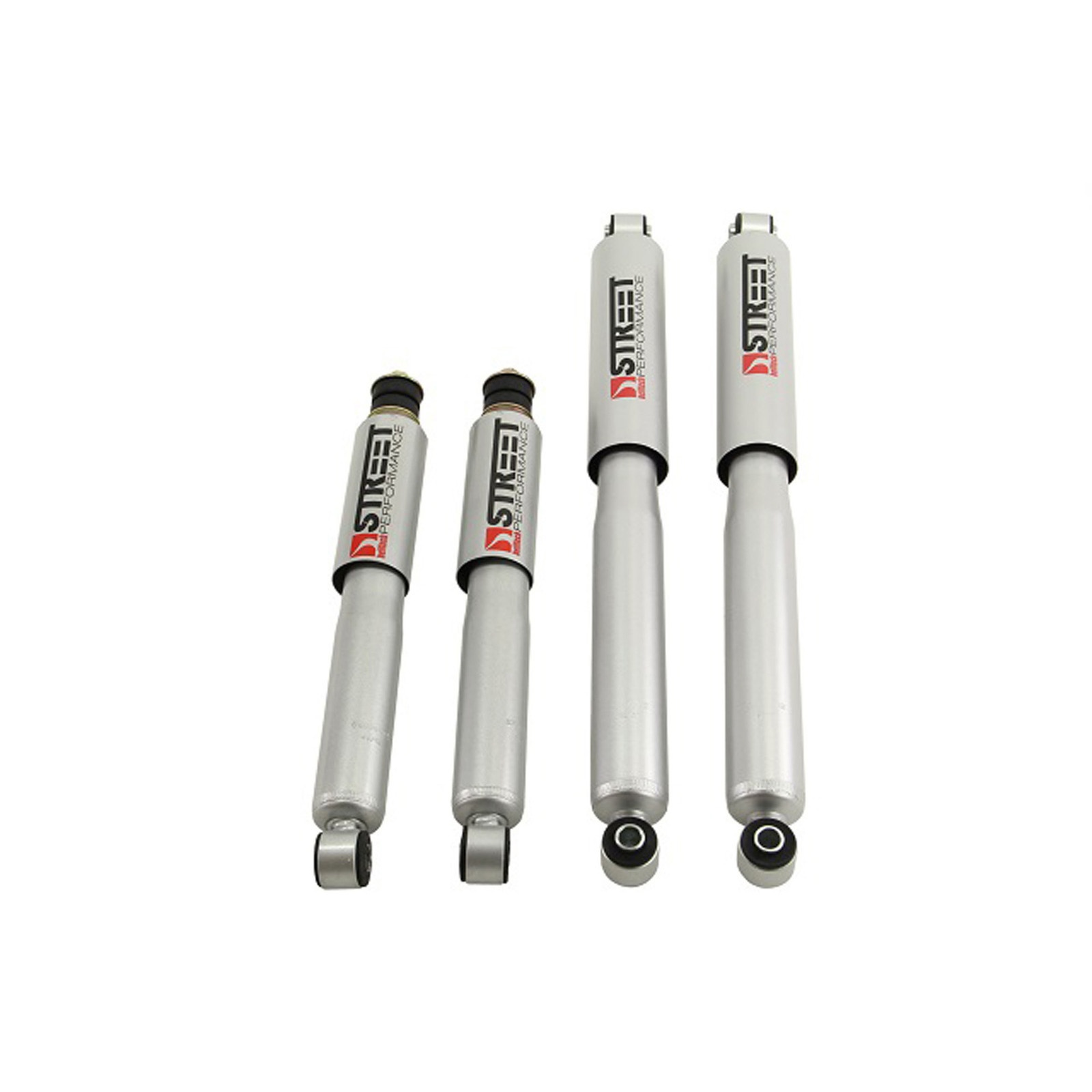

Our kit includes preset Belltech Street Performance struts in the front and preset Street Performance shocks in the rear. This sophisticated, precise technology gives you a smooth, even-feeling ride.
The front suspension includes our sturdy Belltech lowering struts with large 2 inch (50 mm) damper bodies and 35 mm independent rebound and compression valves. These keep oil cool and deliver consistent damping. A patented ring spacer design lets you customise ride height from 0 to -2.75 inches. The steel struts are painted for maximum resilience and use a progressive-rate polymer, open-cell bump stop and packers for ideal bump stop engagement. Also included are two durable, powder-coated, solid steel control arms designed to increase strength and reduce weight while retaining OE suspension geometry.
The rear features Belltech Street Performance shocks tuned for your Ford, with large 2.2 inch (55 mm) damper bodies and 35 mm independent rebound and compression valves for precise, luxurious damping. A low-friction design and rust-preventative coating increase lifespan. To achieve -6 inches of lowering, Belltech includes an easy-to-install flip kit with powder-coated axle saddles, U-bolts and shackles to reposition your axle without interfering with OE parts. The carrier bearing adapter corrects driveline angles.
Use Belltech’s 2019+ Ford Ranger 2WD lowering kit to elevate your truck to an eye-catching, high-performance level. You will be impressed with the superior handling and performance, making you want more time on the road.
- 0 to -2.75 inches in the front and -6 inches in the rear
- Large 2 inch (50 mm) Street Performance struts in front
- Street Performance 2.2 inch (55 mm) shocks in rear
- 35 mm independent rebound and compression valves
- Enhanced performance and handling
- Reduced body roll
- Improved ride quality
- Lowers centre of gravity
- Easy installation
- Vehicle-specific preset, consistent damping
- Powder-coated solid steel control arms
- High-quality flip kit
