Suspension V3 Leveling

3520825091

Stock: Backorder Available

AU$5,279.00 Inc GST

Description

Description

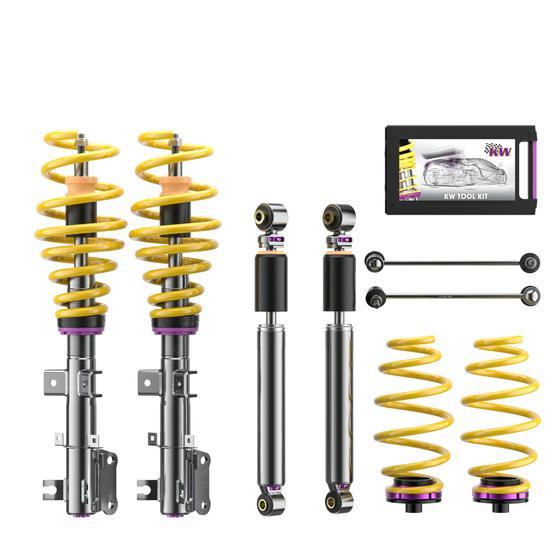

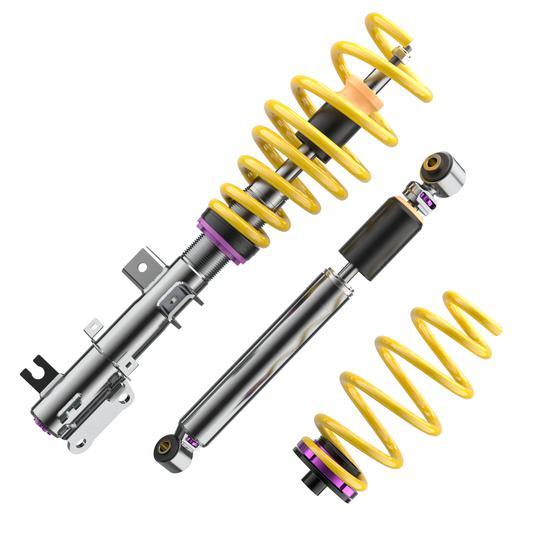

Suspension V3 Leveling

Invisible - but you can feel it!

The KW Leveling suspensions are ideal for drivers who are not looking for maximum lowering, but seeking the driving dynamics and comfort of a KW Coilover suspension in combination with the almost original manufacturer’s series floor clearance.

The KW Leveling suspensions focus on the combination of increased driving dynamics and comfort in connection with a minimum lowering or, if desired, raising of the suspension. The KW Leveling suspensions are the ideal retrofit suspensions for frequent drivers on poorly developed roads or drivers that use their car mainly in metropolises and urban areas than have numerous speed bumps. The progressive suspension springs are designed to give their spring rate a plus in driving comfort. Accordingly, the KW Leveling suspensions have an adjustable, comfort-oriented basic damper tuning. If required, the KW leveling enables an adapted level regulation in the range of + 5 - 20 mm.

The KW V3 Leveling suspension is the ideal retrofit option for drivers who are looking for everyday practicality, increased rolling comfort, and sportiness. The separately adjustable dampers in compression and rebound with their "TVR-A" and "TVC-A" technology allow extensive damper tuning. This makes it easy to additionally influence the steering behavior, directional stability, tire grip, and handling characteristics significantly for safe control at the limit and increased driving comfort.

- Rebound and compression damping adjustable damper technology
- Stainless steel technology "inox-line"
- Individual, continous level regulation
- tested adjustment range
- High quality components for a long life
- Complete documentation for an easy handling
- Adjustable rebound damping with 16 exact clicks
- Adjustable compression damping with 12 exact clicks
- Unique, independent from each other working damping force adjustment

Fitment

Fitment

MakeModelTypeChassisAspirationKWCCMCylDrivetrainReferences
MERCEDES-BENZV-CLASS (W447) 639_ 03/2014-V 200 CDI / d 4-maticMPVDiesel10021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZV-CLASS (W447) 639_ 03/2014-V 220 CDI / d 4-maticMPVDiesel12021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZV-CLASS (W447) 639_ 03/2014-V 220 CDI / d 4-matic (447811, 447813)MPVDiesel12019504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZV-CLASS (W447) 639_ 03/2014-V 250 BlueTEC / d 4-maticMPVDiesel14021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZV-CLASS (W447) 639_ 03/2014-V 250 CDI / d 4-matic (447811, 447813)MPVDiesel14019504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZV-CLASS (W447) 639_ 03/2014-V 300 CDI / d 4-matic (447.811, 447.813)BusDiesel17419504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZV-CLASS (W447) 639_ 03/2014-V 300 CDI / d 4-matic (447811, 447813)MPVDiesel17619504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Box (W447) 639_ 10/2014-114 CDI 4-matic (447.701, 447.703, 447.705)Box Body/EstateDiesel10019504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Box (W447) 639_ 10/2014-114 CDI 4x4 (447.601, 447.603, 447.605)BoxDiesel10021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Box (W447) 639_ 10/2014-116 CDI 4x4 (447.601, 447.603, 447.605)BoxDiesel12019504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Box (W447) 639_ 10/2014-116 CDI 4x4 (447.601, 447.603, 447.605)BoxDiesel12021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Box (W447) 639_ 10/2014-119 CDI / BlueTEC 4x4 (447.601, 447.603, 447.605)BoxDiesel14021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Box (W447) 639_ 10/2014-119 CDI 4x4 (447.601, 447.603, 447.605)BoxDiesel14019504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Dualiner (W447) 639_ 10/2014-114 CDI 4-matic (447.701, 447.703, 447.705)Box Body/EstateDiesel10019504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Dualiner (W447) 639_ 10/2014-114 CDI 4-matic (447.701, 447.703, 447.705)Box Body/EstateDiesel10021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Dualiner (W447) 639_ 10/2014-116 CDI 4-matic (447.701, 447.703, 447.705)Box Body/EstateDiesel12019504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Dualiner (W447) 639_ 10/2014-116 CDI 4-matic (447.701, 447.703, 447.705)Box Body/EstateDiesel12021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Dualiner (W447) 639_ 10/2014-119 BlueTEC 4-matic (447.701, 447.703, 447.705)Box Body/EstateDiesel14021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Dualiner (W447) 639_ 10/2014-119 CDI 4-matic (447.701, 447.703, 447.705)Box Body/EstateDiesel14019504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Dualiner (W447) 639_ 10/2014-124 CDI 4-matic (447.701, 447.703, 447.705)VanDiesel17419504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Dualiner (W447) 639_ 10/2014-124 CDI 4-matic (447.701, 447.703, 447.705)Box Body/EstateDiesel17619504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Tourer (W447) 639_ 10/2014-114 CDI / 114 BlueTEC 4-matic (447.701, 447.703,...BusDiesel10021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Tourer (W447) 639_ 10/2014-114 CDI 4-matic (447.701, 447.703, 447.705)BusDiesel10019504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Tourer (W447) 639_ 10/2014-116 CDI / 116 BlueTEC 4-matic (447.701, 447.703,...BusDiesel12021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Tourer (W447) 639_ 10/2014-116 CDI 4-matic (447.701, 447.703, 447.705)BusDiesel12019504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Tourer (W447) 639_ 10/2014-119 CDI / 119 BlueTEC 4-matic (447.701, 447.703,...BusDiesel14021434All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Tourer (W447) 639_ 10/2014-119 CDI 4-matic (447.701, 447.703, 447.705)BusDiesel14019504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Tourer (W447) 639_ 10/2014-124 CDI 4-matic (447.701, 447.703, 447.705)BusDiesel17419504All-wheel Drive2, 8, 67, 406
MERCEDES-BENZVITO Tourer (W447) 639_ 10/2014-124 CDI 4-matic (447.701, 447.703, 447.705)BusDiesel17619504All-wheel Drive2, 8, 67, 406

Media

Media

Parts Approval: PDF

Installation Instruction: PDF

Adjustment Manual: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Note 406: Suitable for vehicles with a wheelbase of up to 3.200mm

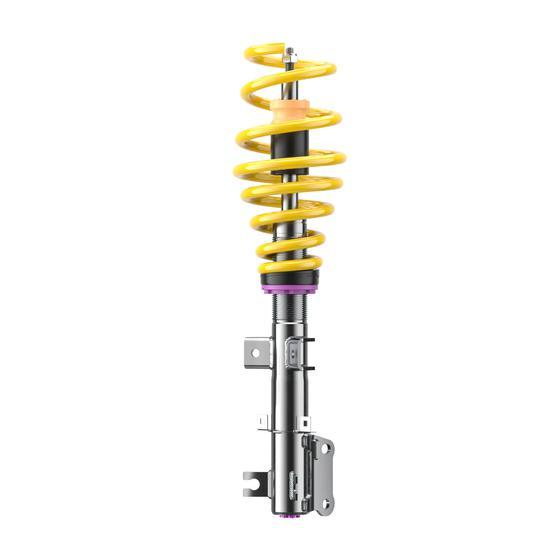

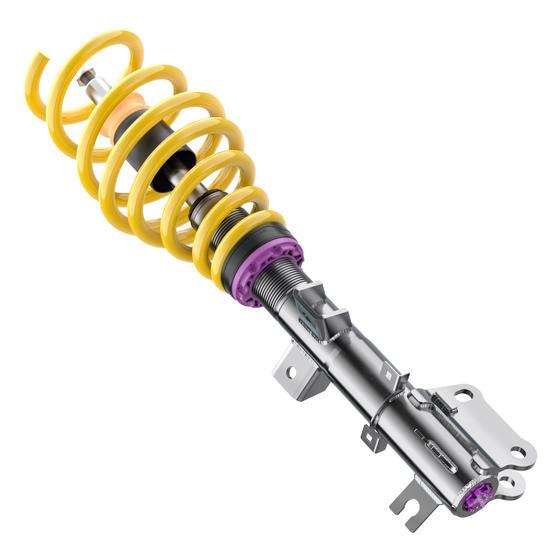

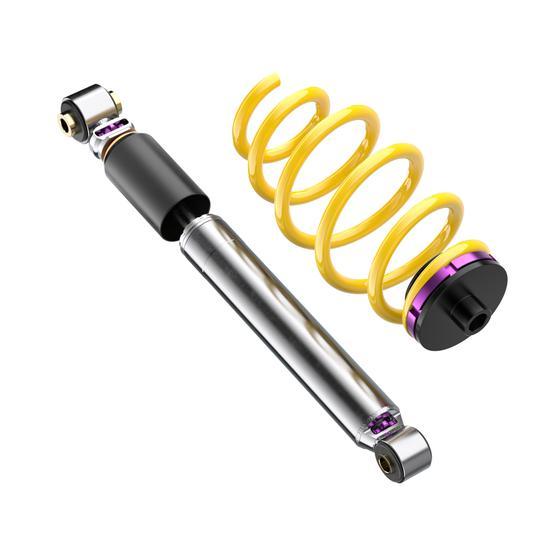

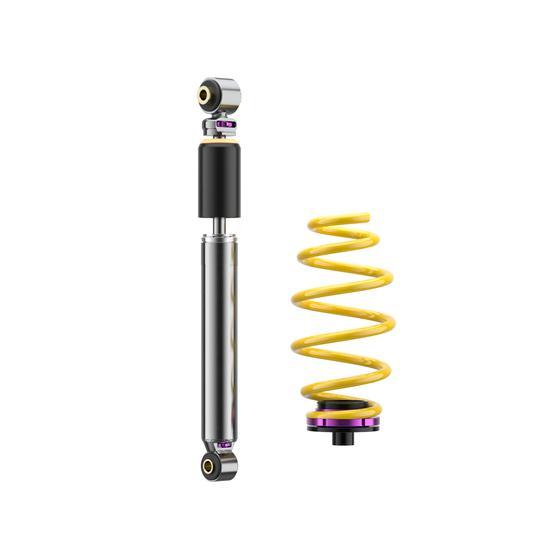

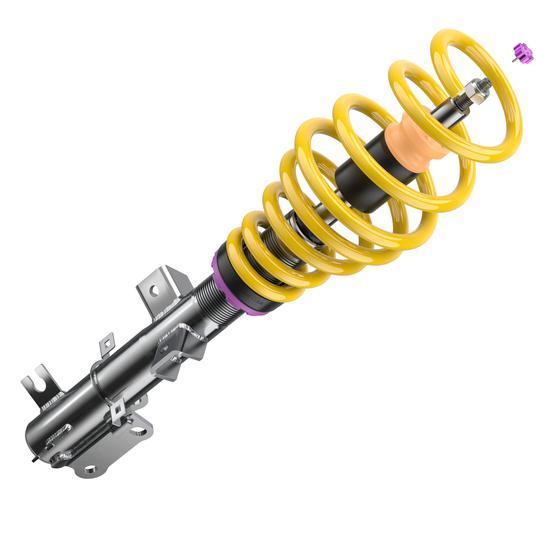

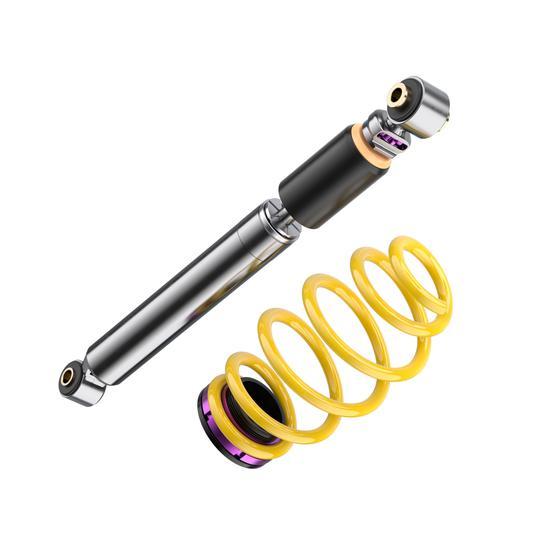

  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
  • Note 8: Not for vehicles with automatic self leveling control / air suspension
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
