About this product

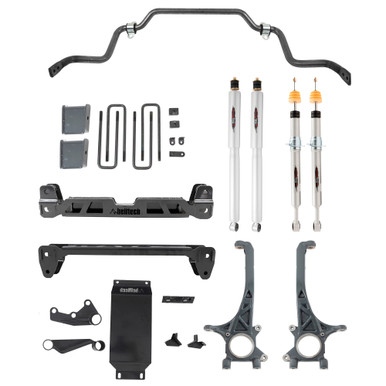

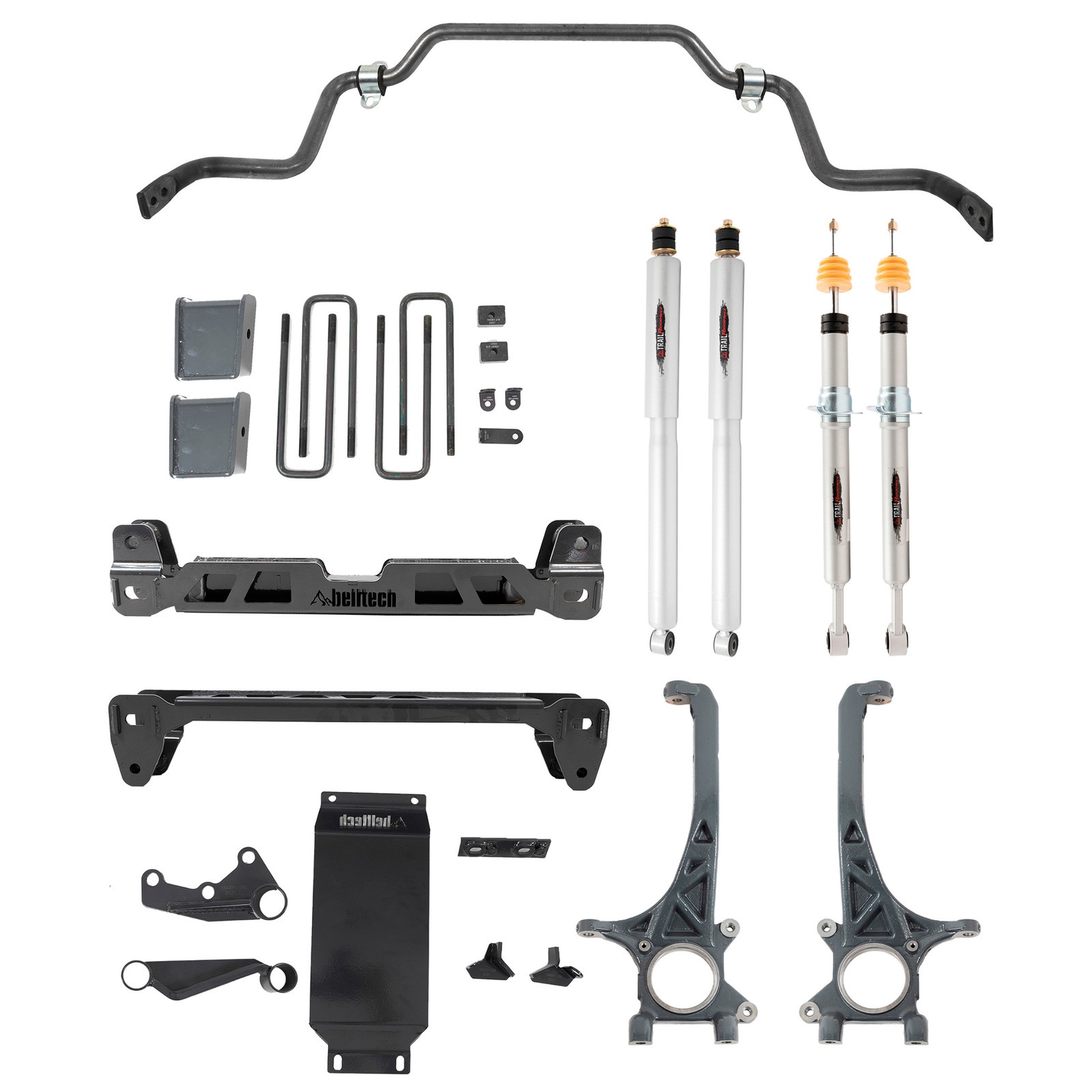

Durability, longevity, and versatility all come to mind when thinking of a Toyota Tacoma. Belltech mirrors these quality characteristics in our 3rd generation Toyota Tacoma 4WD complete lift kit. The 154301TPS complete kit features our height-adjustable Trail Performance struts in the front and rear Trail Performance Twin Tube shocks. Both the struts and shocks feature perfectly preset, low-friction dampers that are precisely tuned for your truck and do not lose damping forces over time or under stress. Using this advanced damper technology provides a smooth, high-quality ride.

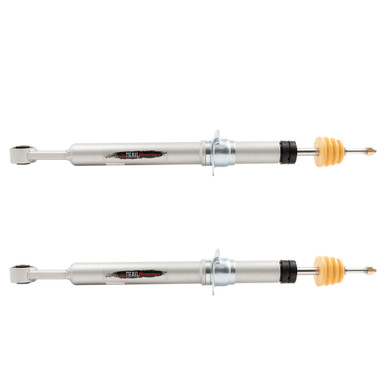

The front end utilises a successful grouping of components. The Trail Performance lift struts feature an easy-to-place, ring spacer design for height adjustability in ½" increments. Our Belltech lift spindles are made of ductile iron and powder-coated to increase longevity. Our spindles are purposely designed to reduce weight, increase strength, and retain proper ball joint angles. In keeping ideal ball-joint angles, we retain factory geometry and turning radius while preventing increased track width. Included are front end high clearance cross members constructed of ¼" thick steel. Our cross members are made to be immensely rigid and bring down the control arms to retain factory suspension geometry and integrate a mounting point for the differential. Connecting the cross member to the differential are drop-down brackets to mimic OE alignment. Our kit uses the OE skid plate and adds a lower ¼" thick skid plate to protect the differential. A steering stop bracket is used to prevent overextension of the steering rack, and our front anti-sway bar improves handling and reduces body roll. The sway bar is designed specifically for the Tacoma with a robust construction of cold-formed 1 3/8" solid steel and powder coated to increase longevity.
At the rear, Belltech improves ride quality with Trail Performance Twin Tube Shocks. Heavy-duty powder-coated 4" steel lift blocks and extended length U-bolts add height and clearance, while a carrier bearing spacer drops the driveshaft down to retain factory pinion angles.
High-quality hardware and relocation brackets place brake lines in appropriate settings when necessary. Our phenomenal, long-lasting Belltech components with the factory alignment system make installation easy. Take new roads and challenging terrain with Belltech's complete Tacoma lift kit.
- Trail Performance height adjustable struts
- Trail Performance Twin Tube shocks
- 1 3/8" cold-formed solid steel front anti-sway bar
- Height adjustable 4" to 6"
- Retains factory alignment
- Maintains OE suspension geometry and factory turning radius
- Includes differential drop-down bracket
- Easy installation
- High-quality hardware
- Improved ride quality
- Adds clearance
- Allows room for larger tyres/wheels
- ¼" thick skid plate protects differential
- Retains factory track width
- High-clearance, rigid cross members
