About this product

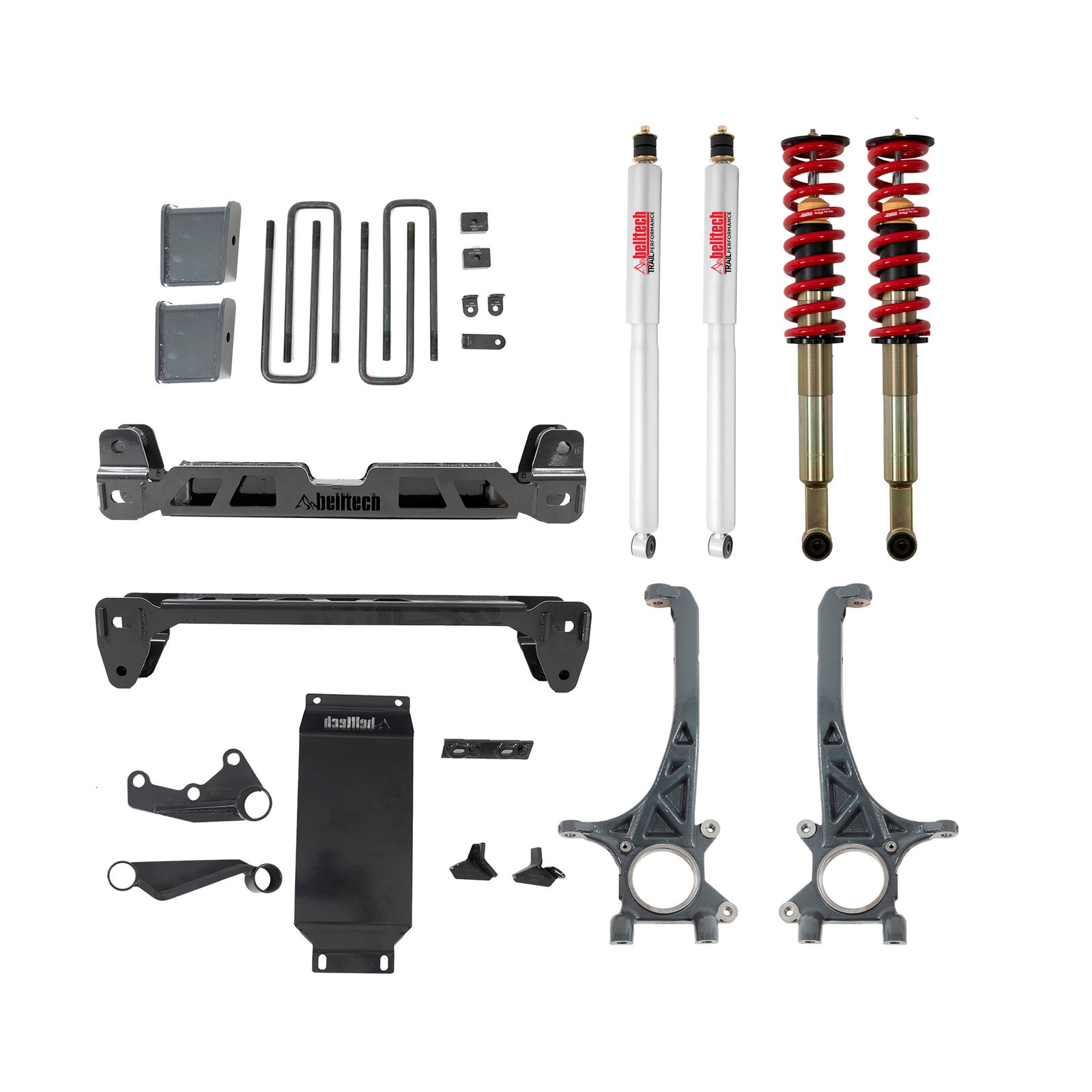

Durability, longevity, and versatility all come to mind when thinking of a Toyota Tacoma. Belltech mirrors these quality characteristics in our 3rd generation Toyota Tacoma 4WD complete lift kit. We have created something that takes your truck to entirely new levels of functionality and performance. Featuring height-adjustable Trail Performance coilovers for the front and rear Trail Performance Twin Tube shocks. Both the coilovers and shocks feature perfectly preset, low-friction dampers that are precisely tuned for your truck and do not lose damping forces under stress or over time. Belltech's advanced damper technology provides a smooth, high-quality ride.

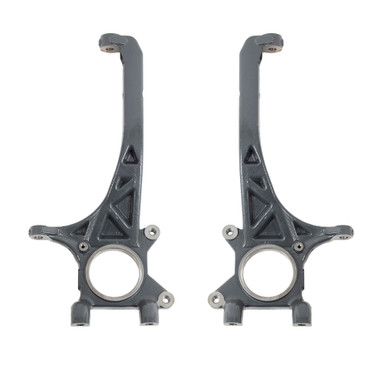

The front end utilises an extremely successful grouping of components. The Trail Performance lift coilovers feature an easy-to-place spring perch and threaded damper design that allows precise lift placement from 4" to 6" in ride height. Another successful component pairing is our Belltech lift spindles, which are made of ductile iron and powder-coated to increase longevity. Belltech lift spindles are purposely designed to reduce weight, increase strength, keep proper ball joint angles, and retain factory geometry. We also retain factory turning radius and do not increase track width. For the end you will add Belltech high clearance cross members constructed of ¼" thick steel. Our cross members are made to be immensely rigid while helping to bring down the control arm angles to maintain factory suspension geometry and integrate a mounting point for the differential. Connecting the cross member to the differential are our drop-down brackets, which mimic OE alignment. Our kit makes it easy to reuse your OE skid plate but adds a lower ¼" thick skid plate to protect the differential. A steering stop bracket is used to prevent overextension of the steering rack, and a front anti-sway bar is included to improve handling and reduce body roll.
At the rear, Belltech improves ride quality with custom-tuned Trail Performance Twin Tube Shocks. Heavy-duty powder-coated 4" steel lift blocks and extended length U-bolts add height and clearance, while a carrier bearing spacer drops the driveshaft down to maintain factory pinion angles.
We top it off with high-quality hardware and relocation brackets, placing brake lines in appropriate settings when necessary. We pair our phenomenal, long-lasting Belltech components with the factory alignment system making installation easy. Take new roads and tackle more challenging terrain with Belltech's complete Tacoma lift kit.
- Height adjustable 4" to 6"
- Uniquely engineered Trail Performance height adjustable coilovers
- Trail Performance Twin Tube shocks
- Includes differential drop-down bracket
- ¼" thick skid plate protects differential
- Retains factory alignment
- Maintains OE suspension geometry and factory turning radius
- Easy installation
- High-quality hardware
- Improved ride-quality
- Adds clearance
- Allows room for larger tyres/wheels
- Retains factory track width
- High-clearance, rigid cross members
- Precision designed and engineered in the USA
