About this product
Fits: 2019–2024 Ram 1500 2WD
Belltech is excited to announce our Suspension Lift Kit Systems for the 2019+ Ram 1500 2WD. Belltech lift kits are precision engineered in the US.

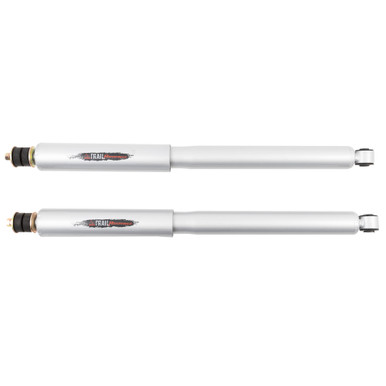

Belltech's precisely engineered 153713BK kit includes our rear Trail Performance twin-tube shocks. This lift kit not only improves ride quality but also preserves factory alignment cams and specifications, retains the factory track width, and most importantly, does not induce bump steer. Our Belltech lift kit keeps the steering nice and tight.

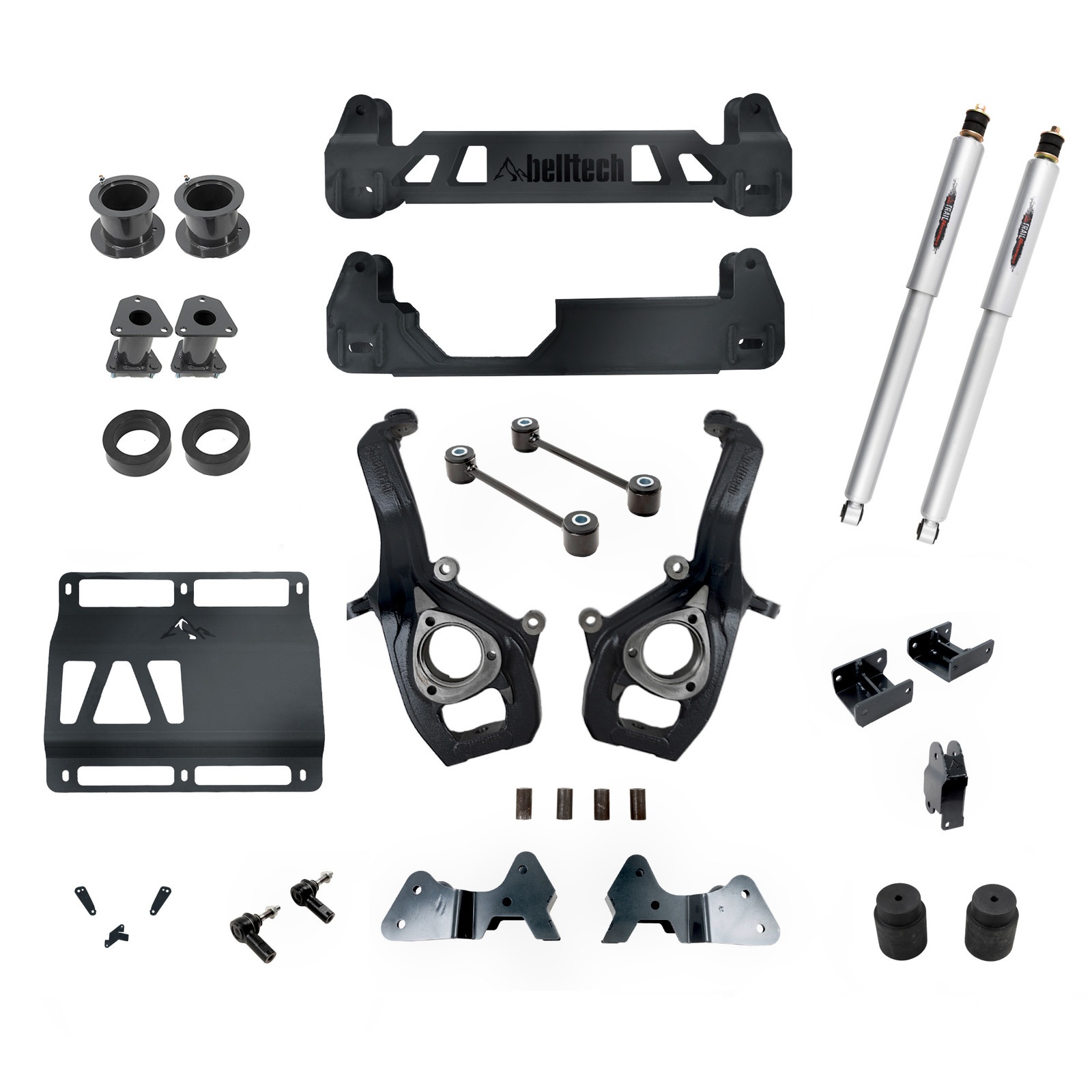

Starting with the front end, our kit uses durable strut spacers and preload spacers to achieve a full 7" of lift. The front end also includes replacement spindles, which are purposely engineered to improve strength and reduce weight while amplifying durability. Belltech lift kits preserve your factory turning radius and steering angle. The kits contain a 1/4" thick laser-cut skid plate to protect your ride’s front differential and increase rigidity when tackling off-road terrain. We also include easy-to-install, durable outer tie rods. Rounding out the front end are our 1/4" thick high-clearance cross-members, a front stainless-steel braided brake line, and a billet aluminium driveshaft spacer.
To achieve lift in the rear of the vehicle, we use two heavy-duty spring spacers. Belltech engineers have developed a rear control arm drop-down bracket that keeps everything centred. Our rear control arm drop-down bracket maintains the OE anti-squat and rear axle/suspension dynamics while driving. Without retaining the OE anti-squat, it can mimic a stiff spring rate, leaving you with an unsafe feeling ride, especially in inclement weather. Our control arm drop-down maintains all of that, improves ride quality, and improves vehicle safety with increased wet and dry weather grip at the rear. Also included for the rear are brake line relocation brackets, extended length sway bar links, rear Belltech twin-tube custom-tuned Trail Performance shocks, rear bump stop extensions, and a track bar relocation bracket to centre the axle, preventing swaying and rolling while turning.
Another great benefit of our Belltech Lift Kits is that they are an easy-to-install, direct bolt-on solution with high-quality hardware that requires no welding. Our Belltech Suspension Lift Kits also feature a Limited Lifetime Warranty.
Wheel and tyre combinations
- 35"x12.5" w/ 20x10 and -18 offset
- 35"x12.5" w/ 20x10 and -19 offset
- 35"x12.5" w/ 20x10 and -25 offset
- 35"x12.5" w/ 20x9 and +0 offset
- 35"x12.5" w/ 20x9 and +1 offset
- 35"x12.5" w/ 20x9 and -12 offset
- 35"x12.5" w/ 22x10 and -18 offset
- 35"x12.5" w/ 22x10 and -19 offset
- 35"x12.5" w/ 22x10 and -25 offset
